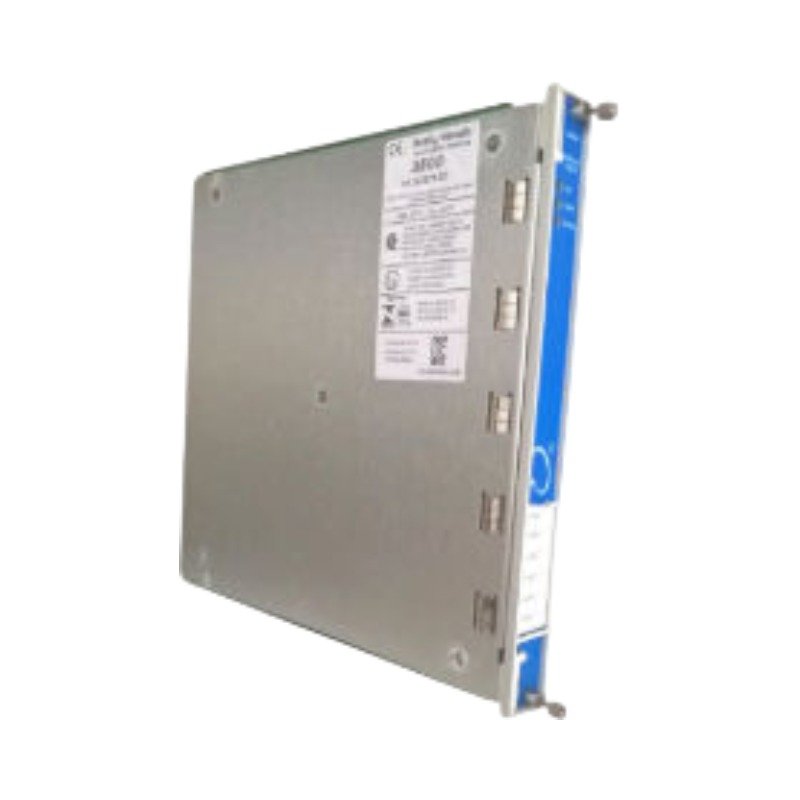

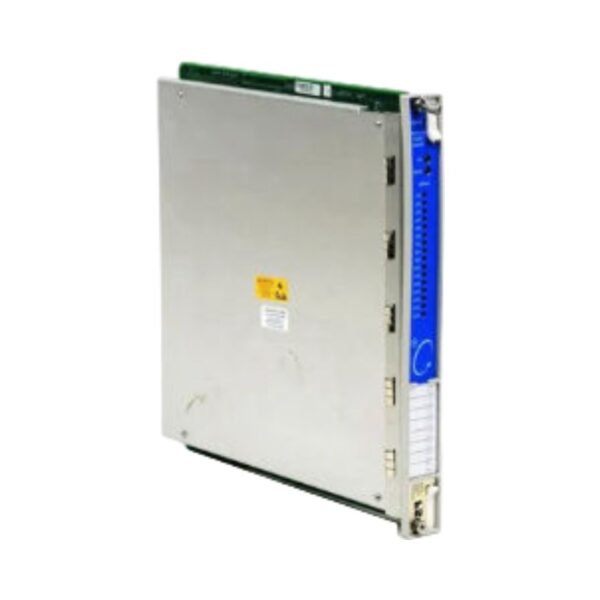

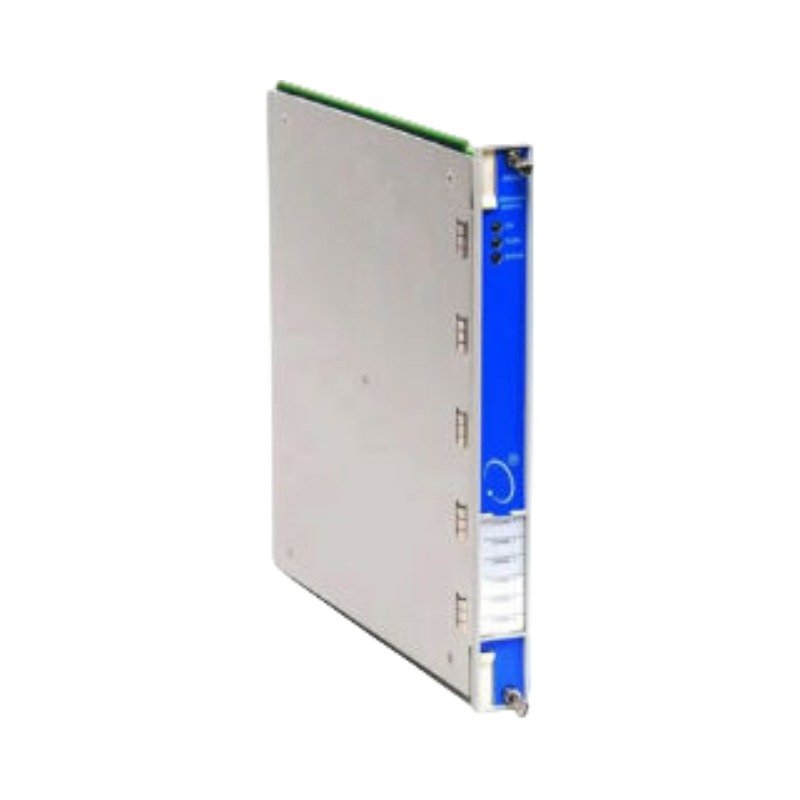

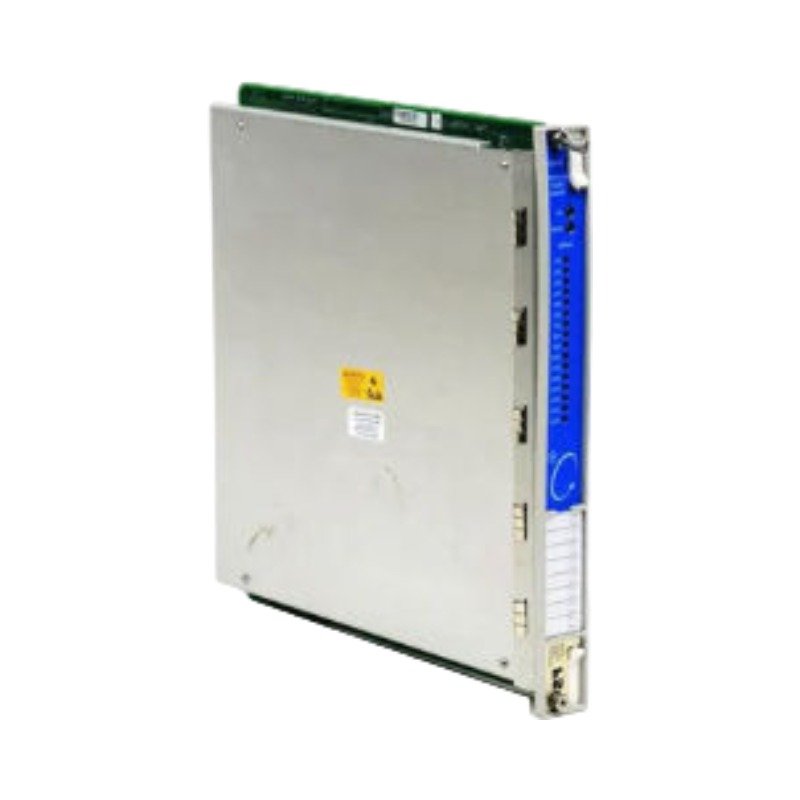

Bently Nevada 136179-01 3500 Series Proximitor Monitor Module
Order the 136179-01 proximity monitor module. Brand new, original stock, with global shipping available.
Description
The Bently Nevada 136179-01, also cataloged as the 136179-01 Proximitor Monitor Module, operates as a dedicated hardware component for continuous machinery protection and shaft vibration monitoring within 3500 Series Monitoring System platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 136179-01 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 0.45 kg |
| Dimensions | 241 mm x 24.4 mm x 163 mm |
| Operating Temp | -30 deg C to +65 deg C |
| Power Consumption | 7.7 W maximum |
| Inputs | 4 proximity transducer signals |
| Signal Conditioning | Analog internal sampling |
| Backplane Isolation | 500 Vrms galvanic isolation |
Machinery Monitoring & TSI Characteristics
The Bently Nevada 136179-01 executes real-time eddy-current probe scaling to convert raw proximity sensor data into precise mechanical engineering units. During commissioning loops, field technicians perform gap voltage validation (-10 VDC targets) to ensure the connected proximity transducers operate within their linear calibration range. The module prioritizes rotor dynamics analysis by tracking dynamic structural deflections, while integrated cross-talk suppression algorithms isolate adjacent transducer signals to prevent channel interference along closely spaced shaft locations.
Frequently Asked Questions
Q: How do technicians verify the physical probe positioning before finalizing configuration?
A: Technicians perform gap voltage validation (-10 VDC targets) via the 3500 configuration software or buffered outputs, which confirms that the transducer operates in the center of the linear calibration envelope.
Q: Can the 136179-01 module be replaced while the 3500 rack is powered?
A: Yes, the module supports live insertion and removal (hot-swap capability) without disrupting the operations of adjacent monitor modules within the same backplane rack structure.
Field Installation Guidelines
- Chassis Insertion: Slide the module firmly along the upper and lower chassis guide rails until the backplane connectors fully engage, then secure the front panel thumbscrews to ensure proper chassis grounding.
- Transducer Shield Grounding: Terminate the coaxial or twisted-pair transducer shields exclusively at the designated system ground bus within the 3500 rack, maintaining isolation from the machine casing to prevent ground loops.
- Wiring Separation: Route all 3-wire transducer field cables through dedicated, isolated conduits, separating them from high-voltage motor supply runs and switching control circuits to minimize electromagnetic interference.
Additional information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 26 × 18 × 12 mm |
