Description

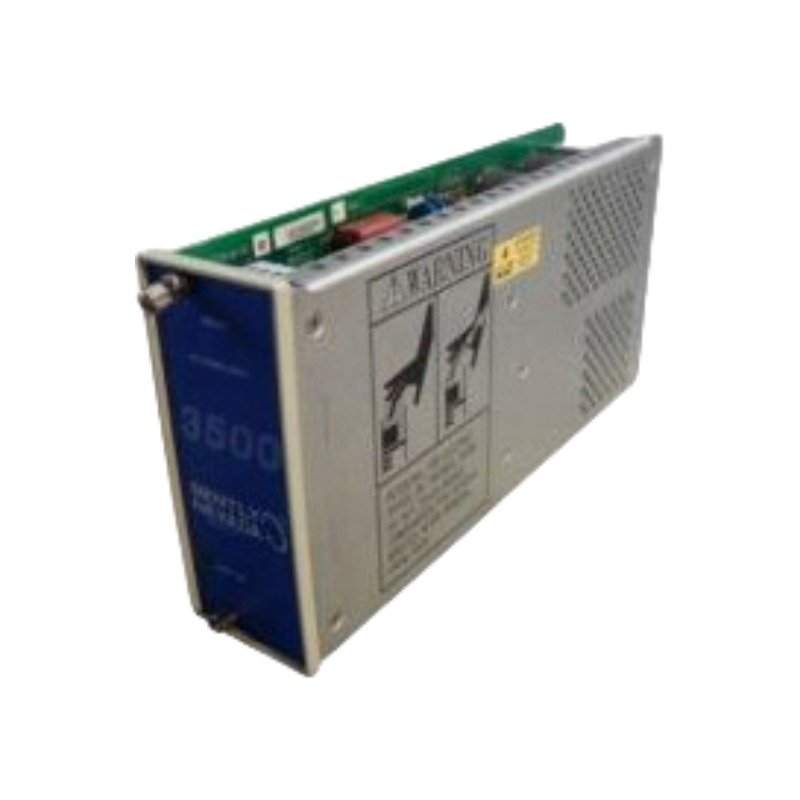

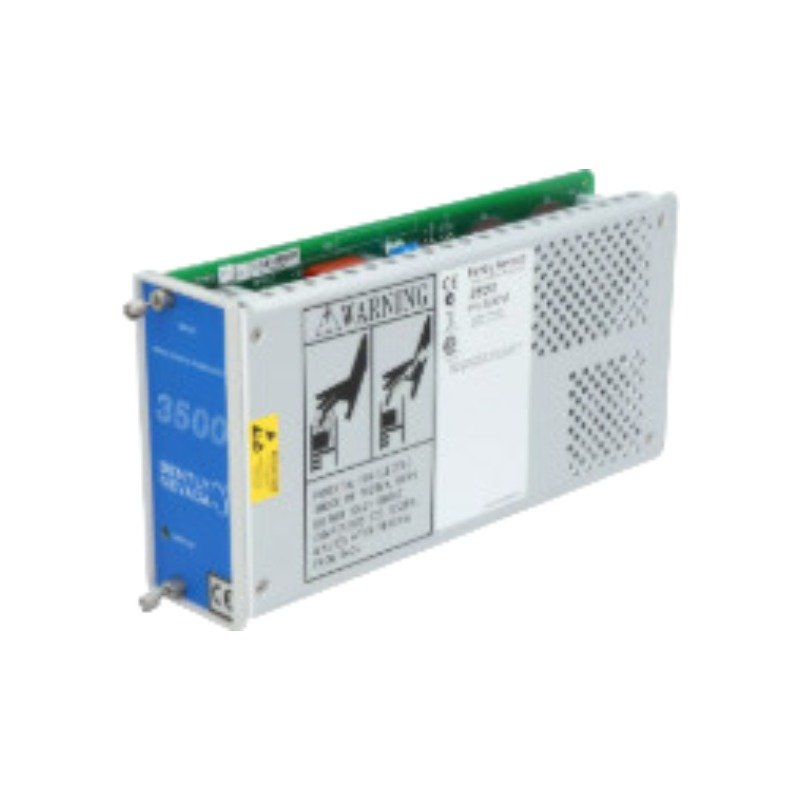

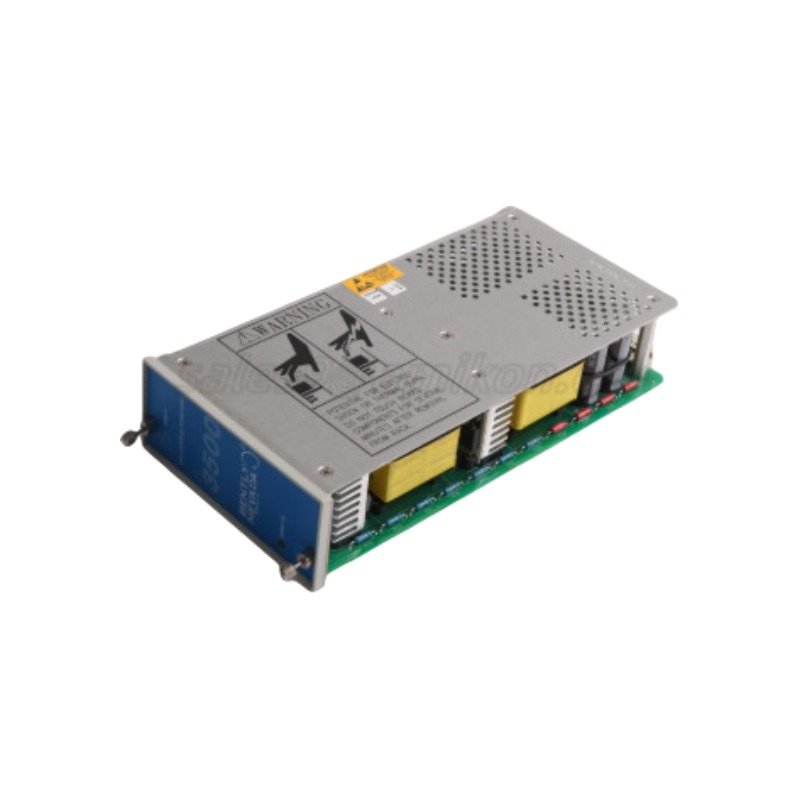

The Bently Nevada 5292-04 operates as a reliable proximity transducer interface module engineered for harsh industrial condition monitoring applications. This high-performance hardware assembly processes raw analog signals captured by eddy-current proximity probes and converts them into linear voltage signals. Consequently, the device allows continuous monitoring systems to track shaft vibration, radial displacement, and axial thrust position on vital industrial assets like high-speed turbomachinery, pumps, and process compressors. By delivering real-time, non-contacting displacement data, this module helps maintenance teams isolate internal mechanical faults before they cause severe structural damage.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

The 5292-04 uses internal signal conditioning circuitry to maintain accurate eddy-current probe scaling, converting mechanical shaft movement into an industrial-standard 200 mV/mil output. Because improper probe alignment skews baseline measurements, field technicians must conduct an exacting gap voltage validation during physical commissioning. Technicians adjust the proximity probe within its mounting sleeve until the static DC signal matches the standard -10 VDC targets, ensuring that the sensor operates at the center of its linear range. This alignment step allows the module to log high-amplitude rotor dynamics without experiencing clipping or signal saturation during machine transients. Furthermore, the robust module casing design ensures optimal cross-talk suppression, preventing high-frequency electromagnetic noise from bleeding between closely grouped multi-channel sensor loops inside the machine terminal panel.

Frequently Asked Questions

Q: Can a technician safely hot-swap the 5292-04 module while the machinery monitoring panel is powered? A: No, you should not hot-swap this module while the -24 VDC power feed is active. Pulling the module under an active electrical load can induce voltage transients that risk degrading the sensitive internal oscillator stages. Therefore, you must isolate the power circuit before replacing or maintaining the unit.

Q: What happens if the physical cable length does not match the module’s calibration profile? A: If you mismatch the total physical length of the probe and extension cable, the system’s resonant electrical balance changes. Consequently, this mismatch shifts the factory-calibrated eddy-current probe scaling, rendering the 200 mV/mil output factor inaccurate and distorting your critical vibration data.

Field Installation Guidelines

• Conduct Precise Mechanical Gapping: Connect a digital voltmeter across the signal outputs during setup. Thread the probe closer to the target shaft until the static output hits the required -10 VDC target baseline, confirming that the probe sits exactly in the middle of its calibrated linear band.
• Isolate Coaxial Extensions: Wrap all coaxial connector junctions securely using self-fusing insulating tape. This preventative measure stops the metal connector housings from accidentally contacting the machine chassis, thereby eliminating ground loop interference.
• Enforce Single-Point Grounding: Terminate the field cable shielding exclusively at the instrument ground screw on the 5292-04 panel side. Concurrently, maintain complete electrical isolation at the machine casing side to ensure clean cross-talk suppression.
• Avoid Hard Cable Bends: Route all extension cables through protective conduits and observe the maximum allowable bend radii. Avoiding sharp crimps protects the coaxial impedance profile and preserves long-term signal tracking accuracy.
