Description

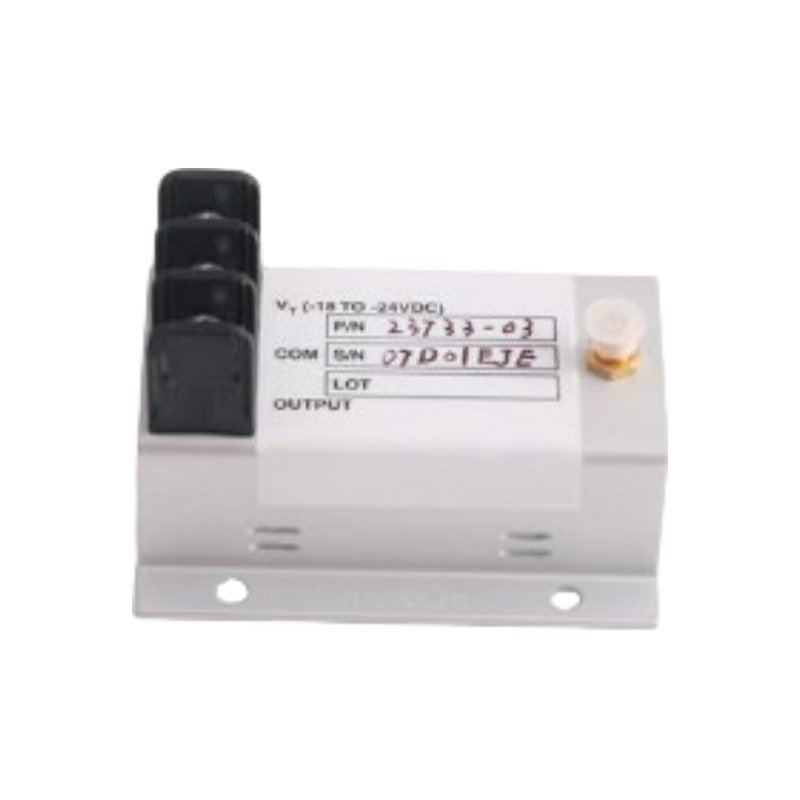

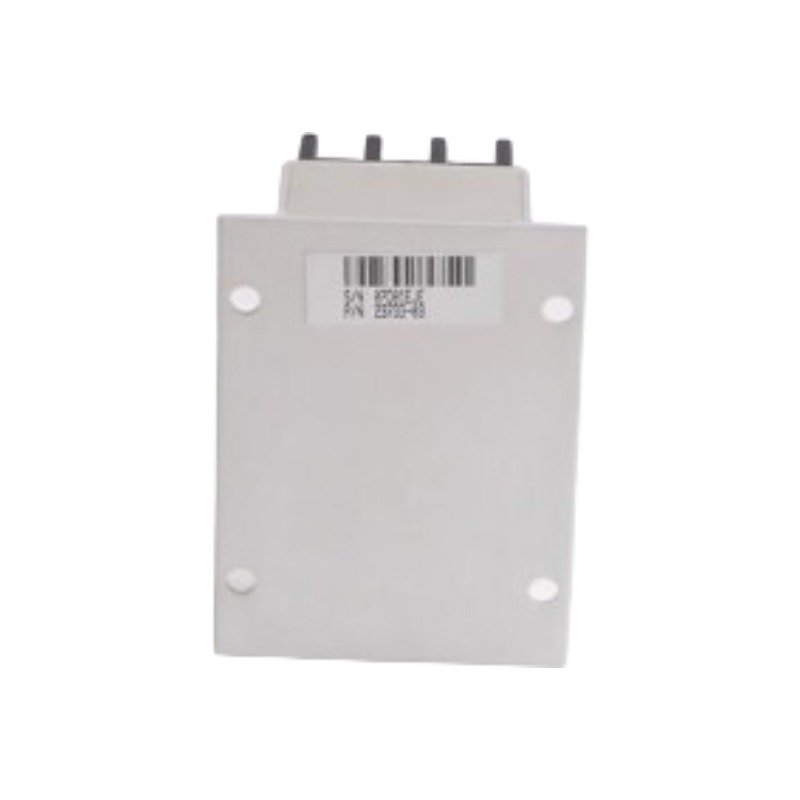

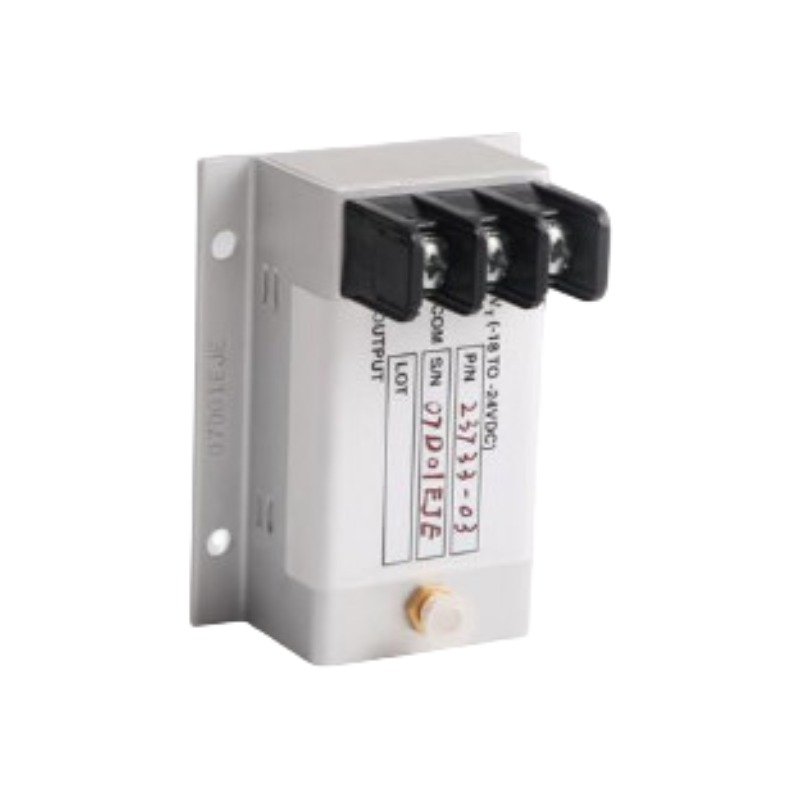

The Bently Nevada 23733-03 operates as a high-precision Standard Acceleration Interface Module designed for the 3300 Series Machinery Protection System. This specialized electronic component acts as an intermediate signal conditioner, primarily converting high-impedance differential charge signals from casing-mounted piezoceramic accelerometers into stable, low-impedance voltage signals. Consequently, the module enables accurate vibration monitoring on aeroderivative gas turbines and industrial generators—such as General Electric LM2500, LM5000, LM1600, and LM6000 platforms—by routing clean velocity and acceleration metrics to 3300/95 or modified 3300/15 vibration monitors.

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

While the 23733-03 isolates and conditions high-frequency casing acceleration data, it frequently operates in tandem with proximity instrumentation loops that depend on precise eddy-current probe scaling to evaluate internal shaft clearance. When commissioning comprehensive multi-sensor protective networks, plant engineers must execute standard gap voltage validation procedures on adjacent proximity channels to confirm they continuously meet target metrics near the -10 VDC targets for linear calibration bands. Aligning these static boundaries ensures the combined monitoring architecture can evaluate structural housing acceleration alongside exact internal rotor dynamics without clipping dynamic signal waveforms during thermal transients. Furthermore, the 23733-03 relies on a balanced internal architecture to maintain superior cross-talk suppression. This specialized noise isolation prevents high-frequency inductive interference from adjacent eddy-current loops from altering the conditioned analog millivolt outputs.

Frequently Asked Questions

Q: Can a field technician hot-swap the 23733-03 interface module while the 3300 monitor loop is energized? A: No, you should not hot-swap this field interface module while the power rails are live. Disconnecting the module under load can cause electrical arcs or current surges across the terminal screws, potentially degrading the delicate charge amplifier stages inside. Always isolate the -24 VDC power feed coming from the monitoring rack before replacing the hardware unit.

Q: What type of sensor inputs does this specific interface module support? A: The 23733-03 accepts differential charge-mode inputs from piezoelectric accelerometers with nominal sensitivities of either 50 pC/g or 100 pC/g. It natively integrates with balanced charge-mode transducers, ensuring that the machine frame’s electrical common remains isolated from the internal instrument ground.

Field Installation Guidelines

• Enforce Single-Point Shielding: Connect the accelerometer extension cable inner shield to pin B of the locking input connector. Ensure the outer shield remains isolated from the machine housing and is grounded strictly at the 3300 rack common terminal to prevent ground loops from injecting line frequency noise.
• Observe Filter Corner Constraints: Remember that the integrated 12th-order Butterworth bandpass filter parameters are hard-coded during factory manufacturing based on your ordering matrix options. Do not attempt field calibration adjustments on these frequencies; verify that the factory-set thresholds match the specific blade-pass frequencies of your turbine.
• Isolate Sensor Cable Routes: Route the high-impedance charge input leads inside dedicated, flexible, grounded metal conduits. Concurrently, maintain maximum physical separation from high-voltage AC motor conductors and power transmission lines to achieve maximum cross-talk suppression.
• Mount the Housing Securely: Use the integrated flange mounting base to bolt the module directly to a clean, flat surface inside an environmental enclosure. Ensure the terminal screws are torqued down snugly to mitigate the effects of high-frequency structural resonances near the turbine housing.
