Description

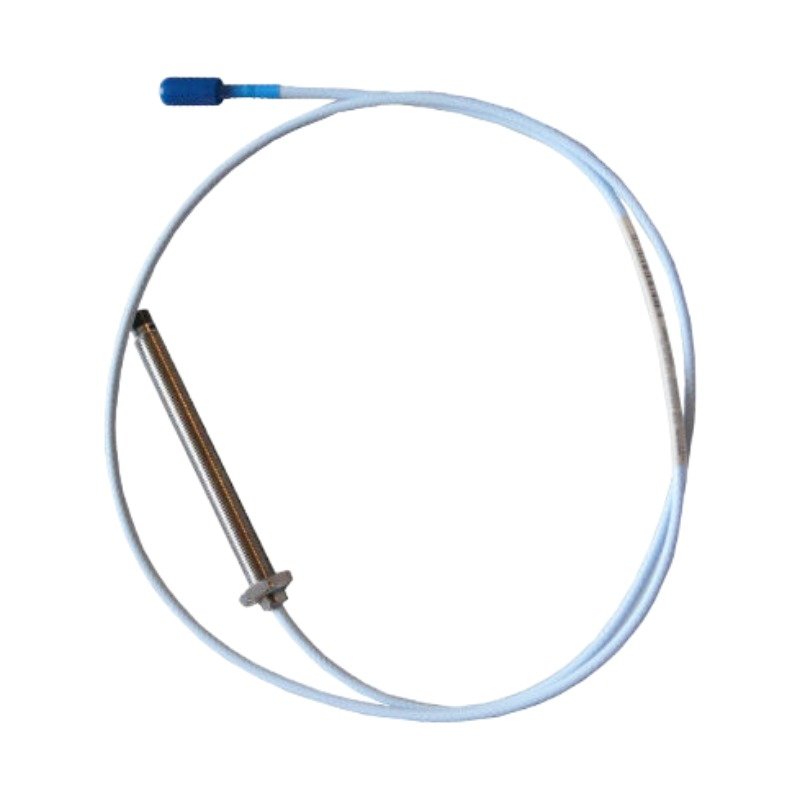

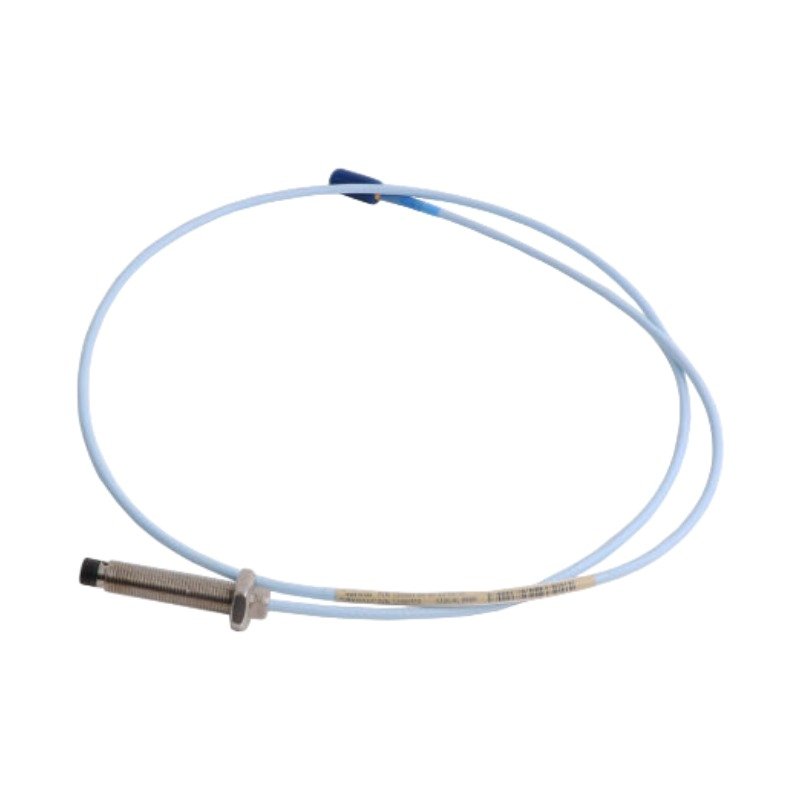

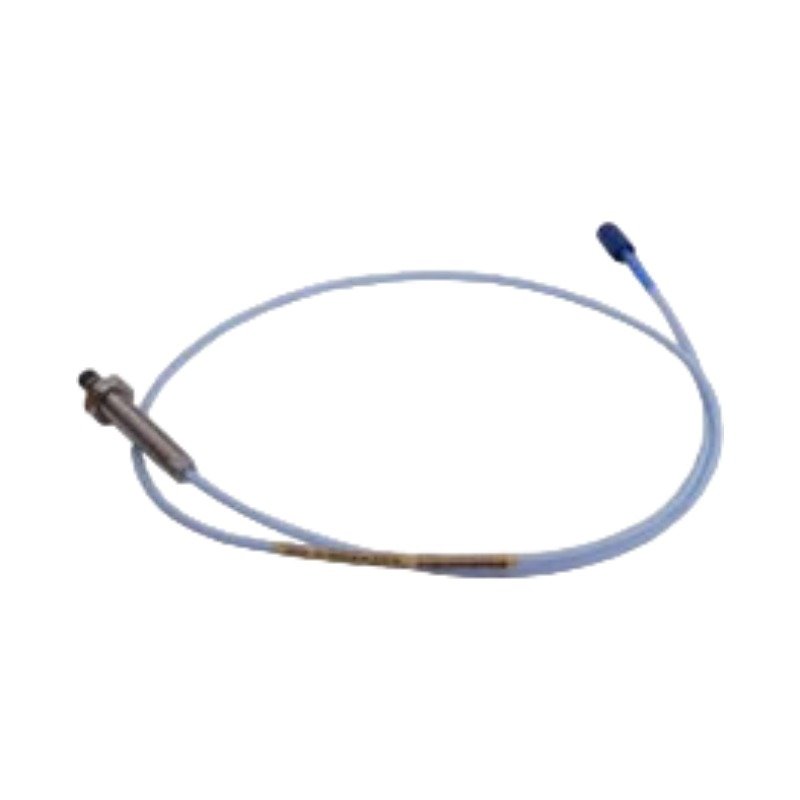

The Bently Nevada 330103-05-15-10-02-00, also cataloged as the 330103 8 mm Proximity Probe, operates as a dedicated hardware component for measuring static and dynamic shaft displacement within 3300 XL Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The Bently Nevada 330103-05-15-10-02-00 relies on eddy-current probe scaling to convert structural gap variations into proportional electrical signals for rotating machinery protection. Field engineers perform accurate gap voltage validation (-10 VDC targets) across the linear range to ensure proper probe placement relative to the shaft centerline. This precise physical position enables real-time tracking of complex rotor dynamics, including radial fluid-film bearing clearance changes and structural oil film instabilities. Furthermore, the specialized coaxial shielding design ensures optimum cross-talk suppression when multiple 3300 XL metric probes are mounted inside a single high-density bearing housing.

Frequently Asked Questions

Q: What is the purpose of the 50 mm unthreaded section on this probe body?

A: The unthreaded option allows insertion through the unthreaded clearance hole of a machine casing, letting the deep-reach 150 mm case pass safely through heavy outer blocks or water jackets without continuous internal threading friction.

Q: Can this 1.0 meter probe be wired directly to a 3500 series rack monitor without an extension cable?

A: No, the 3300 XL Proximitor sensor requires a calibrated total electrical system length of either 5.0 meters or 9.0 meters. A 1.0 meter probe must be paired with a matching 4.0 meter or 8.0 meter extension cable to prevent signal distortion.

Field Installation Guidelines

• Thread Engagement Torque: Tighten the M10 x 1 stainless steel threads into the mounting bore using a calibrated torque wrench, ensuring not to exceed the maximum rated installation torque of 9.9 N-m to prevent case deformation.
• Coaxial Connector Engagement: Connect the gold-plated miniature ClickLoc coaxial terminals by pushing them together until a distinct physical click is felt, indicating the internal locking ring has fully engaged.
• Oil Barrier Protection: Isolate the mated connector pair from continuous turbine oil exposure by applying a factory-approved connector protector sleeve or high-temperature silicone self-fusing tape over the junction.
