Description

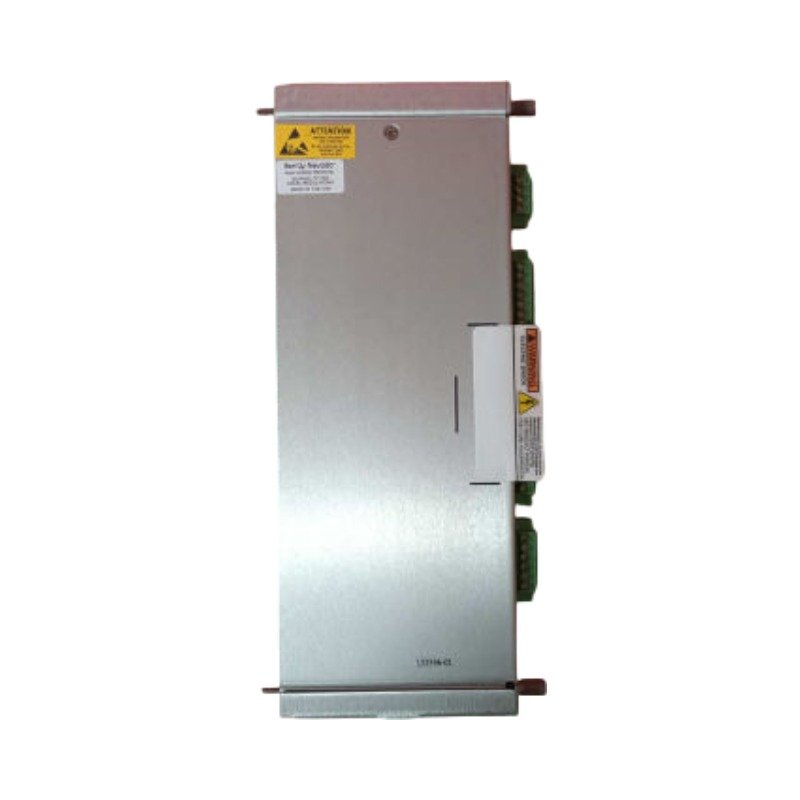

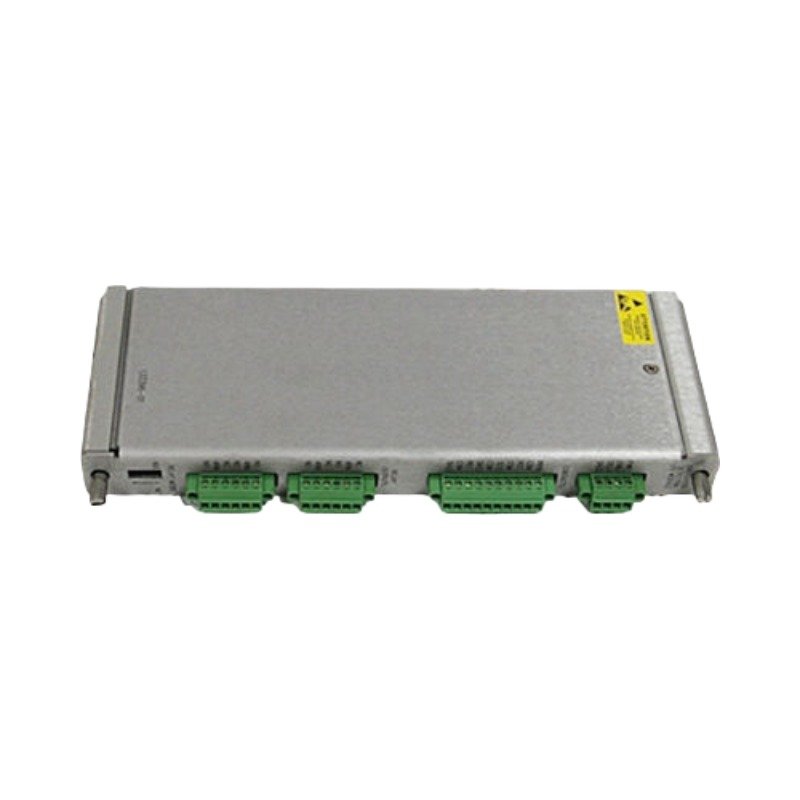

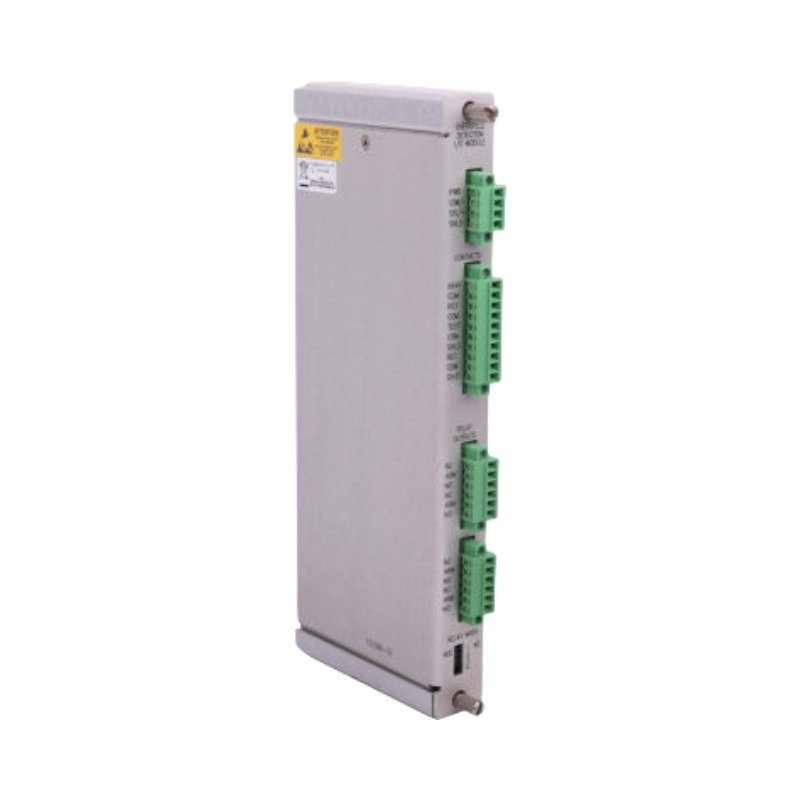

The Bently Nevada 133396-01, also cataloged as the 3500/53 Electronic Overspeed Detection Input/Output Module, operates as a dedicated hardware component for physical signal termination and overspeed relay routing within 3500 Machinery Protection System platforms. This full-height component receives frequency input pulses from velocity sensors to calculate rotational shaft speeds. Consequently, the module updates internal alarm registers within milliseconds to execute safety shutdown parameters when an overspeed or underspeed threshold violation occurs.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

The Bently Nevada 133396-01 receives high-frequency speed signals to track complex rotor dynamics during transient state phases. Specifically, the internal processing circuitry decodes the incoming frequency patterns by applying accurate eddy-current probe scaling algorithms. To prevent signal degradation across adjacent rack channels, the hardware enforces localized cross-talk suppression protocols directly at the termination stage. Meanwhile, the module performs constant gap voltage validation to maintain sensor inputs within prescribed -10 VDC targets. Consequently, this continuous validation process prevents spurious trip signals from propagating to the voting relays during sudden shaft acceleration events.

Frequently Asked Questions

Q: Does the 133396-01 module support live replacement during system operations?

A: No, technicians must not remove the rear 133396-01 I/O module while the 3500 rack remains energized. While the front processor card permits hot-swapping, pulling this rear termination component can short-circuit the backplane connector pins. Consequently, this action risks damaging the primary speed monitor card.

Q: How does a short circuit on the +4 to +20 mA recorder output affect the module?

A: A short circuit on the recorder loop output does not affect the internal overspeed protection logic. Specifically, the module isolates the recording circuitry electrically. Therefore, the device continues to monitor shaft velocity and execute emergency trips without performance interruption.

Field Installation Guidelines

• Install the rear I/O module into the chassis slot directly behind the matching front overspeed detection processor card.
• Secure the module by tightening the upper and lower faceplate screws to a maximum torque specification of 0.6 N m.
• Connect the speed sensor shields directly to the designated instrument ground bus bar on the terminal block. Furthermore, technicians must isolate all sensor wiring from high-voltage conduit lines to prevent electromagnetic coupling.
