Description

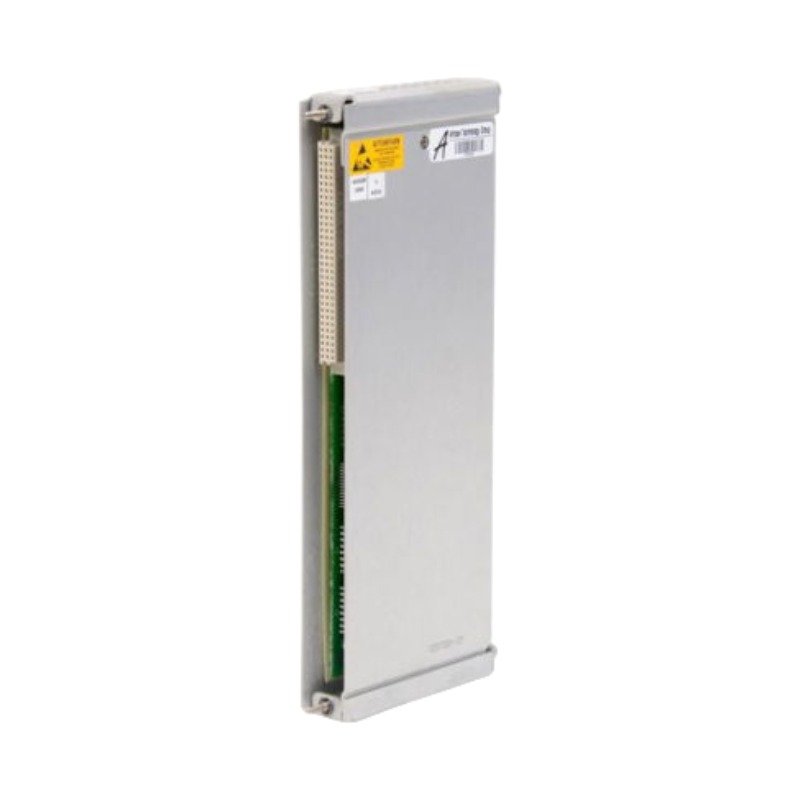

Configured for external communication routing and physical termination in the 3500 Machinery Protection System, the Bently Nevada 125720-01 (125720-01 Transient Data Interface I/O Module) provides direct physical/electrical execution. This full-height hardware component interfaces directly with the main 125712-01 TDI processor card through the rack backplane. Consequently, by deploying specific serial and Ethernet terminal structures, the module routes static parameters and synchronous dynamic wave data to external host computers, networks, and diagnostic software platforms.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression Engineering

The Bently Nevada 125720-01 establishes the essential hardware boundary that isolates critical machinery protection functions from external network disturbances. Specifically, the module utilizes dedicated cross-talk suppression paths across its communication lanes to maintain perfect data stream purity during high-volume transfers of rotor dynamics waveforms. While downstream diagnostic software continuously reads eddy-current probe scaling matrices, internal logic protects the main processing backplane from external voltage surges. Additionally, the integrated OK Relay tracks gap voltage validation loops, opening automatically if sensor variables drift from specified -10 VDC targets. This behavior instantly flags hardware faults to operators without dropping critical monitoring loops.

Frequently Asked Questions

Q: How do technicians manage cable shielding terminations on the 125720-01 communication ports?

A: Technicians must terminate communication cable shields at the dedicated chassis ground terminals provided on the I/O module faceplate. Therefore, connecting the shield strictly to this point prevents noisy ground loops from corrupting high-frequency waveform transmissions.

Q: Can an engineer replace the 125720-01 rear I/O module while the 3500 system rack remains online?

A: No, technicians must power down the 3500 rack or remove power from that specific slot sector before swapping the rear I/O card. While the front processor supports hot-swapping, pulling the rear 125720-01 module while energized risks shorting adjacent pins on the passive backplane.

Field Installation Guidelines

• Slide the full-height rear I/O module into the specified slot at the back of the 3500 chassis, ensuring it aligns perfectly with the matching front TDI processor card.
• Tighten both the upper and lower faceplate screws to a torque rating of 0.6 N m to lock the physical connector pins and guarantee reliable chassis grounding.
• Route the Ethernet or serial cables through separate wire tracks, maintaining a minimum clearance from high-voltage motor feeds to eliminate induced electromagnetic noise.
• Verify that the terminal block connector blocks click securely into position, then apply strain relief anchors to prevent physical vibration from straining the serial line connections.
