Description

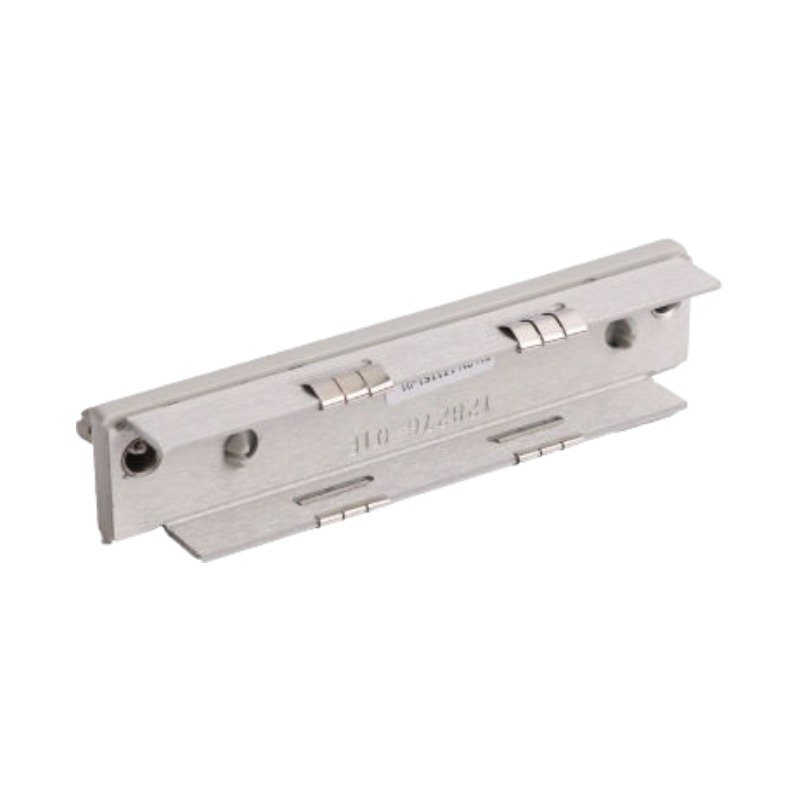

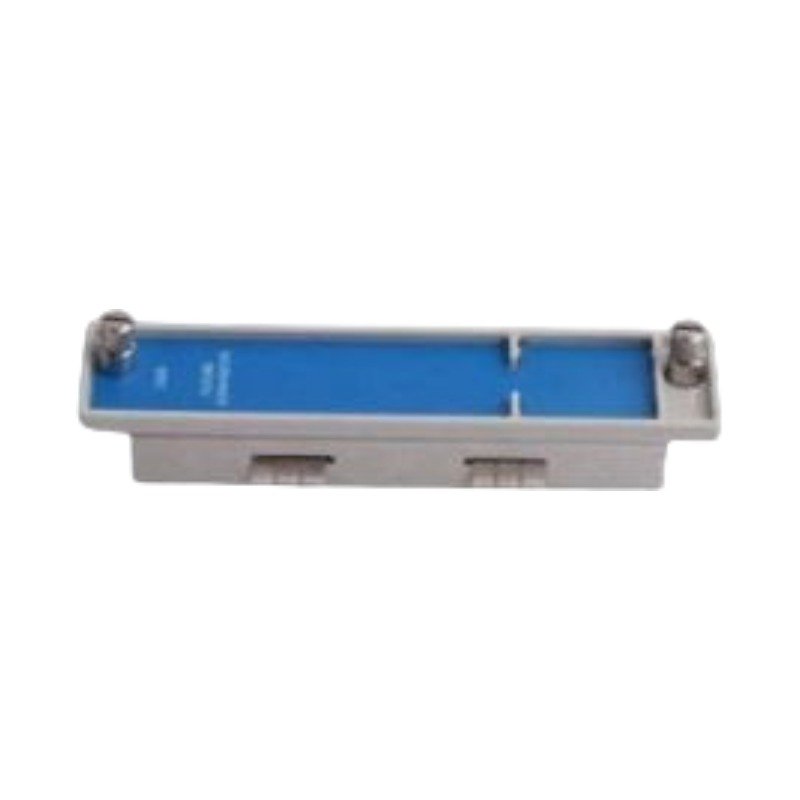

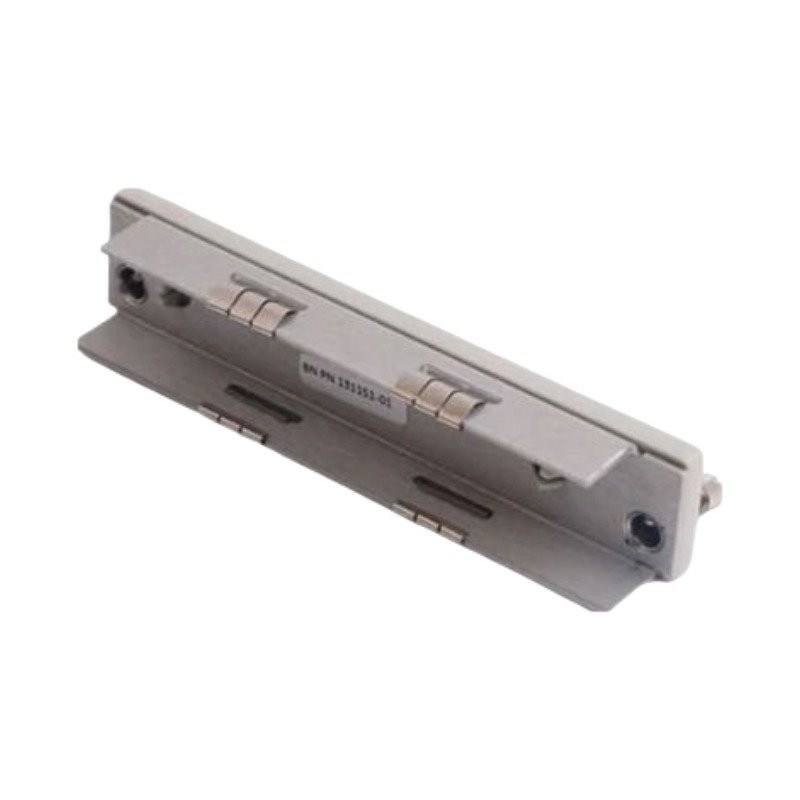

The Bently Nevada 131151-01, also cataloged as the 131151-01 Half-height Blank Front Panel Cover, operates as a dedicated hardware component for chassis environmental containment and physical airflow management within Bently Nevada 3500 Series Machinery Protection System rack architectures. The component secures empty, unused half-height slots to maintain standard chassis structural parameters and ensure appropriate backplane electrical shielding. By closing off open front sections, the panel forces internal cooling air to pass efficiently over active monitoring cards rather than escaping through empty slot vacuums.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 131151-01 functions as a critical mechanical element within the broader Turbomachinery Instrumentation (TSI) housing strategy. Thermal management dictates that empty rack volume must be sealed to control the internal ambient temperature profile around adjacent, high-density processors such as Keyphasor modules or proximity monitors. Uncontrolled air bypass alters thermal heat sink dissipation profiles, which can induce micro-drift in high-precision analog circuitry processing eddy-current probe scaling or gap voltage validation loops. Additionally, the integrated electromagnetic interference (EMI) boundaries on the panel perimeter contribute to cross-talk suppression by grounding the unutilized slot frame directly to the 3500 structural chassis backplane earth system.

Frequently Asked Questions

Q: Does installing or removing the 131151-01 blank panel cause any switching latency or data bus interruptions on active modules?

A: No. The 131151-01 is entirely passive and lacks physical electrical backplane pins. Inserting or removing the mechanical front panel cover has zero electronic impact on backplane bus communication velocity or active monitoring modules.

Q: Can this panel be used in full-height 3500 monitoring slots to cover unutilized workspace?

A: No. The 131151-01 structural dimension specifically seals a single half-height slot position (such as those used for 3500/25 Keyphasor modules). Full-height monitoring slots require the alternative 130944-01 blank panel variant to achieve complete vertical slot enclosure.

Field Installation Guidelines

• Mounting Alignment: Align the 131151-01 panel precisely over the vacant half-height slot guide pins on the front interface of the 3500/05 rack structure. Ensure that the integrated conductive EMI gasket seals flat against the adjacent module bevels without binding or folding.
• Fastener Torque Limits: Engage both integrated retention screws into the upper and lower threaded chassis bars. Tighten both fasteners evenly using a standard flat-blade screwdriver to a torque rating of 0.45 N-m (4 in-lb) to maintain structural chassis alignment and prevent vibration-induced loosening.
• ESD and Safety Protocols: While the cover contains no active electronic traces, field personnel must maintain standard static dissipation practices. Wear a grounded ESD wrist strap bonded to the rack frame during installation to prevent accidental static transfers to neighboring sensitive inputs or active transducer circuits.
