Description

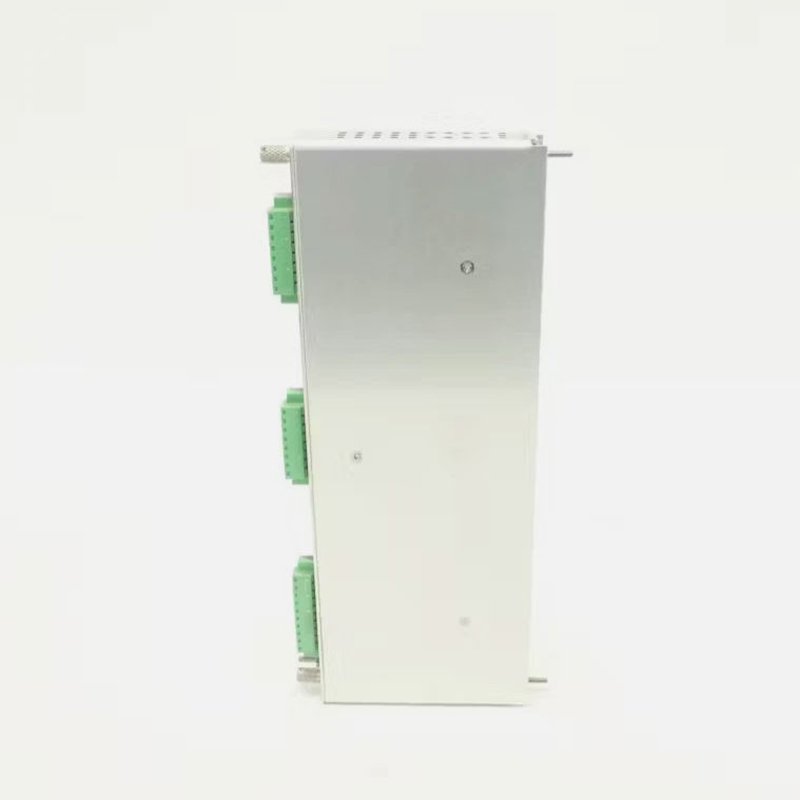

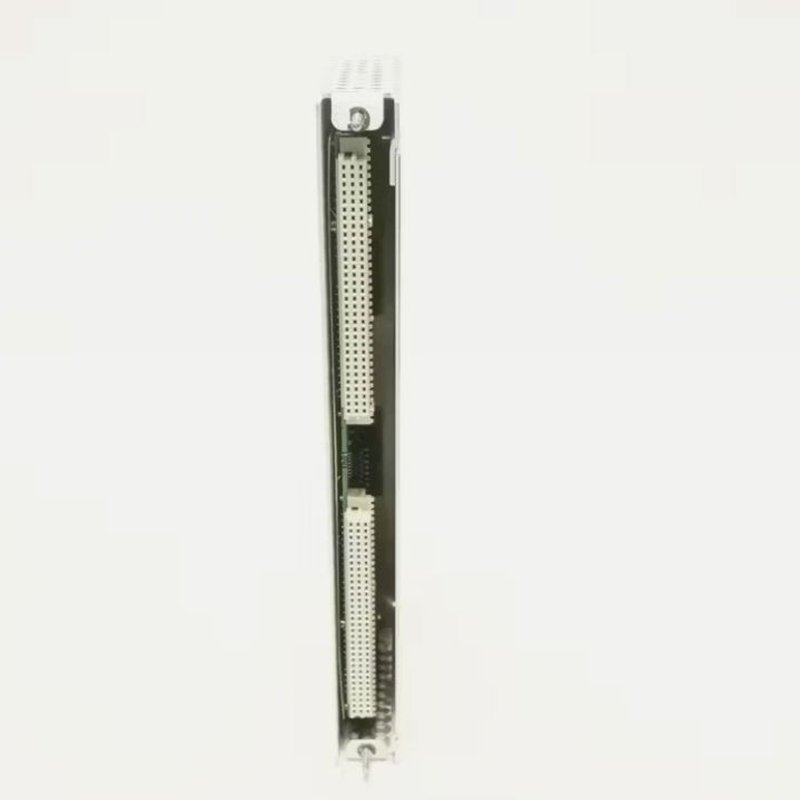

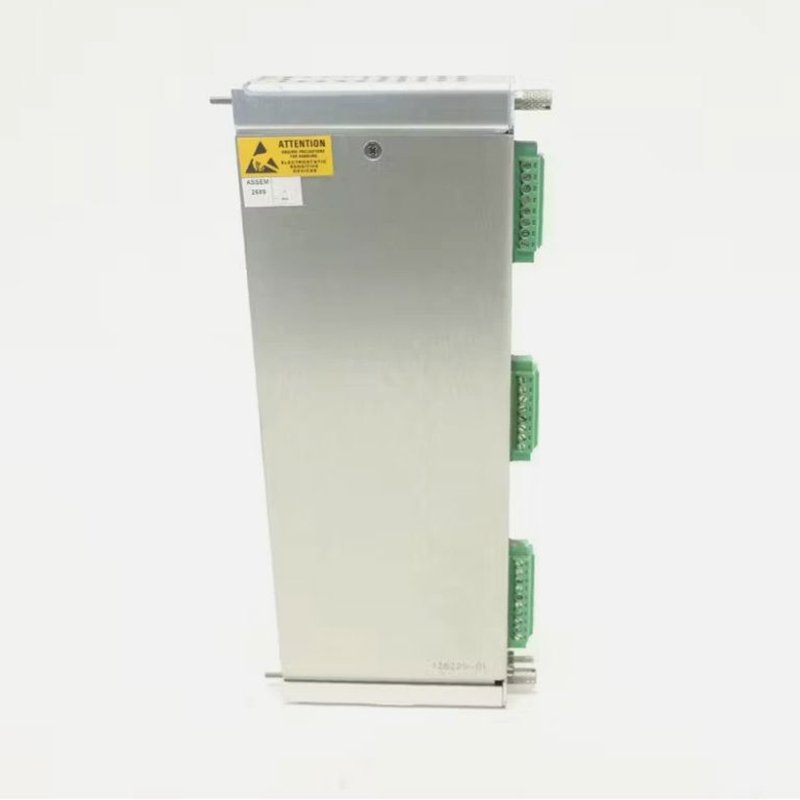

The Bently Nevada 3500/42M 128229-01, also cataloged as the 3500/42M Proximitor/Seismic I/O Module with Internal Terminations, operates as a dedicated hardware component for transducer signal routing within 3500 Machinery Monitoring System networks. The unit physically interfaces up to four proximity, velocity, or acceleration transducers directly to the main front-slot monitor module. Consequently, the hardware passes continuous dynamic voltage waveforms through the backplane connection to execute real-time machinery protection calculations.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The module incorporates specific hardware pathing designed for Turbomachinery Protection System (TSI) field connections. Specifically, the internal circuitry automates gap voltage validation (-10 VDC targets) by establishing low-impedance pathways for Proximitor sensor bias voltages. If field cabling degrades, the onboard diagnostic track detects the deviation and assets a Not OK condition to prevent false alarms. Furthermore, the specialized trace layout provides cross-talk suppression between high-frequency acceleration lines and adjacent eddy-current probe lines. As a result, the module delivers uncorrupted raw vibration signatures representing complex rotor dynamics directly to the digitizing monitor rack.

Frequently Asked Questions

Q: Does the 128229-01 rear I/O module allow technicians to perform a hot-swap while the rack has power?

A: Yes. Technicians can execute live insertion and removal of this I/O module without disrupting the continuous protective logic of unrelated monitoring rows in the chassis. However, unplugging this component completely severs the physical input signal path from the connected sensors.

Q: What is the primary operational difference between internal terminations and external terminations for this module?

A: The 128229-01 features integrated Euro-style terminal blocks mounted directly onto the printed circuit board. Consequently, field wires land straight onto the module, which eliminates the need for external termination blocks and interface ribbon cables.

Field Installation Guidelines

• Chassis Grounding: Bond the 3500 rack chassis directly to the local instrument clean earth. In addition, terminate sensor shield wires exclusively at the designated coaxial or terminal ground points on the I/O block to prevent ground loop noise from corrupting data.
• Backplane Alignment: Insert the front 3500/42M monitor card into its front slot and position the 128229-01 I/O module directly opposite it from the rear of the rack enclosure. Always check that all connector pins match vertically before applying seating force.
• Signal Cable Isolation: Route field wiring from proximity probes and seismic sensors through dedicated metal conduits. Therefore, maintain a physical separation of at least 30 cm from power cabling to minimize electromagnetic induction.
