Description

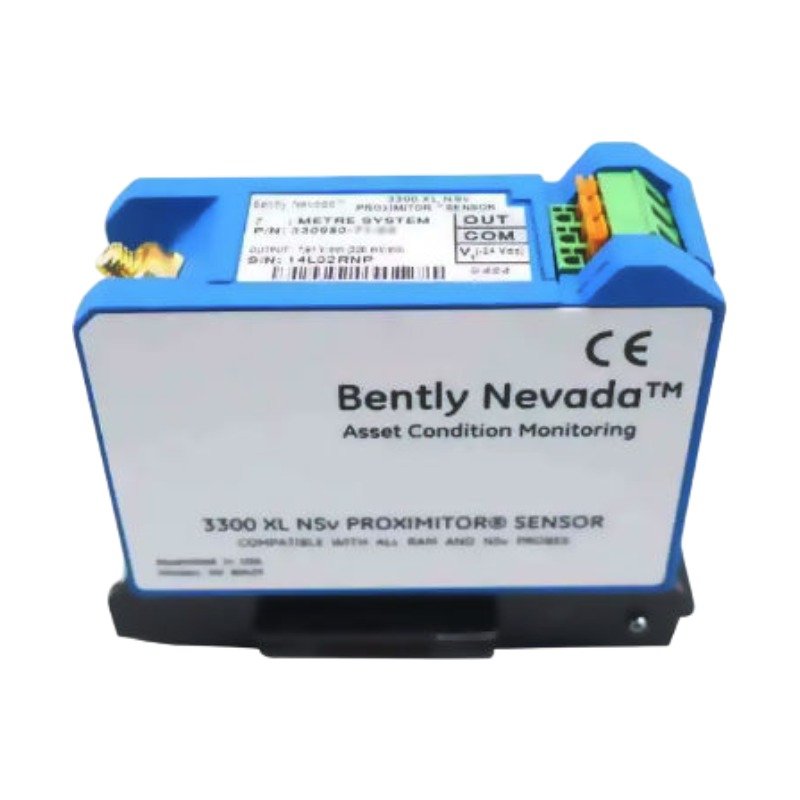

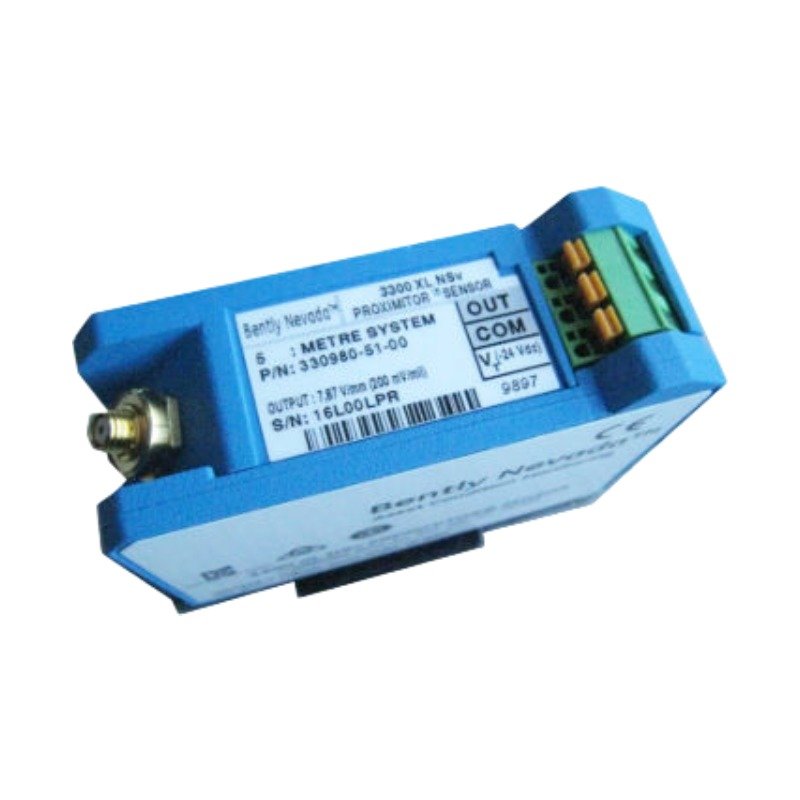

The Bently Nevada 330980-51-00, also cataloged as the 330980 Proximity Sensor, operates as a dedicated hardware component for non-contacting displacement and vibration measurements within 3300 NSv Proximity Transducer System networks.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

Consequently, the unit executes precise eddy-current probe scaling to convert physical gap distance into a linear electrical voltage output. During gap voltage validation, the system specifically targets a nominal -10 VDC baseline within the linear range; therefore, technicians can verify proper calibration relative to the target rotor dynamics. Furthermore, the internal circuitry implements active cross-talk suppression. This mechanism successfully isolates the driving radio frequency (RF) signal from adjacent sensor channels, thereby preventing signal degradation in high-density machinery monitoring installations.

Frequently Asked Questions

Q: What structural options do the -51 and -00 suffixes determine in the model number?

A: The -51 suffix specifies a 5.0-metre total system length with DIN-rail mounting hardware, whereas the -00 suffix designates the standard agency approval option without hazardous area certifications.

Q: Can field engineers hot-swap this sensor module while the machinery monitoring system runs live?

A: No. Engineers must isolate power to the proximity sensor module prior to disconnection. Otherwise, transient electrical spikes might disrupt adjacent channels or trip protection relays.

Q: How do technicians validate the gap voltage during commissioning?

A: Technicians connect a digital multimeter across the “OUT” and “COM” terminals. Following this connection, they adjust the probe position mechanically until the output voltage reads approximately -10 VDC.

Field Installation Guidelines

• Shielding and Grounding: Technicians must ground the coaxial cable shield at one single point, typically at the monitor rack common ground. However, they must not ground the shield at the sensor housing because this creates ground loops.
• Bending Radius Constraints: Installers must maintain a minimum bending radius of 25.4 mm (1.0 inch) for the extension cable. As a result, the installation preserves signal integrity and avoids physical damage to the internal core.
• Conduit Isolation: Route the probe and extension cables through dedicated, grounded metal conduit. Meanwhile, avoid running sensor cables in parallel with high-voltage AC power lines or variable frequency drive (VFD) output cables.
• Terminal Torque Specifications: Tighten all field wiring terminal screws to a maximum torque rating of 0.56 N-m (5.0 in-lb). Consequently, this action ensures gas-tight electrical contact without stripping the threads.
