Description

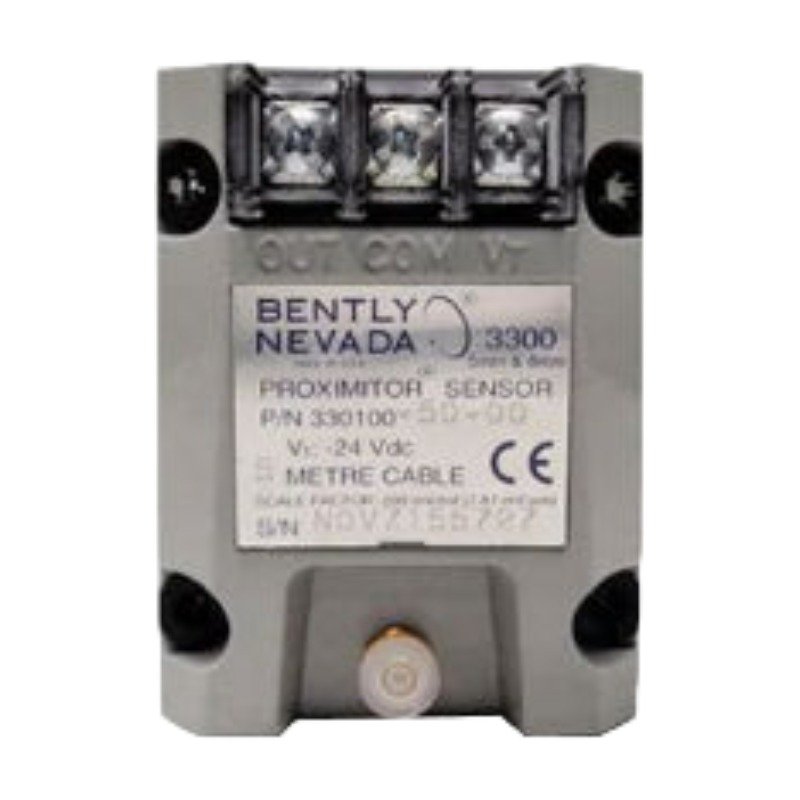

Configured for non-contacting vibration and position measurements in rotating machinery monitoring systems, the Bently Nevada 102046-50, also cataloged as the 102046 Custom Proximitor Sensor, operates as a dedicated hardware component for signal conditioning within a proximity transducer loop. Specifically, this standalone device conditions the high-frequency radio frequency (RF) signal generated by an 8 mm eddy-current probe assembly. Consequently, the hardware converts physical gap variations into a continuous, linear DC voltage output for direct transmission to 3300 or 3500 series machinery protection system backplanes.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 102046-50 provides the primary excitation voltage required to generate an active eddy-current field at the probe tip. During commissioning, technicians must perform gap voltage validation, adjusting the sensor position until the Proximitor registers a nominal -10 VDC baseline at the center of the calibrated linear envelope. This electrical calibration fixes the response to the standard 7.87 V/mm (200 mV/mil) scale factor specification. Furthermore, the internal filtering circuitry optimizes cross-talk suppression when installation layout forces multiple eddy-current probes into close physical proximity on a single machine bearing block. To capture high-frequency rotor dynamics accurately without phase distortion, the circuit path eliminates signal latency. This feature ensures that micro-structural variations or surface runout anomalies on the rotor shaft do not introduce false amplitude modulation components into the dynamic vibration output signal.

Frequently Asked Questions

Q: How does a field engineer verify the calibration stability of the Proximitor in the field?

A: The engineer must measure the DC voltage across the output terminals using a calibrated digital multimeter while changing the physical distance between the probe and target. The voltage shift must track the 200 mV/mil scale factor uniformly across the entire linear operating band from -2 VDC to -18 VDC.

Q: What total electrical length must the probe and extension cable maintain to ensure accurate measurement loops with this Proximitor?

A: The internal tuning circuitry requires strict adherence to either a 5.0-meter or 9.0-meter total system electrical length configuration. Any deviation in physical length alters the baseline impedance matrix, which destabilizes the scale factor calibration curve.

Field Installation Guidelines

• Mounting Panel Isolation Requirements: Secure the Proximitor housing onto the internal mounting plate using the integrated base rails. Technicians must ensure proper electrical isolation between the Proximitor casing and the structural cabinet metalwork to eliminate ambient loop noise.
• Coaxial Connector Mechanical Protection: Align the miniature coaxial click-loc interfaces from the extension cable to the Proximitor connector receptacle. Push firmly until the parts produce an audible engagement click. Slide the factory connector protector over the interface seam to keep out lubricating oils and moisture.
• Shield Grounding Constraints: Maintain continuous shielding throughout the field junction box structures. Connect the outer shield drain wire to the terminal common strip exclusively at the monitor rack panel termination block, preventing multiple path ground loops from corrupting the dynamic voltage output.
