Description

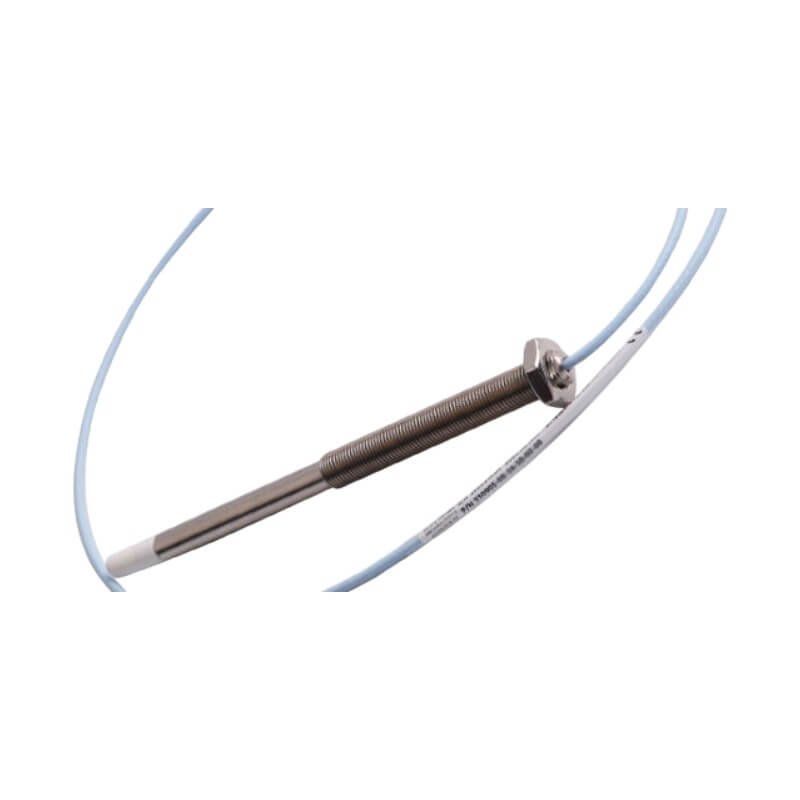

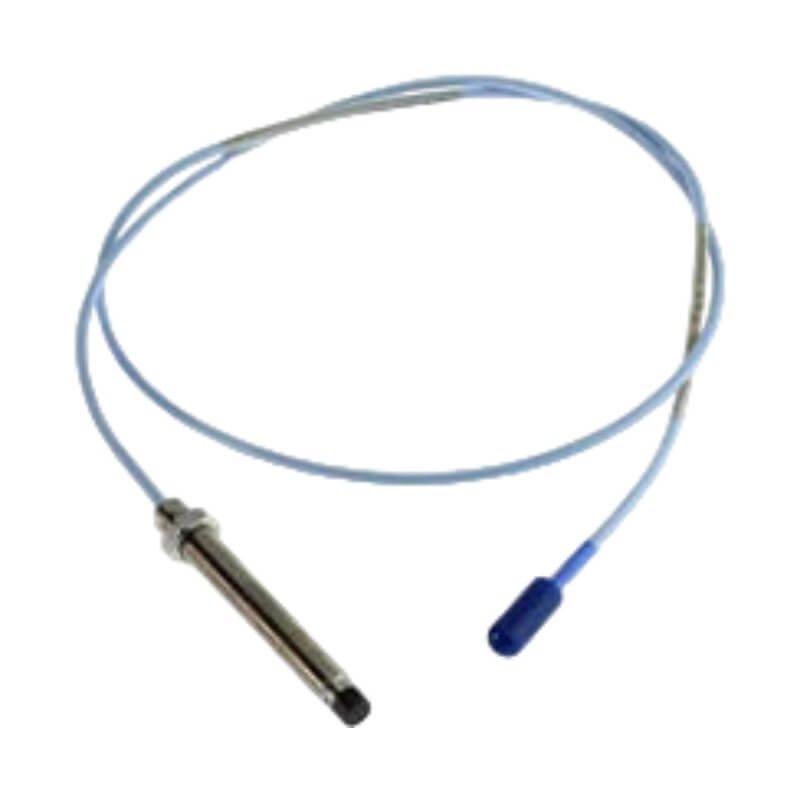

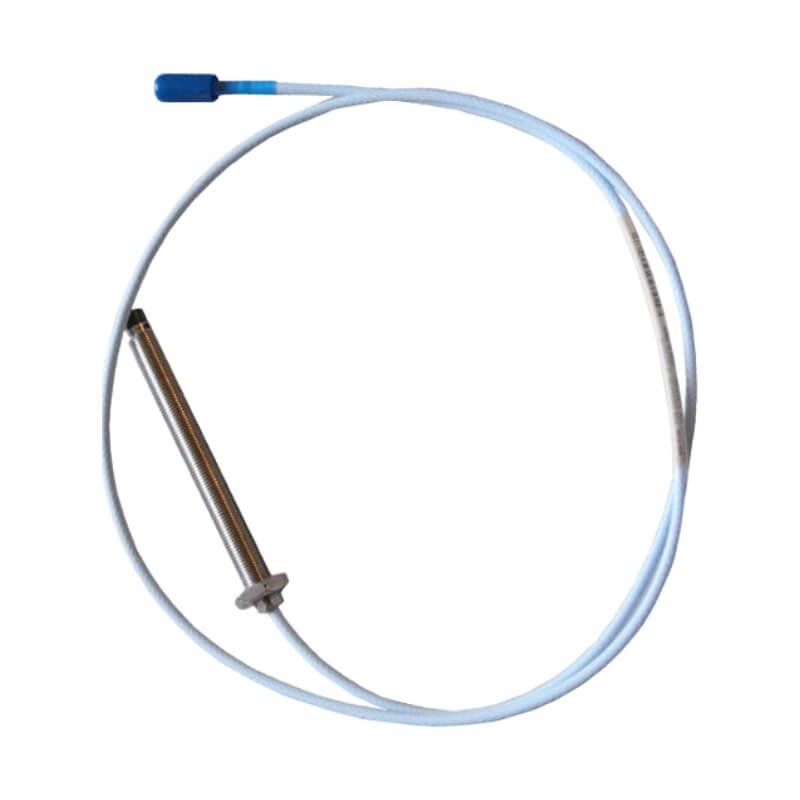

The Bently Nevada 3300-05, also cataloged as the 3300-05 Proximity Transducer, serves as the primary 3300 Proximity Transducer utilized to execute non-contacting shaft displacement and vibration measurements across 3300 Monitoring System platforms. Specifically, this hardware component measures the dynamic gap between the probe tip and the rotating target surface. Consequently, the unit transmits raw proximity data to the system Proximitor Sensor for signal conditioning.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 3300-05 projects a high-frequency eddy-current field into the conductive fluid-film bearing journal or shaft target surface. During installation, technicians must perform precise gap voltage validation, adjusting the probe position to achieve a nominal -10 VDC baseline within the linear range. This alignment establishes a standard 7.87 V/mm (200 mV/mil) scale factor across the target envelope. Furthermore, precise voltage setting improves cross-talk suppression whenever engineers install multiple eddy-current probes close to each other on the same bearing block. Meanwhile, observing high-frequency rotor dynamics requires a rigid physical mount. Otherwise, micro-structural variances or mechanical runout on the rotor shaft surface inject parasitic voltage distortion directly into the dynamic radial vibration waveform.

Frequently Asked Questions

Q: How does the technician adjust the mechanical clearance for this probe during commissioning?

A: The technician must physically turn the probe into the 3/8-24 UNF mounting thread until the connected monitoring loop registers a quiescent gap voltage of -10 VDC. This reading matches approximately 1.0 mm (40 mils) of physical space from the target surface. Afterward, the technician locks the position using the jam nuts.

Q: Can the engineer connect this 0.5-meter probe cable directly to the 3300 monitor rack without an extension cable?

A: No, because the Proximitor Sensor tuning circuitry requires a specific total system electrical length (typically 5.0 meters or 9.0 meters). Therefore, the engineer must insert a matching 3300 extension cable to establish the mandatory loop impedance profile.

Field Installation Guidelines

• Thread Engagement and Torque Limits: Mount the probe body into the pre-tapped 3/8-24 UNF installation hole. Maintain a minimum thread engagement of 5 full threads to prevent continuous machine casing vibrations from loosening the sensor. Additionally, do not exceed the maximum allowable torque value of 4.5 N-m (40 in-lb).
• Coaxial Cable Shield Grounding: Isolate the outer shield of the miniature coaxial cable from the local machine casing ground. Maintain this continuous shield isolation through all intermediate junction box enclosures. At the final stage, terminate the shield drain wire exclusively at the designated instrumentation system ground point inside the monitor rack panel.
• Minimum Target Area Clearance: To eliminate side-view interference and prevent distorted eddy-current footprints, provide a counterbore clearance diameter of at least 30 mm around the 8 mm probe tip when recessing the assembly into a machine housing wall.
