Description

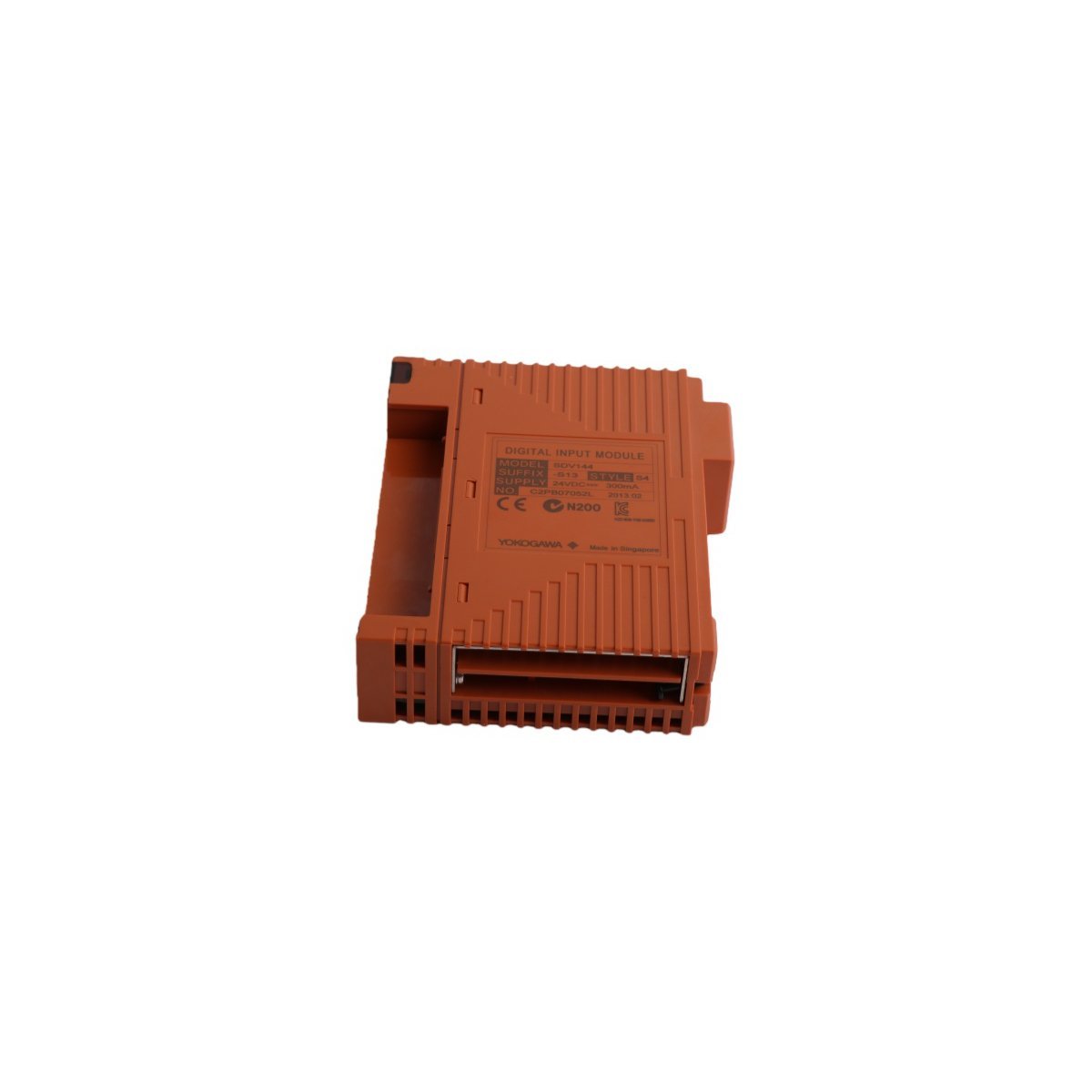

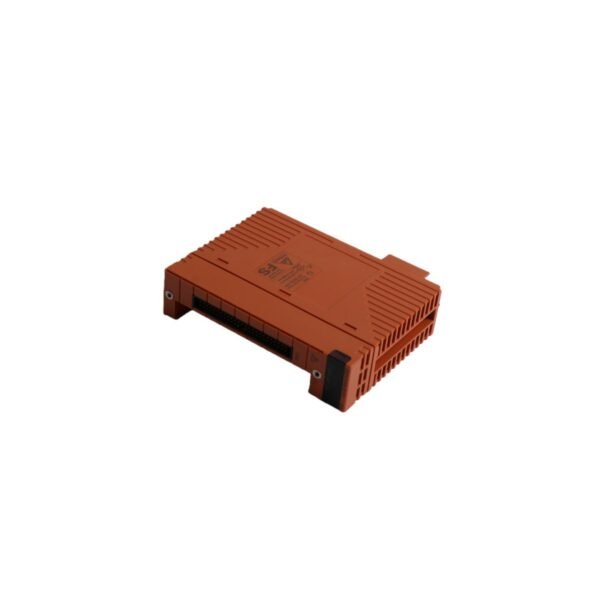

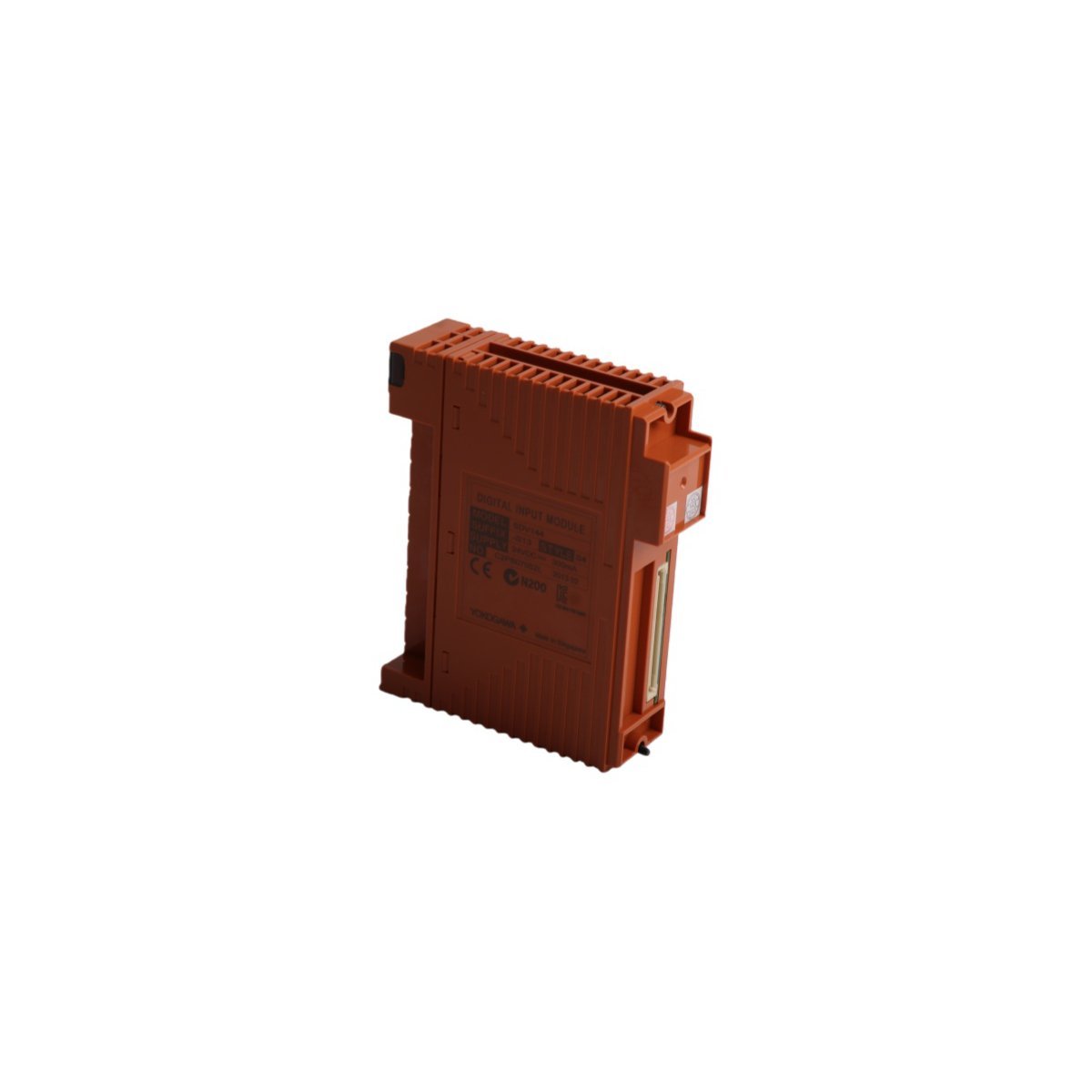

The SDV144-S13 serves as a high-performance safety interface for the Yokogawa ProSafe-RS control system. This module features 16 channels designed for safety-critical digital input monitoring. It effectively bridges the gap between field instrumentation and the safety logic controller. Furthermore, the unit supports diverse signal types through configurable sinking or sourcing setups. This flexibility allows engineers to integrate various sensors and switches into a single hardware footprint.

Reliability remains the primary focus of this safety instrumented system component. The module operates with high-speed data transmission reaching 10 Mbps for rapid logic execution. Additionally, internal optical isolation protects each channel from ground loops and electrical noise. These protective measures ensure stable signal processing in volatile industrial environments.

Core Technical Specifications

• Manufacturer: Yokogawa Electric Corporation
• Model Designation: SDV144-S13
• Module Type: Digital Input (Safety-Related)
• Number of Channels: 16 Isolated Channels
• Input Voltage Range: 12V DC to 24V DC
• Current Handling: -5 to 20 mA
• Isolation Method: Optical Isolation per channel
• Operating Temperature: -20 to 60°C
• Weight: 0.3 kg
• Dimensions: 3.3 x 10.7 x 13 cm
• Safety System Compatibility: ProSafe-RS (S13 configuration)

Diagnostic Capabilities and Safety Performance

The SDV144-S13 incorporates continuous self-diagnostic functions to maintain high system integrity. These routines monitor channel health and detect hardware faults automatically. Consequently, maintenance teams receive early warnings before failures impact plant safety. This proactive approach significantly reduces unplanned downtime in critical processes.

Furthermore, the module excels in emergency shutdown (ESD) and safety relay monitoring tasks. Its rapid response time ensures immediate action during process deviations or equipment malfunctions. The rugged construction withstands humidity levels up to 95% without performance degradation. Therefore, it remains a trusted solution for offshore platforms and chemical refineries.
