Description

Product Overview

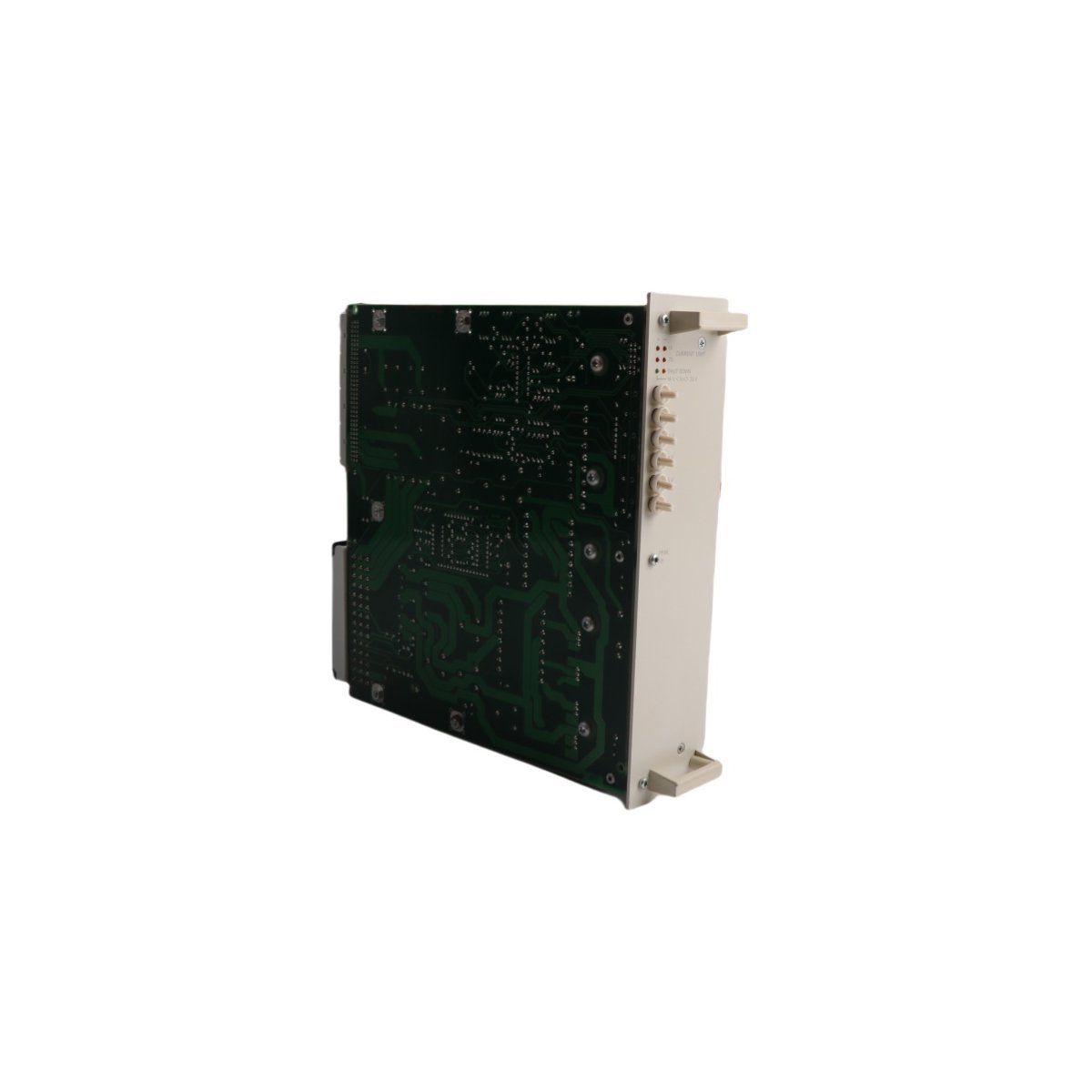

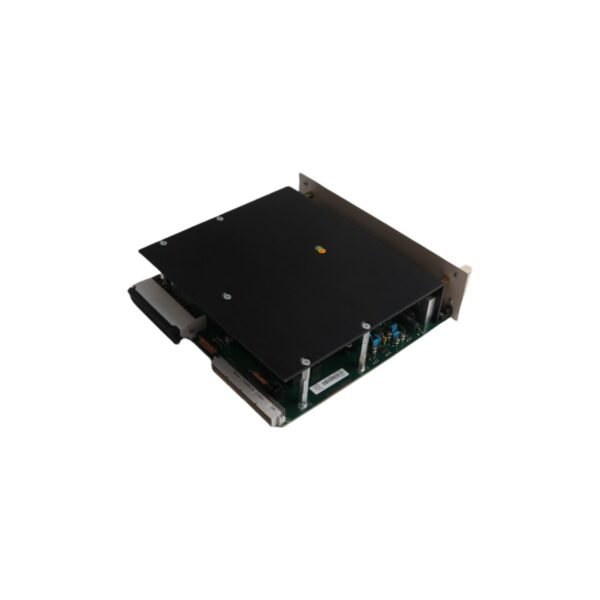

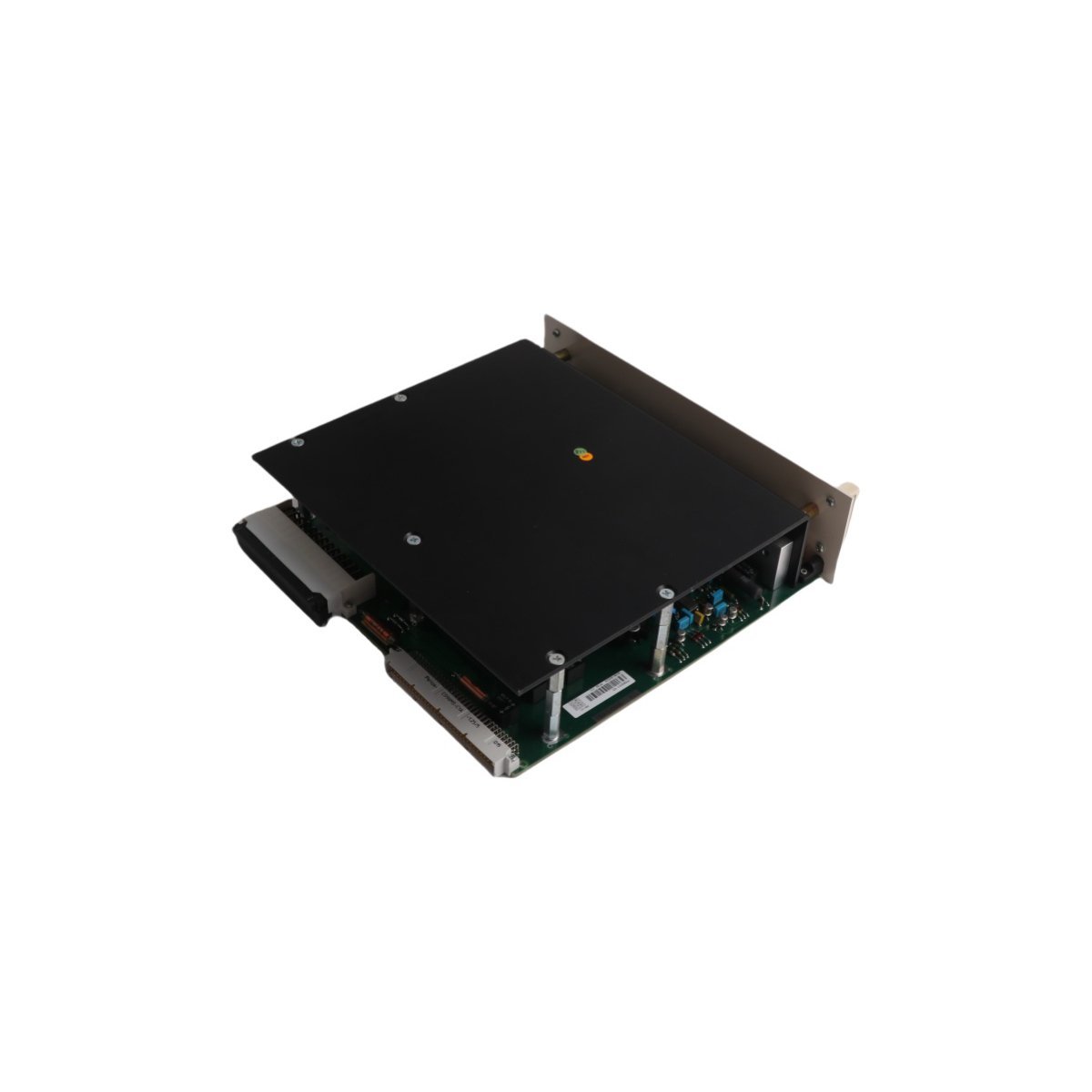

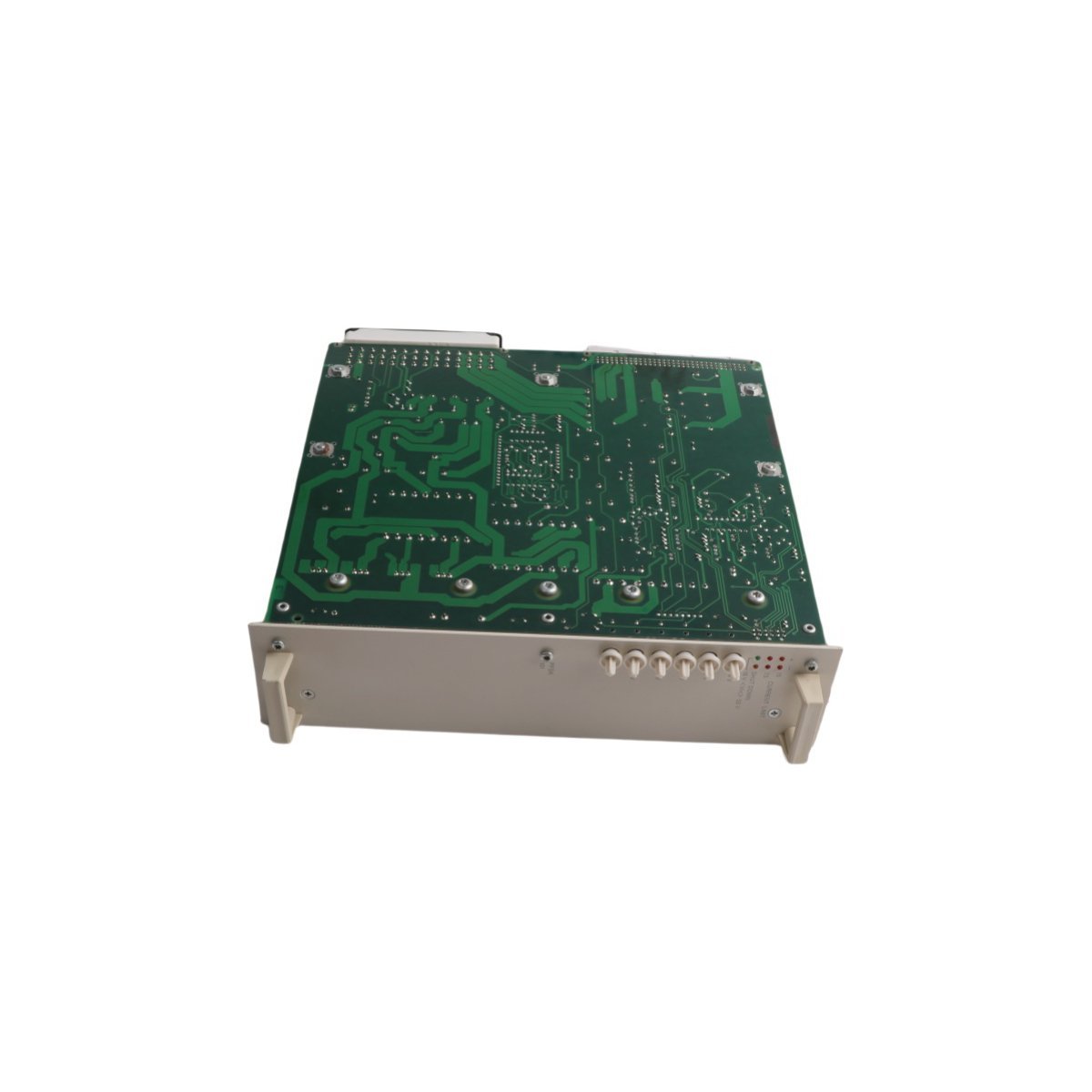

The ABB PFSK101 (YM322001-ED) is a high-frequency switching power supply designed to provide stable, filtered energy to critical DCS components and control circuits. This unit utilizes advanced power conversion technology to maintain operational integrity during significant input voltage fluctuations.

Advanced Power Conversion and Regulation

The PFSK101 serves as a high-performance energy regulator for sophisticated industrial frameworks. By employing a high-frequency switching architecture operating at up to 400kHz, the module achieves exceptional energy density and thermal efficiency. It supports a wide input range from 90V to 250V AC, allowing it to function globally across various regional power standards without the need for manual transformers. This flexibility ensures that the connected DCS hardware receives a consistent, noise-free voltage supply, which is fundamental for maintaining the accuracy of sensitive control loops and processing units.

Resilience in Critical Environments

Engineered for longevity, the YM322001-ED module features a ruggedized chassis that protects internal electronics from the dust and mechanical stress typical of industrial environments. The unit operates reliably within a temperature spectrum of -20°C to +50°C, making it suitable for unconditioned control rooms. Furthermore, the power supply includes intelligent protection circuitry that safeguards against over-voltage and short-circuit conditions. These proactive safety measures prevent damage to downstream automation equipment, thereby reducing the risk of expensive hardware failures and unplanned facility downtime.

Simplified Maintenance and Integration

The modular design of the PFSK101 emphasizes ease of service and rapid deployment. Its physical footprint allows for efficient cabinet mounting, while clearly accessible terminals facilitate quick wiring during installation or replacement. Because it adheres to stringent CE, UL, and CSA safety certifications, engineers can integrate this unit into international projects with confidence. Additionally, the high-efficiency architecture lowers the overall heat signature of the control cabinet, extending the lifespan of adjacent electronic components and reducing the cooling requirements for the system as a whole.

Technical Characteristics
