Product Description

Foundational TMR Architecture

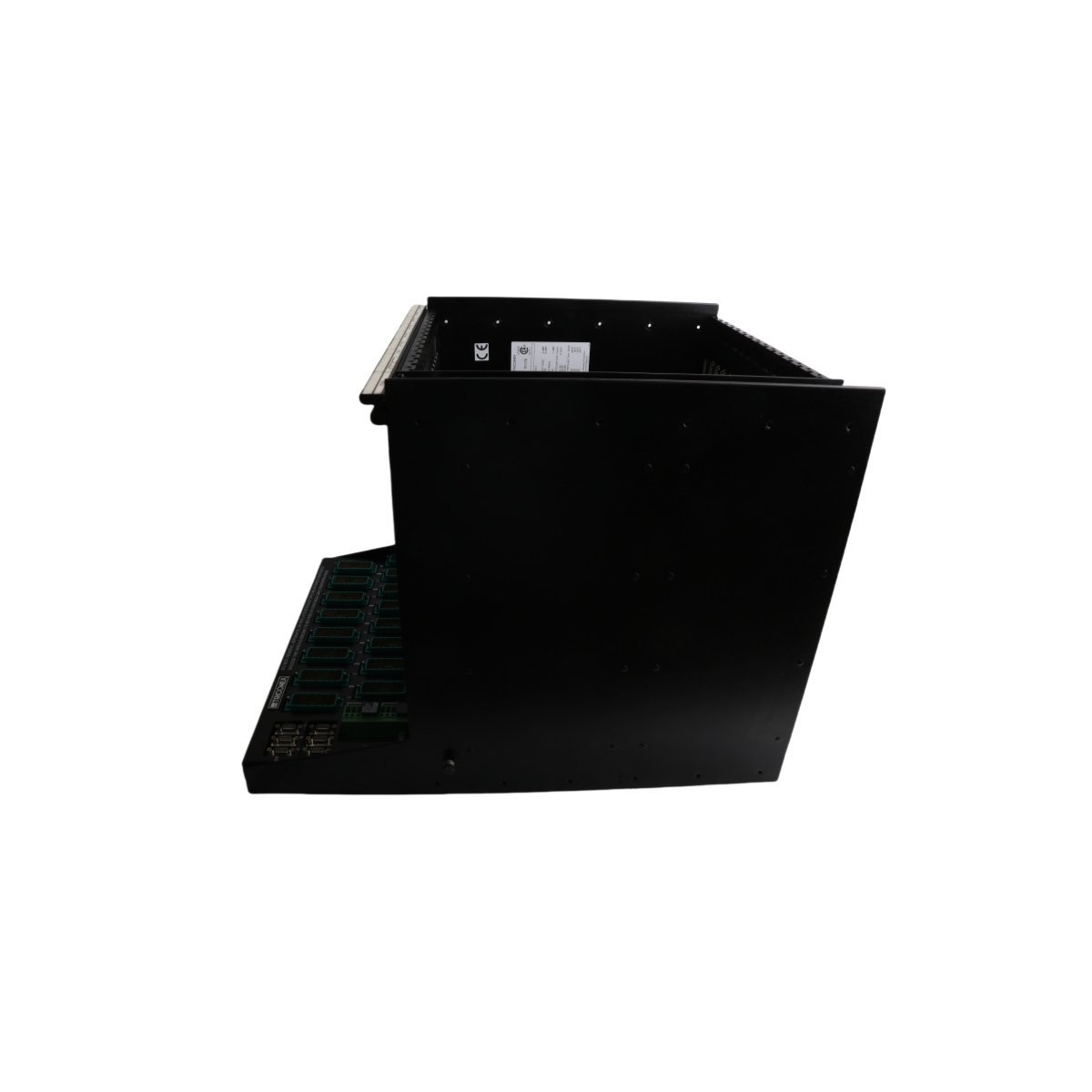

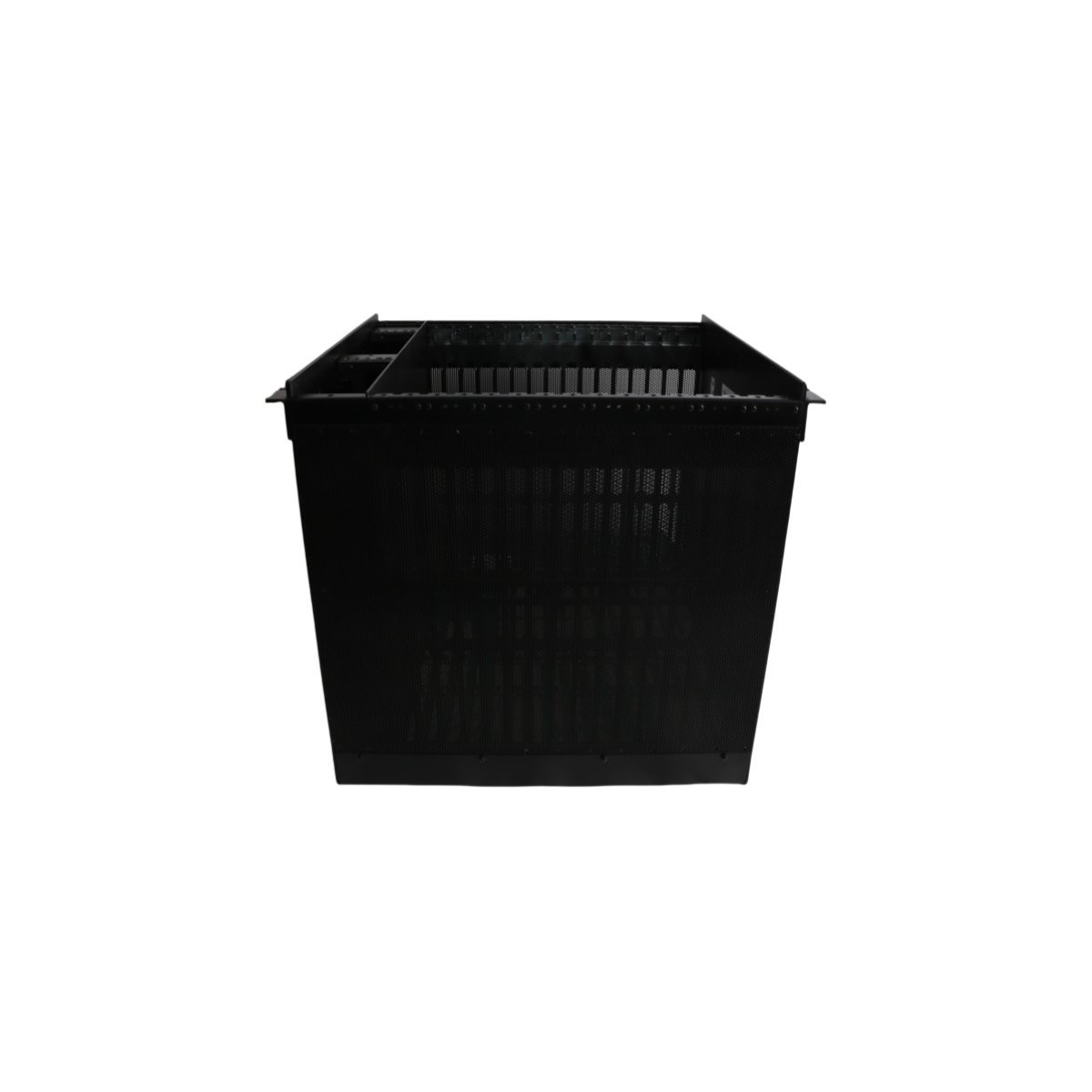

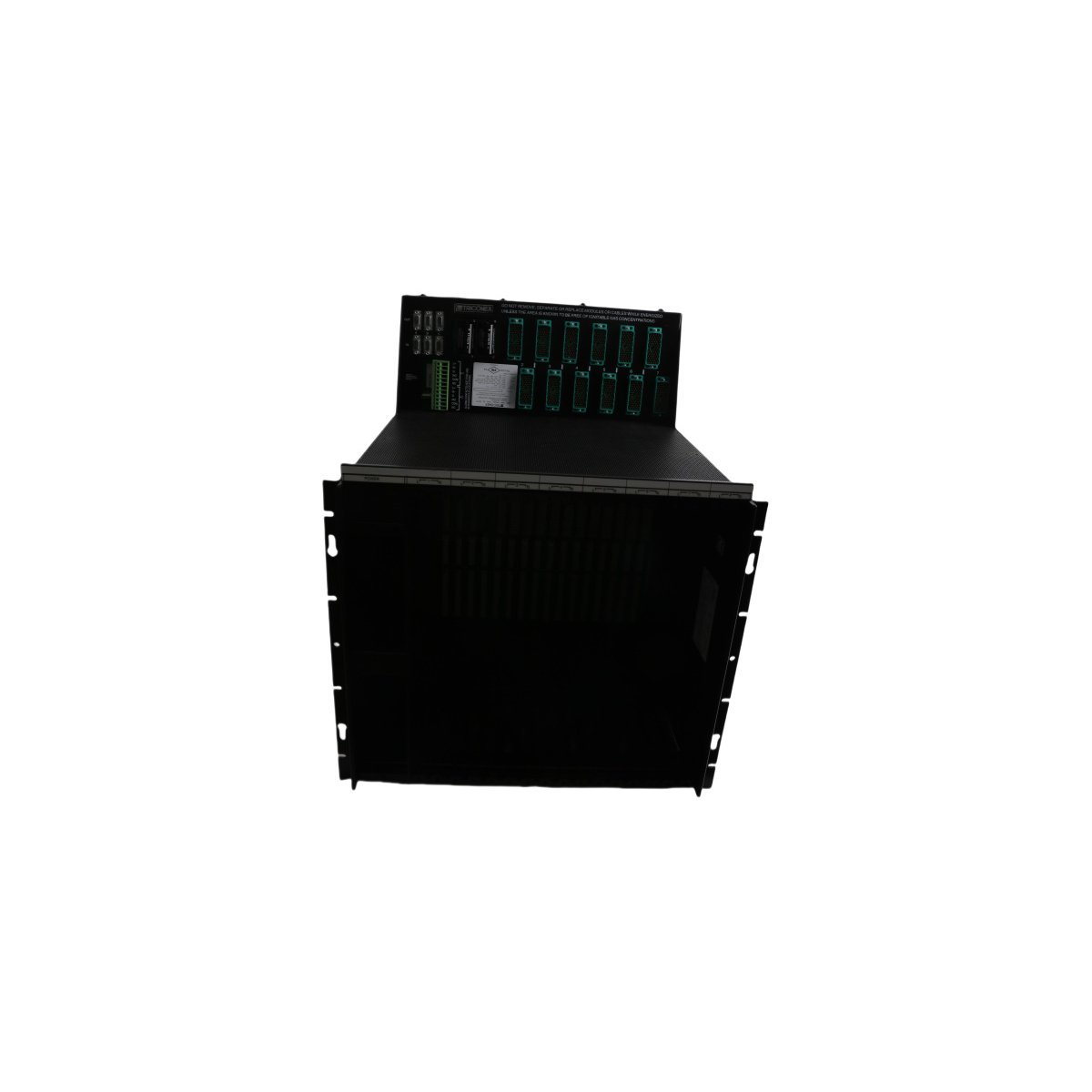

The Triconex 8110 acts as the central hub for safety-instrumented systems (SIS), providing the physical framework for Triple Modular Redundant (TMR) operations.³ This high-density main chassis houses the primary processors and initial I/O modules, facilitating the high-speed data exchange necessary for fault-tolerant logic execution.⁴ Because it utilizes independent power and communication pathways for three separate channels (A, B, and C), the 8110 ensures that a single component failure never compromises the safety function. This architecture makes the chassis indispensable for industrial environments where unplanned shutdowns result in significant economic loss or safety hazards.

Scalable Expansion and Communication

System scalability represents a core advantage of the 8110 High-Density Main Chassis. It features six integrated RS-485 I/O expansion bus ports, allowing the system to communicate with additional 8111 expansion chassis or 8112 Remote Extender Modules (RXM).⁵ This flexible bus structure enables the safety system to grow alongside plant requirements, supporting hundreds of I/O points across multiple racks. Furthermore, the chassis incorporates a four-position security keyswitch.⁶ This hardware-level security feature allows operators to lock the system configuration or enable diagnostic modes, providing a physical layer of protection against unauthorized software changes.

Industrial Resilience and Compliance

Designed for the harshest processing environments, the Triconex 8110 meets rigorous standards for electromagnetic interference (EMI), mechanical shock, and vibration.⁷ It serves as the processing core in applications requiring SIL3 or TÜV certifications, such as emergency shutdown (ESD) systems, fire and gas (F&G) detection, and burner management systems (BMS). Its robust backplane ensures consistent signal integrity between modules, even under high thermal stress. Consequently, global leaders in the oil, gas, and chemical sectors rely on the 8110 chassis to maintain continuous protective operation in mission-critical facilities worldwide.

Technical Specification Table
