Description

Brief Product Description

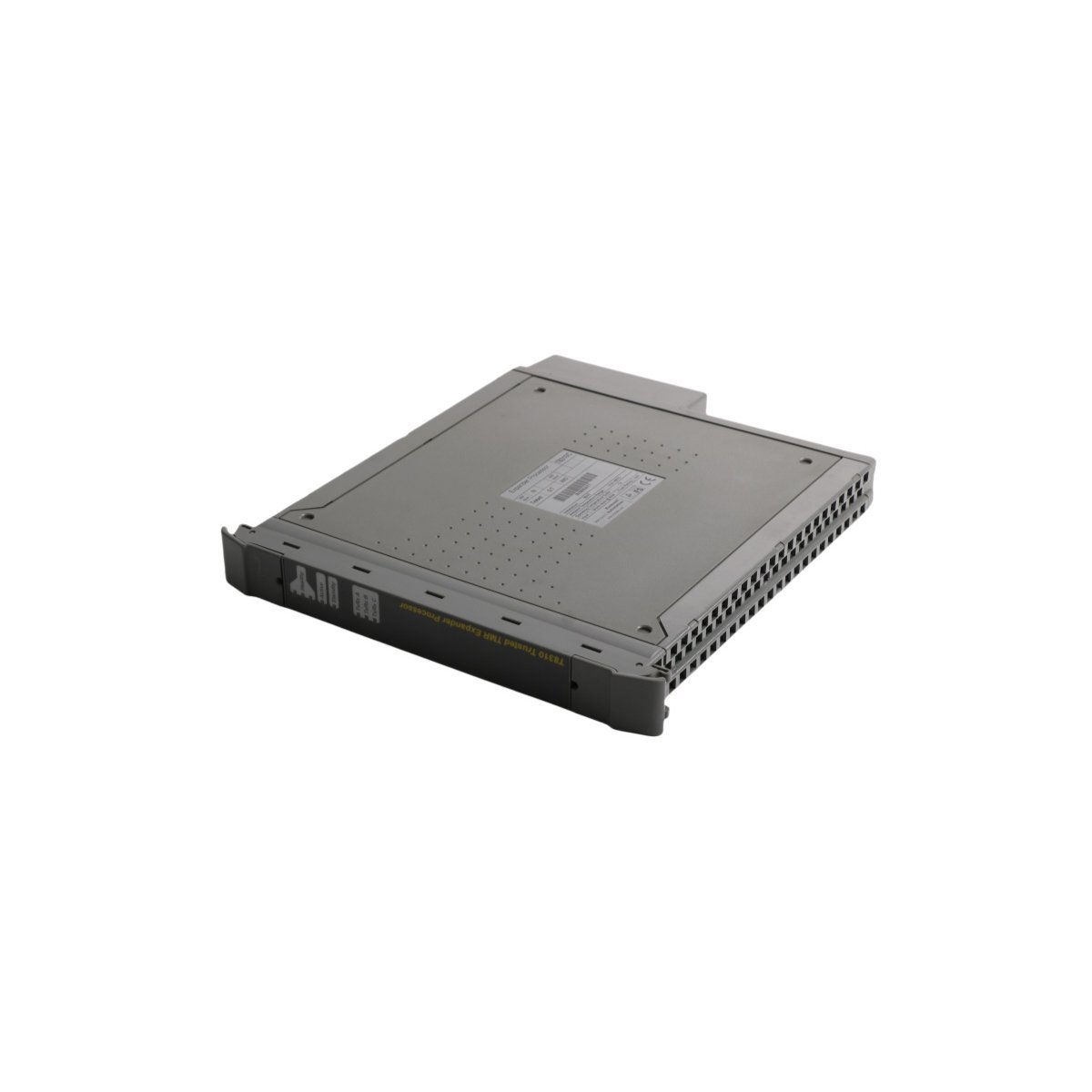

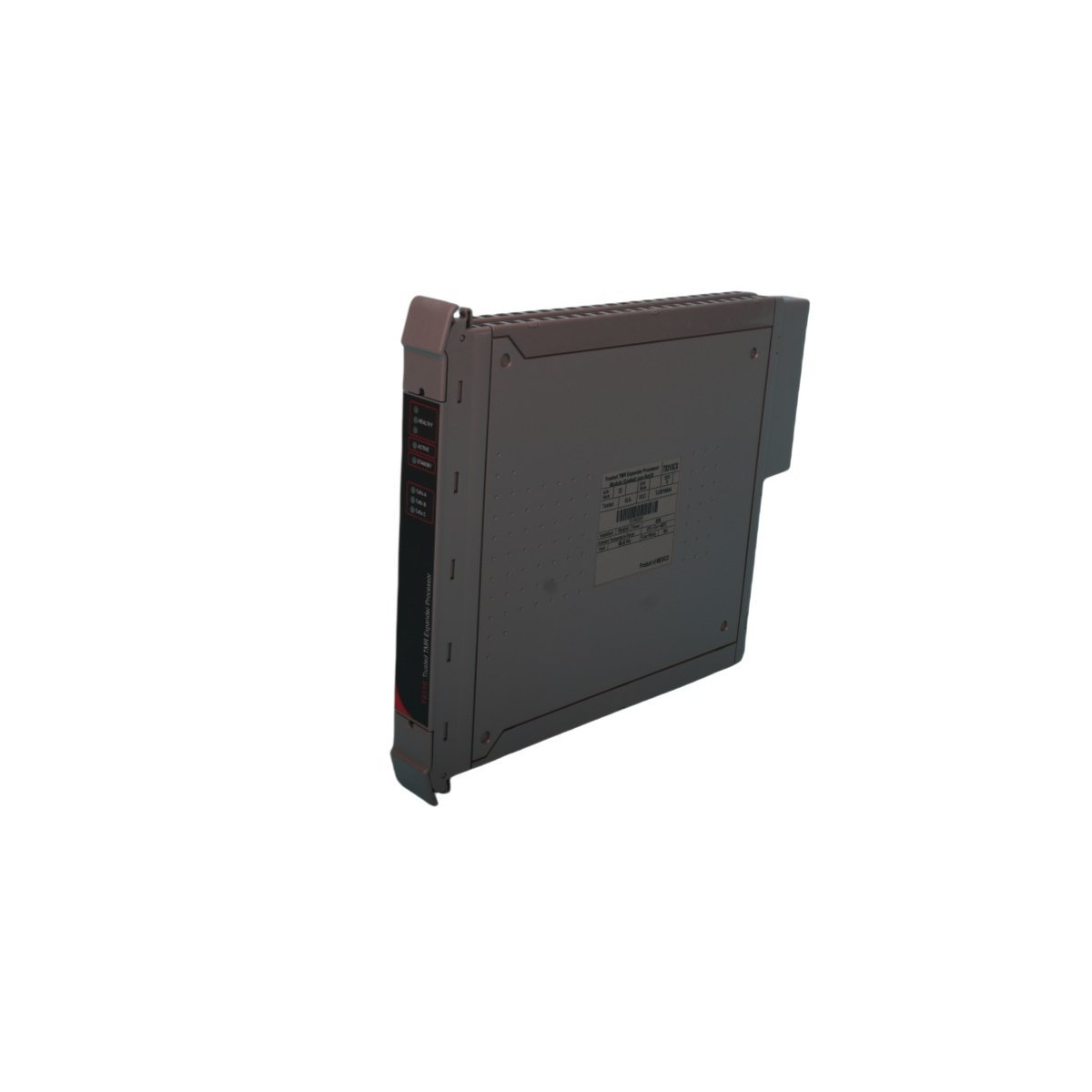

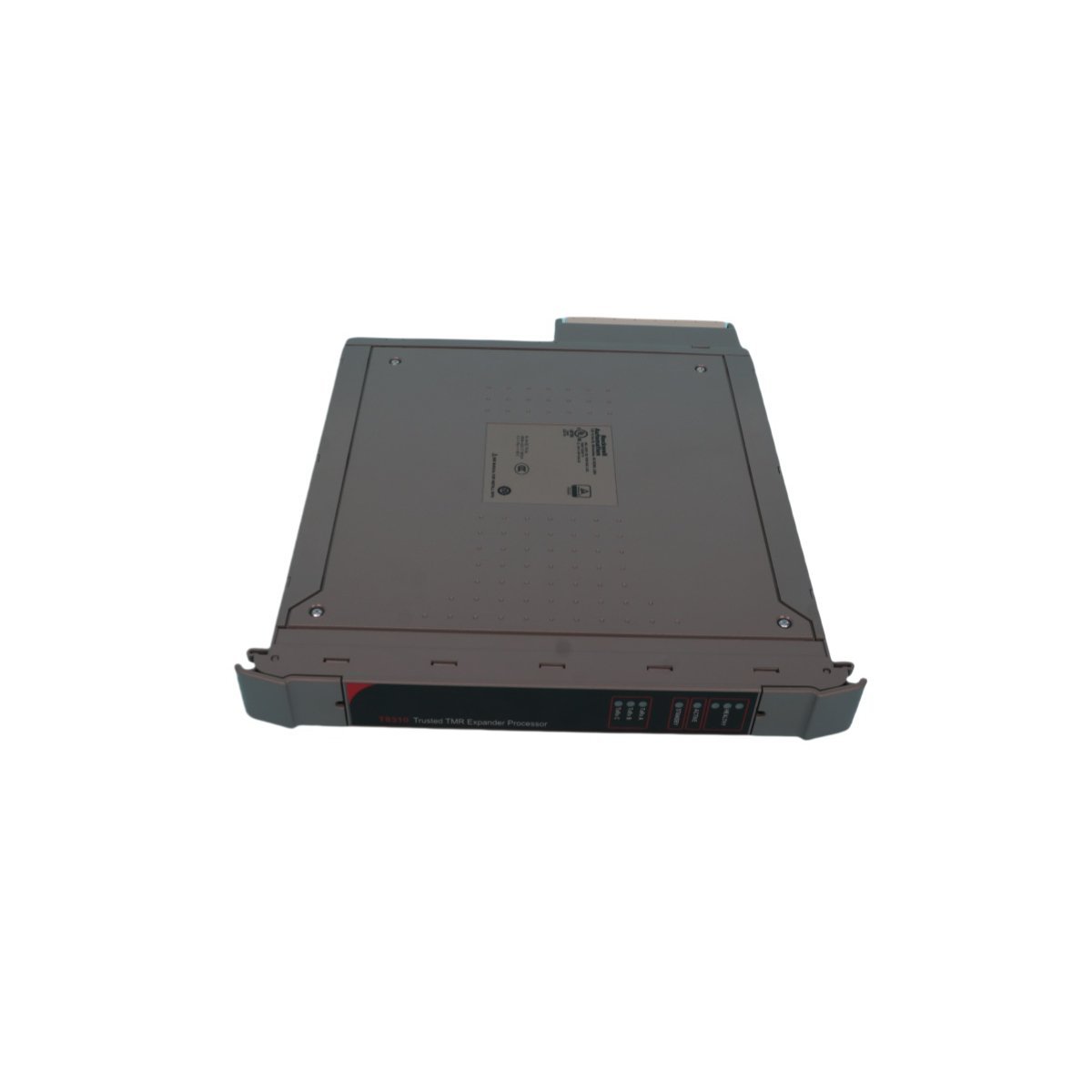

The ICS Triplex T8310 is a high-integrity Trusted TMR Expander Processor designed to bridge the Expander Bus with the chassis backplane. It utilizes Triple Modular Redundancy and HIFT architecture to ensure fault-tolerant communication and seamless system scalability in safety-critical environments.

Product Description

Advanced Expander Bus Connectivity

The ICS Triplex T8310 functions as the primary slave interface within the Trusted Expander Chassis, facilitating a high-speed link between the central Expander Bus and the local backplane. By utilizing Unshielded Twisted Pair (UTP) cabling, this module extends the Inter-Module Bus (IMB) capabilities across multiple hardware racks. This architecture allows the control system to expand its I/O footprint without sacrificing the rigorous performance or synchronization required by safety-instrumented systems. Consequently, the T8310 serves as a vital component for engineers designing large-scale, distributed PLC architectures.

Fault Tolerance and HIFT Architecture

A core technical advantage of the T8310 Trusted module is its Hardware Implemented Fault Tolerant (HIFT) design. The processor employs Triple Modular Redundancy (TMR) combined with 3-2-0 voting logic to isolate and contain internal or bus-level faults. This strategy ensures that a single component failure does not propagate throughout the system or cause a nuisance trip. Furthermore, the unit manages fault recovery through both automated and manual protocols. Because the module continuously executes self-diagnostics, it maintains peak operational integrity while providing front-panel status indicators for immediate local troubleshooting.

High-Performance Processing and Communications

Equipped with dual 32-bit ARM Cortex-A9 processors and 2 GB of DDR3 RAM, the ICS Triplex T8310 delivers the computational power necessary for complex industrial data routing. Beyond its primary expansion role, the module supports Ethernet and RS-485 communication services, enhancing its utility in modern networked environments. The hardware supports hot-replacement, meaning technicians can swap modules during live operation to maintain continuous uptime. This combination of powerful processing, redundant safety voting, and industrial-grade build quality ensures the T8310 meets the strictest requirements for aerospace, energy, and hazardous manufacturing sectors.
