Description

Product Overview

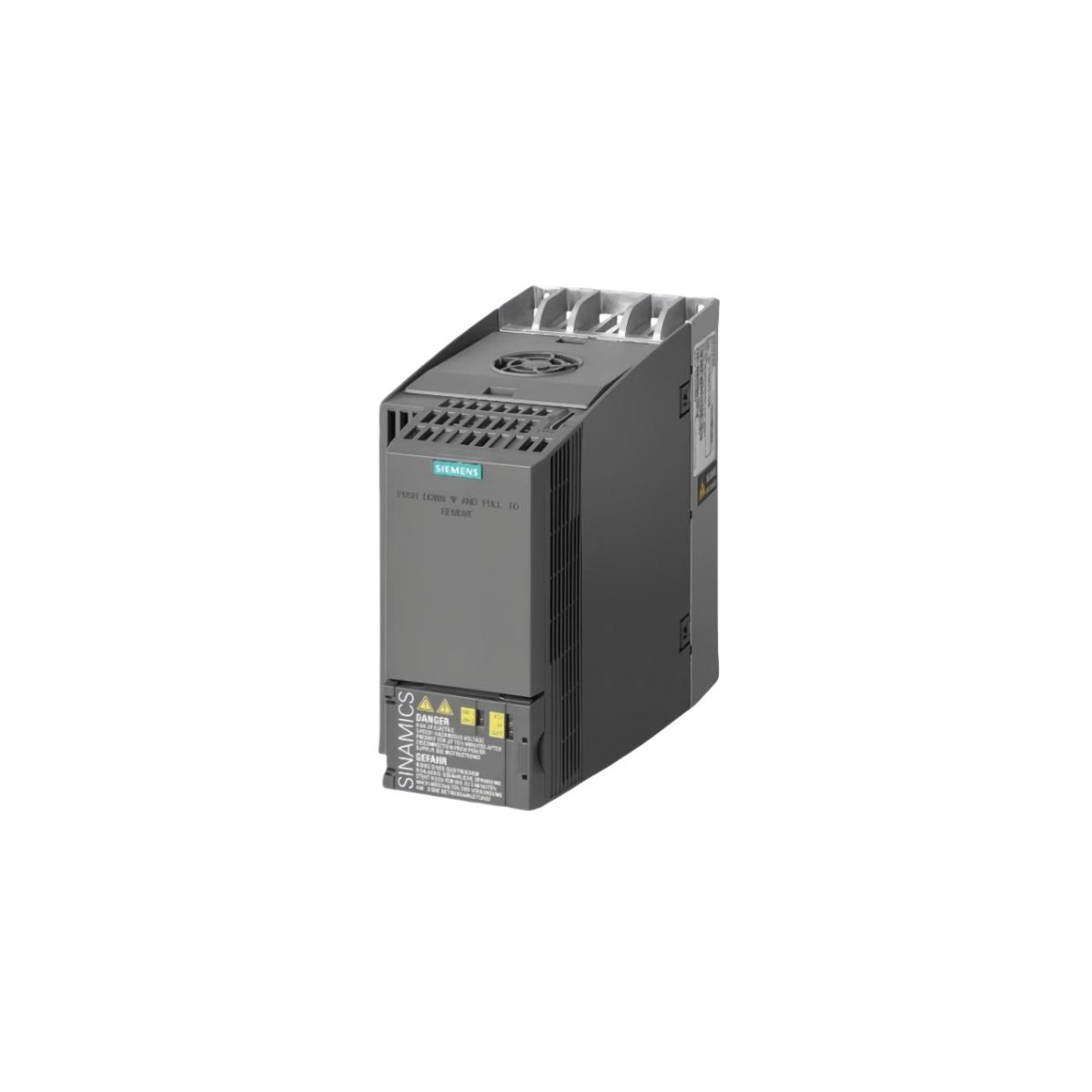

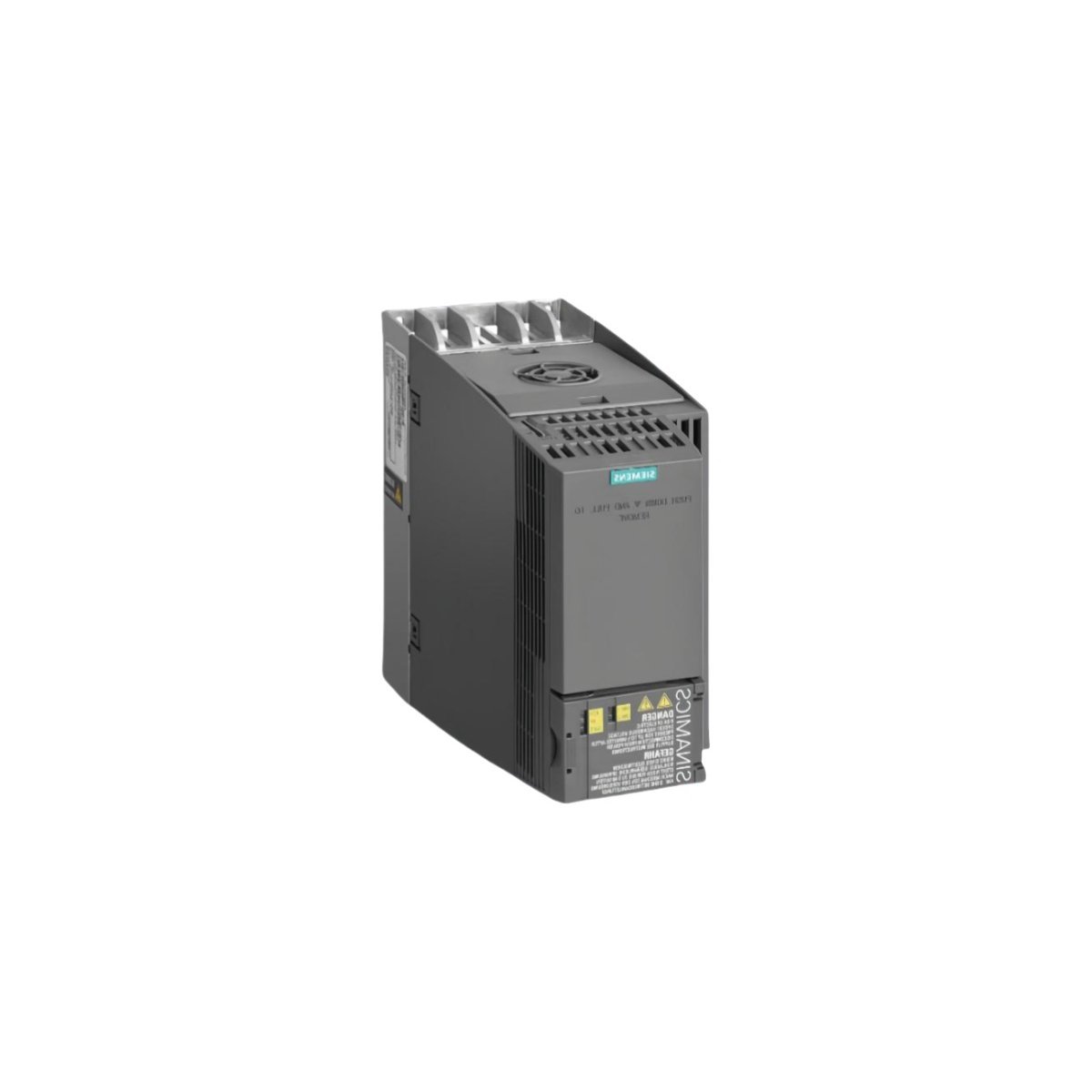

The Siemens 6SL3352-1AE33-8AA1 functions as a high-capacity Power Block designed specifically for integration within the SINAMICS drive series. Siemens manufactures this component to manage high-power motor control tasks, delivering a robust 380A output current. Because it utilizes a 510-750V DC voltage range, the module supports demanding industrial applications such as extruders, heavy-duty conveyors, and large-scale pumping systems. Furthermore, the construction incorporates nickel-plated busbars and specialized paint finishes, which enhance electrical conductivity while effectively resisting corrosion in aggressive industrial atmospheres.

Technical Specifications

• Model Number: 6SL3352-1AE33-8AA1
• Product Series: SINAMICS
• Component Type: Power Block
• Rated Current: 380 A
• Operating Voltage: 510–750 VDC
• Construction: 3-Phase Module with Nickel-Plated Busbars
• Dimensions: 25.5 cm x 18.5 cm x 5.8 cm
• Weight: 1.34 kg
• Compatibility: SINAMICS Drive Systems

Operational Functionality and Application

This Power Block serves as a critical link in the energy conversion process for industrial drive systems. Engineers appreciate the module for its efficient thermal management and high-durability design, which ensures consistent operation under continuous load. Moreover, the unit fits seamlessly into existing control cabinets, allowing maintenance teams to perform direct component replacements without requiring extensive re-engineering. Consequently, users achieve high system availability and minimized downtime during critical production cycles. By maintaining precise control over current flow, the 6SL3352-1AE33-8AA1 guarantees reliable motor performance, thereby supporting the longevity of the entire drive train.
