Description

Product Overview

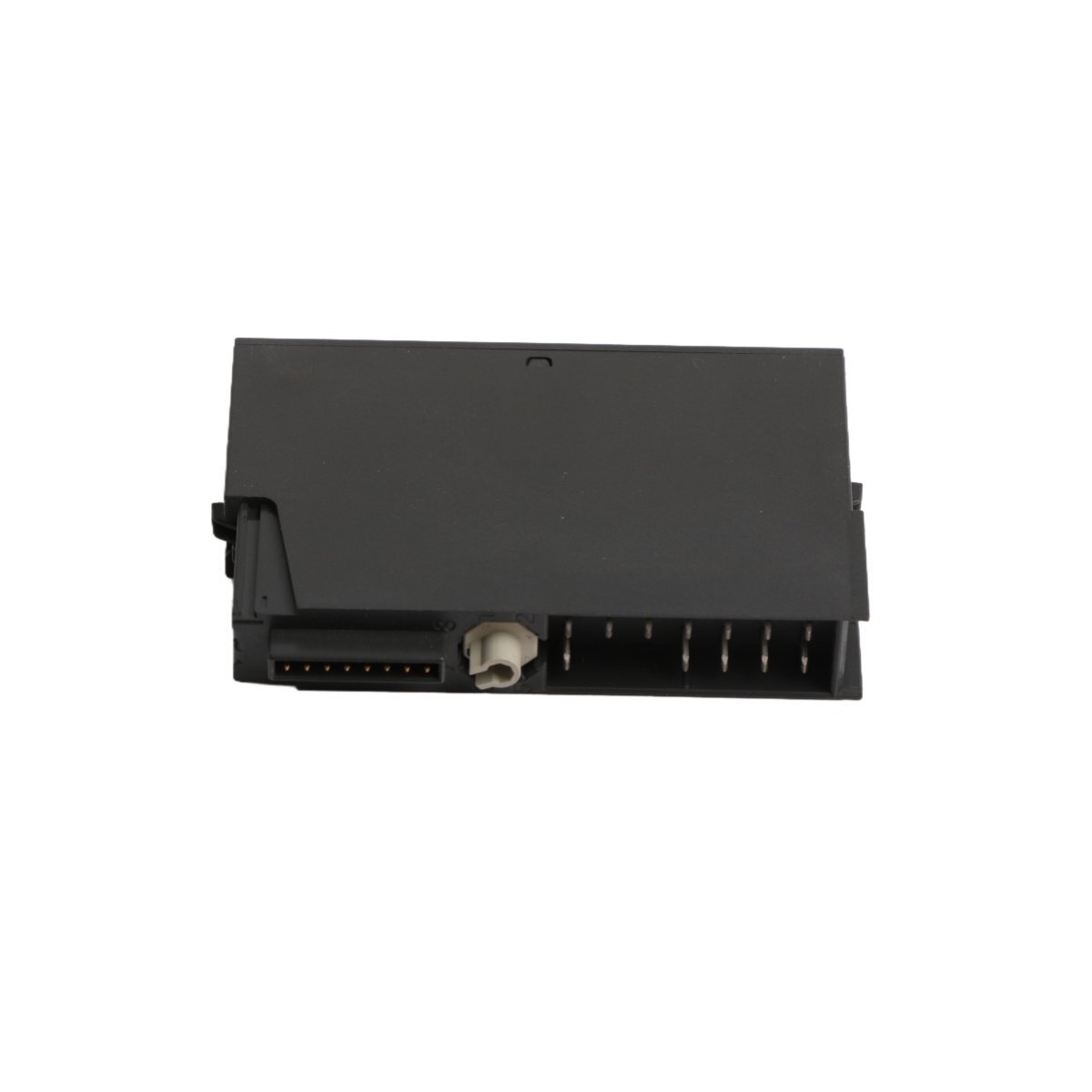

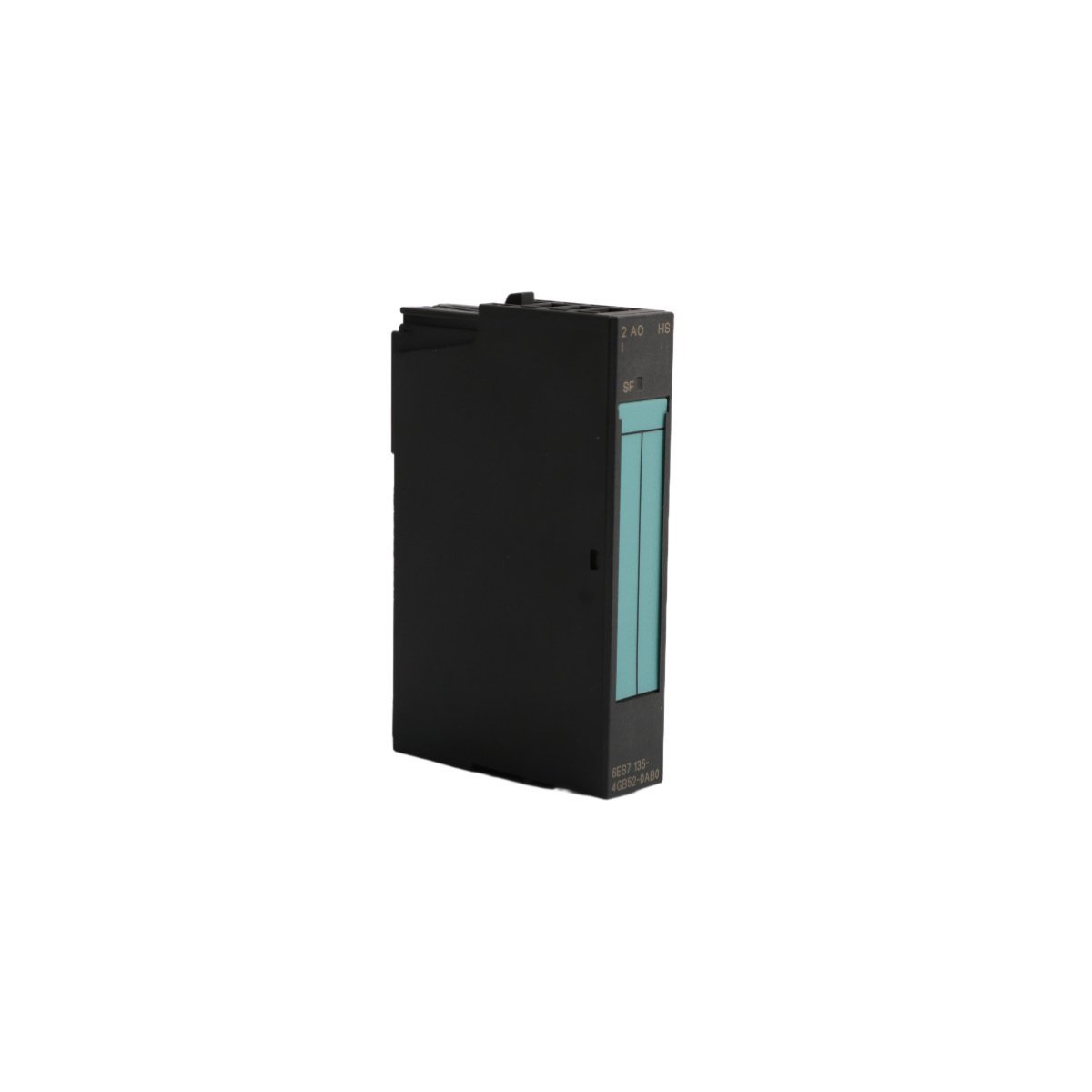

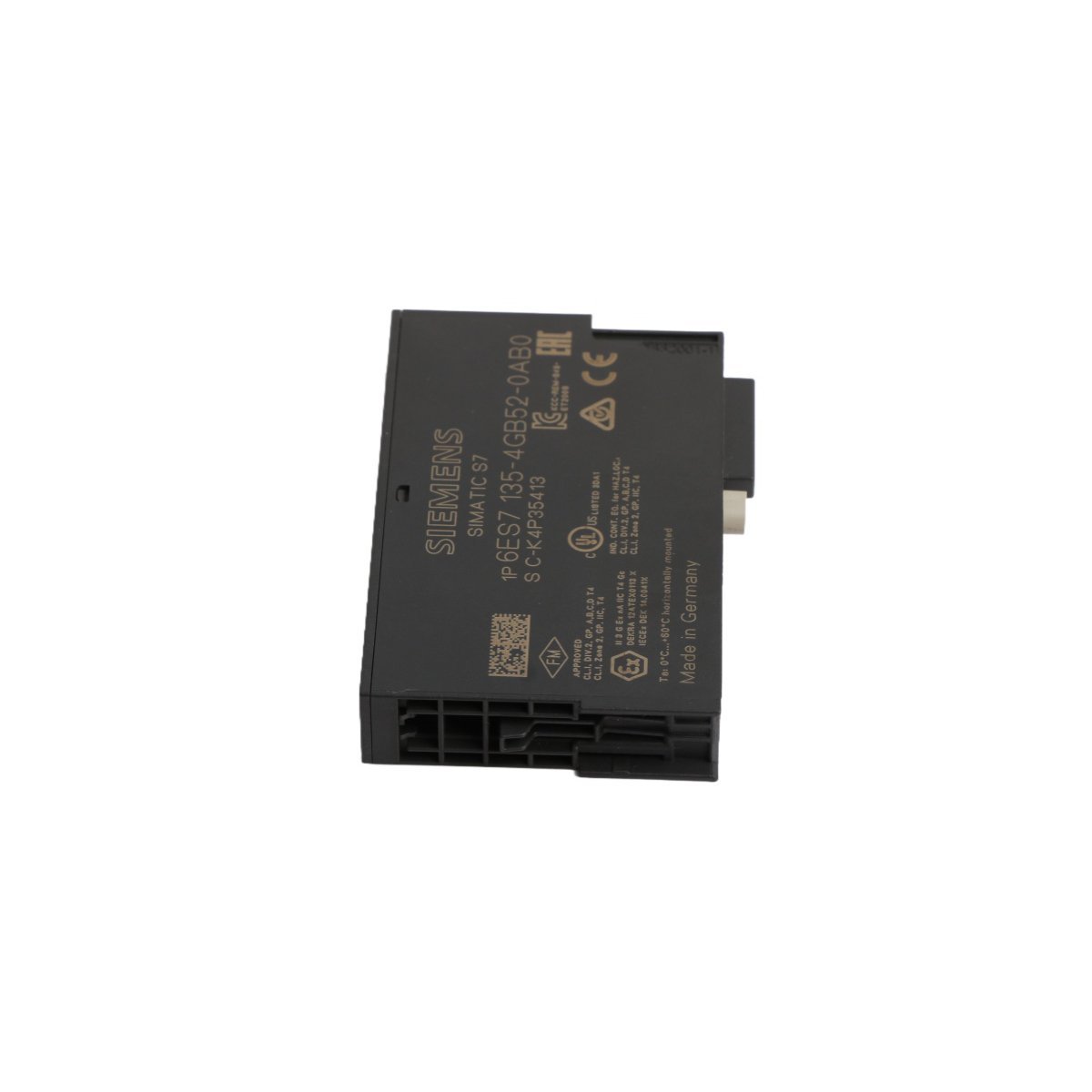

The Siemens 6ES7135-4GB00-0AB0 functions as a high-precision analog output module within the SIMATIC ET 200S distributed I/O portfolio. Engineers utilize this module to convert digital values from the PLC into standardized analog current signals, which effectively control actuators such as valves, drives, and proportional controllers. Its compact 15mm width enables space-saving integration into modular control cabinets, while its technical design ensures consistent performance in diverse automation environments.

Technical Specifications

• Model Number: 6ES7135-4GB00-0AB0
• Manufacturer: Siemens
• Product Series: SIMATIC ET 200S
• Module Type: Analog Electronic Module (AO)
• Number of Outputs: 2 channels
• Current Output Range: 4 to 20 mA
• Resolution: 13-bit + sign
• Diagnostic Capability: Group fault diagnostics via LED (SF)
• Width: 15 mm
• Protection Class: IP20

Operational Functionality

This module processes output signals with high accuracy, supporting complex control loops where precise current regulation remains necessary. The device provides a stable 4–20 mA output that conforms to industry-standard interfaces, thereby ensuring compatibility with various field devices. Furthermore, the unit features integrated group fault diagnostics, which allow the control system to detect and report errors instantaneously. Consequently, maintenance personnel identify potential faults immediately, which reduces unplanned downtime significantly.

The module supports hot-swapping within the ET 200S station, allowing operators to replace components without powering down the entire network segment. This design facilitates efficient machine maintenance and maximizes system uptime. Moreover, the hardware architecture relies on robust internal circuitry that maintains signal integrity even in settings characterized by environmental stress.

Deployment Applications

Siemens engineered this analog output module for demanding industrial sectors, including manufacturing, water treatment, and chemical process automation. It integrates seamlessly with existing PROFIBUS or PROFINET head stations, offering a flexible and scalable solution for distributed control architectures. Because the module maintains strict adherence to SIEMENS quality standards, it serves as a reliable component for critical control tasks in modern, high-speed automated machinery.
