Product Overview

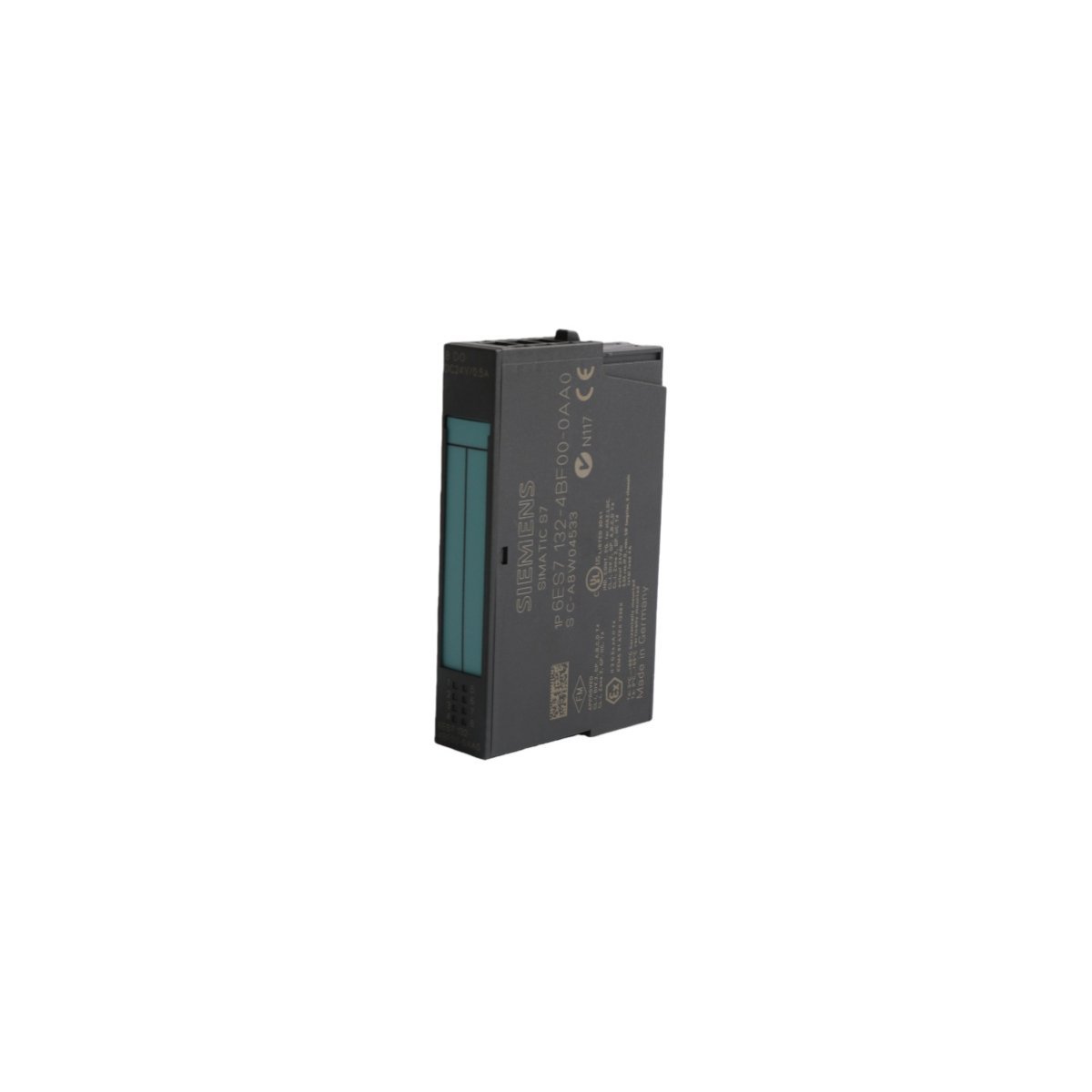

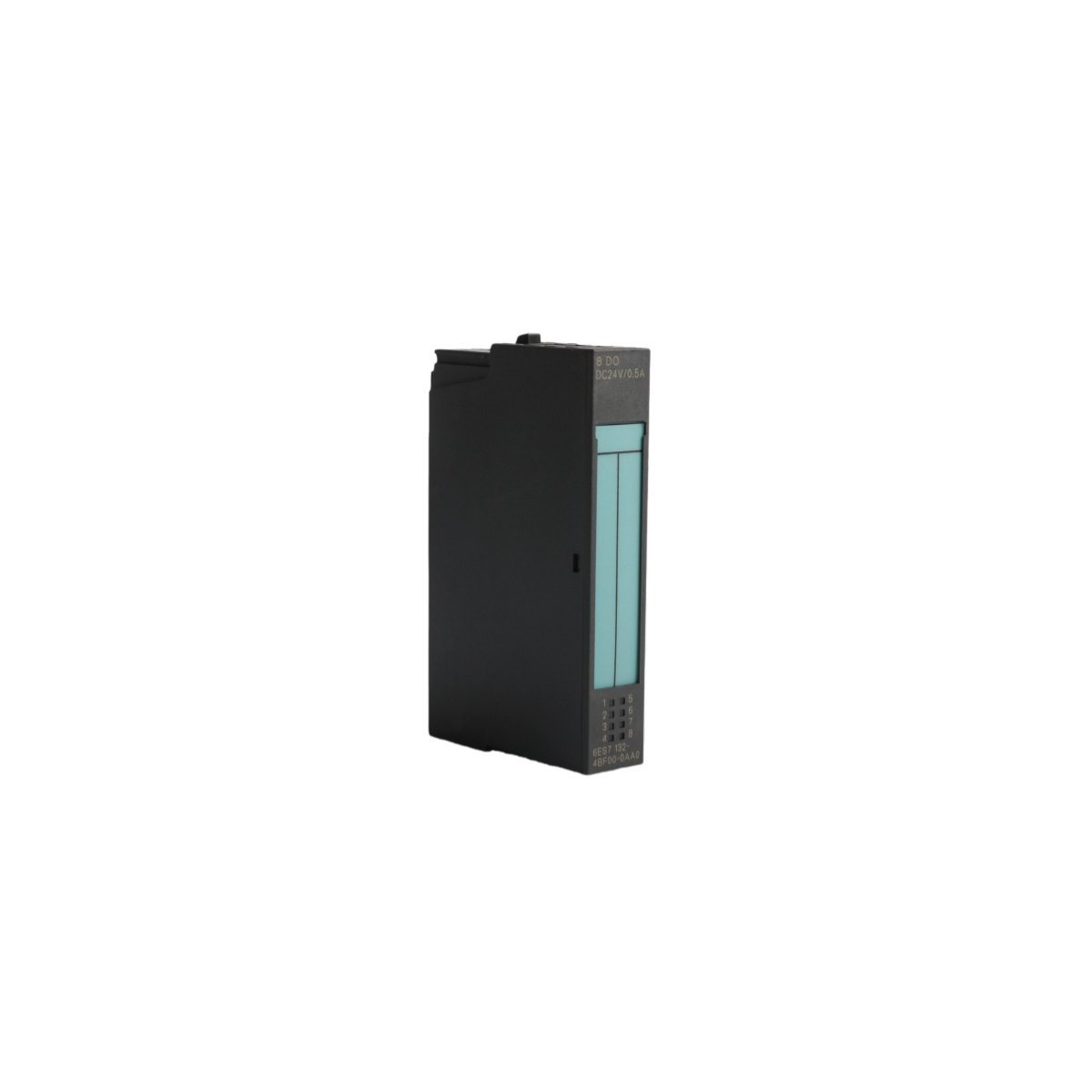

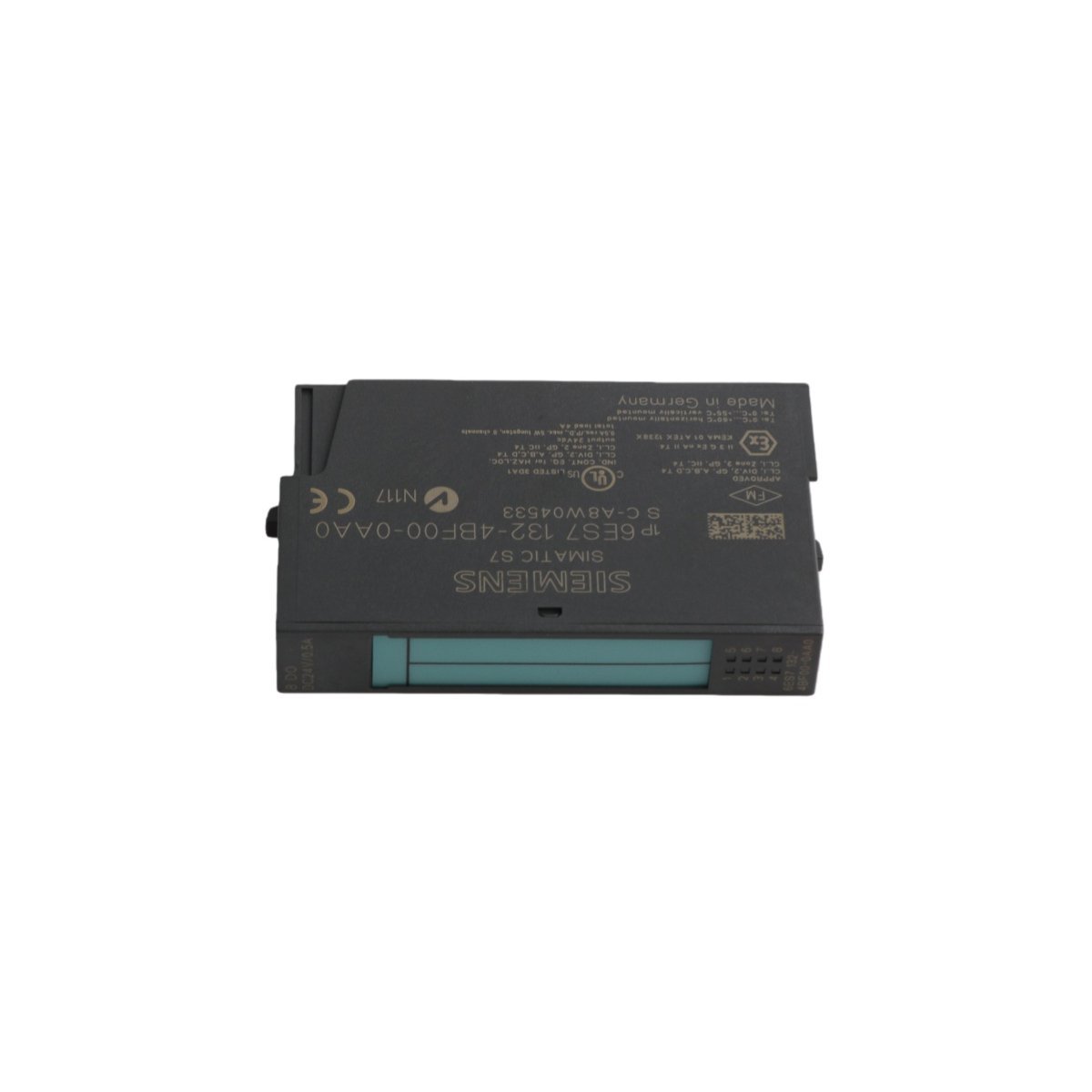

The Siemens 6ES7132-4BF00-0AA0 functions as a high-density digital output electronic module within the SIMATIC ET 200S distributed I/O system. Siemens engineers designed this unit specifically for decentralized automation tasks, where it facilitates the efficient control of various actuators. By mounting this module onto a terminal module, users achieve seamless integration into industrial control environments. Furthermore, the system supports hot-swapping, which allows technicians to replace or service the module during active operation without disrupting the broader communication network.

Technical Specifications

• Model Number: 6ES7132-4BF00-0AA0
• Series: SIMATIC ET 200S
• Module Type: Digital Output (DO)
• Number of Outputs: 8 channels
• Output Voltage: 24 VDC
• Output Current: 0.5 A per channel
• Power Loss: 1.5 W (typical)
• Width: 15 mm
• Electrical Isolation: 500 VDC
• Country of Origin: Germany

Operational Functionality

This module manages up to eight independent digital outputs, providing the necessary signals for standard industrial components such as solenoid valves, contactors, and indicator lights. Because the ET 200S architecture permits the configuration of up to 64 modules, system integrators scale their I/O density according to specific application requirements. Additionally, the module’s 15 mm footprint minimizes space consumption within control cabinets. Consequently, it represents an effective solution for space-constrained installations. Moreover, the integration process remains straightforward, as the module interfaces directly with standard ET 200S interface modules, thereby ensuring reliable performance and consistent data transmission throughout the distributed system.
