Description

Product Overview

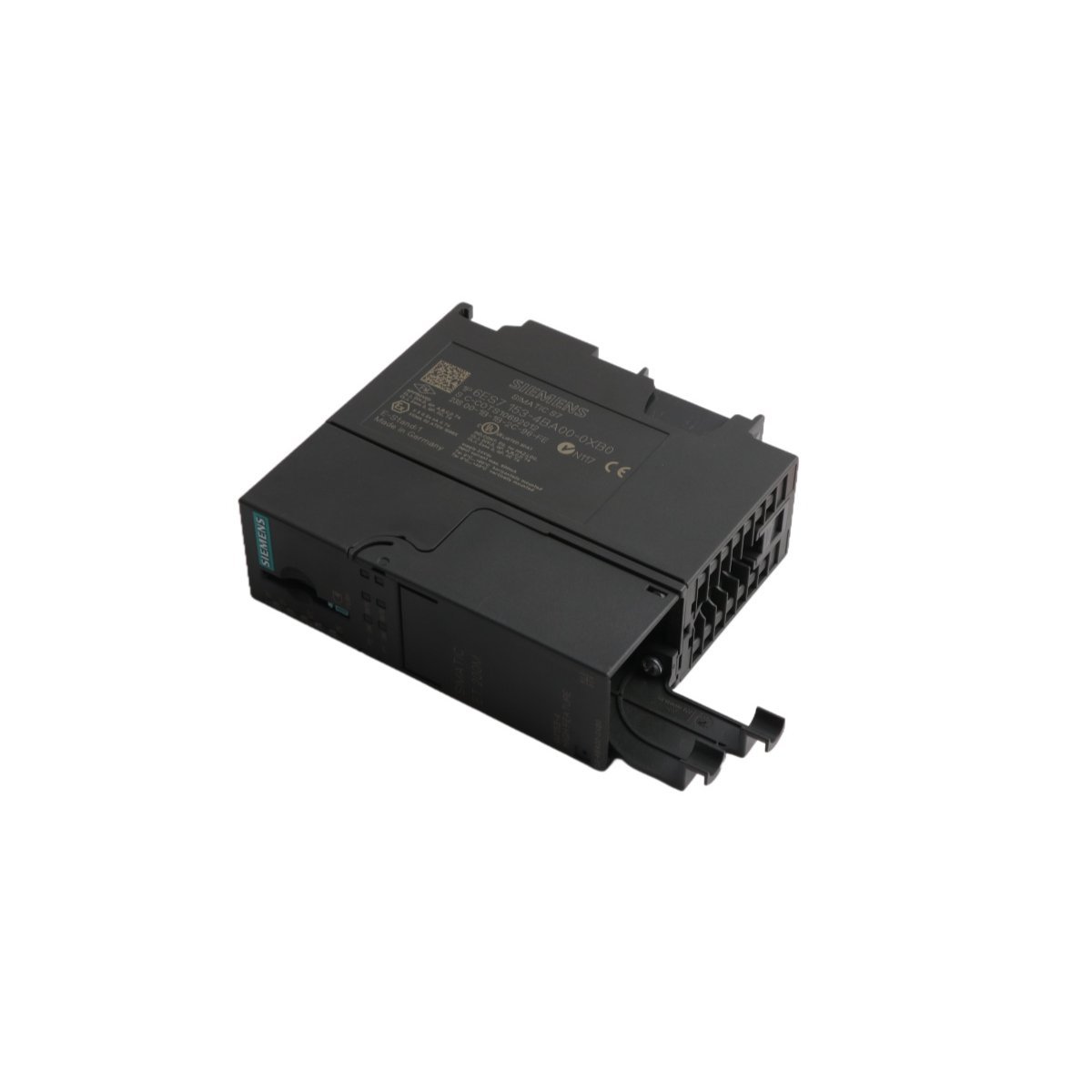

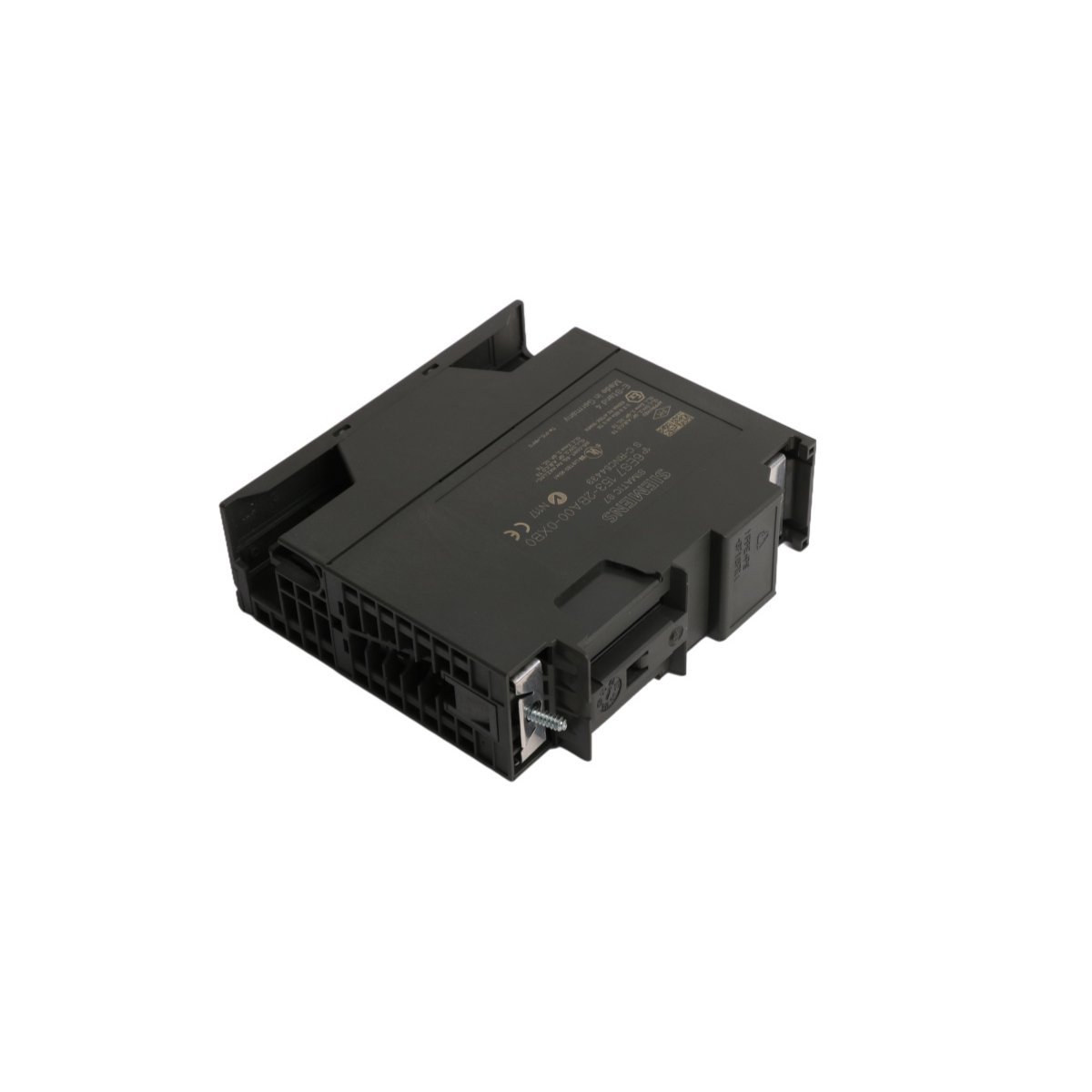

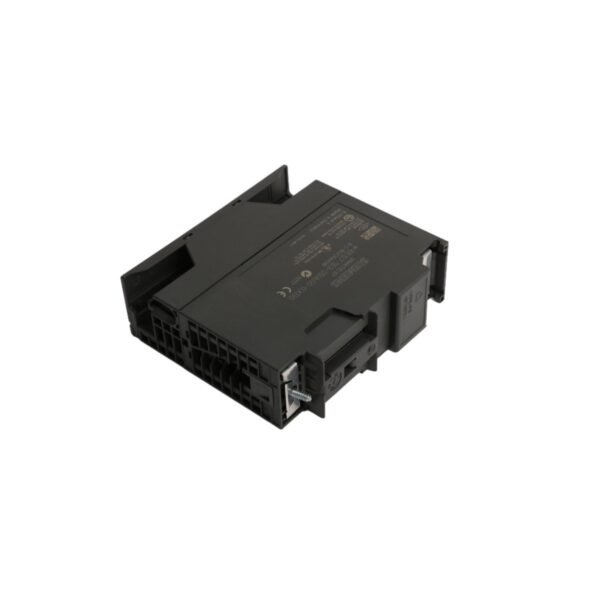

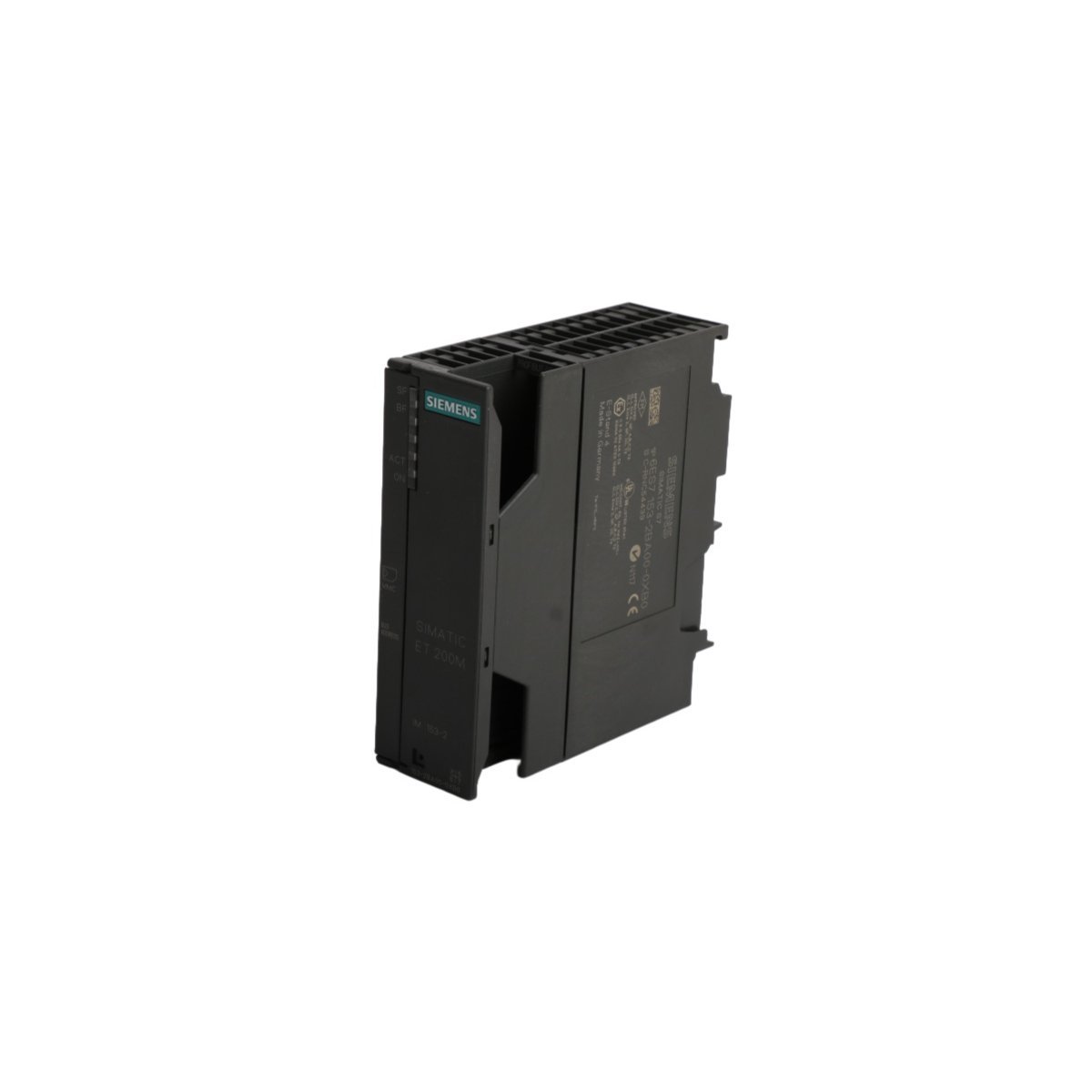

The Siemens 6ES7153-2BA00-0XB0 functions as an IM 153-2 High Feature interface module within the SIMATIC ET 200M distributed I/O system. System architects deploy this module to establish a robust PROFIBUS DP connection between S7-300 signal modules and the central controller. Because this unit supports full hardware redundancy, operators maintain continuous process control even during localized hardware faults or scheduled maintenance cycles.

Technical Specifications

• Model Number: 6ES7153-2BA00-0XB0
• Component Type: IM 153-2 High Feature Interface Module
• Compatibility: S7-300 I/O Modules
• Communication Protocol: PROFIBUS DP
• Maximum I/O Capacity: 8 S7-300 Modules
• Operating Power: 24 VDC
• Weight: 0.08 kg
• Dimensions: 2.2 cm x 14.3 cm x 12.6 cm
• Manufacturing Origin: Germany

Functional Characteristics and Industrial Integration

Siemens engineers designed this interface to prioritize timing precision and data integrity. The module executes isochronous operations and supports precise timestamping, which proves essential for applications requiring rigorous synchronization, such as high-speed motion control or batch processing. Furthermore, the module handles up to 64 channels per signal module, allowing for high-density I/O configurations that maximize cabinet space efficiency.

The module incorporates advanced diagnostic capabilities that accelerate troubleshooting processes. Consequently, maintenance teams identify and isolate communication faults rapidly, which minimizes overall system downtime. Additionally, the unit processes HART auxiliary variables, facilitating seamless integration with intelligent field devices. By utilizing this interface in energy or process automation sectors, integrators ensure a stable communication backbone that survives harsh industrial conditions while maintaining consistent data throughput.
