Description

Product Overview

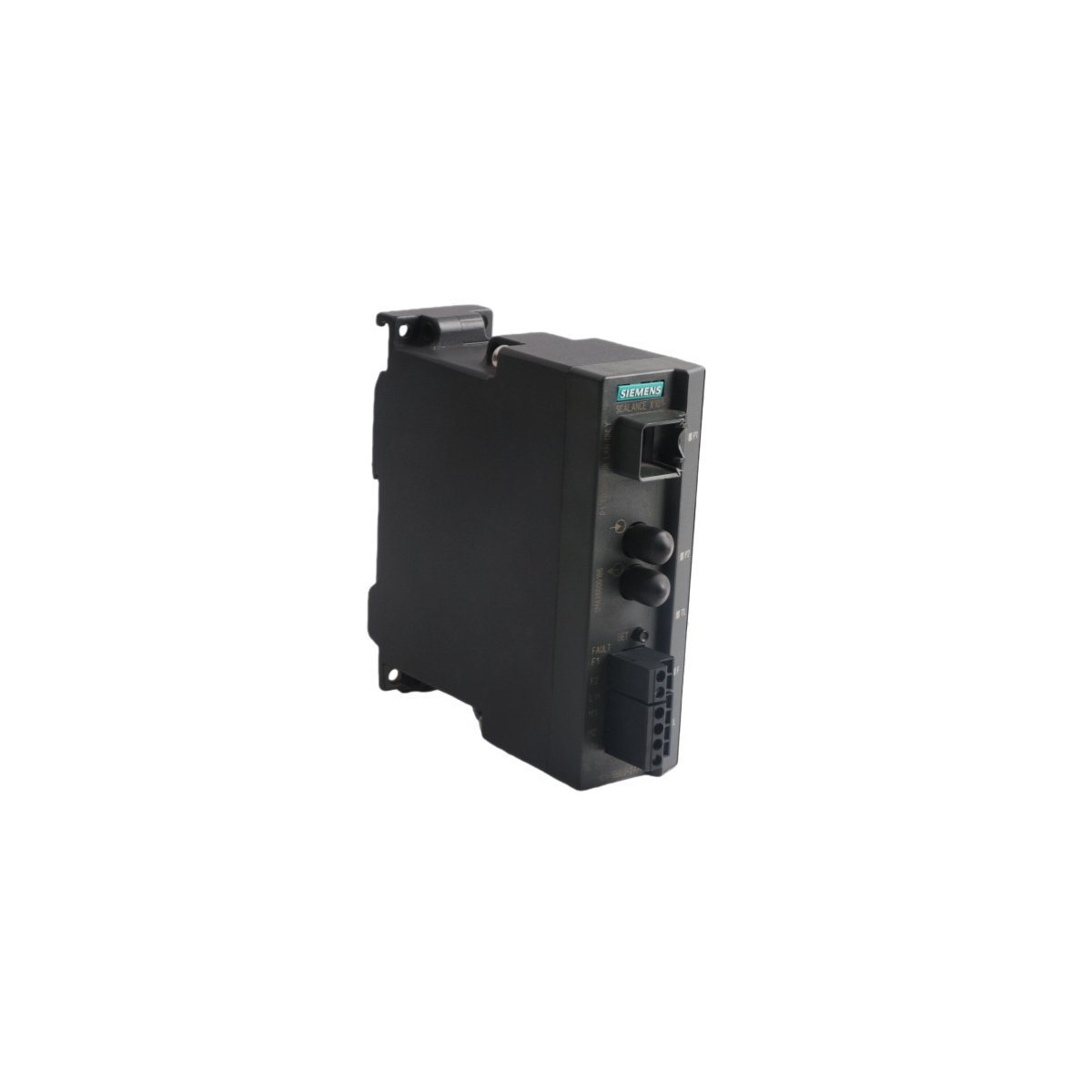

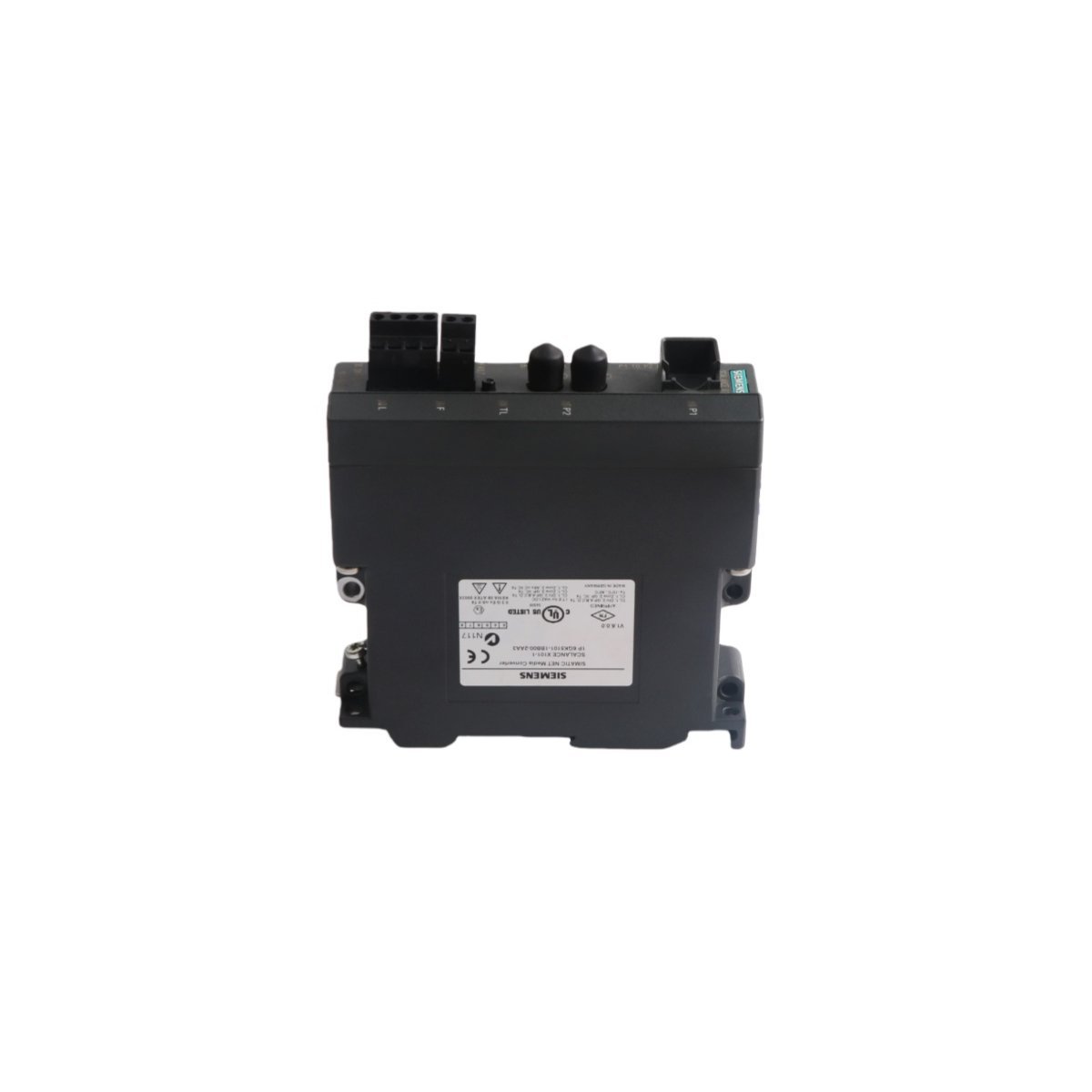

The Siemens 6GK5101-1BB00-2AA3 functions as a compact, unmanaged media converter engineered for the seamless transition between electrical and optical transmission media. This device enables operators to extend Industrial Ethernet network segments over significant distances, successfully overcoming the range limitations inherent in copper-based cabling. By integrating this module into their network architecture, engineers ensure reliable data exchange across expansive manufacturing plants and distributed automation cells.

Technical Specifications

• Model Number: 6GK5101-1BB00-2AA3
• Manufacturer: Siemens
• Product Class: SIMATIC NET Industrial Ethernet Media Converter
• Port Configuration: 1 x RJ45 (10/100 Mbps) and 1 x BFOC Multi-mode Port (100 Mbps)
• Transmission Distance: Up to 5 km via fiber optic link
• Power Supply: Redundant 24V DC input
• Diagnostic Features: Integrated LED indicators and remote signaling contact
• Physical Design: DIN rail mountable with integrated connector securing collars
• Environmental Resilience: Engineered for high-interference industrial settings

Functional Capabilities

This converter facilitates robust communication by bridging standard Ethernet copper interfaces with multi-mode fiber optic backbones. The inclusion of an optical interface allows the system to maintain data integrity across areas prone to high electromagnetic interference, where copper cables might otherwise suffer from signal degradation.

Siemens incorporates a redundant power supply design, which actively protects the network connection against power-related failures. This architecture significantly enhances system availability for critical automation loops. Furthermore, maintenance teams utilize the built-in signaling contact to receive automated alerts, which speeds up troubleshooting and minimizes downtime. The device also features a user-friendly Set pushbutton, which simplifies the commissioning process during initial network integration.

Application Advantages

Engineers deploy this converter to extend the reach of PROFINET installations while ensuring physical link stability. The unit protects against accidental cable disconnects through its specialized securing collars, a critical feature for high-vibration environments. Because the device supports industrial-grade protocols, it provides a stable, transparent link that effectively unifies disparate network segments into a cohesive, high-performance infrastructure.
