Description

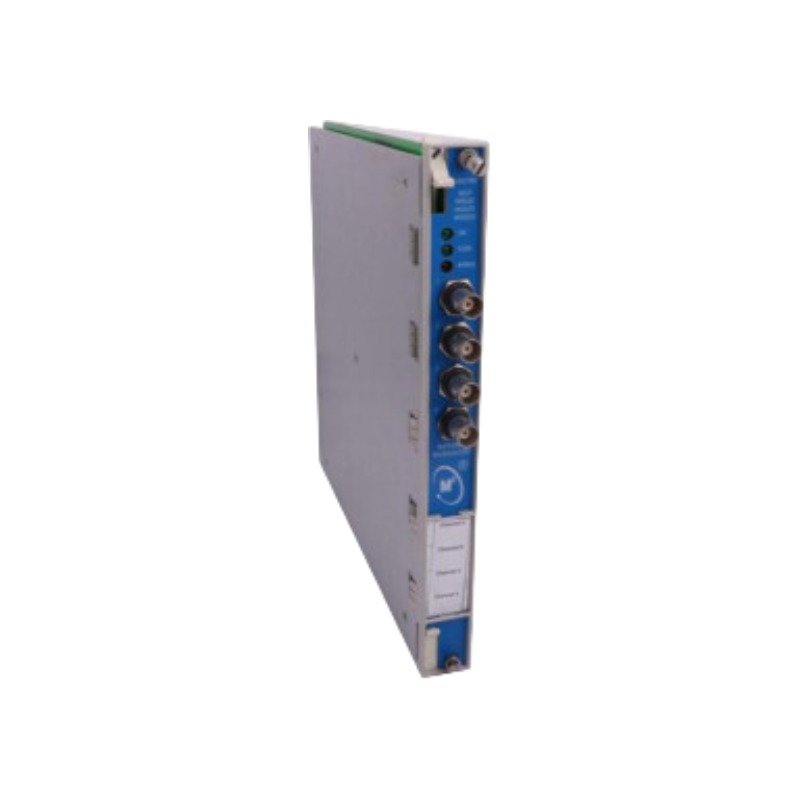

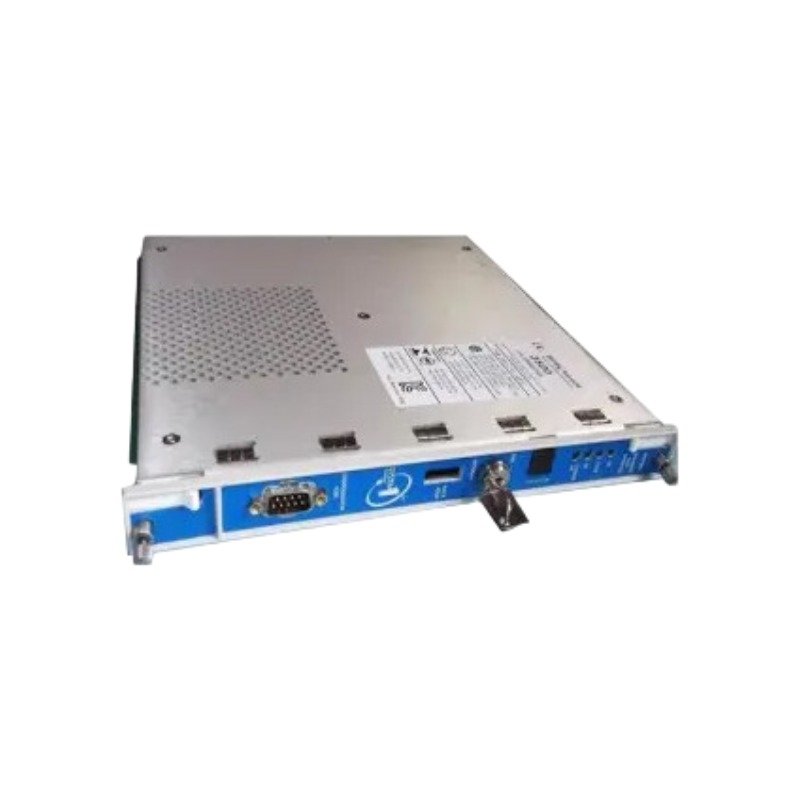

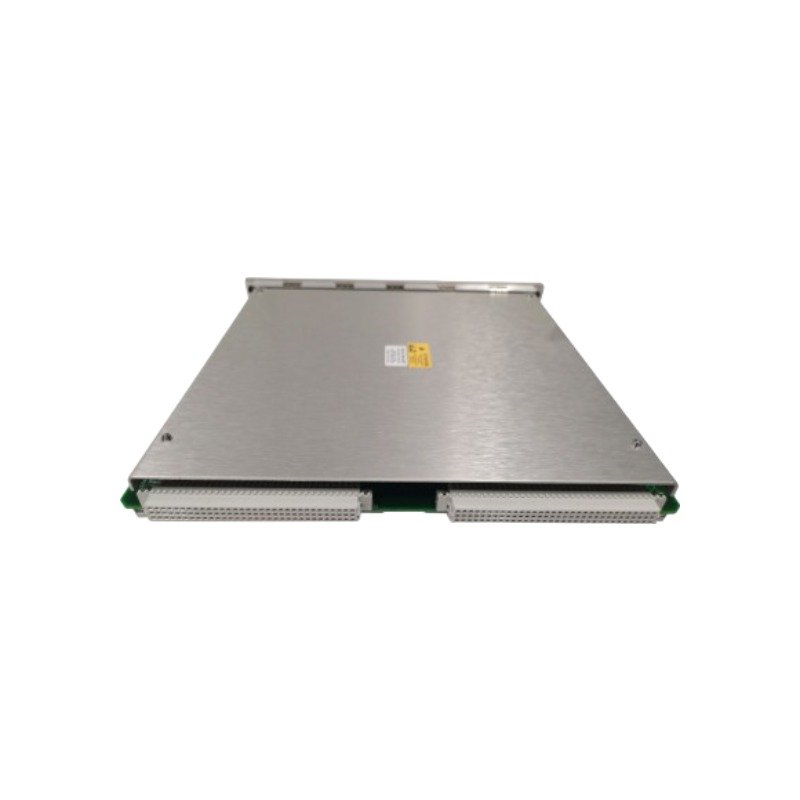

Configured for high-speed digital communications in 3500 Machinery Protection System chassis, the Bently Nevada 176449-03 (176449 Modbus Monitor Module) provides direct physical/electrical execution of external data interface protocols.

Hardware Specifications

Communication Interface and Cross-Talk Suppression

The module acts as a gateway for transmitting machinery rotor dynamics variables and gap voltage validation registers over industrial buses. Internal electrical isolation provides high-frequency cross-talk suppression between individual serial channels and backplane data lines, preventing transient spikes from corrupting critical control network traffic. By mapping eddy-current probe scaling configurations and alarm states into standard registers, the device allows external DCS and PLC architectures to read continuous diagnostics without interrupting real-time physical loop execution.

Frequently Asked Questions

Q: What is the backplane power draw profile for the 176449-03 card during full network load?

A: The module draws a maximum continuous current of 0.8 A from the internal 3500 chassis backplane power supplies, operating within stable thermal design limits.

Q: Does this hardware configuration support redundant network paths?

A: Yes. When paired with a matching redundant 176449-03 module and interface I/O panel, the system executes automatic failover logic, switching to the backup network link within milliseconds upon primary line failure.

Field Installation Guidelines

• Disconnect or isolate external communication networks before making physical serial loop terminations to the terminal blocks to prevent ground potential shocks.
• Ground the RS485 shielded communication cable at the 3500 rack ground rail only; maintain continuous shielding across all junction splices without additional grounding points.
• Ensure termination resistors (120 Ohm) are switched inline at the physical end-of-line nodes for all long-distance RS485 serial runs to suppress packet reflections.
• Confirm that network IP assignments and serial baud rates entered in the 3500 Configuration Software align exactly with the master scanner parameters prior to putting the link online.
