Description

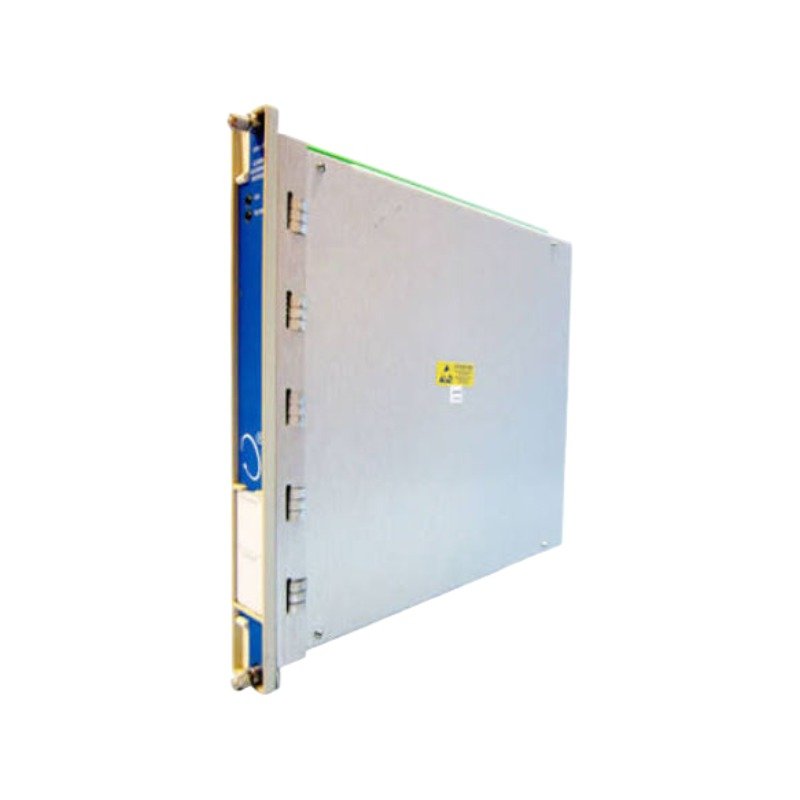

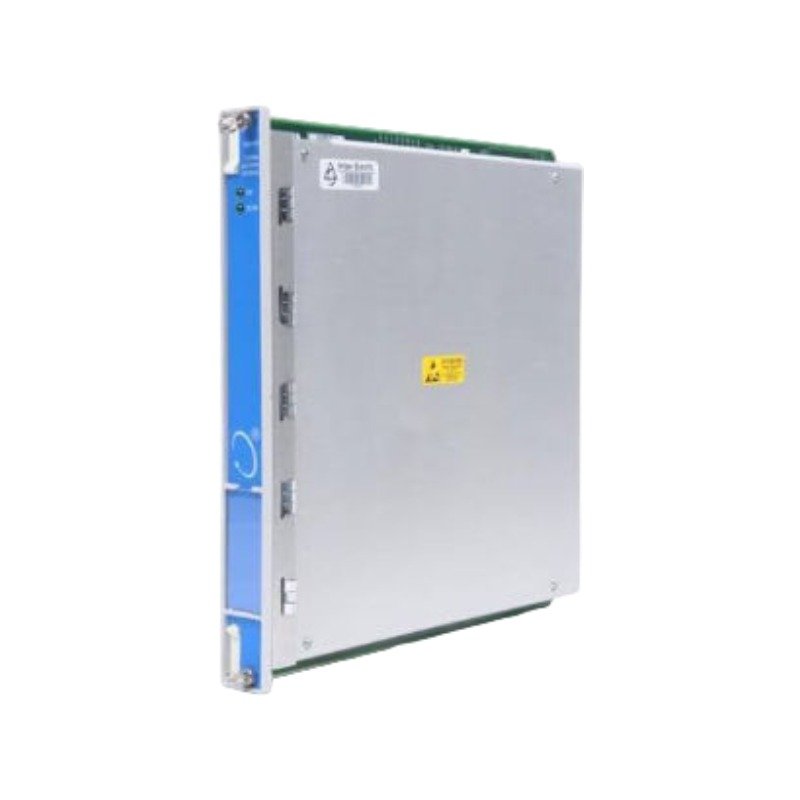

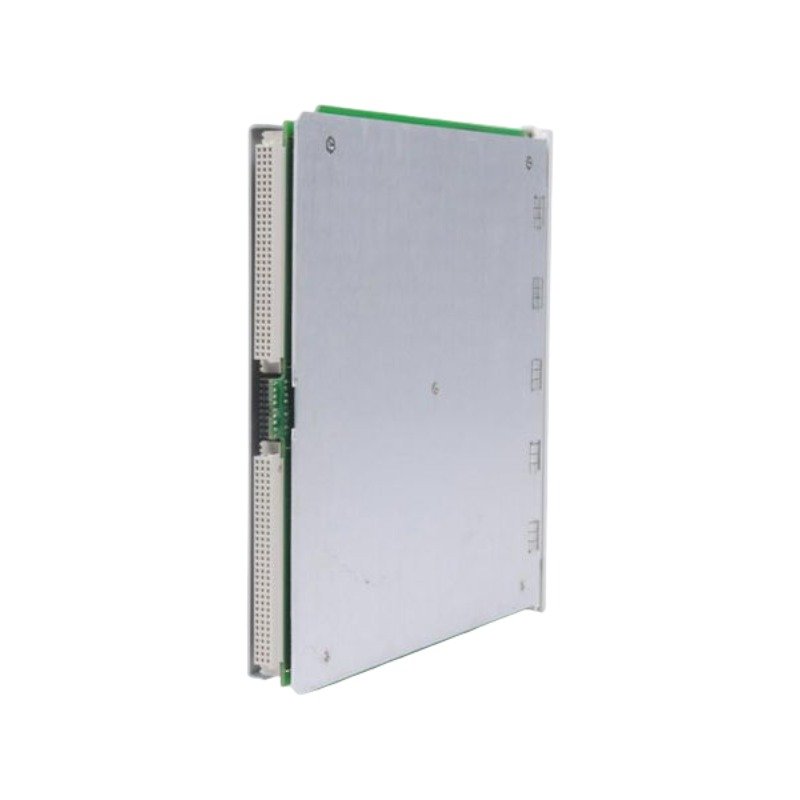

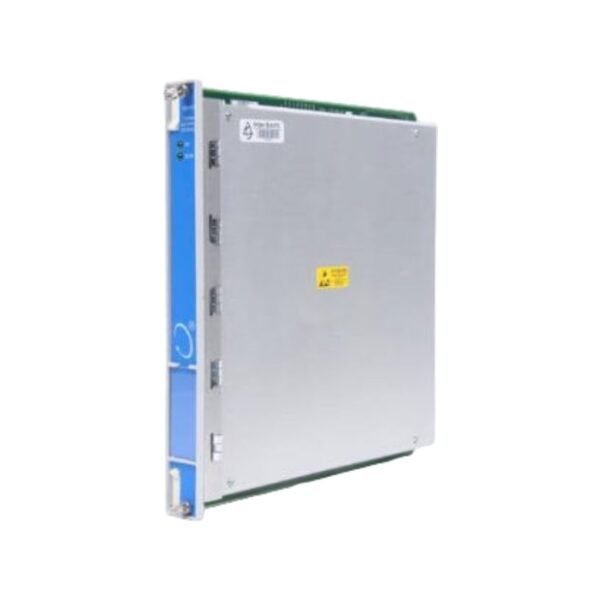

The Bently Nevada 3500/92-136188-02, also cataloged as the 3500/92 I/O Module, operates as a dedicated hardware component for communication interface signal routing within 3500 rack-monitored framework networks.

Hardware Specifications

Rotor Dynamics and TSI Signal Integration

Technicians configure the module to interface directly with rack backplane data buses, thereby channeling real-time machinery health metrics to supervisory communication gateways. Specifically, the internal circuitry continuously manages gap voltage validation (-10 VDC targets) across channel inputs to prevent data corruption during polling cycles. In addition, robust cross-talk suppression safeguards signal integrity across high-density terminal blocks. Consequently, condition monitoring systems receive uncompromised vibration and status data while operators avoid measurable latency penalties.

Frequently Asked Questions

• Q: Does the 3500/92 I/O module support online hot-swap operations in active racks?

  A: Yes, technicians can insert and remove the hardware under power within designated rack slots, provided that system configuration rules and backplane power limits remain respected.

• Q: What is the minimum input impedance requirement specified for each lead input?

  A: According to technical parameters, engineers design the input circuitry to maintain an impedance greater than 1 MOhm per lead input.

Field Installation Guidelines

• Step 1: Power down the target 3500 rack slot or verify that system redundancy allows live insertion before technicians slide the module along the chassis guides.
• Step 2: Secure the front panel captive screws to guarantee proper chassis grounding and backplane pin engagement.
• Step 3: Connect field wiring to the terminal blocks while ensuring proper shielding and grounding to control electromagnetic interference in industrial environments.
