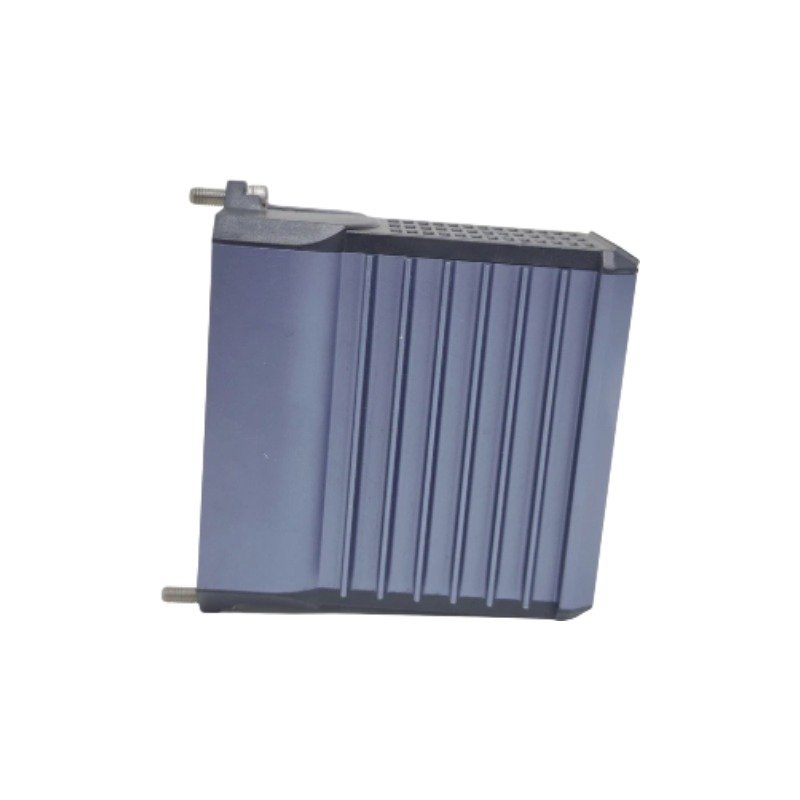

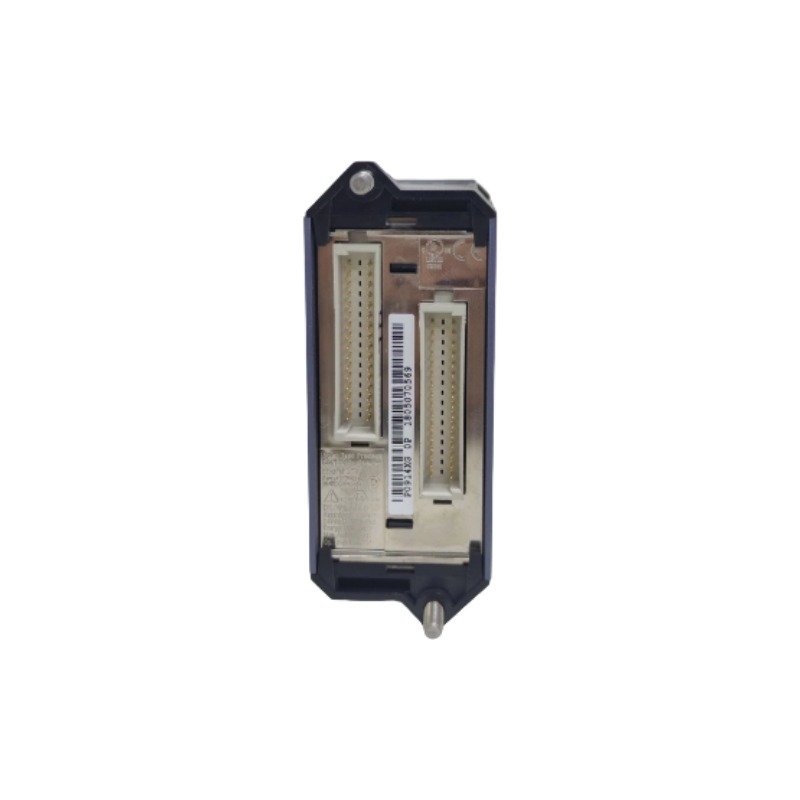

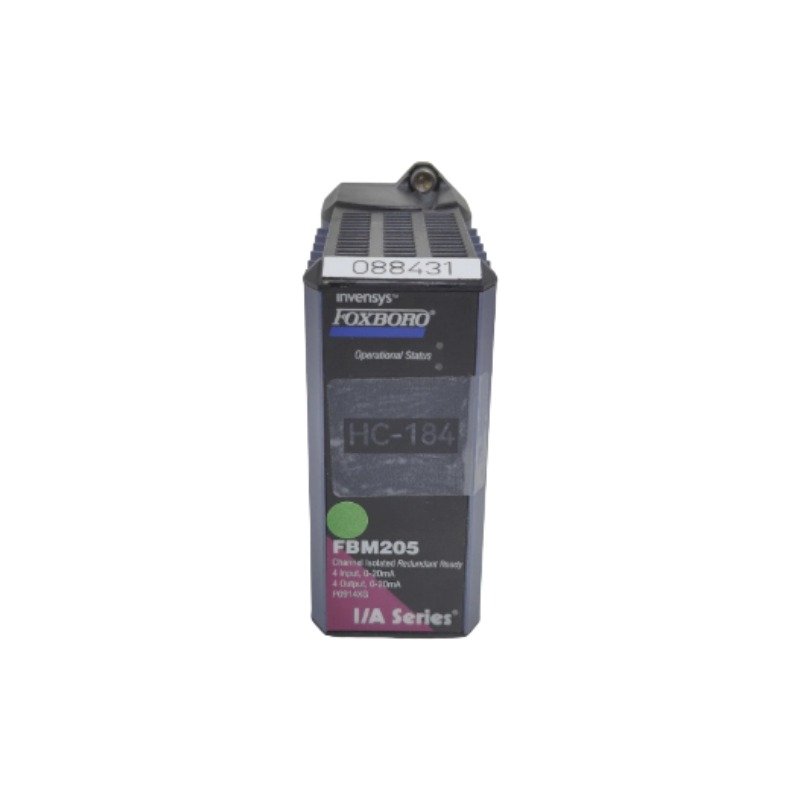

Foxboro FBM205 Redundant Analog I/O Interface Module
Foxboro FBM205 Analog I/O Interface Module. Brand New hardware with Original Stock and Global Shipping.
Description
Configured for 0 to 20 mA analog signal processing in Foxboro DCS platforms, the Foxboro FBM205 (FBM205 Redundant Analog I/O Interface Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM205 |
| Brand | Foxboro |
| Origin | USA |
| Weight | Standard Module Weight |
| Dimensions | Standard Baseplate Slot Mount |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | 10 W maximum (redundant pair) |
| Signal Range | 0 to 20.4 mA DC |
| Input Voltage | 24 VDC (+5%, -10%) |
| Heat Dissipation | 7 W maximum (redundant pair) |
| Storage Temp | -40 to +70 deg C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Operating Altitude | -300 to +3000 m |
| Storage Altitude | -300 to +12000 m |
| Vibration Resistance | 0.75g (5 to 500 Hz) |
| Protection Features | Current limiting, voltage regulation, electrical isolation per channel |
Process Control Signal Conditioning and Channel Isolation
The FBM205 manages high-density current loops by routing 0 to 20.4 mA DC analog signals through galvanically isolated internal circuitry. Integrated channel-to-channel isolation prevents differential ground loops across field wiring runs. Furthermore, individual channel current limiting and voltage regulation protect the primary control network from transient field faults. For temperature sensing loops or high-precision instrument loops deployed across field enclosures, termination assemblies coupled to the module utilize cold junction compensation (CJC) algorithms to maintain signal integrity during ambient thermal shifts.
Frequently Asked Questions
Q: What mechanisms protect individual channels on the FBM205 during field wiring short circuits?
A: Each input/output channel incorporates dedicated current limiting and active voltage regulation. These hardware controls isolate loop faults to the affected terminal without interrupting signal processing on adjacent channels.
Q: How does the FBM205 handle thermal dissipation in enclosed cabinets?
A: The redundant module pair restricts heat dissipation to 7 W maximum while drawing up to 10 W at 24 VDC. Convection cooling within standard enclosure layouts maintains operational stability within the -20 to +70 deg C temperature window.
Field Installation Guidelines
- Align the FBM205 module with the designated baseplate slot and press firmly until the mechanical locking latches click into place.
- Route 0-20 mA field loop wiring to the associated termination assembly, ensuring low-voltage signal lines remain separated from high-voltage AC lines by at least 200 mm.
- Connect the cable shields to the cabinet functional instrument earth at a single point to prevent ground loop noise interference.
- Verify that the 24 VDC bus supply remains within the nominal voltage range (+5%, -10%) prior to energizing the module baseplate.
Additional information
| Weight | 0.74 kg |
|---|---|
| Dimensions | 65 × 41 × 71 mm |
