Description

Brief Product Description

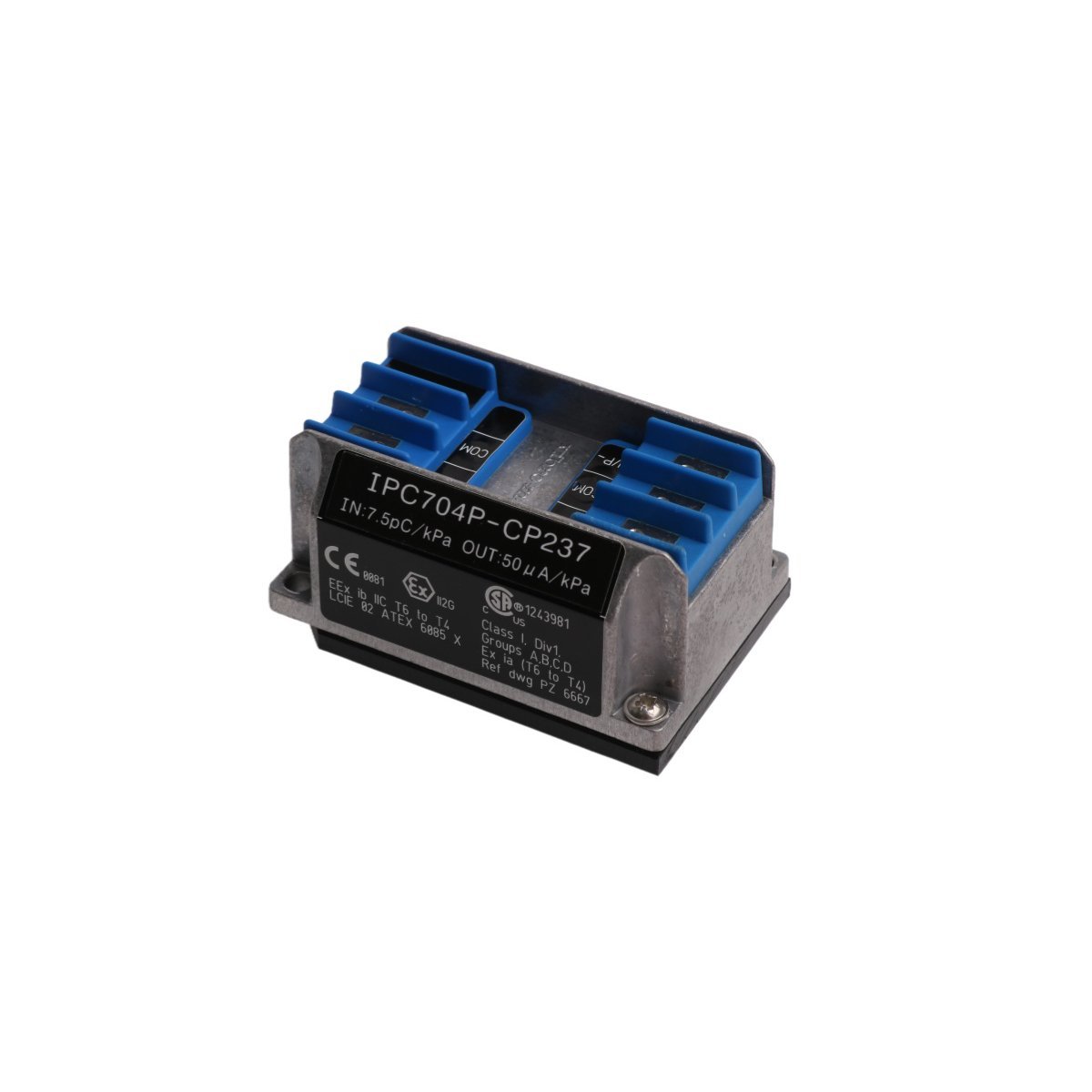

The Vibro-Meter IPC704 244-704-000-042 is a high-precision signal conditioner that transforms charge signals from piezoelectric accelerometers or pressure sensors into standardized outputs. It facilitates long-distance signal transmission and provides essential filtering for industrial vibration monitoring.

Efficient Charge-to-Signal Conversion

The Vibro-Meter IPC704 (Part Number 244-704-000-042) operates as a critical intermediary in vibration measurement chains. This module specifically converts the high-impedance charge signals generated by piezoelectric transducers into stable, low-impedance voltage or current signals. Because it supports both 2-wire and 3-wire transmission configurations, the IPC704 offers versatile connectivity for various monitoring infrastructures. Furthermore, when engineers pair this unit with a GSI galvanic separation unit, the system can transmit data reliably over distances reaching 1000 meters without significant signal degradation.

Advanced Filtering and Signal Integrity

High-performance electronic circuitry allows the IPC704 244-704-000-042 to deliver superior data clarity in demanding settings. The conditioner includes configurable high-pass and low-pass filters that effectively isolate relevant vibration frequencies while suppressing unwanted background noise. Additionally, an optional integrator function enables the conversion of acceleration data into velocity outputs, providing broader diagnostic utility. To ensure maximum uptime in industrial environments, Vibro-Meter utilizes RFI filtering on both input and output stages, which shields the signal from radio-frequency interference and electromagnetic disturbances.

Industrial Mounting and Durability

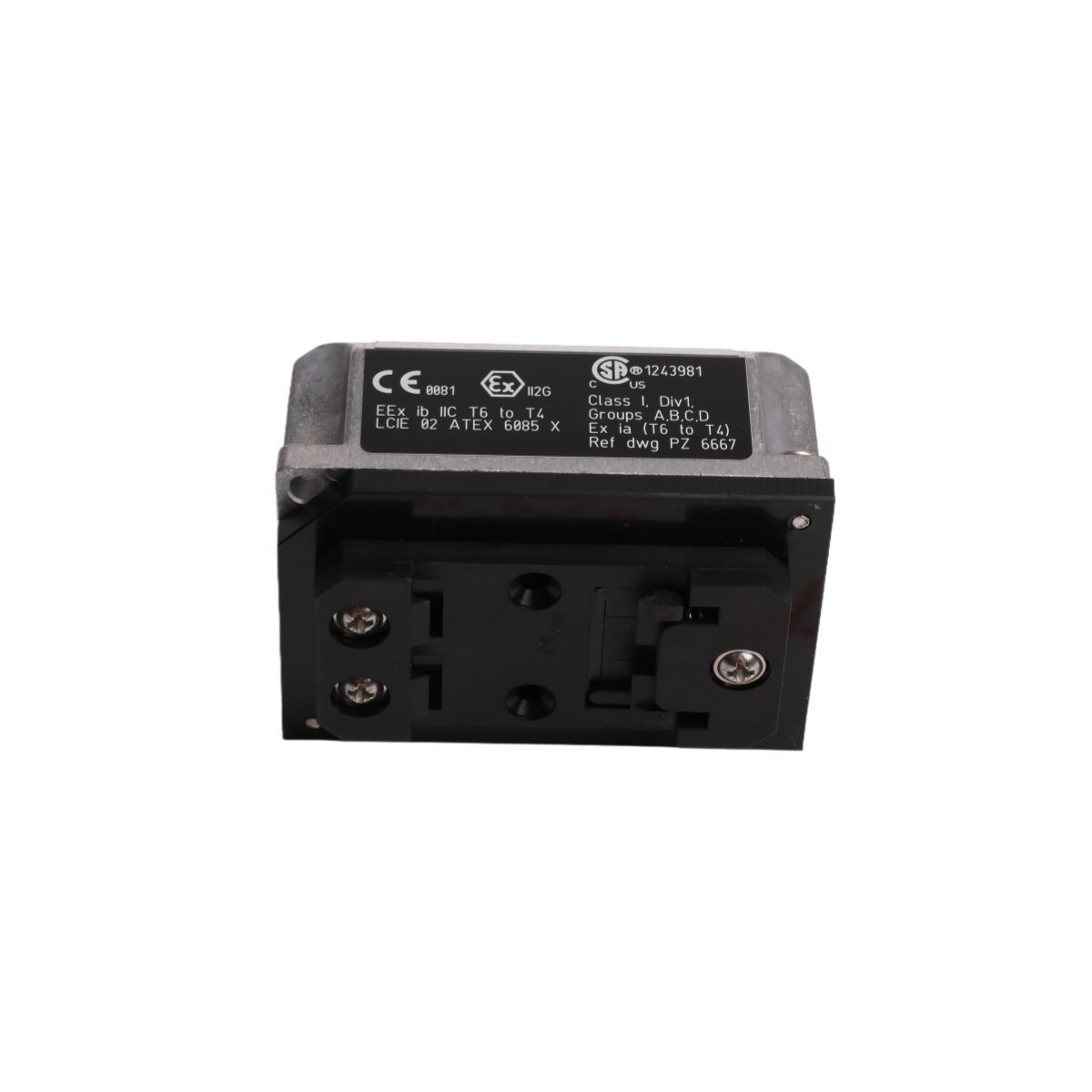

Vibro-Meter houses the IPC704 internal electronics in a rugged, molded aluminum enclosure to protect against mechanical stress and environmental contaminants. For extreme conditions, users can install the unit within an auxiliary polyester housing, while a standard DIN rail adaptor simplifies mounting in industrial control cabinets. This compact design, combined with a lightweight profile of only 0.15 kg, makes the IPC704 an ideal solution for retrofitting existing machinery protection systems. Consequently, this signal conditioner remains a preferred choice for power generation and oil and gas facilities requiring dependable, long-term asset monitoring.

Key Technical Characteristics

• Precision Charge Conversion: Efficiently processes high-impedance signals from piezoelectric sensors.
• Long-Distance Capability: Supports signal transmission up to 1 km with appropriate galvanic isolation.
• Integrated Frequency Control: Features adjustable high-pass and low-pass filters for targeted analysis.
• Enhanced RFI Protection: Shields sensitive data from electromagnetic and radio-frequency noise.
• Flexible Output Logic: Offers optional integration for direct velocity signal output.
• Ruggedized Housing: Utilizes a durable aluminum shell with optional secondary protective enclosures.

Technical Specifications
