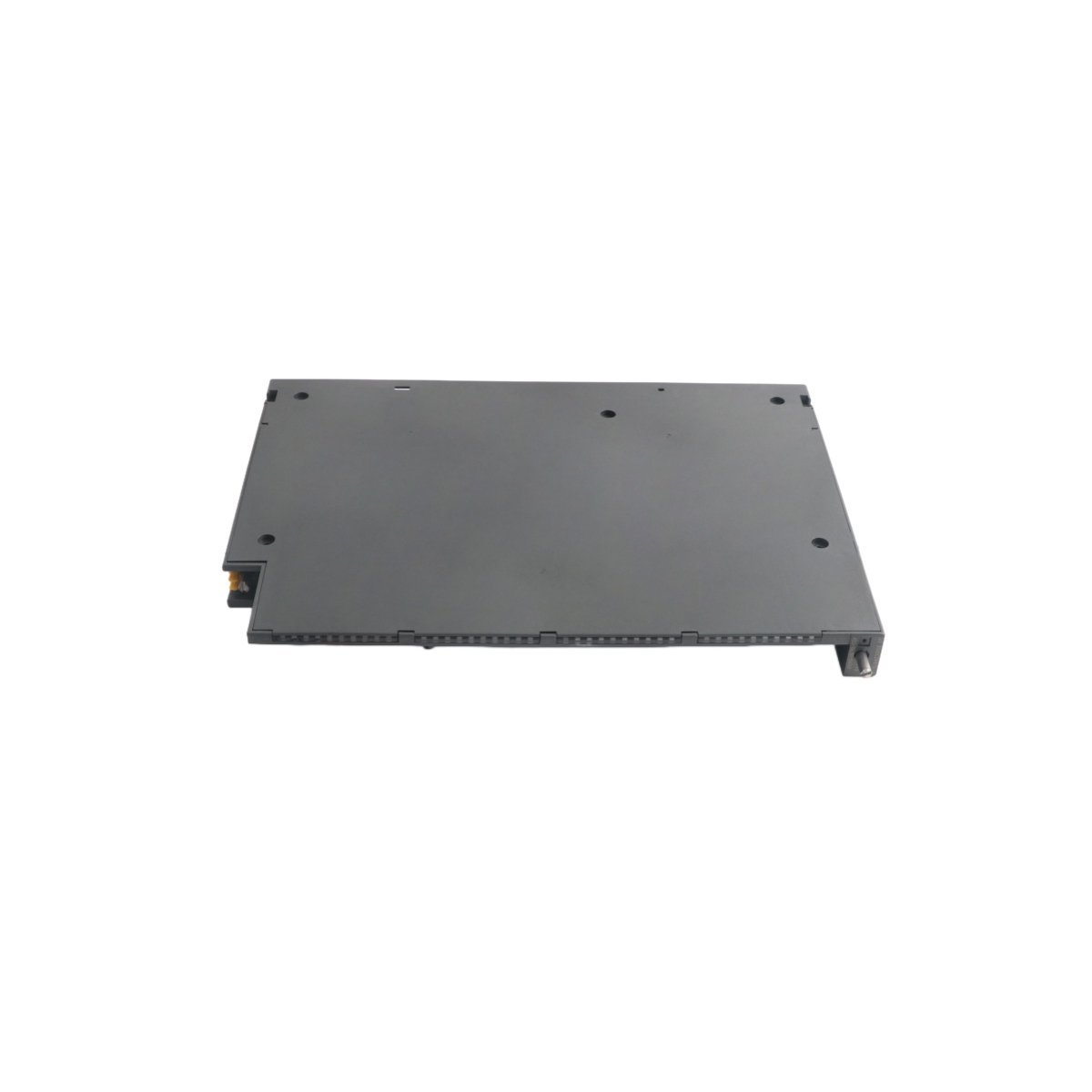

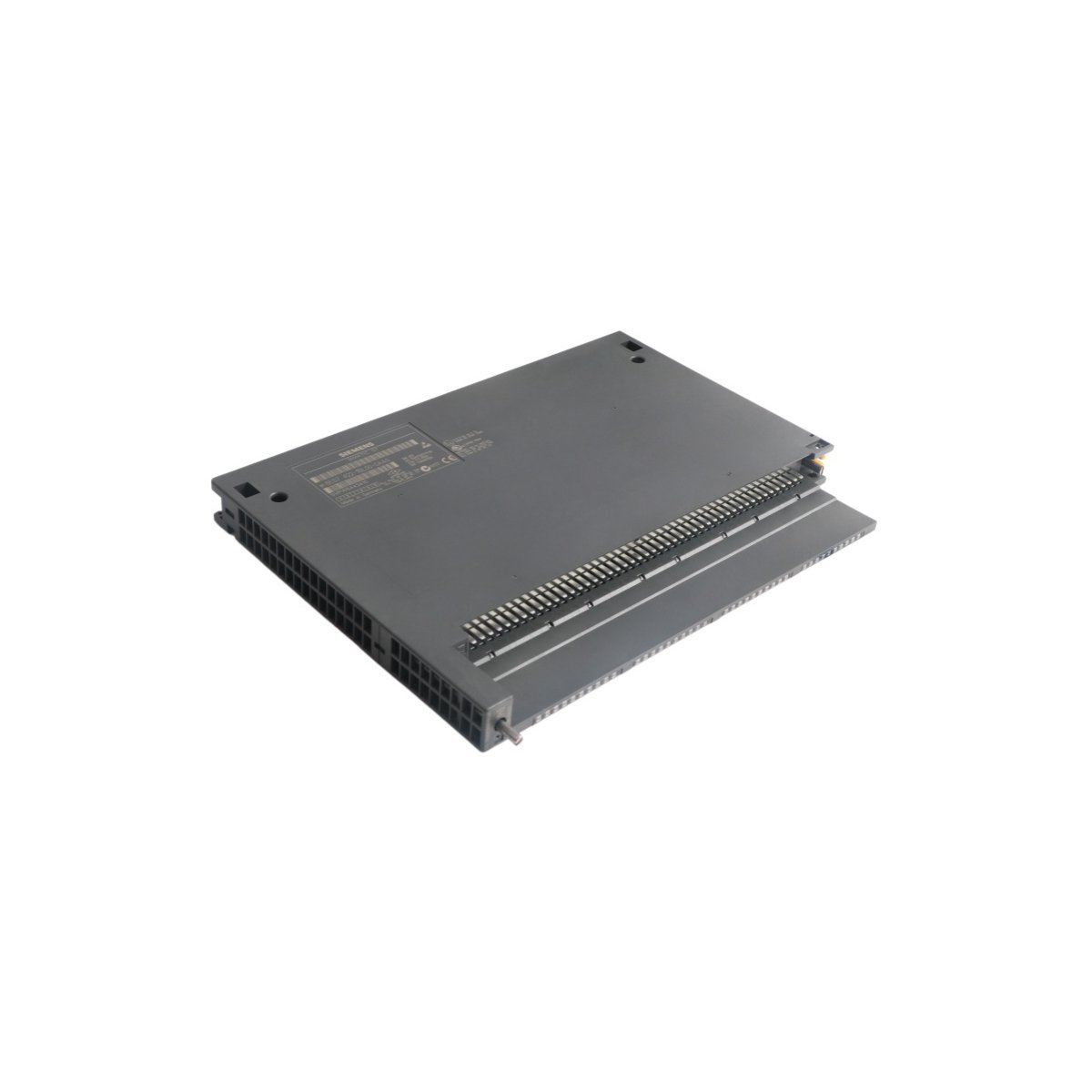

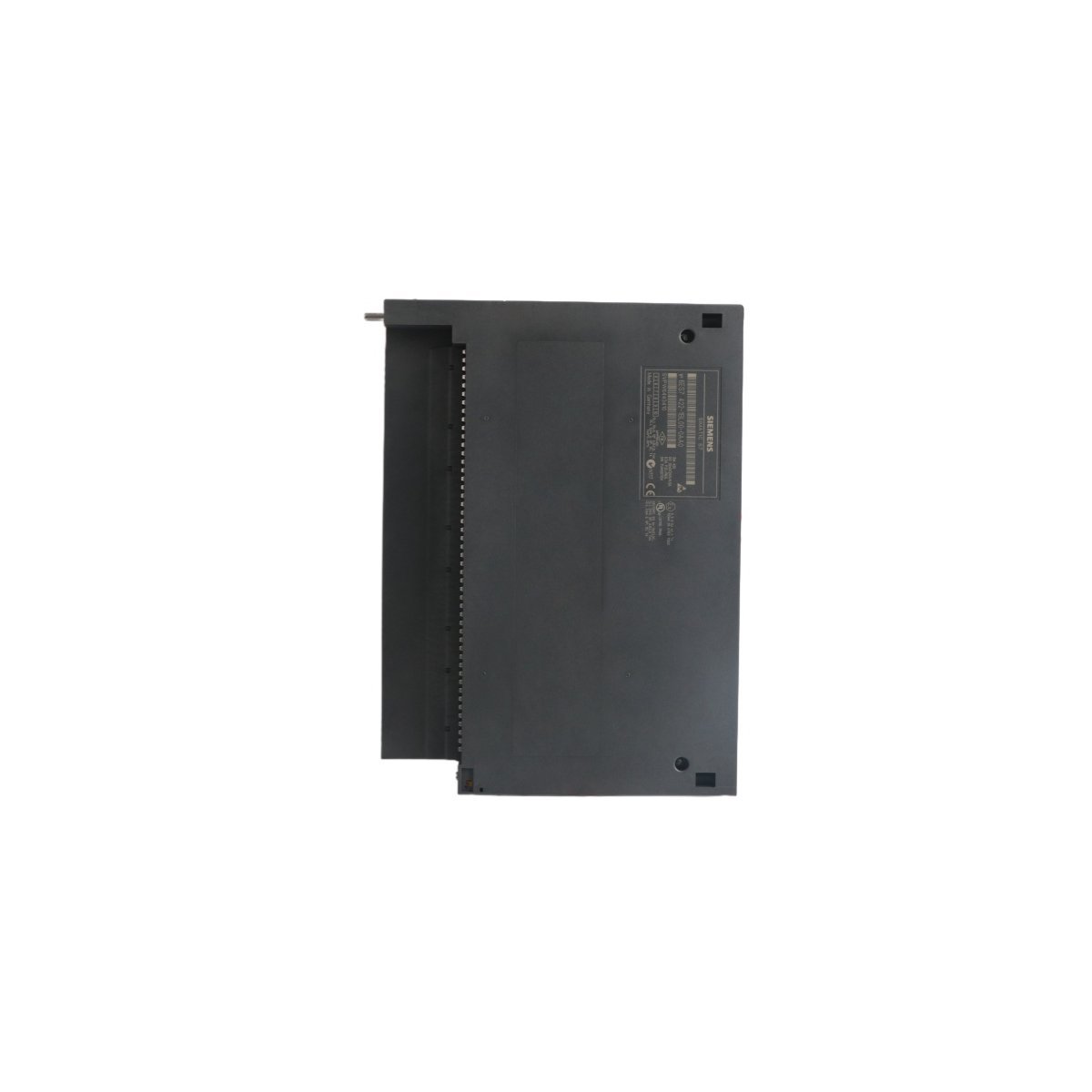

Siemens 6ES7422-1BL00-0AA0 as a high-density digital output module for SIMATIC S7-400 systems. This unit provides 32 discrete 24 V DC outputs with electronic switching capabilities. Each channel delivers a continuous current of 0.5 A for driving industrial loads effectively. The module features galvanic isolation in groups to protect the CPU from electrical noise and faults. Users install the device directly into the S7-400 rack using standard backplane bus connections. Integrated LED indicators display the status of every output channel for rapid visual diagnostics. Advanced protection circuits detect short circuits and overloads to prevent hardware damage automatically. Technicians configure individual channel parameters via the TIA Portal or STEP 7 engineering software. Robust construction ensures reliable operation in environments with high electromagnetic interference. This component serves critical roles in manufacturing, processing, and infrastructure automation projects globally.

Technical Specifications

Application and Integration

Facilities utilize this module for controlling solenoid valves, contactors, and indicator lamps simultaneously. The 32-channel configuration maximizes I/O density within limited control panel space. Users connect field devices securely using standardized front connector screw terminals. Grouped isolation prevents fault propagation between different machine sections or processes. Maintenance teams leverage diagnostic interrupts to identify and resolve electrical issues quickly. The module switches loads rapidly to support high-speed automation sequences accurately. Engineers integrate these outputs into complex safety and control logic architectures seamlessly. Consistent performance ensures reliable actuation of critical machinery components under varying loads. This product remains a standard solution for large-scale industrial control applications requiring high channel counts.
