Description

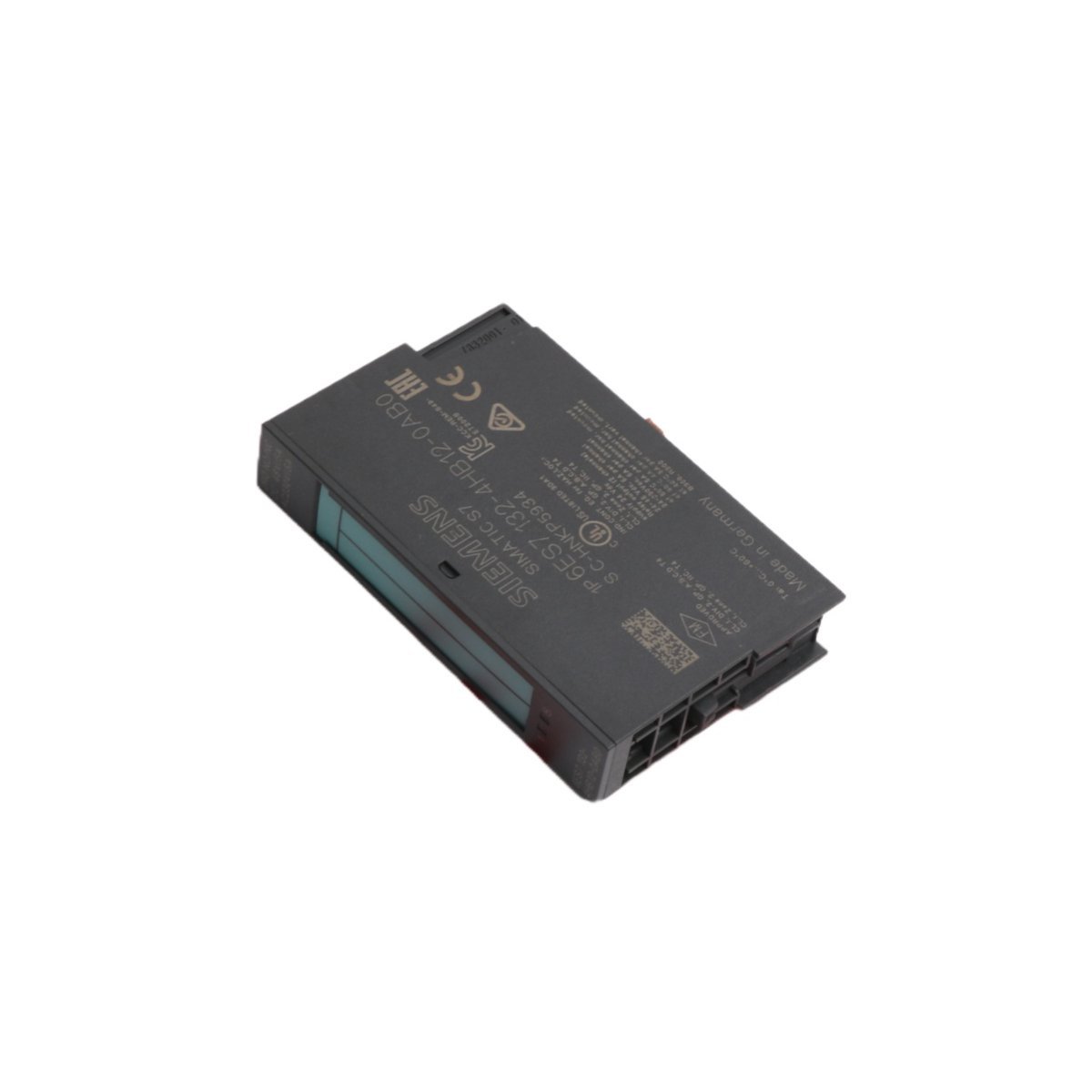

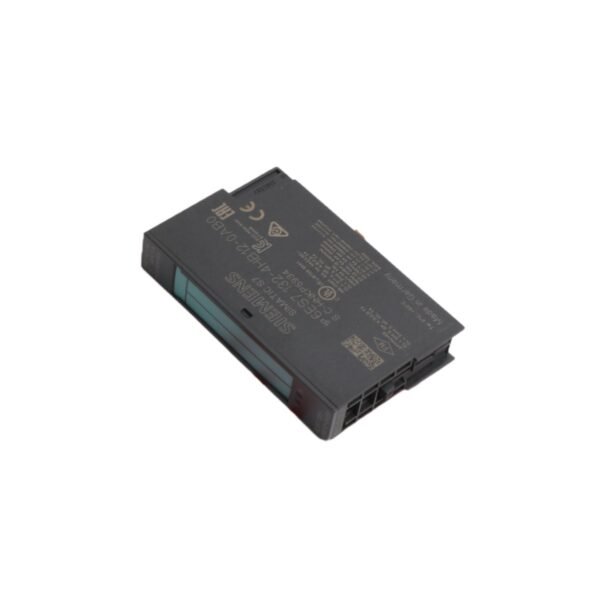

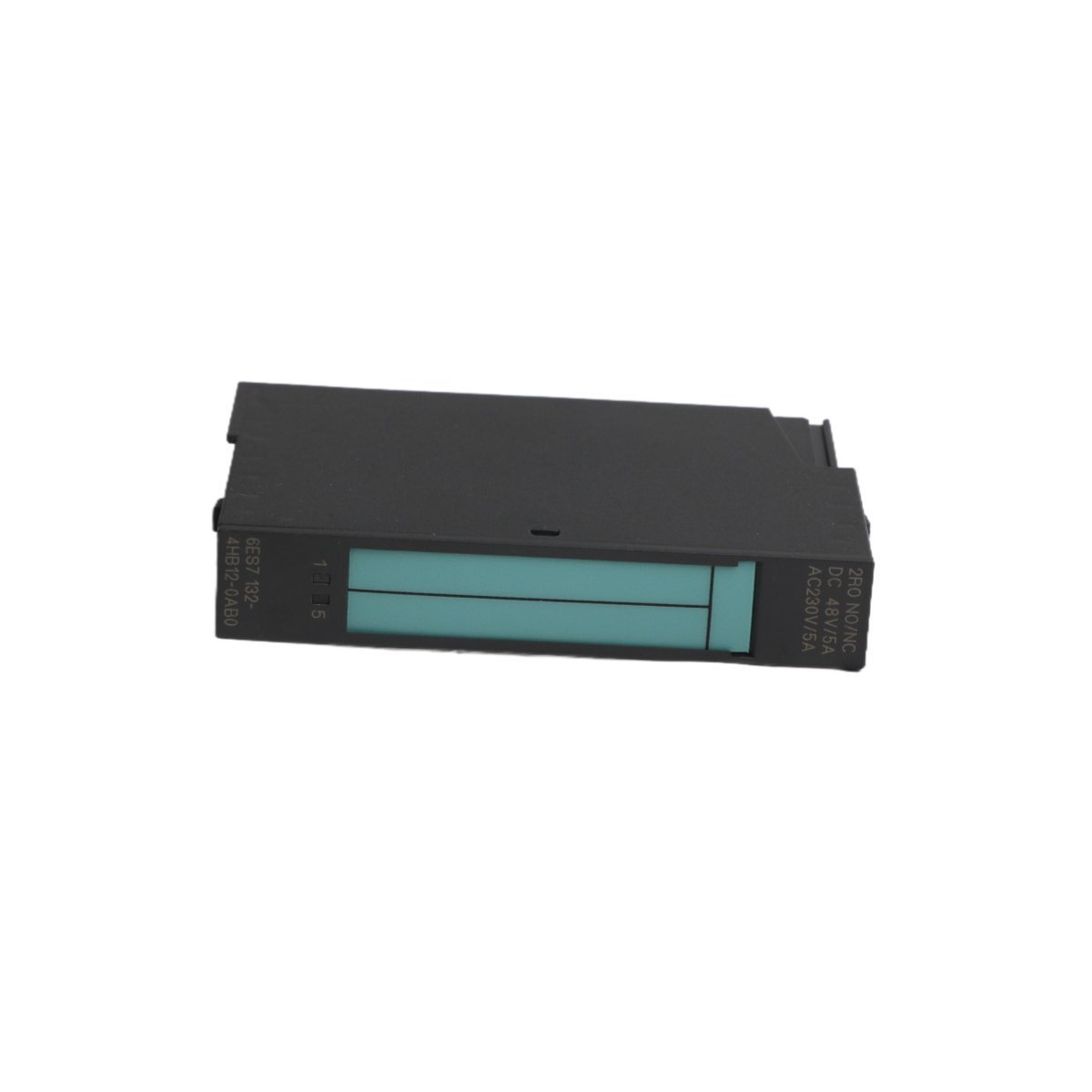

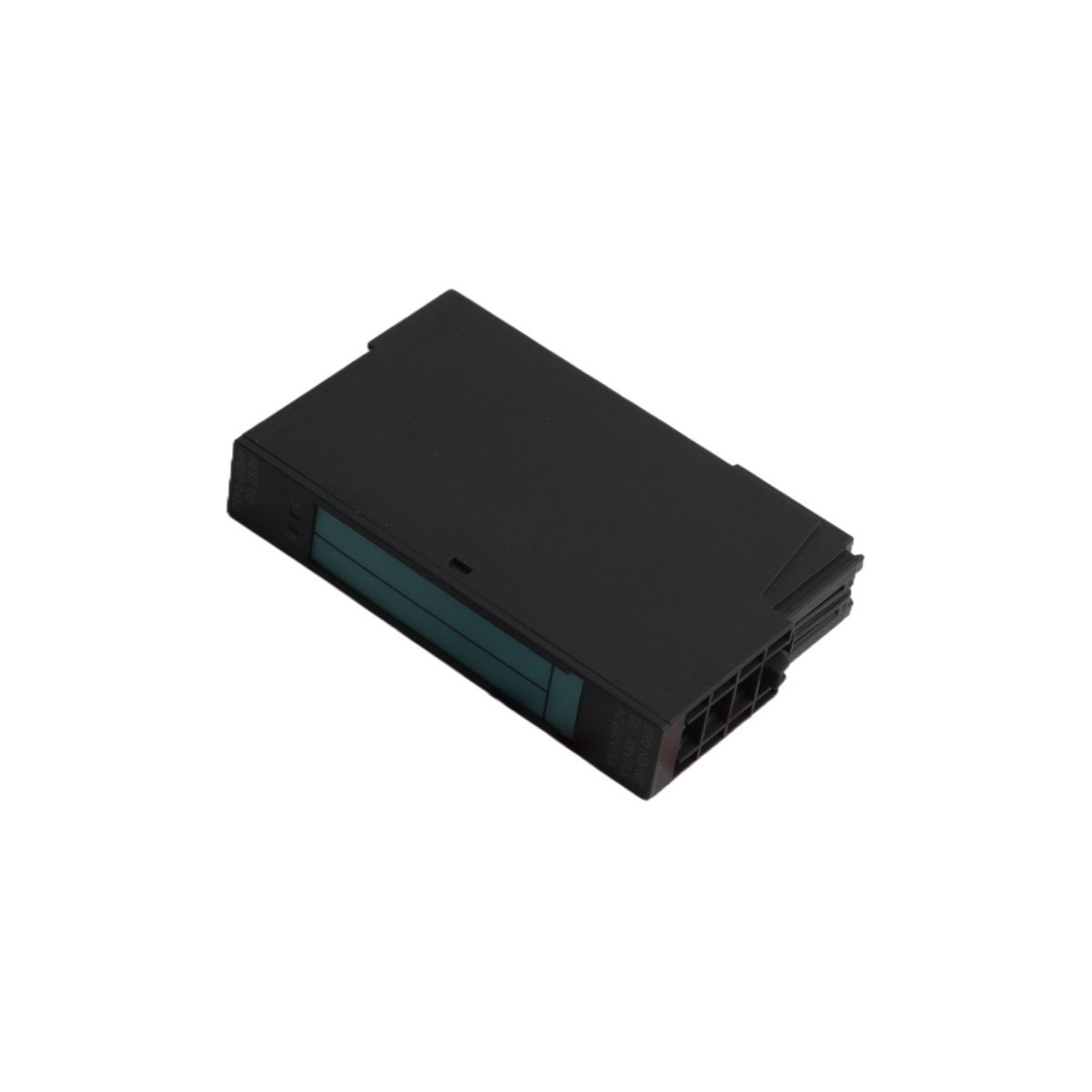

The Siemens 6ES7132-4HB12-0AB0 is a specialized digital electronics module for the SIMATIC ET 200S platform. This module features two high-capacity relay outputs with changeover (CO) contacts. It effectively bridges the gap between low-level PLC logic and high-power field devices. Engineers utilize this unit to switch both AC and DC loads up to 5A. Its 15mm slim design maximizes rail space in dense electrical cabinets.

Furthermore, this module offers exceptional flexibility for diverse industrial control scenarios. The changeover contact configuration allows for both normally open and normally closed wiring. This capability simplifies circuit design for various actuator types. The module also supports a substitute value function for enhanced safety. Consequently, the system maintains a defined state during communication interruptions or CPU failures.

Detailed Technical Specifications

Robust Performance and Diagnostic Features

The 6ES7132-4HB12-0AB0 provides high galvanic isolation between the internal bus and external loads. This protection prevents electrical interference from damaging the central controller or interface modules. It performs reliably in environments with significant electromagnetic noise. Additionally, the unit integrates seamlessly with standard ET 200S terminal modules. This ensures fast hardware replacement and reduces wiring errors during maintenance.

Moreover, the module includes clear status monitoring via integrated LEDs. These indicators show the switching state of each individual relay channel. Such visual feedback helps technicians troubleshoot field issues without complex diagnostic tools. The robust relay mechanical life ensures long-term stability in high-cycle applications. It serves as a dependable interface for various automation tasks.

Primary Industrial Applications

• Controlling industrial heating elements and lighting circuits.
• Switching small motors and heavy-duty DC solenoids.
• Interfacing with non-standard voltage actuators in mixed systems.
• Managing safety interlocking circuits in material handling.
• Operating pneumatic and hydraulic valves in process plants.
