Description

Brief Product Description

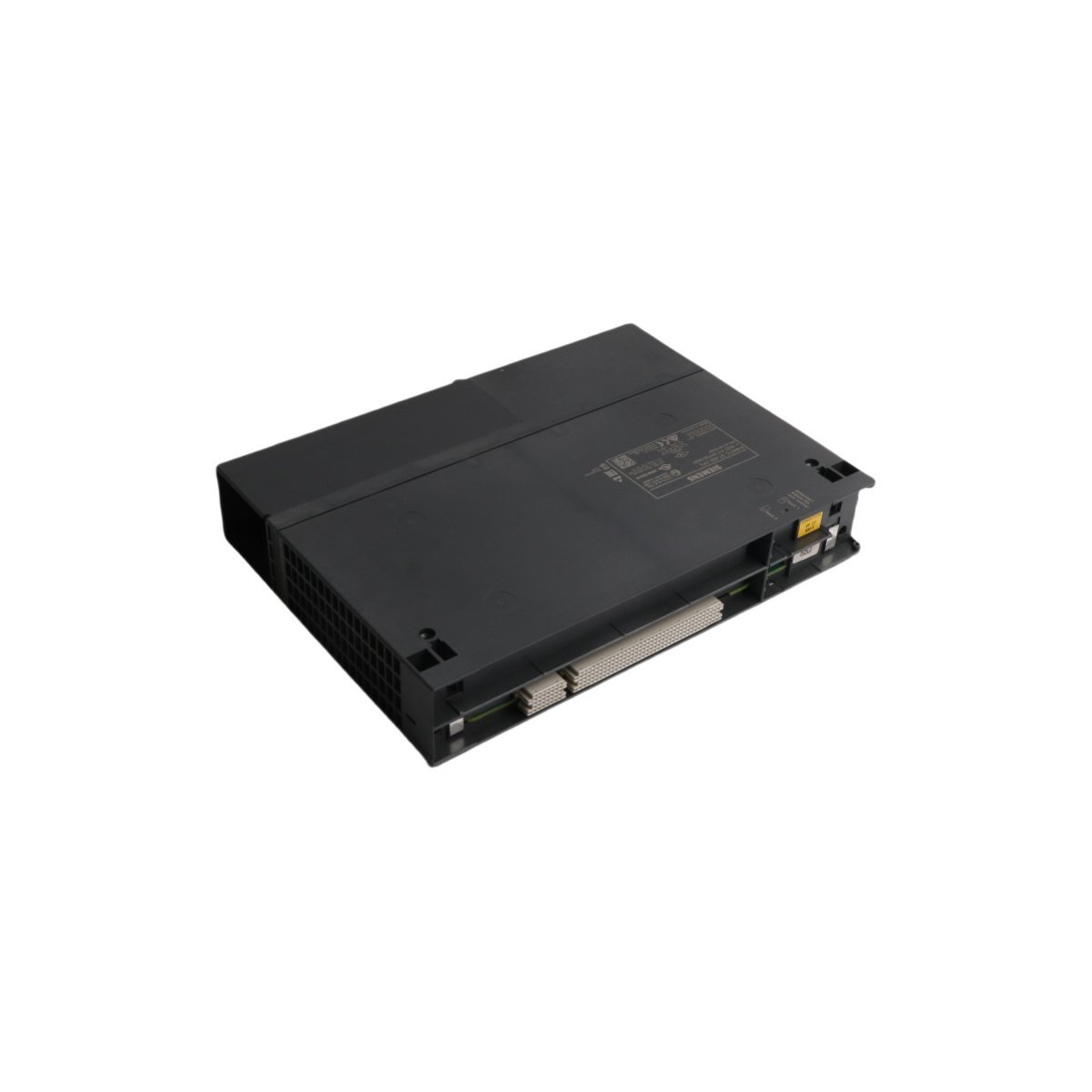

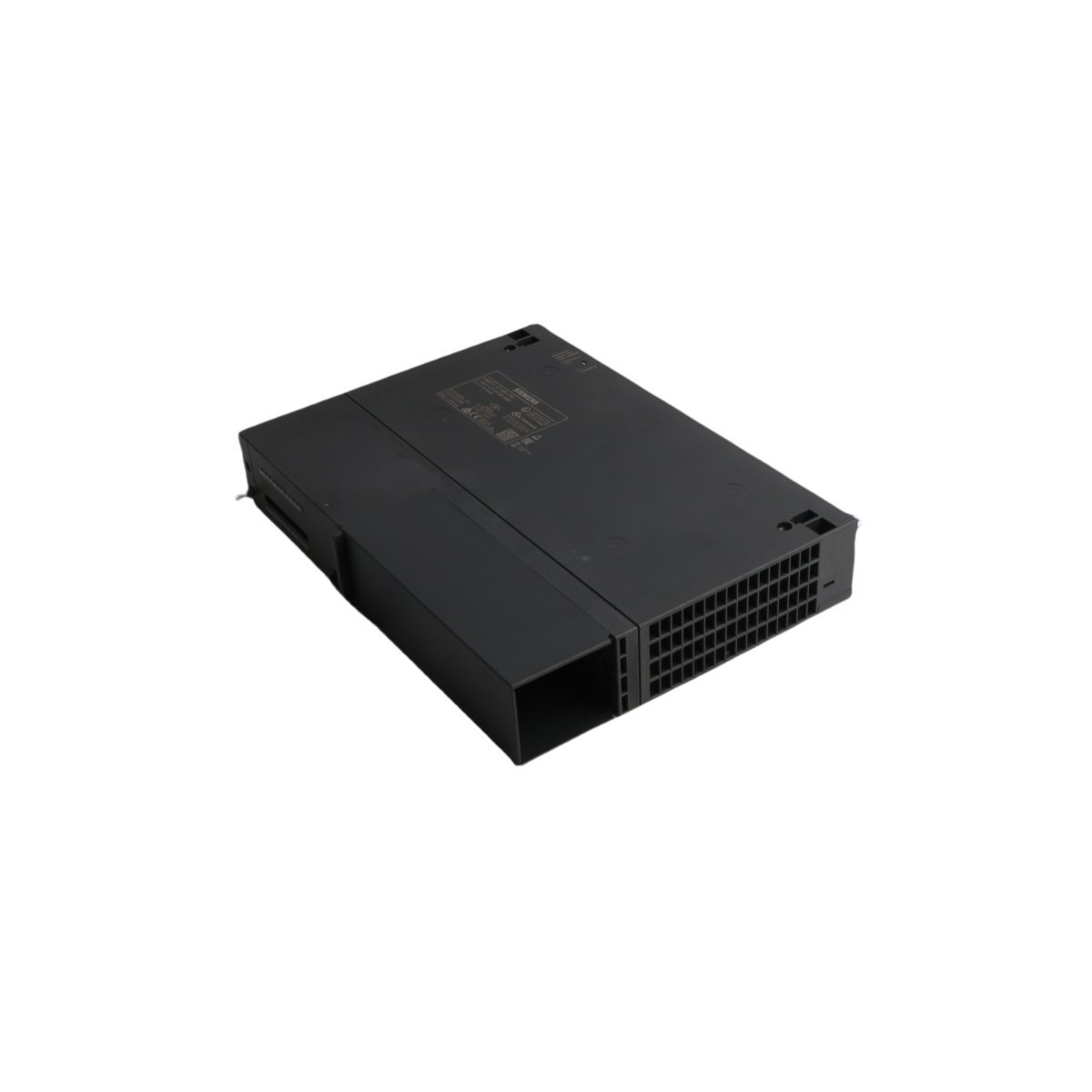

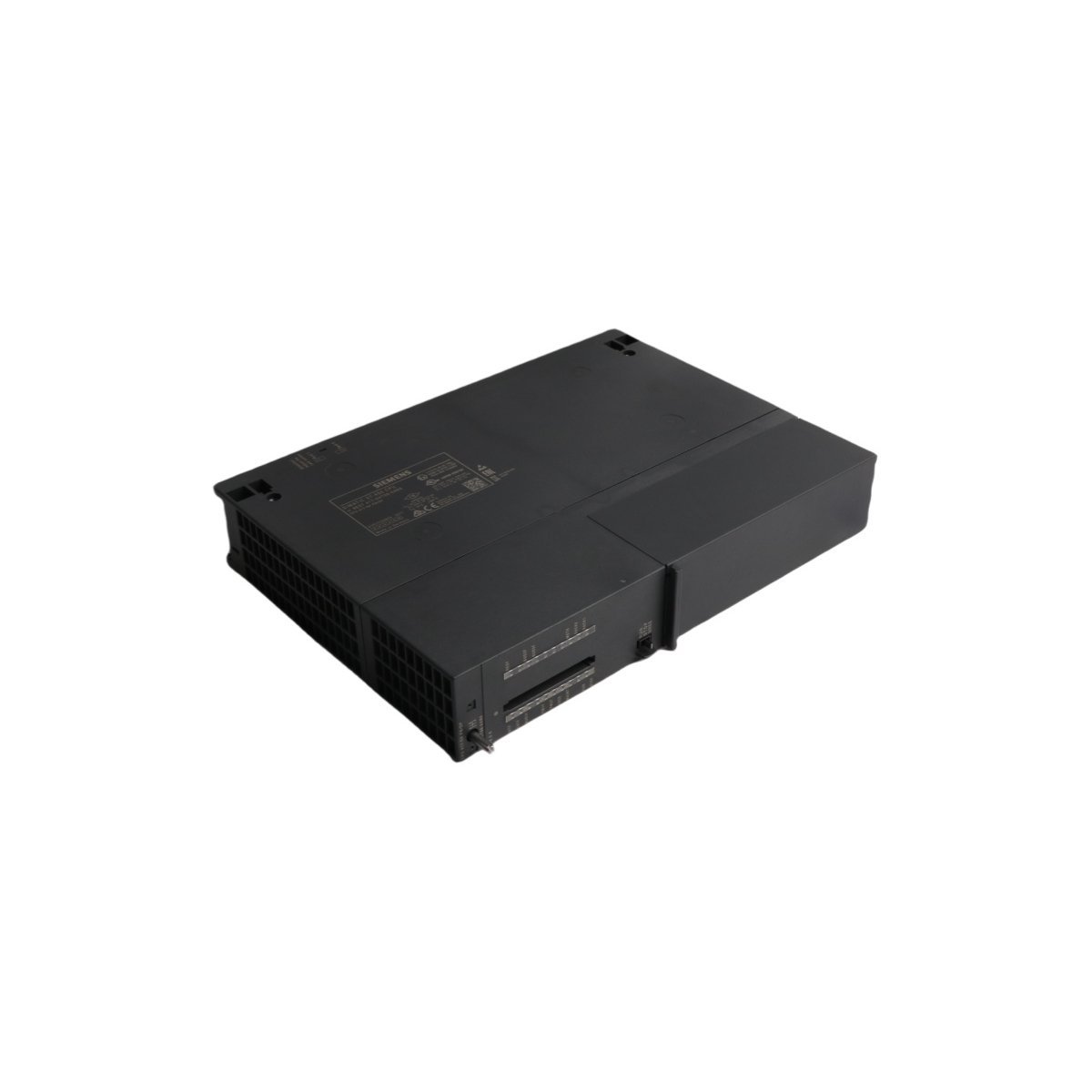

The Siemens 6ES7417-5HT06-0AB0 is a high-performance CPU 417-5H designed for the SIMATIC S7-400 platform, providing integrated safety and redundancy for mission-critical automation.² It features a 30 MB work memory and dual communication interfaces to support large-scale, high-availability industrial applications.

​Product Description

The 6ES7417-5HT06-0AB0 represents the pinnacle of the SIMATIC S7-400 series, specifically engineered to manage high-availability and failsafe requirements within a single hardware controller. This CPU 417-5H PN/DP enables industrial facilities to maintain continuous operation through redundant system architectures.³ By utilizing S7-400H technology, the processor minimizes the risk of production downtime in sectors where system failure could lead to significant financial loss or environmental hazards.⁴ It complies with top-tier safety standards, including SIL 3 according to IEC 61508, making it a reliable choice for emergency shutdown (ESD) and burner management systems.

High-Performance Processing and Memory

Equipped with a massive 30 MB work memory (split 15 MB for program code and 15 MB for data), this central processing unit handles complex automation tasks with exceptional speed. The 6ES7417-5HT06-0AB0 executes bit operations in as little as 7.5 nanoseconds, ensuring real-time responsiveness for high-speed logic. Furthermore, the CPU supports extensive I/O configurations, allowing for the integration of thousands of digital and analog signals. This computational power ensures that the controller can manage both standard process control and safety-related functions simultaneously without compromising performance.

Integrated Connectivity and Safety Integration

Communication versatility is a core strength of the Siemens 6ES7417-5HT06-0AB0. The module features an integrated PROFINET interface with a 2-port switch, alongside a dedicated PROFIBUS DP interface.⁵ These ports support the PROFIsafe profile, which facilitates safety-certified communication over standard network cables. Consequently, engineers can deploy distributed failsafe I/O stations, such as the ET 200M, without the need for additional complex safety wiring. This streamlined approach reduces installation costs while enhancing the diagnostic capabilities of the entire automation network.

Technical Specification Table
