Description

Brief Product Description

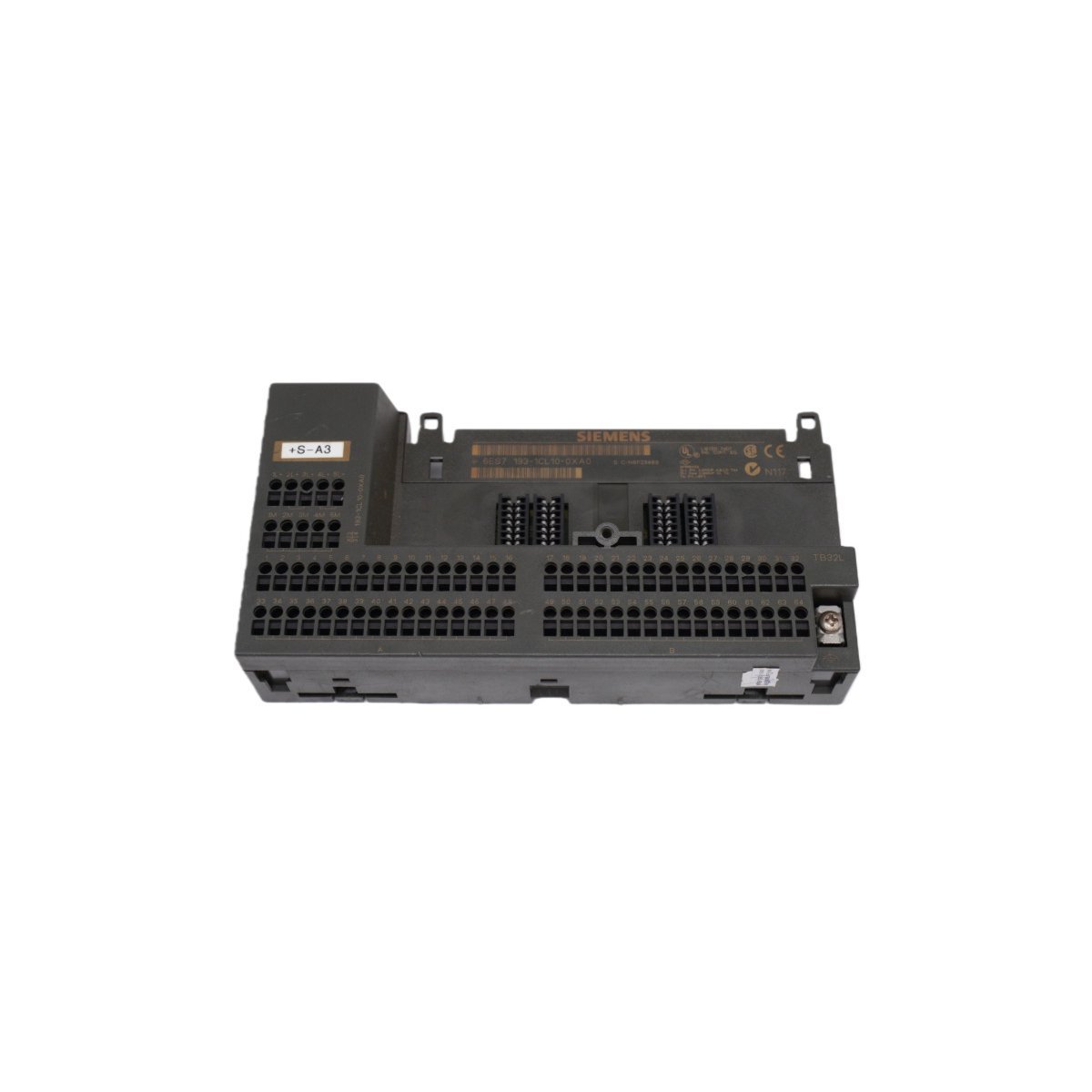

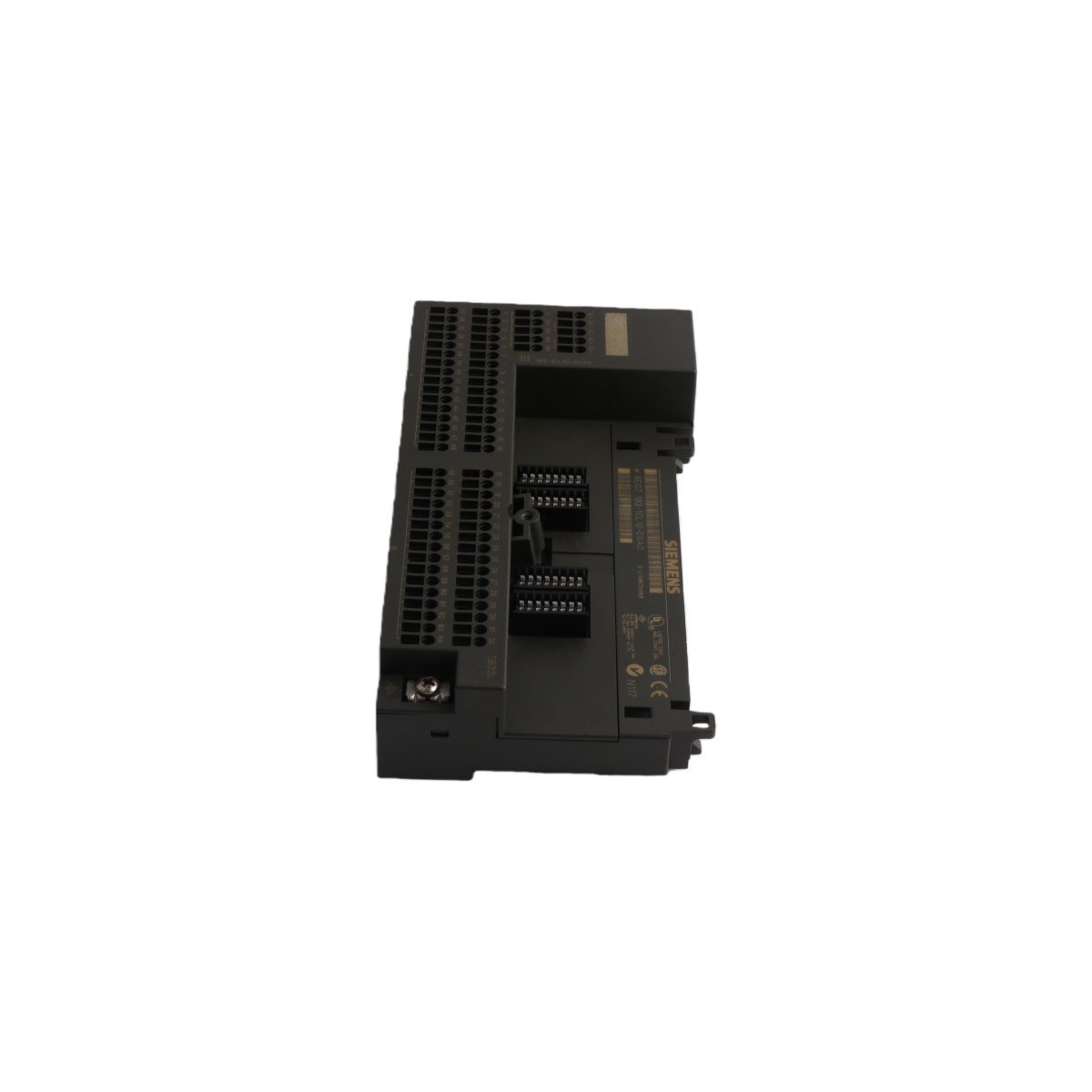

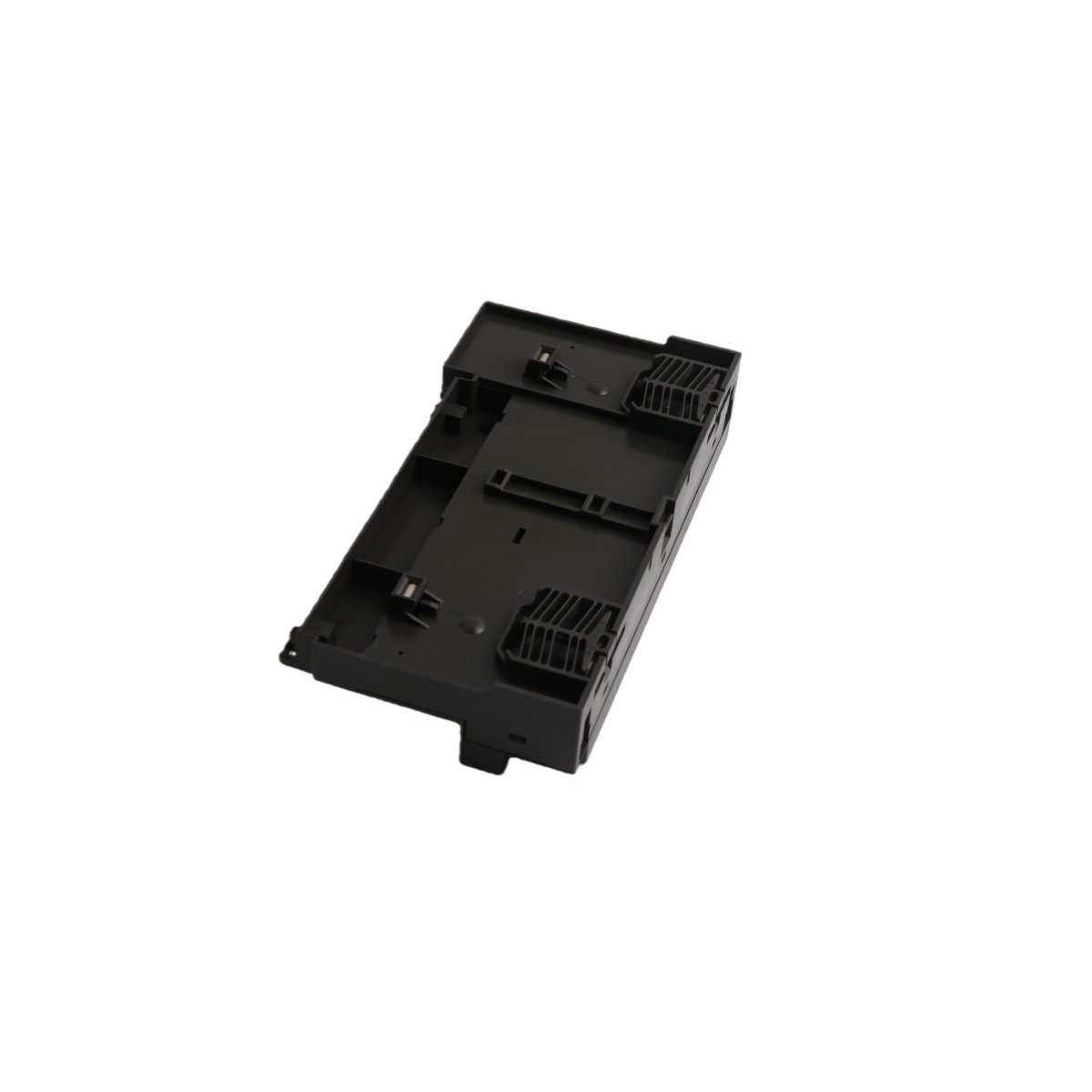

The Siemens 6ES7193-1CL00-0XA0 is a specialized 40-pin terminal block designed for the SIMATIC ET 200L distributed I/O series. It provides a secure, screw-type connection interface to bridge field sensors and actuators with the PLC control system.

​Product Description

High-Density Signal Interfacing

The 6ES7193-1CL00-0XA0 serves as a vital connection hub for the Siemens SIMATIC ET 200L distributed I/O system. This terminal block allows for the high-density integration of field devices, providing 40 distinct connection points within a compact footprint. By facilitating the direct transition from field wiring to the I/O electronics, this module ensures that signal integrity remains high across the entire automation loop. It specifically supports the ET 200L series, which is known for its lean, space-saving architecture in decentralized control configurations.

Robust Connection Architecture

Engineered for the rigors of industrial environments, the 6ES7193-1CL00-0XA0 utilizes a screw-type terminal mechanism. This choice of fastening technology guarantees high contact pressure and vibration resistance, which effectively prevents accidental signal loss or intermittent power issues. Furthermore, the 40-pin layout provides ample capacity for complex I/O modules, allowing technicians to manage extensive wiring looms with precision. The block’s mechanical design also permits quick mounting and removal, significantly reducing downtime during maintenance or hardware upgrades.

Strategic Distributed I/O Application

This terminal block plays a key role in reducing control cabinet congestion by supporting decentralized wiring strategies. When users deploy the 6ES7193-1CL00-0XA0 within a distributed I/O framework, they can terminate field cables closer to the machinery rather than running every individual wire back to a central PLC. This approach not only lowers installation costs but also simplifies the diagnostic process. The module’s professional-grade plastic housing and internal copper contacts meet stringent industrial standards, ensuring long-term reliability for critical manufacturing and process control applications.

Technical Specification Table
