Description

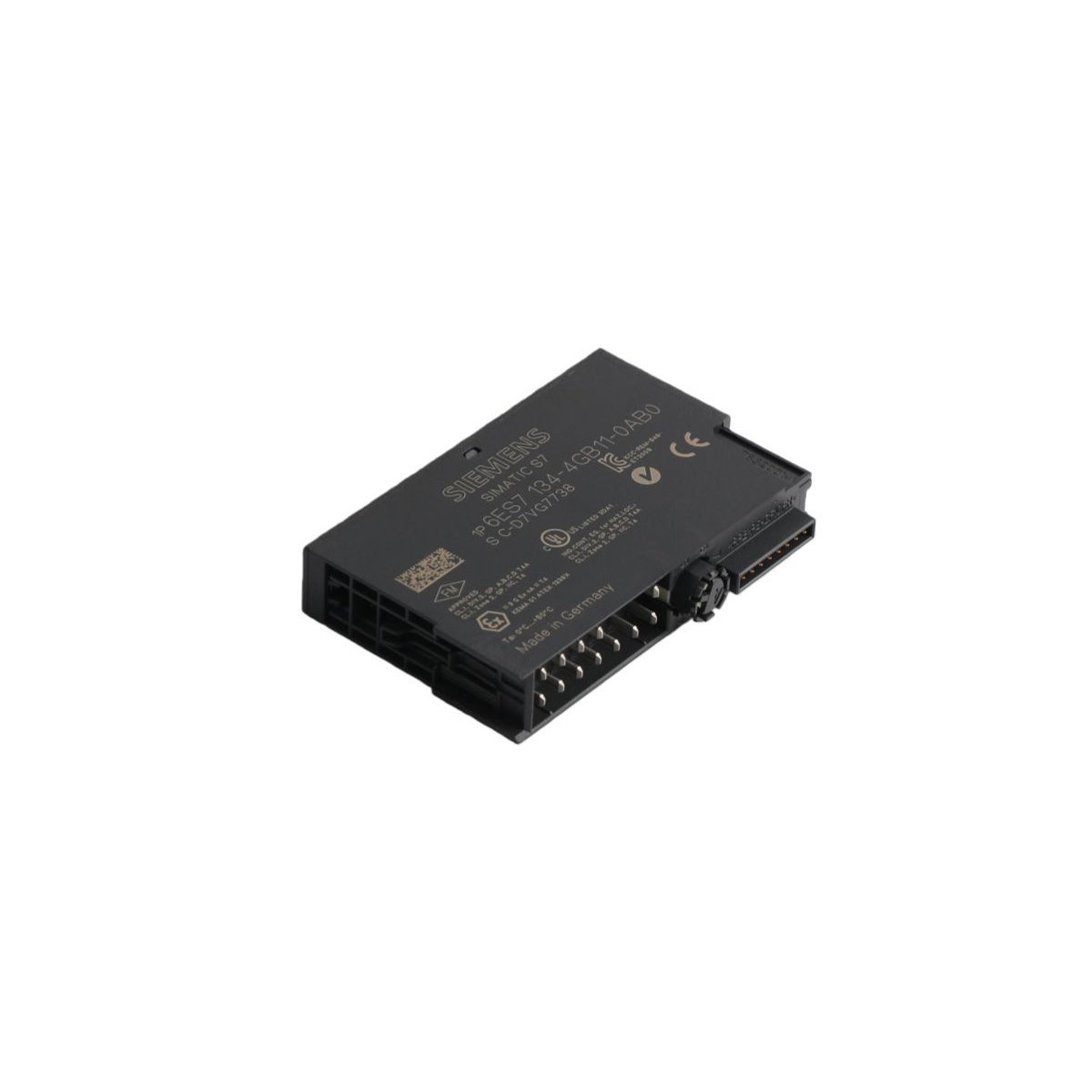

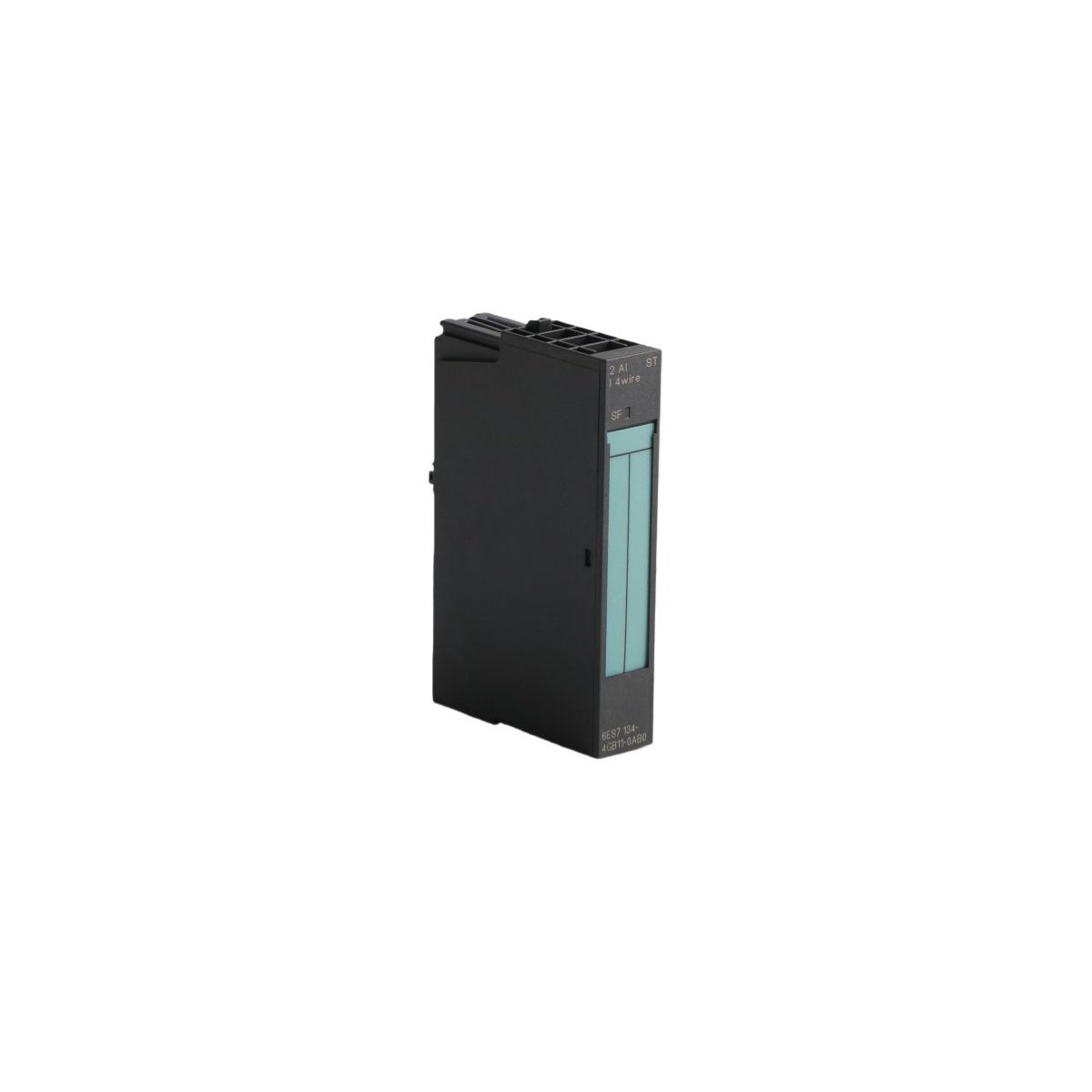

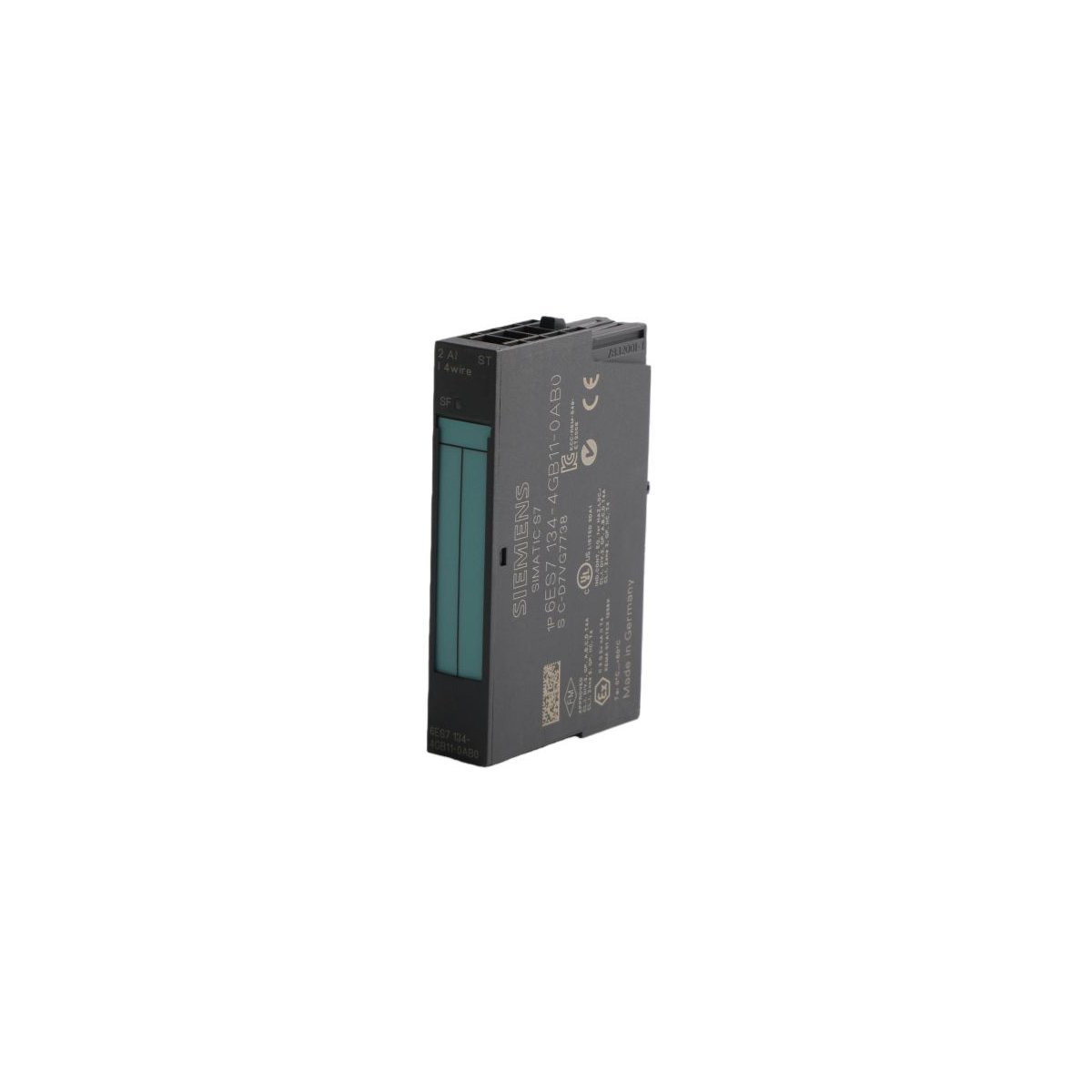

The Siemens 6ES7134-4GB11-0AB0 is a high-performance analog electronics module for the SIMATIC ET 200S distributed I/O system. This module features two isolated current input channels. It specifically supports 4-wire transmitters in various industrial environments. The 15mm slim design optimizes rail space within control cabinets. Engineers integrate this unit to capture precise process variables for real-time monitoring.

Furthermore, the module offers exceptional resolution for critical data acquisition. It provides 13 bits plus sign resolution for ±20 mA ranges. For 4 to 20 mA signals, it delivers a steady 13-bit performance. The hardware effectively converts physical currents into digital values for the PLC. This ensures reliable feedback for automated control loops and process management.

Technical Performance and Accuracy

Advanced Signal Integrity and Diagnostics

The 6ES7134-4GB11-0AB0 incorporates sophisticated noise suppression technology. It achieves a 70 dB common-mode rejection ratio. This capability maintains signal accuracy despite significant electromagnetic interference. Additionally, the module suppresses crosstalk between channels up to -50 dB. These features ensure that each measurement remains independent and precise.

Moreover, the unit includes comprehensive diagnostic tools for system maintenance. An integrated System Fault (SF) LED provides immediate status feedback. This allows technicians to identify wiring errors or hardware issues quickly. The module also features digital filtering to smooth out signal fluctuations. These attributes combine to provide a stable interface for sensitive process sensors.

Typical Process Applications

• Monitoring pressure and flow rates via 4-wire current transmitters.
• Interfacing with chemical sensors in water treatment plants.
• Tracking environmental data in HVAC control systems.
• Managing precision feedback in food and beverage processing.
• Controlling heavy machinery through remote analog sensor arrays.
