Description

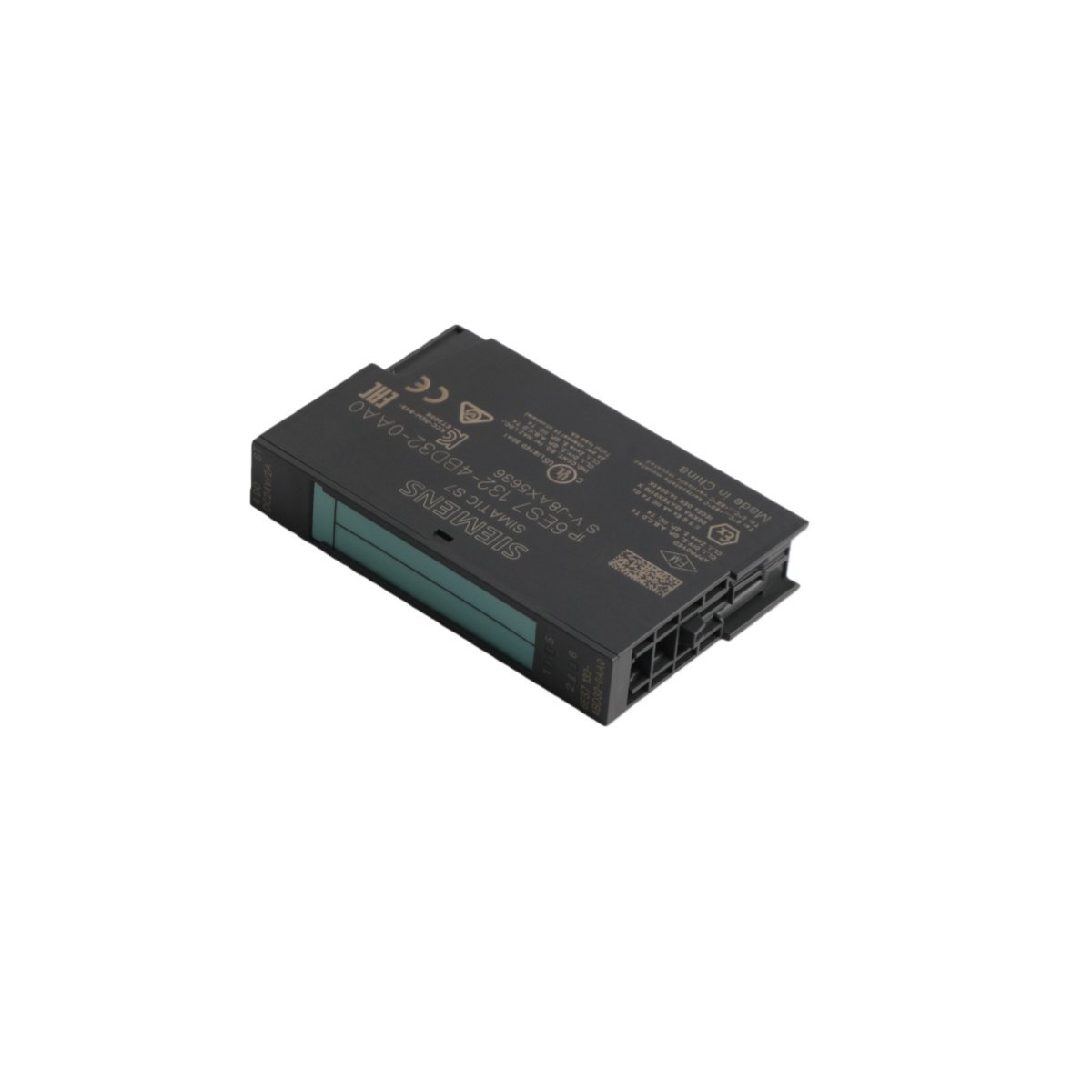

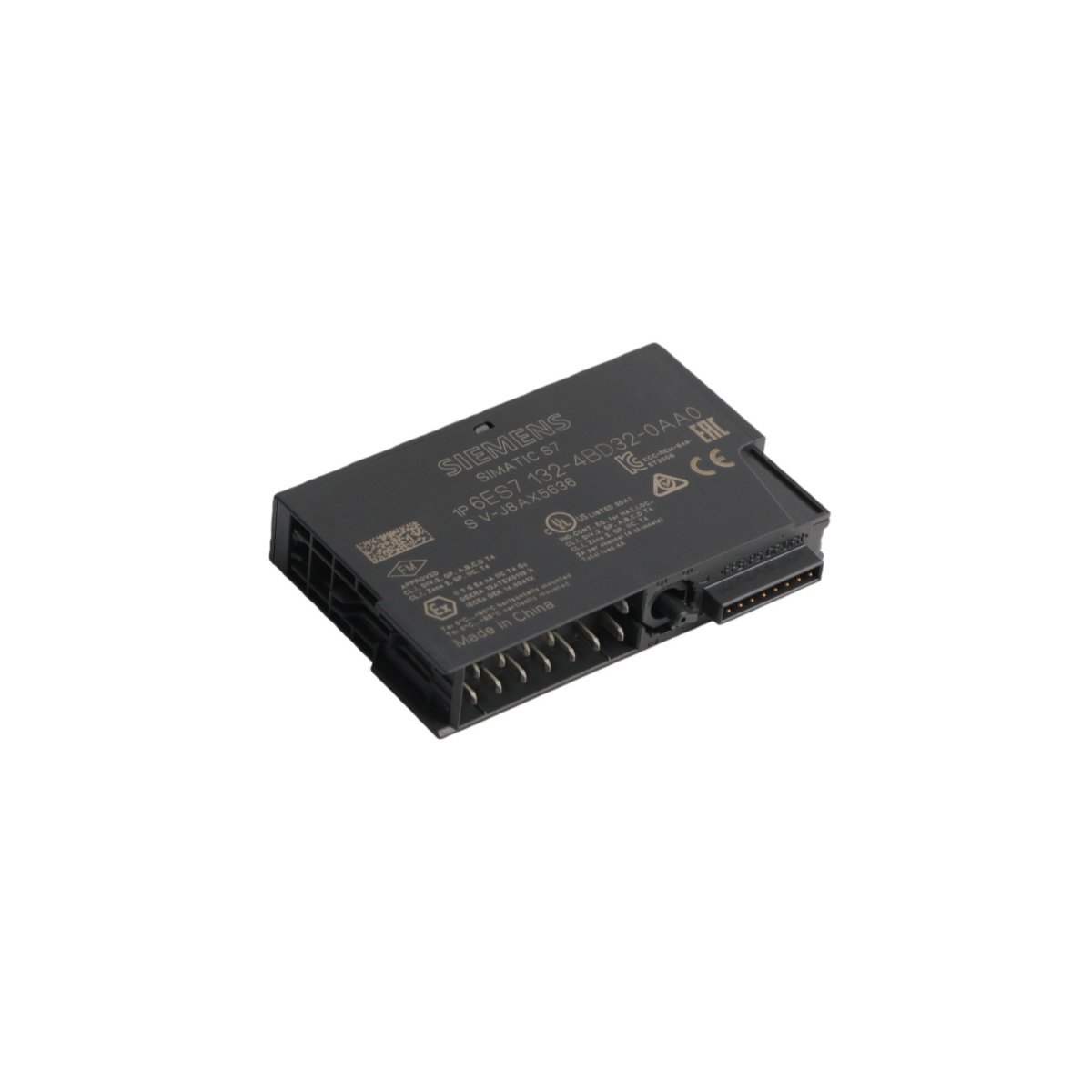

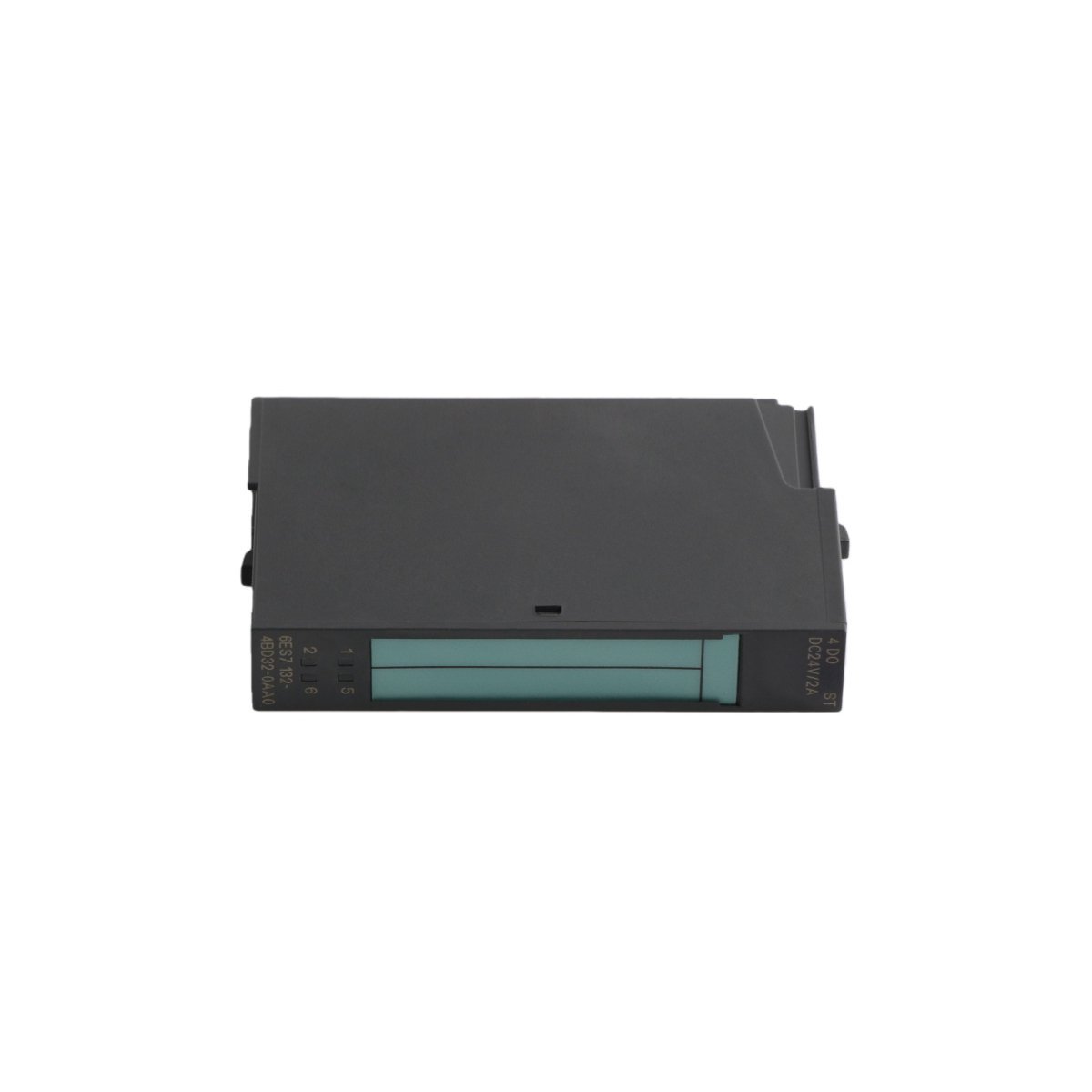

The Siemens 6ES7132-4BD32-0AA0 is a high-performance electronic module for the SIMATIC ET 200S decentralized I/O system. This component provides four digital outputs to bridge PLC logic with physical industrial machinery. It effectively controls external loads like contactors, magnetic valves, and signaling devices. Because of its modular design, users can scale their automation hardware to meet specific machine requirements. This flexibility makes it a standard choice for decentralized control architectures in modern manufacturing.

Technical Specifications

Operational Features and Performance

This module delivers a robust 2.0 A output current across four independent channels. Consequently, it handles heavier electrical loads than standard 0.5 A modules. The slim 15 mm width optimizes space within the control cabinet. Each output channel features short-circuit protection to prevent damage from external wiring faults. Furthermore, the 6ES7132-4BD32-0AA0 supports “hot swapping” during active operation. This feature allows technicians to replace faulty modules without interrupting the entire system power.

Installation and System Compatibility

Engineers integrate this module into the ET 200S station via standard terminal modules. It communicates seamlessly with master controllers over PROFINET or PROFIBUS networks. The unit supports various diagnostic functions to identify load errors quickly. Status LEDs on the front panel provide immediate visual confirmation of channel activity. These diagnostics simplify troubleshooting and reduce overall maintenance time. Additionally, the high current rating per channel eliminates the need for external interposing relays in many applications.

Key Technical Characteristics

• Provides four source-switching (PNP) digital output channels.
• Delivers 24V DC power with 2.0 A capacity per output.
• Supports module replacement under tension to maximize machine uptime.
• Features integrated electronic short-circuit and overload protection.
• Fits all standard ET 200S terminal modules for easy mounting.
• Operates reliably within complex decentralized automation networks.
