Description

Advanced Connectivity for Modicon X80 Systems

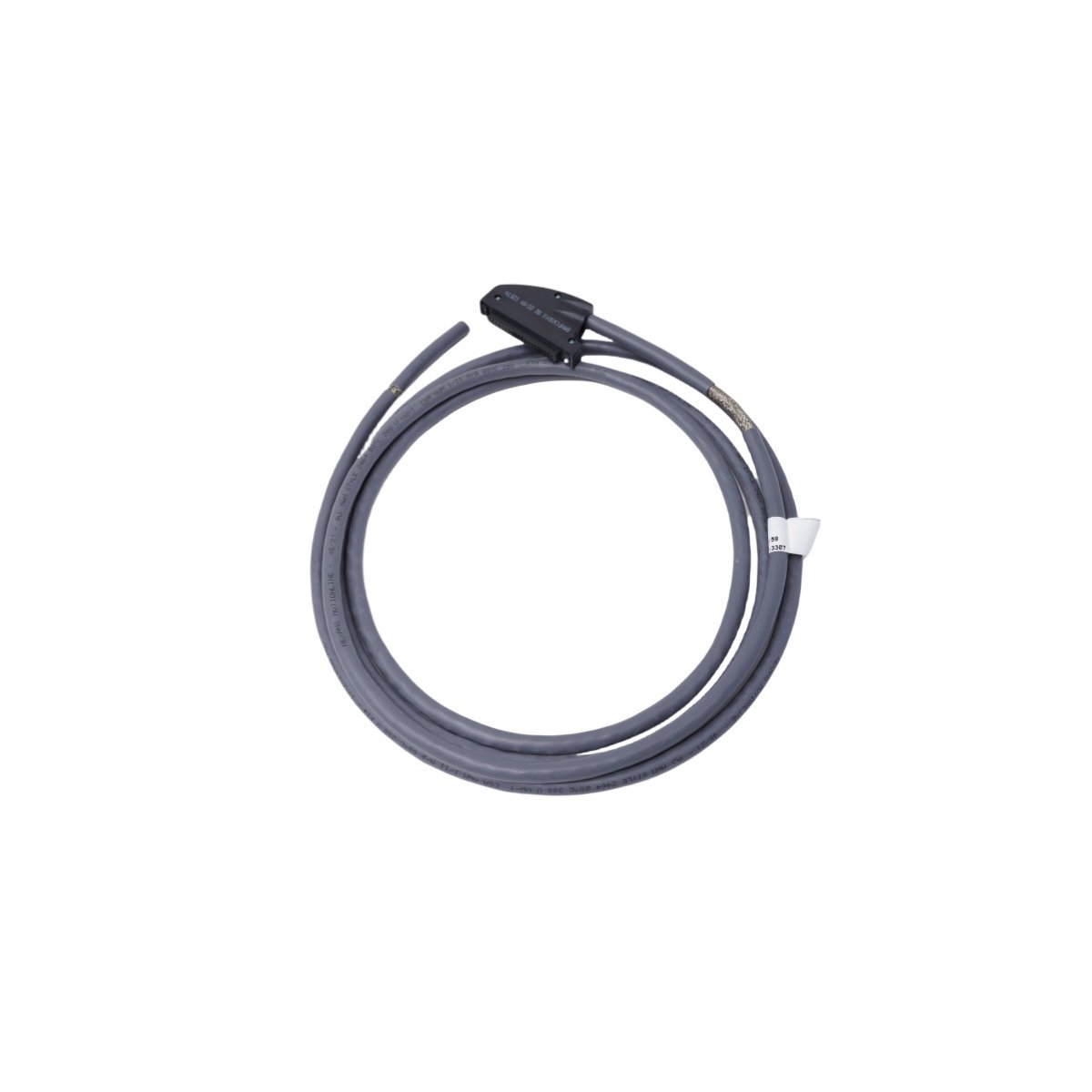

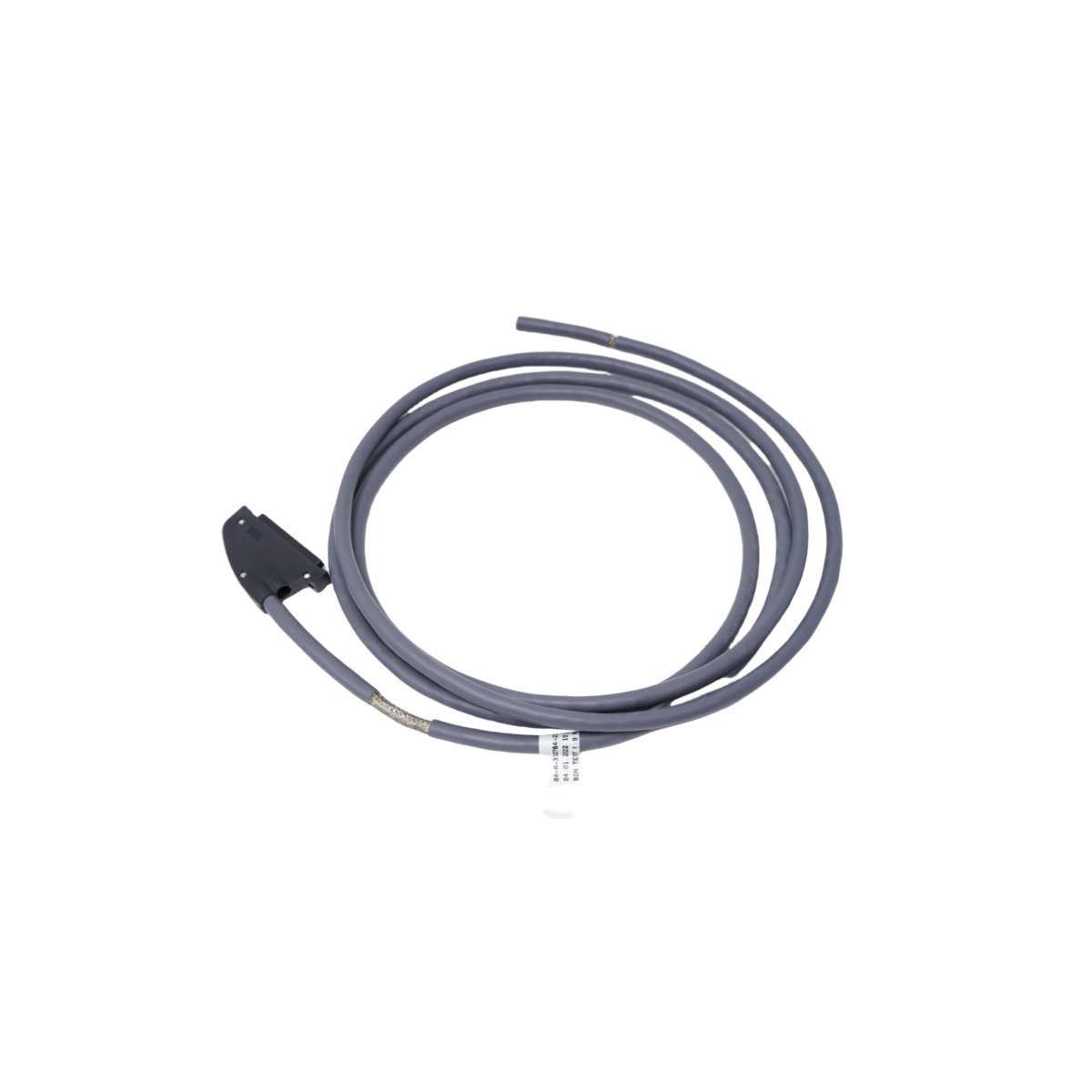

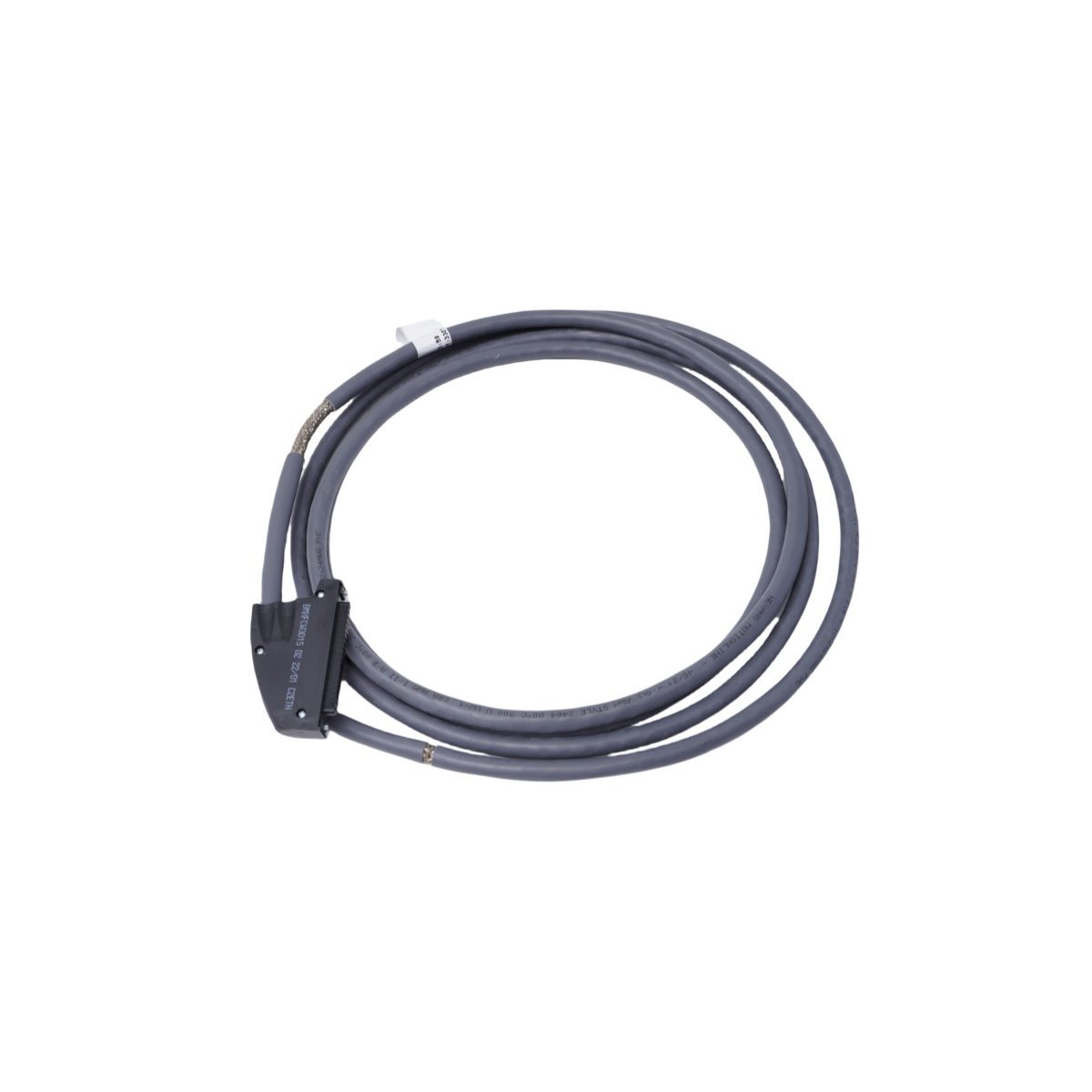

The Schneider Electric BMXFCW303 serves as a high-performance, preformed cordset specifically engineered to facilitate the interface between Modicon X80 I/O modules and field wiring. This 40-way cabling solution streamlines the connection process by eliminating the need for manual point-to-point wiring at the module level. Consequently, it significantly reduces installation labor while simultaneously minimizing the risk of wiring errors. Specifically, this cordset supports high-density analog and discrete modules, such as the BMXAMI0410 and BMXAMM0600, providing a reliable bridge for critical data and control signals.

Mechanical Integrity and Design Specifications

Regarding its physical construction, the BMXFCW303 features a 3-meter cable length that offers substantial flexibility for routing through complex electrical cabinets. The cable assembly consists of two distinct cable strands that terminate in flying leads at one end, which allows for direct termination to custom terminal blocks or field devices. Furthermore, the 40-wire configuration utilizes high-quality insulation materials designed to withstand the typical mechanical stresses found in industrial environments. Because Schneider Electric manufactures this cordset to rigorous French engineering standards, it maintains consistent electrical performance and signal shielding over its entire 3-meter span.

Optimized Operational Reliability

In addition to its physical durability, the BMXFCW303 contributes to the overall uptime of the PLC system by providing gas-tight and corrosion-resistant contact points at the connector interface. This design choice ensures that signal integrity remains high even in environments subject to humidity or chemical vapors. Moreover, the pre-assembled nature of the cordset allows for rapid system testing and easier troubleshooting during commissioning. By integrating this standardized connectivity solution, maintenance teams can quickly swap modules or reconfigure cabinet layouts without the lengthy downtime associated with traditional wiring methods.

Technical Specifications

• Brand: Schneider Electric
• Model Number: BMXFCW303
• Product Range: Modicon X80 / M340
• Accessory Type: Preformed Cordset
• Total Number of Ways: 40 ways
• Cable Length: 3 meters (9.84 ft)
• Electrical Connection: One 40-way connector to two flying lead ends
• Number of Cables: 2 cables (integrated into one assembly)
• Compatible Modules: BMXAMI0410, BMXAMM0600, and various 40-pin X80 I/O
• Net Weight: 0.8 kg
• Dimensions: 5cm x 27cm x 27cm
• Country of Origin: France
• Application: Industrial Automation and Process Control

Strategic Integration in Automation

System integrators frequently deploy the BMXFCW303 across manufacturing, energy, and process industries to ensure standardized wiring architecture. Because the cordset arrives pre-tested from the factory, it guarantees out-of-the-box compatibility with the Modicon M340 and M580 controller families. Ultimately, utilizing this authentic Schneider Electric cordset ensures that the entire automation loop adheres to electromagnetic compatibility (EMC) guidelines and industrial safety certifications.
