Industrial Connectivity and System Integration

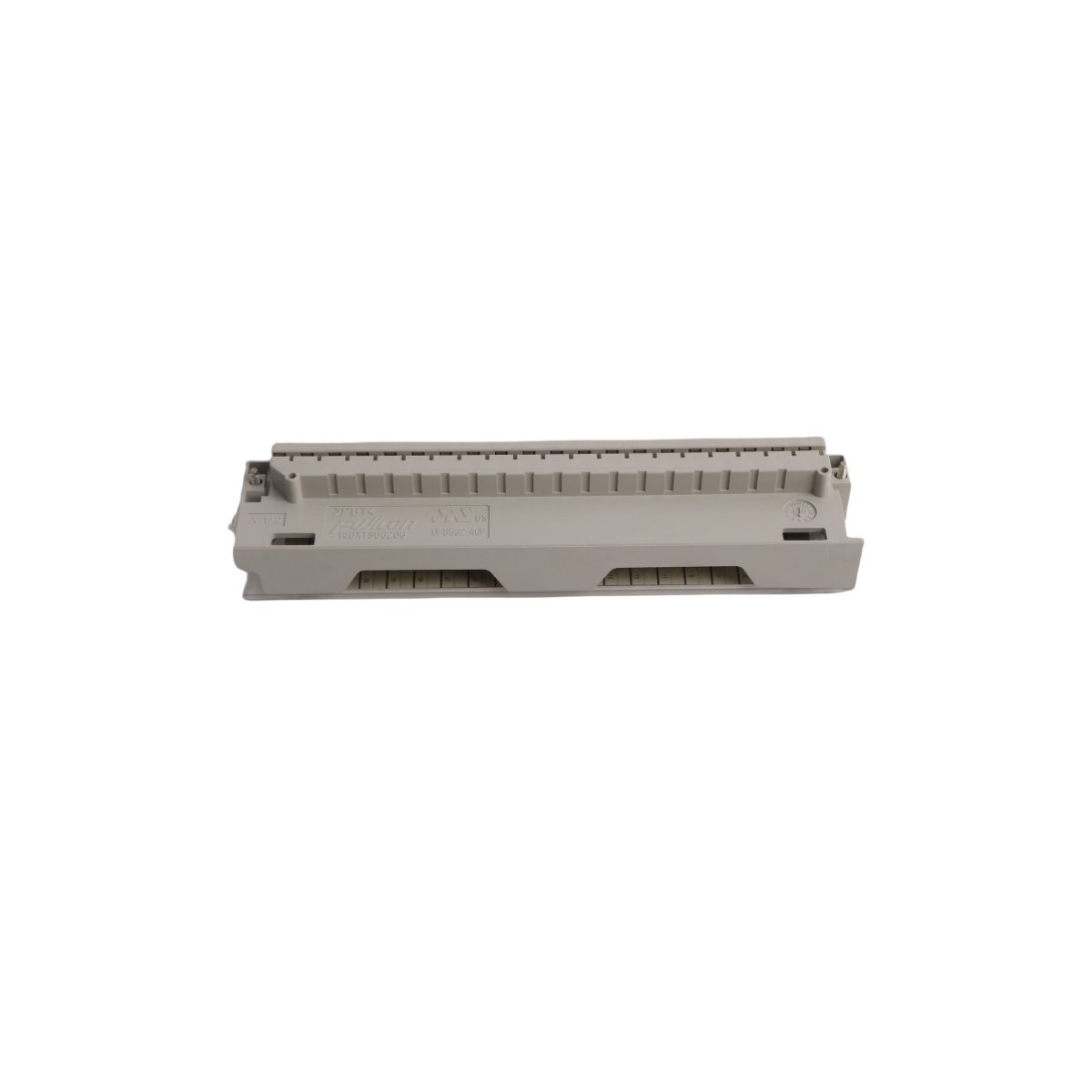

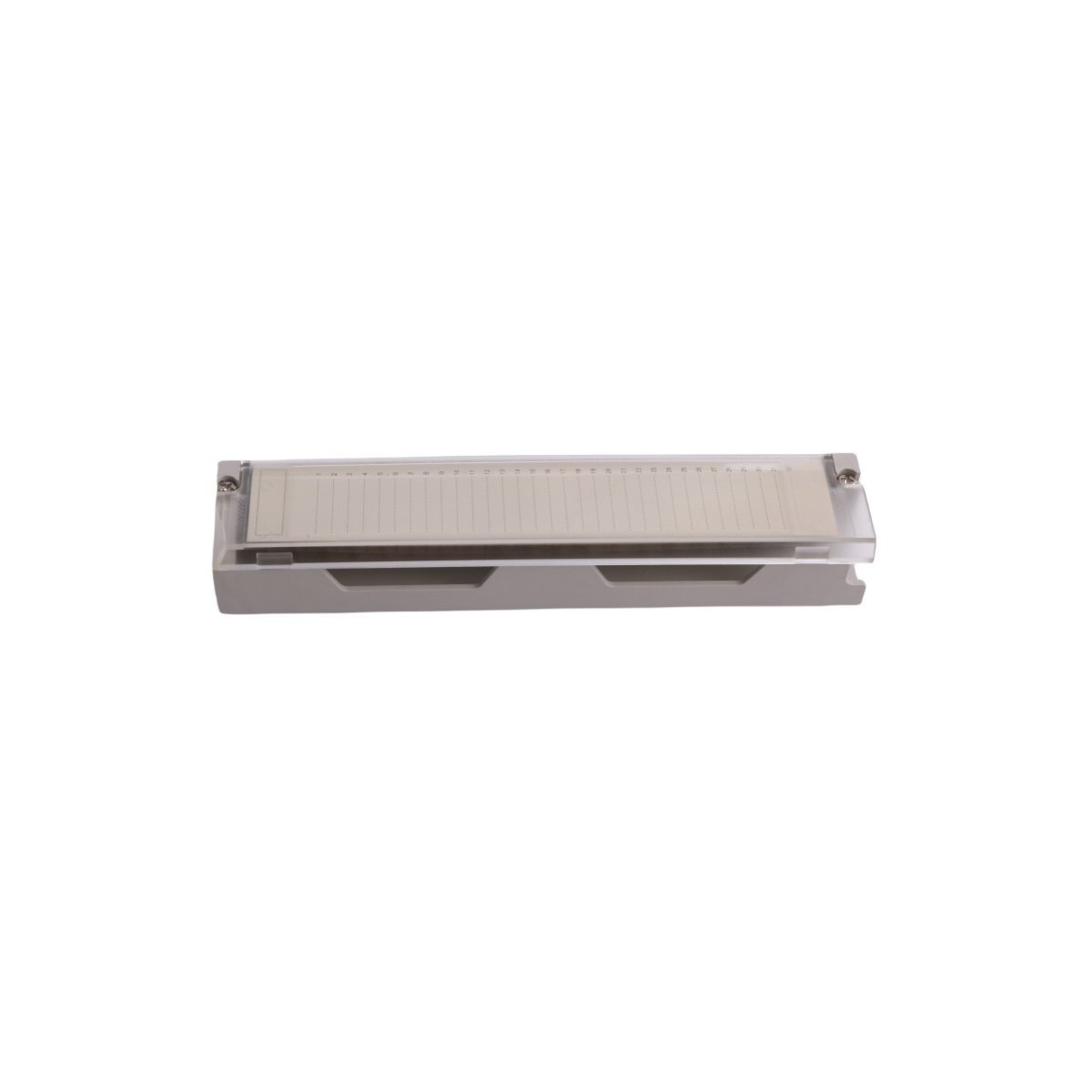

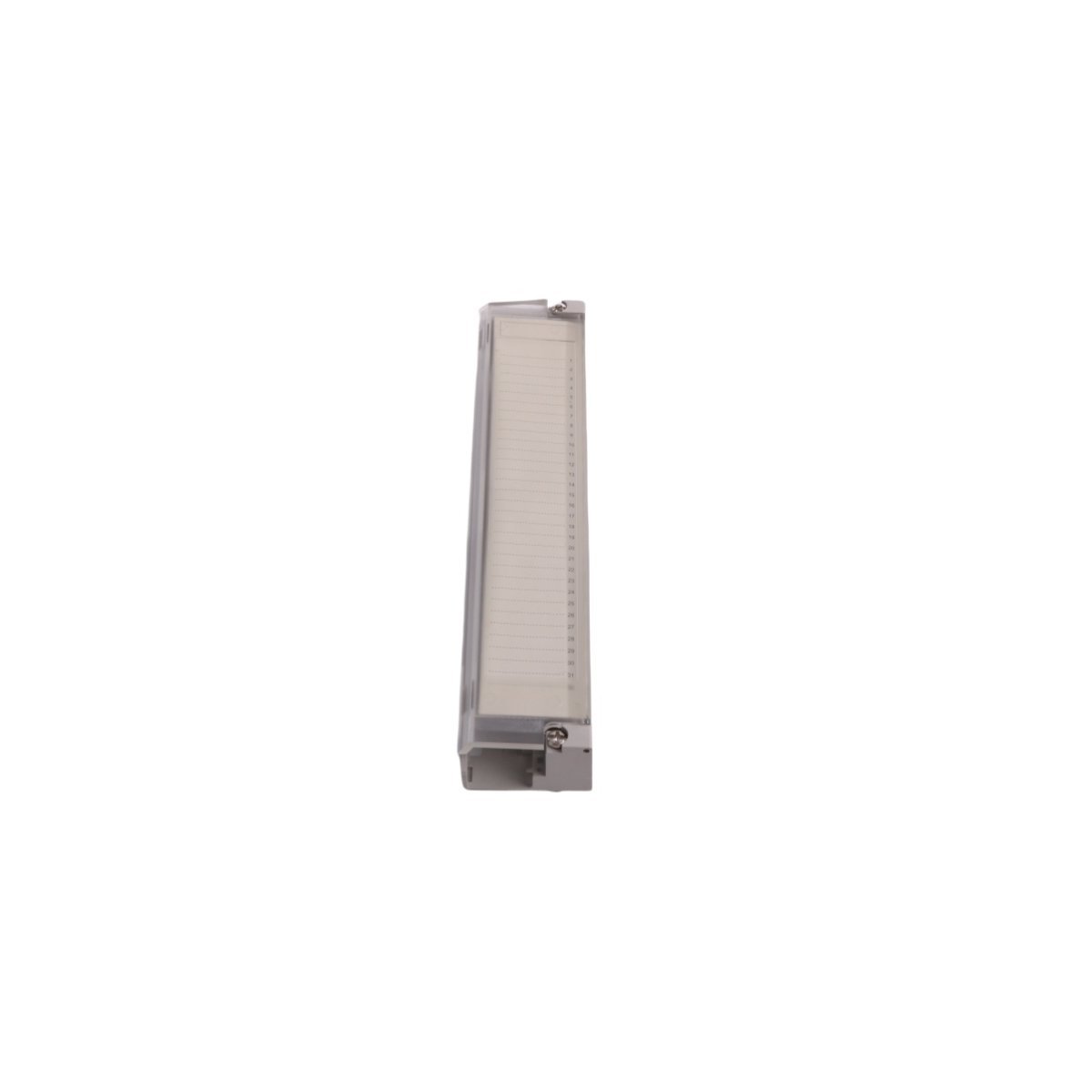

The Schneider Electric 140XTS00200 functions as a specialized screw terminal block designed specifically for the Modicon Quantum automation platform. This removable terminal block (RTB) facilitates the electrical interface between field wiring and I/O modules, thereby ensuring a secure path for signal transmission. By utilizing a rugged screw-clamp mechanism, the unit effectively prevents accidental disconnections caused by industrial vibrations or mechanical shifts. Consequently, this component remains a vital asset for maintaining the modularity of PLC systems, as it allows technicians to replace I/O modules without disturbing the existing field wiring.

Mechanical Design and Environmental Resilience

Engineered to withstand the rigors of heavy-duty industrial environments, the 140XTS00200 maintains high structural integrity across a broad thermal spectrum. For instance, the module operates reliably in temperatures ranging from 0°C to 60°C, while its storage rating of -40°C to 85°C ensures long-term durability even in non-conditioned warehouse settings. Furthermore, the physical architecture prioritizes space efficiency within the control cabinet, featuring a streamlined profile that does not interfere with adjacent hardware. To further enhance usability, the clear terminal markings and accessible screw heads simplify the commissioning process and significantly reduce the likelihood of wiring errors during installation.

Technical Capabilities and Performance

Regarding its connection capacity, this terminal block supports a variety of wire gauges, typically accommodating both solid and stranded conductors to provide maximum flexibility for system integrators. Moreover, the high-quality conductive materials used in the 140XTS00200 minimize voltage drops and resistance, which is critical for maintaining accurate analog signals and responsive discrete I/O performance. Because it is a passive connection component, it requires no external power; nevertheless, it plays a decisive role in the overall uptime of the Modicon Quantum system by providing a gas-tight, corrosion-resistant contact point for every conductor.

Technical Specifications

• Brand: Schneider Electric
• Model Number: 140XTS00200
• Product Range: Modicon Quantum
• Component Type: Removable Screw Terminal Block
• Terminal Type: Screw Clamp
• Number of Points: 40 points
• Operating Air Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Weight: 0.8 kg
• Dimensions: 5cm x 27cm x 27cm
• Country of Origin: France

Strategic Application

Industrial facilities across the manufacturing, water treatment, and energy sectors utilize the 140XTS00200 to ensure continuous process control. In addition to its functional benefits, its compatibility with both legacy and active Modicon Quantum series makes it a standard requirement for new installations as well as system retrofits. Ultimately, by choosing this authentic Schneider Electric accessory, maintenance teams ensure full mechanical compatibility and strict adherence to the safety certifications required for high-availability automation environments.
