Description

Functional Overview

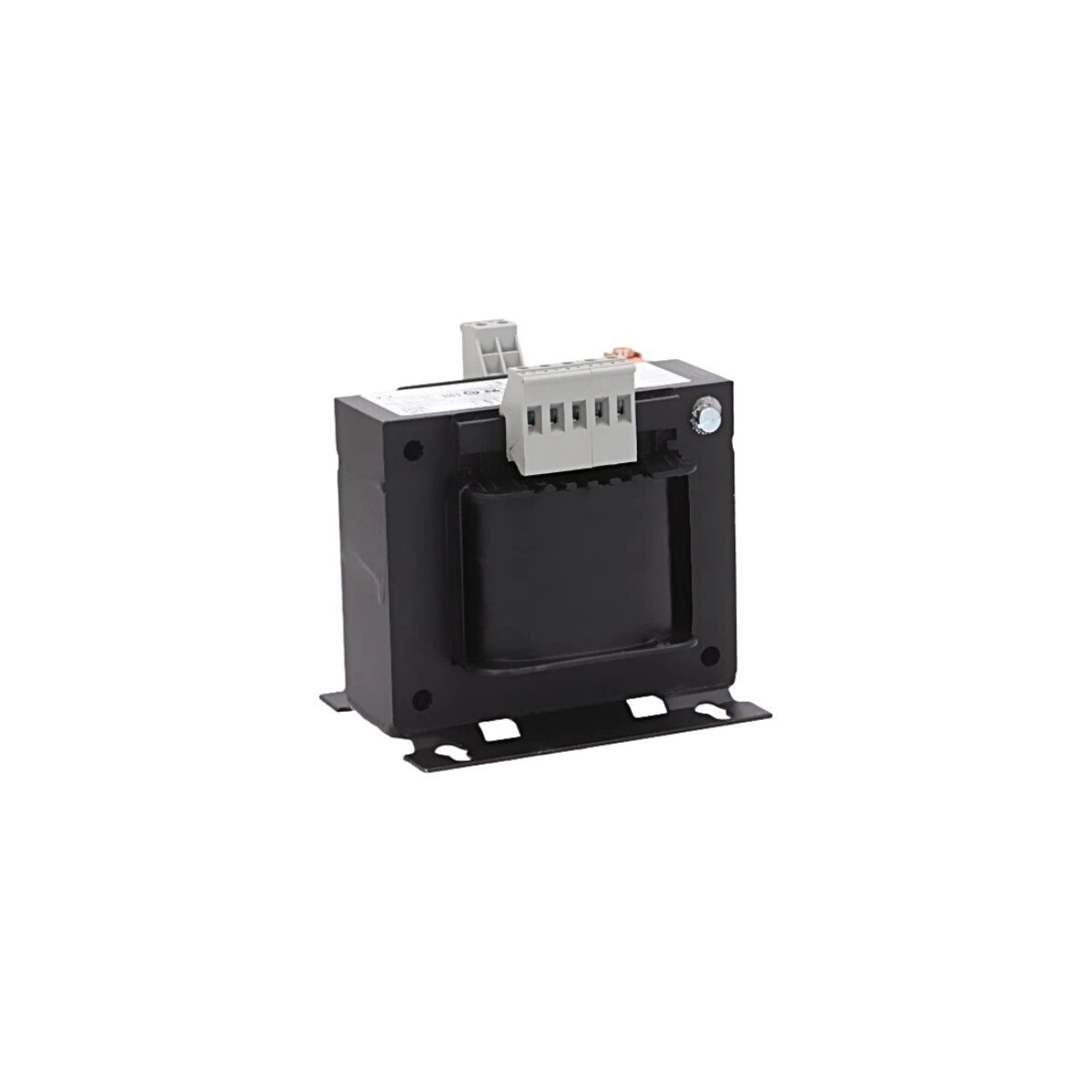

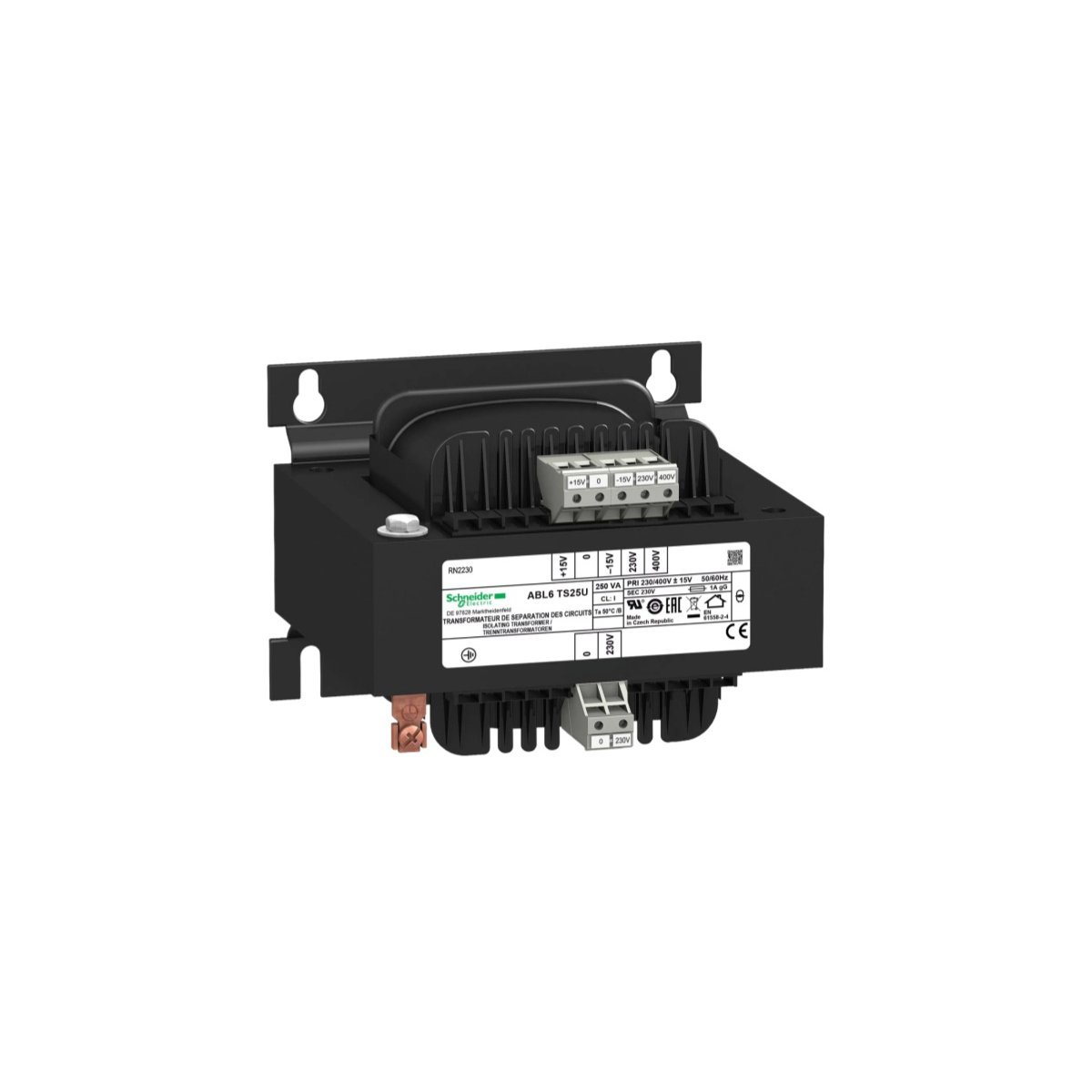

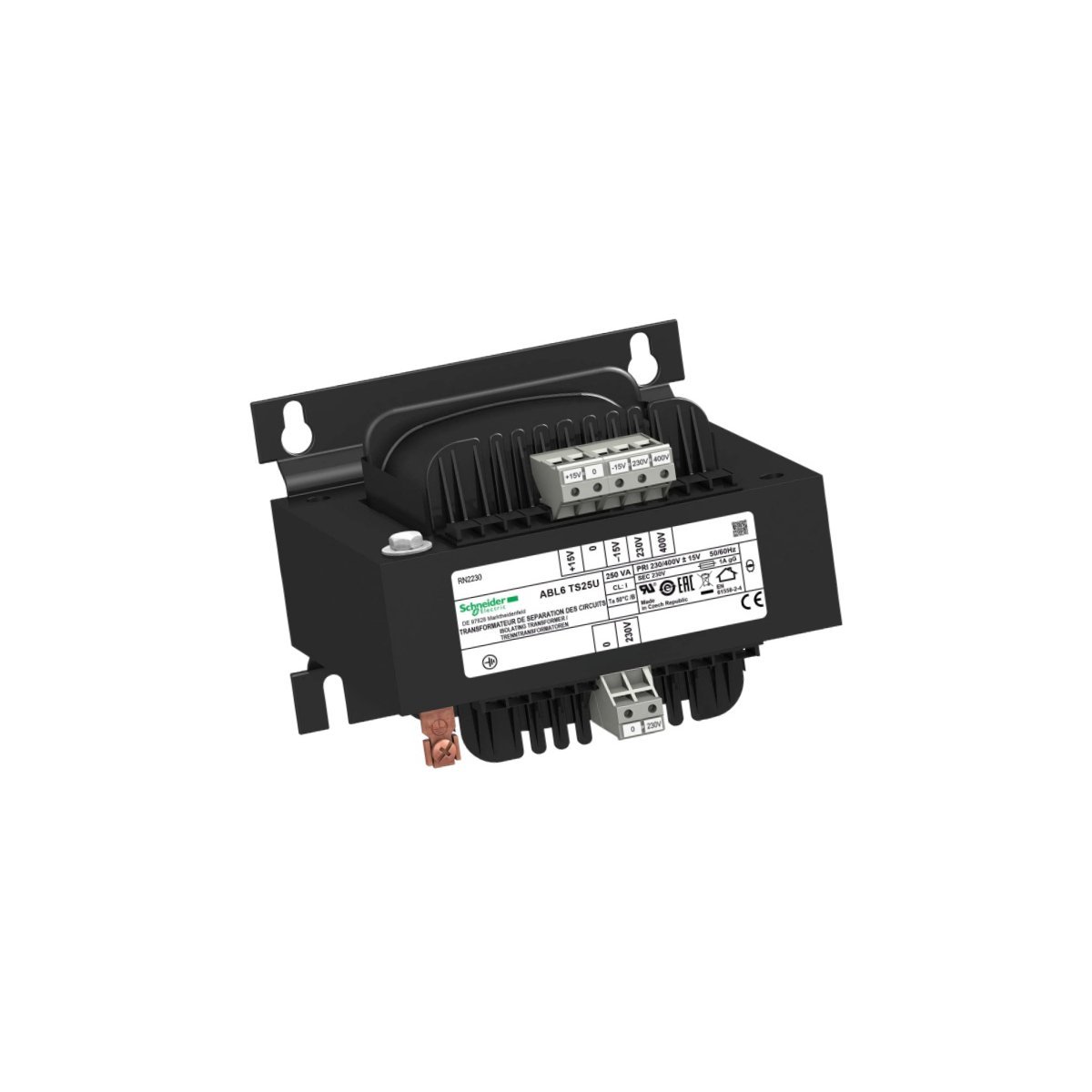

The Schneider Electric ABL6TS25U provides a high-performance safety and isolation solution within the Phaseo Optimum series. This single-phase transformer delivers a stabilized and electrically isolated power supply to sensitive control circuits and industrial hardware. By decoupling the input and output circuits, the unit effectively mitigates electrical shock risks and shields downstream components from power surges or insulation failures. Consequently, this device maintains operational integrity across complex automated systems.

Technical Performance and Efficiency

Engineered for optimal energy management, the ABL6TS25U achieves a high efficiency rating of 90%. The transformer slashes operational costs by maintaining a low no-load power consumption of only 12.5W, which keeps energy waste to a minimum during standby periods. To ensure long-term reliability, the design incorporates Class B insulation and sustains a dielectric strength of 4000V between the primary and secondary windings. This rigorous galvanic isolation guarantees both personnel safety and the longevity of connected equipment.

Installation and Environmental Versatility

The mechanical architecture of the ABL6TS25U facilitates seamless integration into industrial enclosures. Users can mount the unit in multiple orientations, including vertical and horizontal positions, using a standard four-screw panel system. The electrical interface utilizes robust screw-type terminals that secure wire gauges up to 4 mm². Furthermore, the transformer performs reliably across a broad temperature spectrum from -20°C to 50°C. Its IP20 protection rating ensures suitability for protected environments such as PLC cabinets and motor control centers.

Key Technical Specifications

• Rated Power: 250 VA
• Input Voltage: 230V AC (N-L1) or 400V AC (L1-L2)
• Output Voltage: 230V AC Single Phase
• Operating Frequency: 50/60 Hz
• Efficiency: 90%
• No-load Losses: 12.5 W
• Insulation Class: Class B
• Dielectric Strength: 4000V AC (Between windings)
• Ambient Temperature: -20°C to 50°C
• Protection Rating: IP20
• Certifications: CE, UR (UL Recognized), RoHS Compliant
• Weight: 1.9 kg
• Dimensions: 27.9 x 21.6 x 6.3 cm

Industrial Applications

Because the ABL6TS25U offers versatile input voltage capabilities, it serves various industrial sectors. Engineers frequently integrate this model into:

• Programmable Logic Controller (PLC) power management systems.
• Industrial automation control panels requiring isolated 230V AC.
• Ethernet routers and communication hubs in factory environments.
• Safety-critical circuits where separation from the main grid is mandatory.
