Description

Brief Product Description

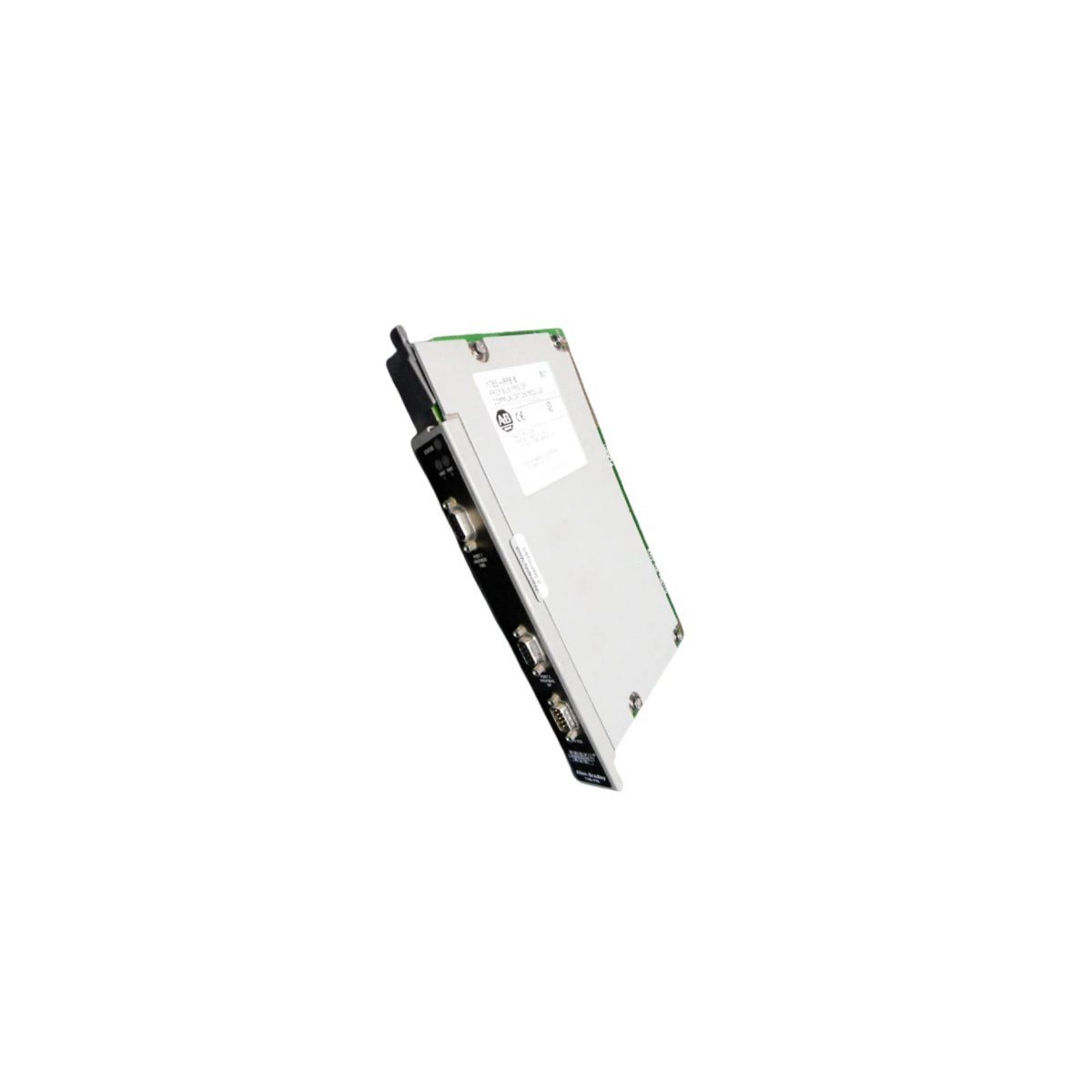

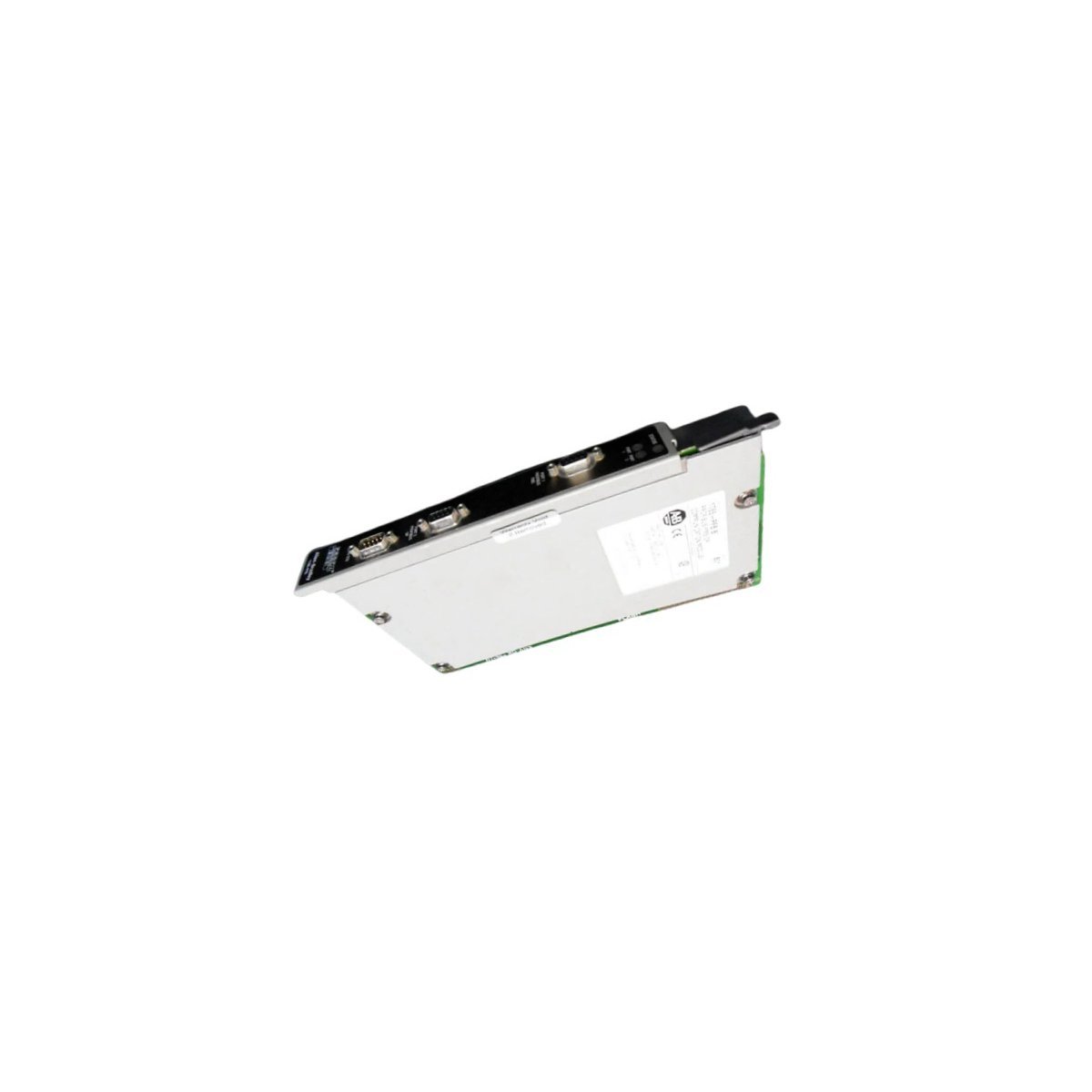

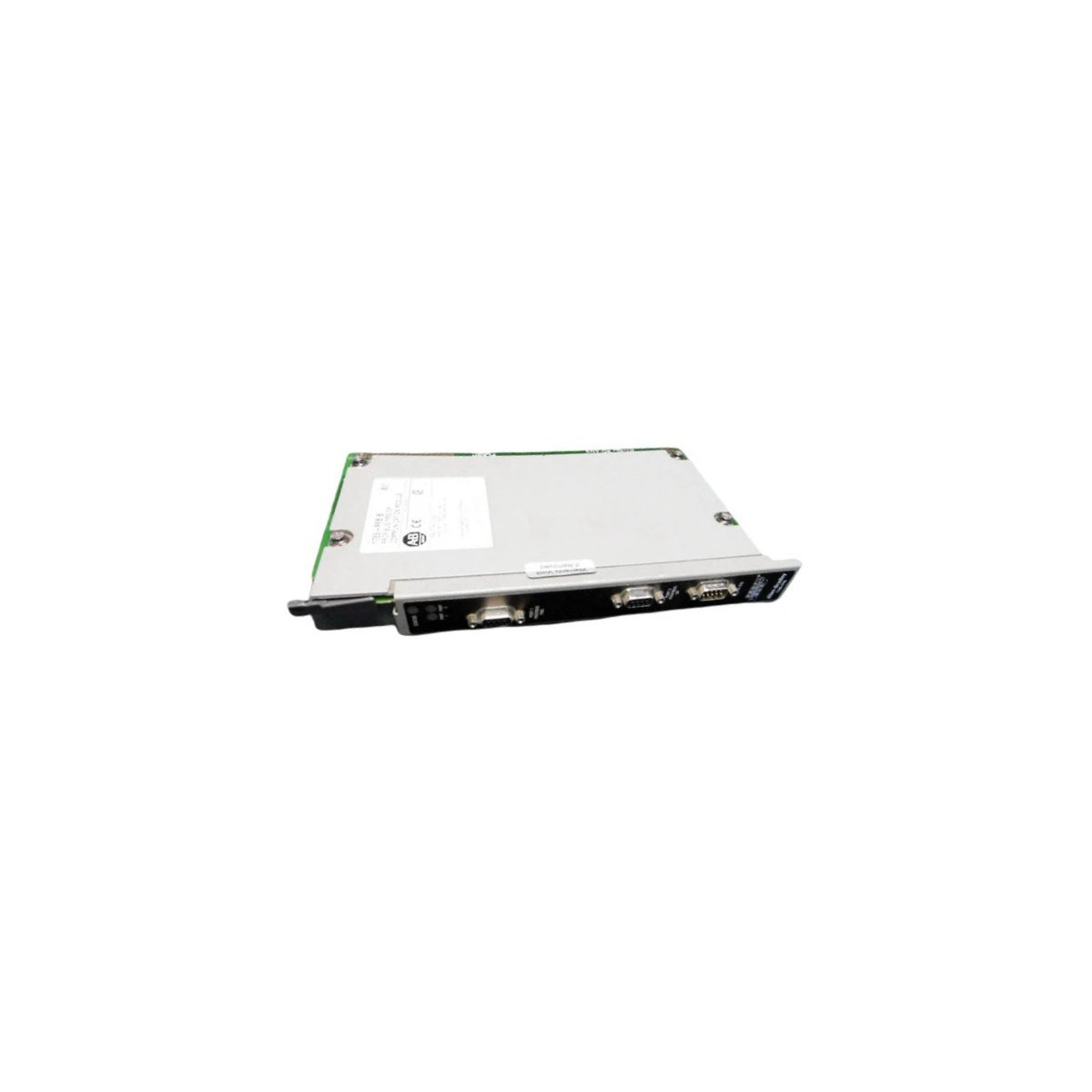

The Allen-Bradley 1785-PFB is a Series B Profibus DP communication interface designed to integrate PLC-5 processors with distributed I/O networks. It supports both master and slave configurations to facilitate high-speed, cyclic data exchange across industrial automation architectures.

High-Speed Network Integration for PLC-5 Systems

The Allen-Bradley 1785-PFB functions as a high-performance bridge between PLC-5 controllers and Profibus DP peripheral networks. This module enables the processor to act as either a DP master or a DP slave, providing the flexibility to control remote I/O or act as a subordinate component within a larger multi-vendor system. By utilizing an RS-485 interface, the unit handles rapid data transfers between the central processor and field devices. Furthermore, the 1785-PFB features an integrated RS-232 serial port for secondary communication tasks and local configuration. This robust connectivity ensures that legacy PLC-5 hardware remains compatible with modern distributed control standards.

Optimized Data Exchange and System Diagnostics

Reliability in a distributed network depends on organized data flow, which the 1785-PFB manages through a cyclic polling mechanism. The module facilitates a continuous exchange of I/O data, ensuring the controller’s database remains synchronized with real-time field conditions. To simplify commissioning, the module includes intelligent address monitoring that automatically detects and reports duplicate station addresses between master and slave units. This preventative diagnostic feature reduces network collisions and configuration errors. Moreover, the front-panel LED display provides immediate visual feedback regarding network status and module health, allowing technicians to verify communication integrity at a glance.

Configuration Management and Hardware Safety

Successful network operation with the 1785-PFB requires precise management of bus parameters and slave configurations. The DP master unit maintains specific data sets for every connected slave, ensuring that timing and address assignments remain consistent across the Profibus segment. While the module significantly enhances system capability, operators must strictly follow safety protocols by ensuring the I/O chassis is powered down before installation or removal to prevent hardware damage. Despite its discontinued status as of July 2011, the 1785-PFB remains an essential component for maintaining high-speed communication in existing factory automation and process control infrastructures.

Key Technical Characteristics

• Dual Master/Slave Functionality: Offers versatile networking roles within a Profibus DP environment.
• Cyclic Communication: Supports continuous, high-speed data updates for real-time process monitoring.
• Comprehensive Interfaces: Includes RS-485 for network traffic and RS-232 for serial connectivity.
• Intelligent Diagnostics: Identifies station address conflicts to ensure stable network performance.
• VME Architecture: Designed as a standard processor card for seamless PLC-5 chassis integration.
• Visual Status Monitoring: Features an LED array for rapid troubleshooting of network and module states.

Technical Specifications
