Description

Brief Product Description

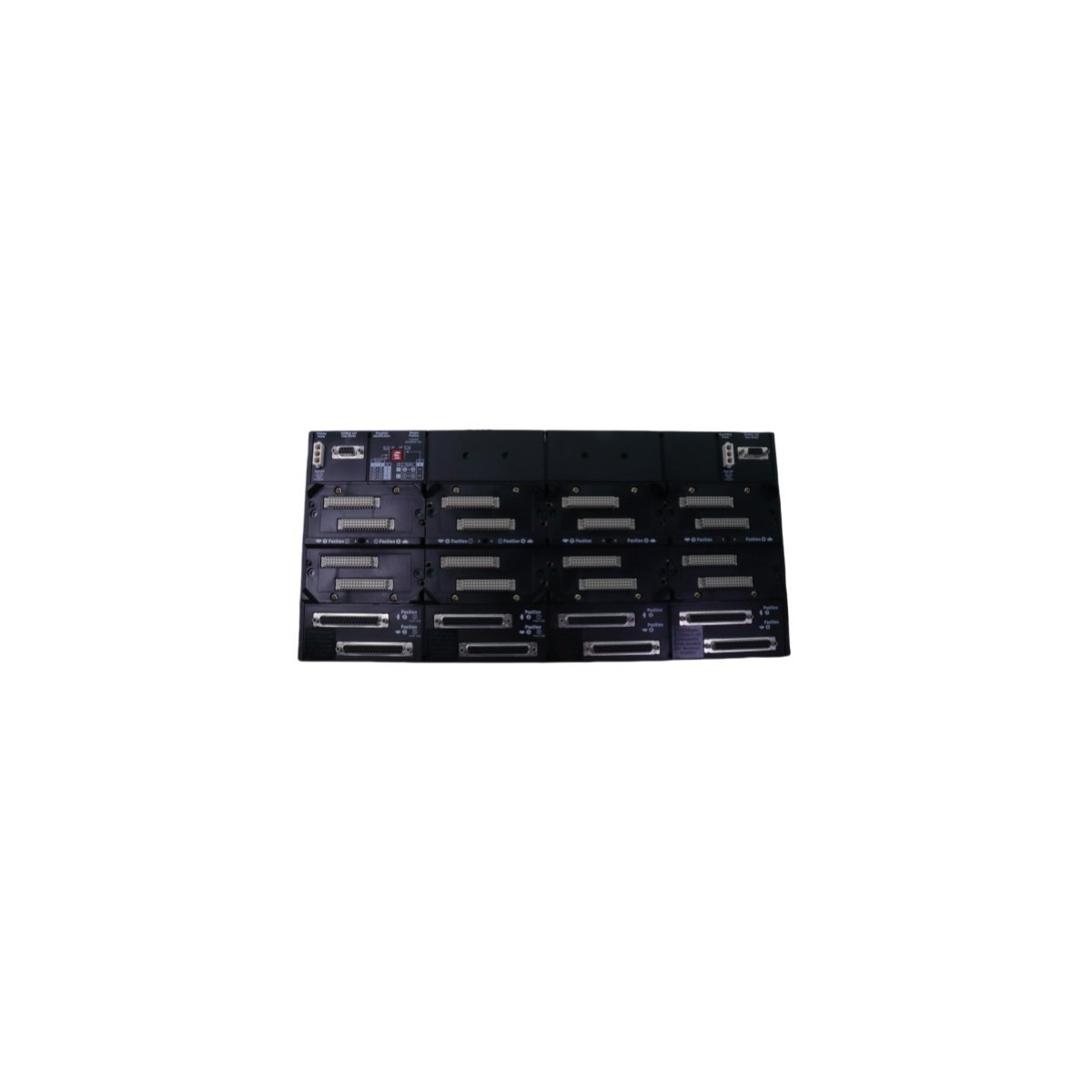

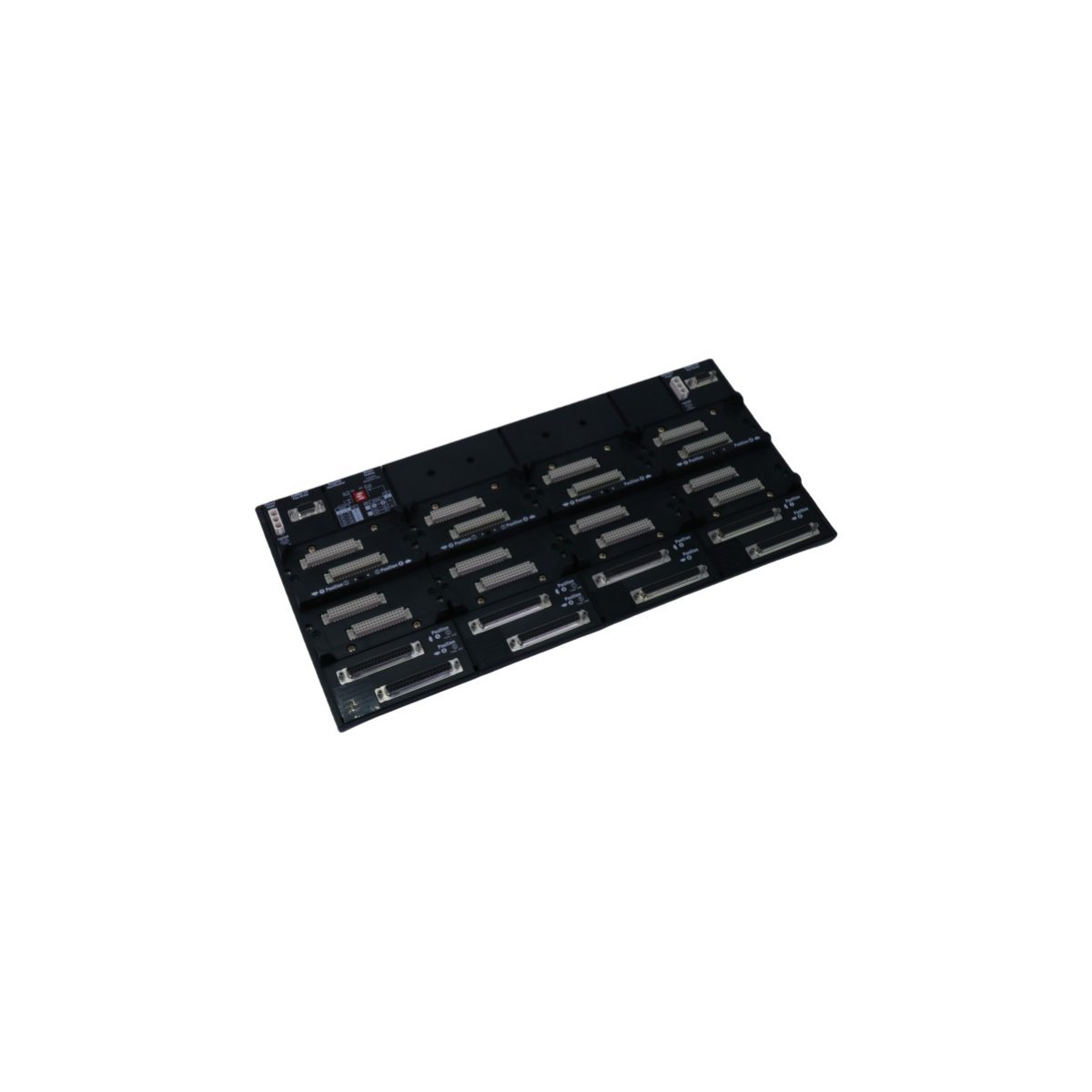

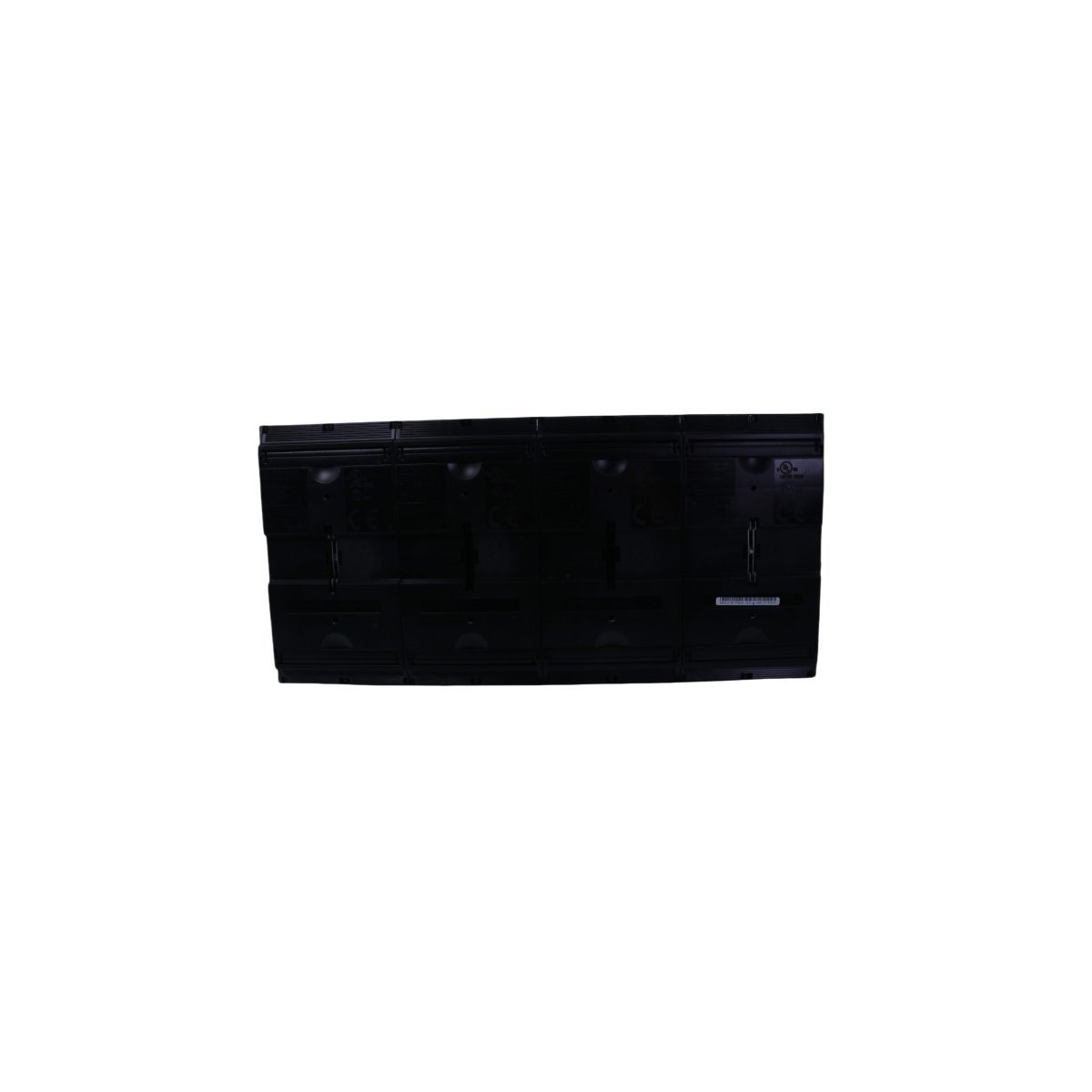

The Foxboro P0926JM is a high-performance clamp base module designed for the I/A Series DCS, serving as a rugged mounting and connection interface for 8-channel isolated output systems. It utilizes an advanced microcontroller architecture to ensure precise signal management and seamless communication within complex industrial automation networks.

High-Performance Microcontroller Architecture

The Foxboro P0926JM functions as a foundational component within the I/A Series Distributed Control System (DCS), providing a stable and intelligent mounting platform for industrial I/O. By incorporating a sophisticated microcontroller-based design, the module manages complex signal processing tasks with extreme precision. This architecture allows the system to maintain high data throughput while ensuring that isolated outputs remain accurate under varying load conditions. Consequently, this module effectively bridges the gap between high-level control logic and critical field instrumentation, supporting the overall stability of the process loop.

Industrial-Grade Durability and Signal Protection

Engineered for the most rigorous industrial environments, the P0926JM utilizes high-grade materials that resist chemical exposure and physical wear.¹ The module supports 8 channels of isolated output, which physically decouples the sensitive control electronics from external field interference.² This isolation prevents ground loops and protects the system from voltage surges, which is vital for maintaining uptime in power plants and manufacturing facilities.³ Because Foxboro prioritized thermal management in the design, the module maintains continuous operation without signal drift, even when installed in high-density rack configurations that experience significant heat accumulation.

Seamless Network Integration and Deployment

The P0926JM facilitates rapid system expansion through its support for advanced communication protocols. This connectivity ensures that the base module integrates effortlessly into existing Invensys or Foxboro architectures without requiring extensive hardware modifications. Furthermore, the unit features a simplified clamp-style installation mechanism, which significantly reduces the time required for field wiring and module replacement. By combining a user-friendly physical interface with comprehensive technical documentation, Foxboro enables technicians to deploy the P0926JM with minimal training, thereby lowering the total cost of ownership and streamlining maintenance cycles.

Key Technical Characteristics

• 8-Channel Isolated Support: Provides dedicated signal paths for eight independent output channels with full electrical isolation.
• Advanced Processing Power: Features an onboard microcontroller for localized signal management and diagnostics.
• Ruggedized Construction: Built to withstand the mechanical vibration and environmental stressors common in DCS cabinets.⁴
• Simplified Field Wiring: Utilizes a clamp-based connection system to ensure secure, vibration-proof electrical contact.
• Enhanced Data Integrity: Protects logic-side circuitry from field-side surges and electromagnetic interference (EMI).
• Global Safety Compliance: Meets stringent international standards for industrial control hardware and operational safety.

Technical Specifications
