Description

Brief Product Description

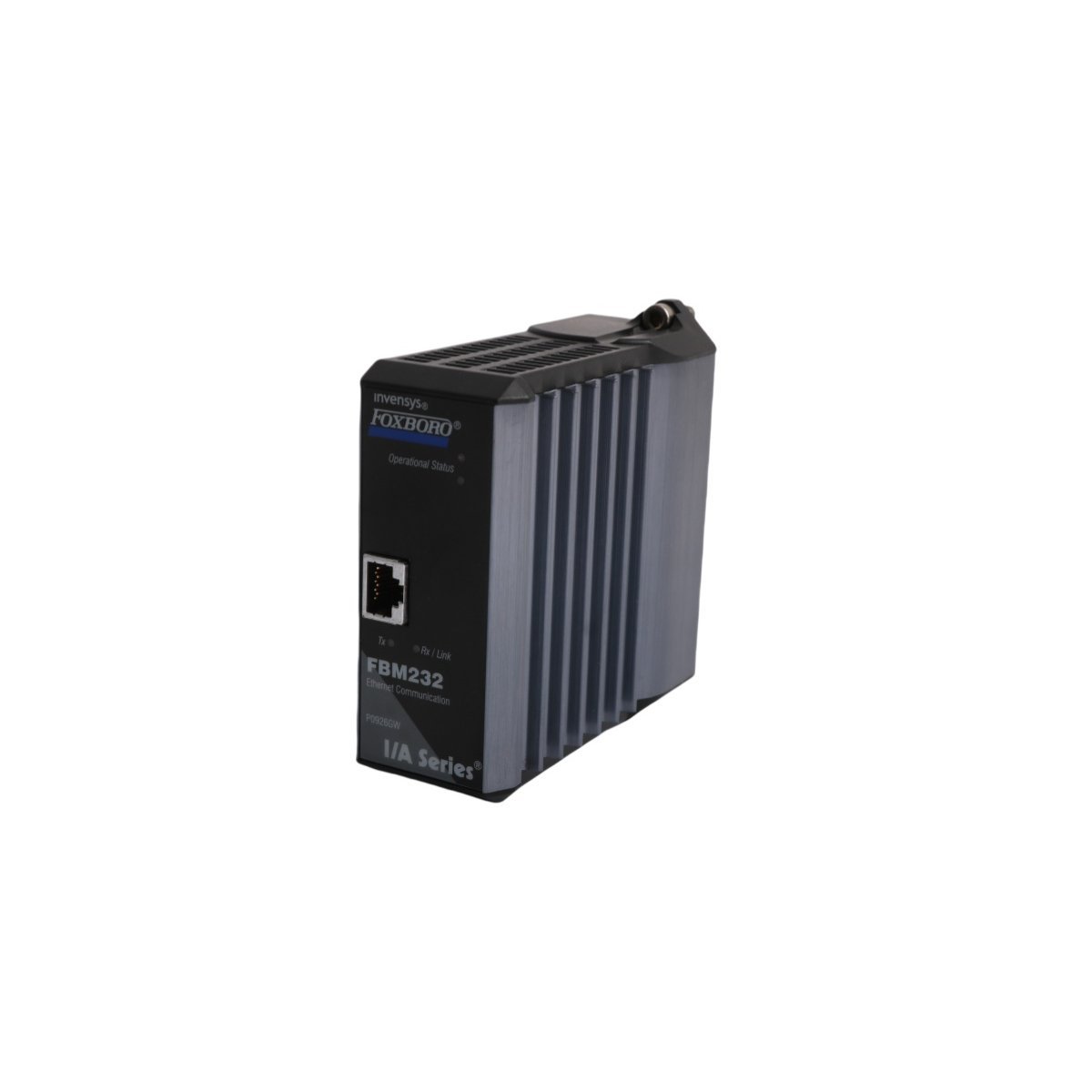

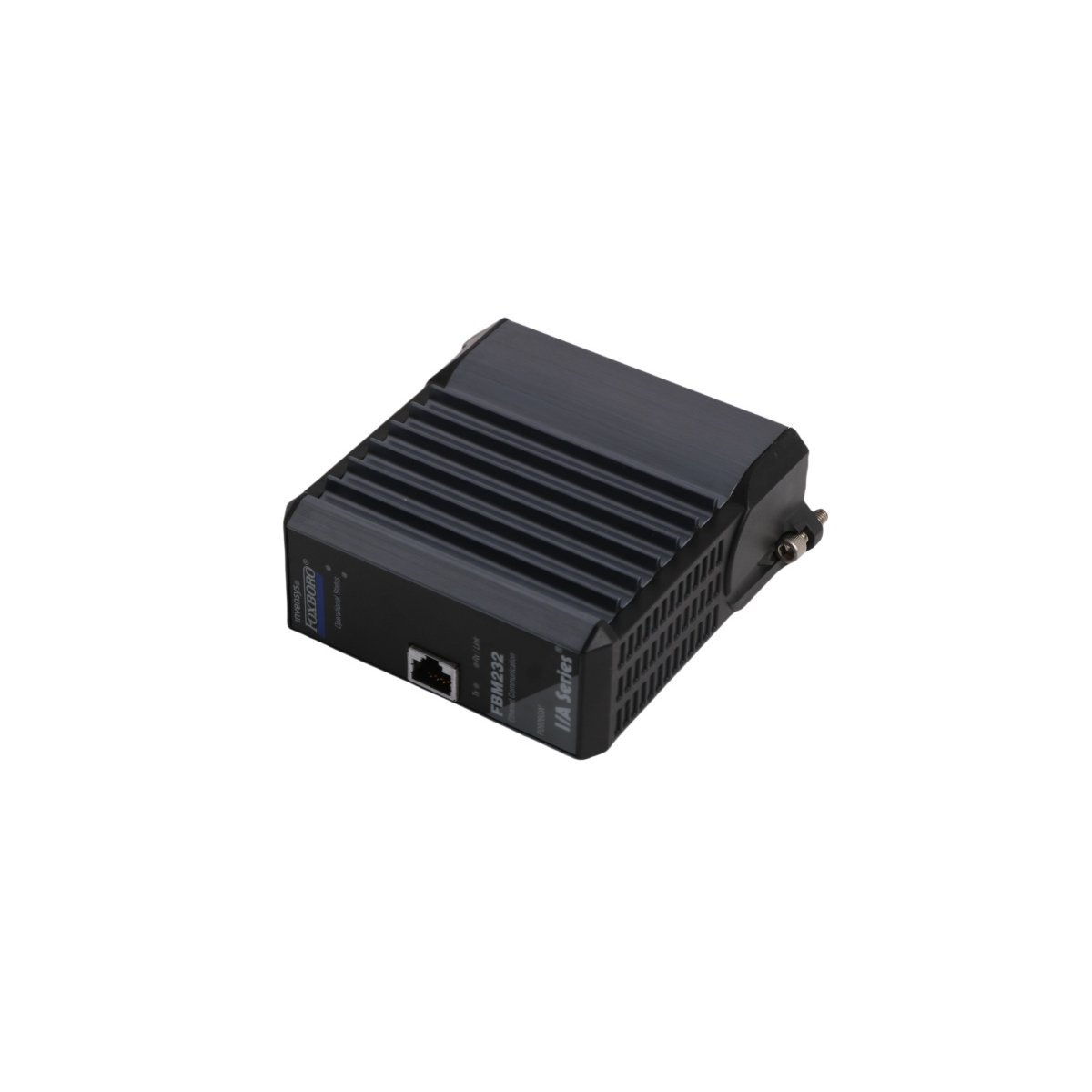

The Foxboro FBM232 P0926GW is a high-performance Ethernet communication interface designed to connect Foxboro I/A Series and Evo systems with up to 64 field devices. This module facilitates the bidirectional exchange of analog and digital data through Distributed Control Interface (DCI) connections, ensuring seamless integration with third-party subsystems.

Advanced Ethernet Data Integration and Conversion

The Foxboro FBM232 P0926GW serves as a specialized gateway that bridges the gap between the Foxboro DCS control station and external Ethernet-enabled devices. By utilizing configurable software drivers, the module translates external protocol data into native DCI data types. This functionality allows the control station to manage up to 2000 DCI data connections, supporting complex data structures such as IEEE single-precision floating points, integers, and packed digital points. Because the FBM232 performs all necessary conversions internally before storing data in its local database, it significantly reduces the processing overhead on the main control processor.

High-Capacity Monitoring and Control Throughput

Engineers can optimize large-scale automation networks with the FBM232, which provides access to as many as 64,000 digital I/O values or 2,000 analog values. The module executes data requests with high efficiency, achieving update frequencies as fast as 500 ms depending on the device layout and network traffic. This rapid data refresh rate ensures that operator displays and plant management functions reflect real-time process conditions. Furthermore, the module supports bidirectional communication, enabling the Foxboro DCS to write command values back to field devices for precise process adjustments and remote configuration.

Ruggedized Hardware for Industrial Longevity

To ensure reliable performance in volatile industrial settings, Foxboro houses the P0926GW in a durable extruded aluminum casing. This enclosure provides superior physical protection and electromagnetic shielding for the internal circuitry. When installed in specialized Foxboro mounting racks, the module meets ISA Standard S71.04 Class G3 requirements for harsh environmental protection. This ruggedized design prevents corrosion and electrical interference from compromising communication integrity, making the FBM232 an ideal choice for oil and gas, chemical processing, and power generation facilities.

Key Technical Characteristics

• Massive Scalability: Connects up to 64 individual field devices and manages 2000 DCI data points.
• Flexible Data Types: Processes analog integers, floating-point values, and packed digital bits (up to 32 per connection).
• Fast Update Cycles: Supports data acquisition speeds as low as 500 ms for high-performance process monitoring.
• Protocol Versatility: Uses loadable drivers to interface with various third-party Ethernet communication protocols.
• Superior Environmental Shielding: Extruded aluminum exterior protects against physical impact and electrical noise.
• Harsh Environment Certified: Compatible with Class G3 rated enclosures to resist corrosive atmospheric conditions.
