Description

Brief Product Description

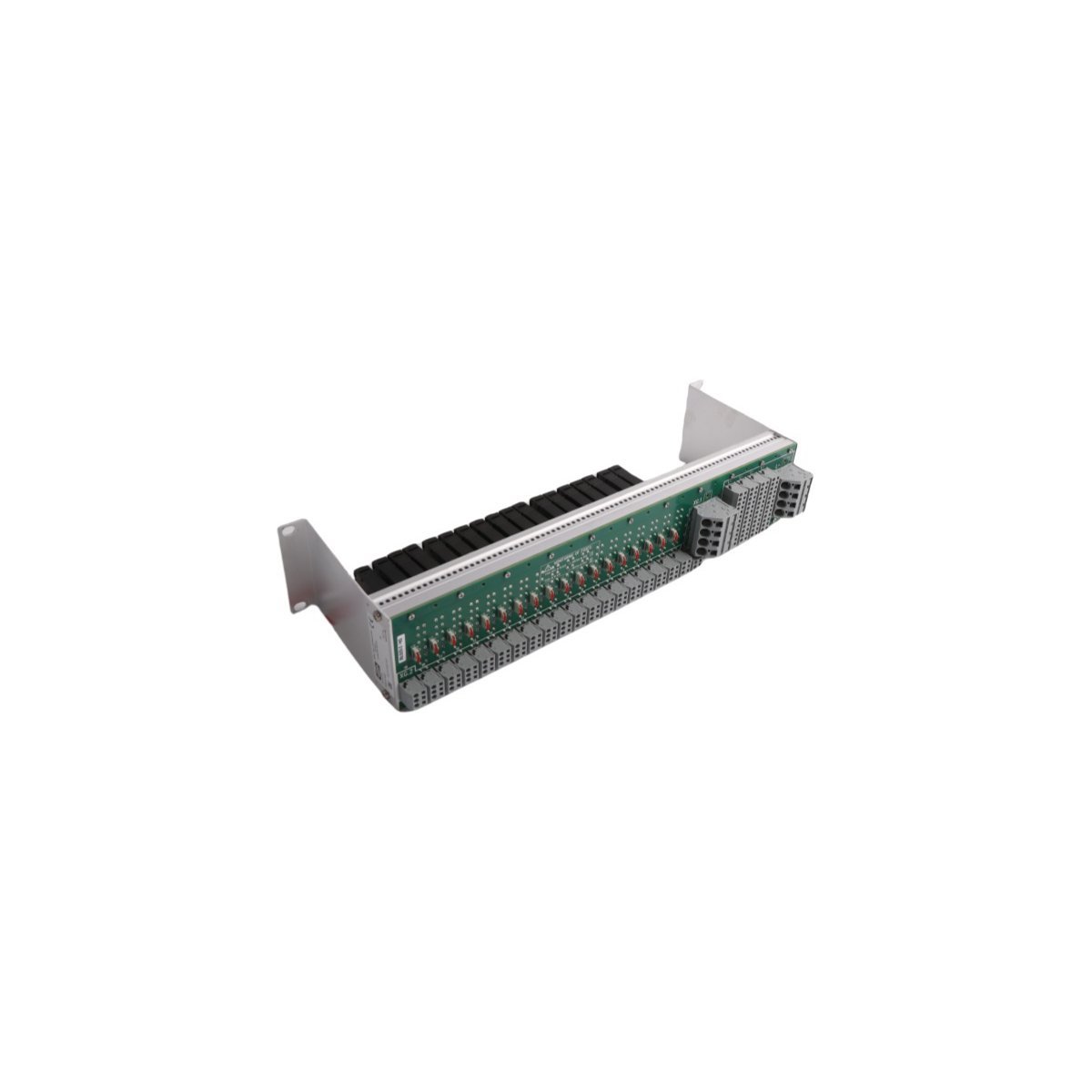

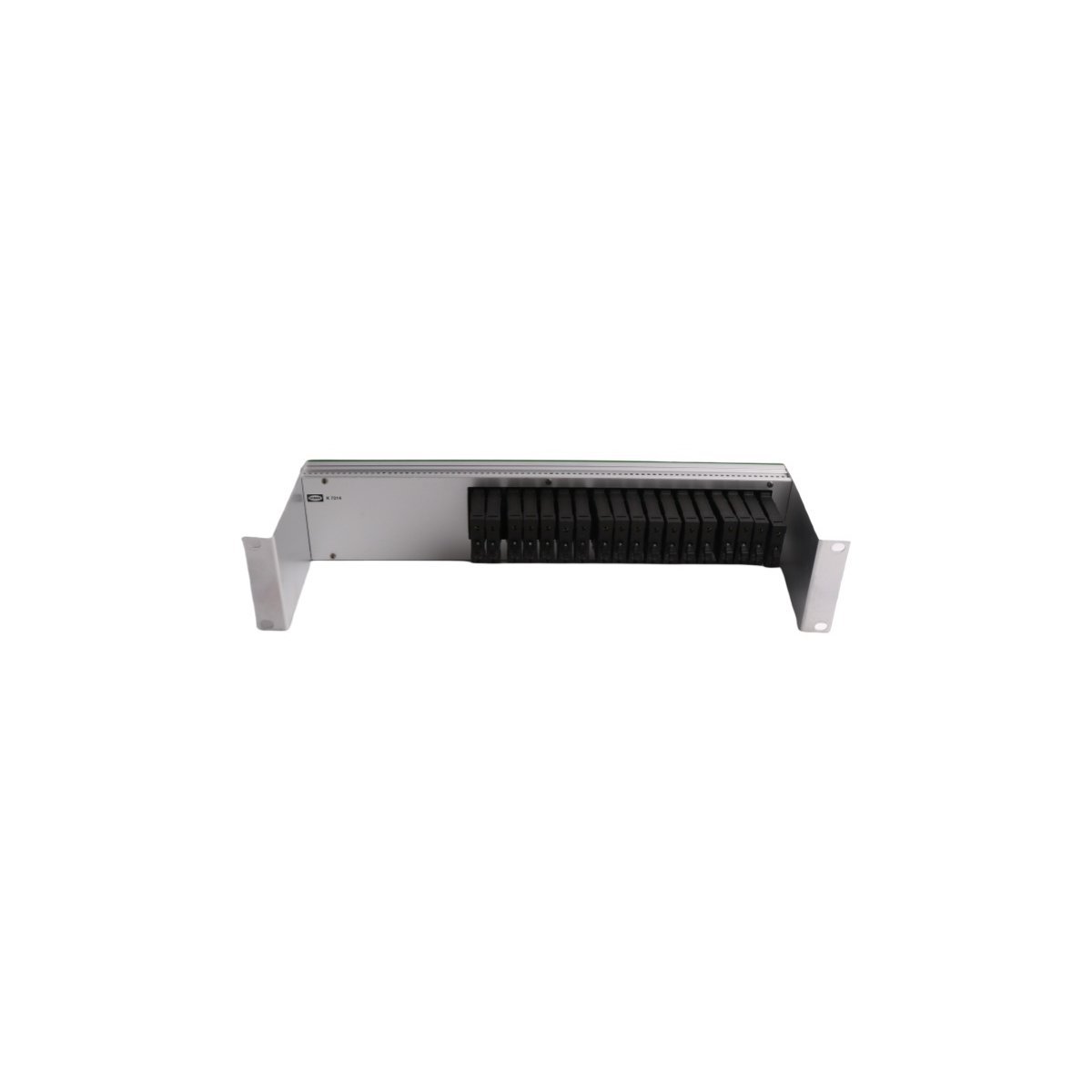

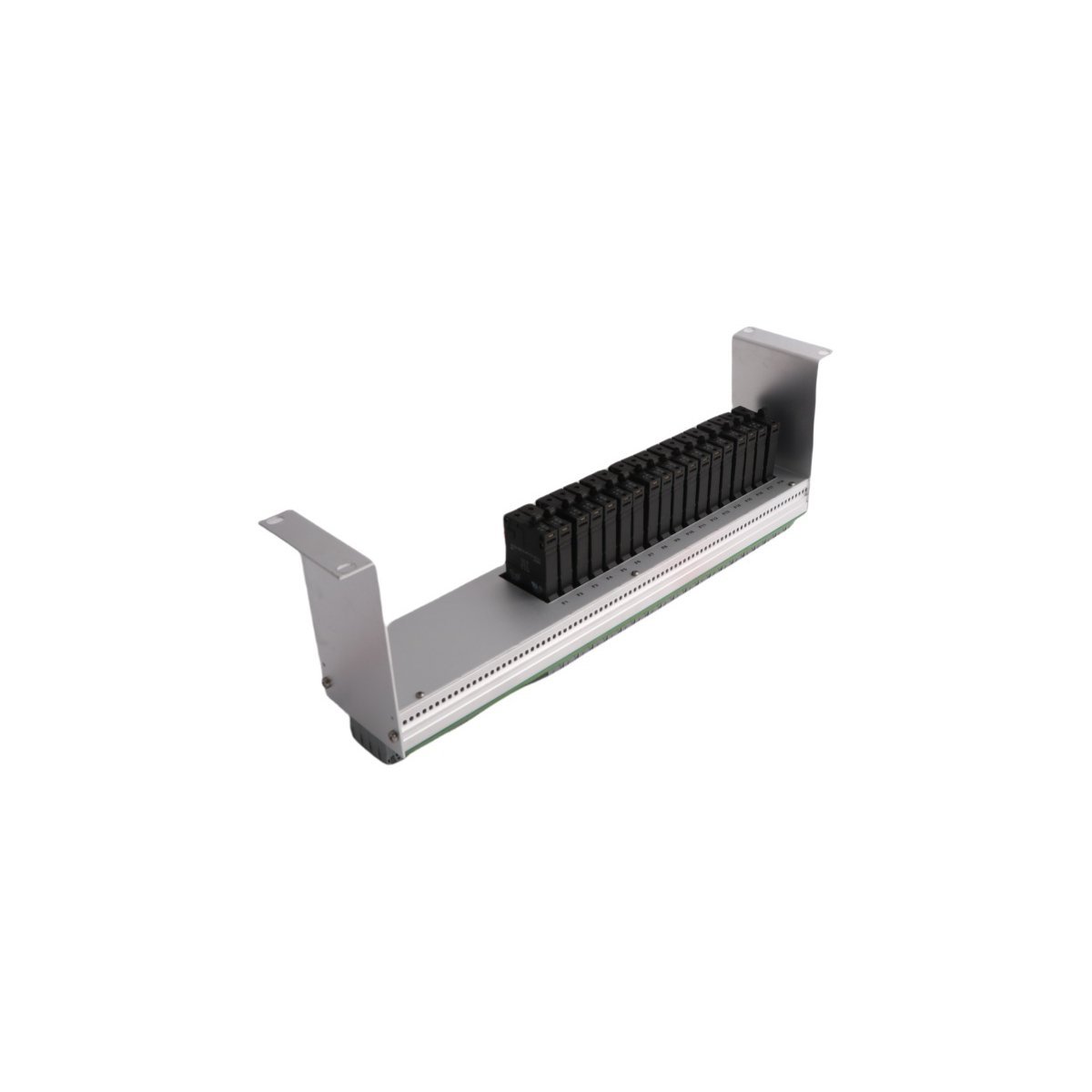

The HIMA K7214 is a high-integrity smart safety module engineered for the HIQuad X system, featuring eight high-resolution analog inputs and advanced power monitoring. This SIL 3-certified component ensures precise signal acquisition and uninterruptible safety logic for critical industrial automation environments.

Advanced Signal Processing and Safety Monitoring

The HIMA K7214 serves as a pivotal component within the HIQuad X safety framework, providing eight specialized analog input channels for industrial process control. This module utilizes 12-bit resolution to convert field variables into highly accurate digital data, allowing the central controller to maintain rigorous oversight of safety-critical parameters. Furthermore, the K7214 integrates sophisticated power supply monitoring to detect fluctuations before they impact system stability. By maintaining high-fidelity signal acquisition, the module ensures that emergency shutdown (ESD) and process protection systems receive reliable data for real-time decision-making.

Redundancy and Power Resilience

To ensure maximum uptime in hazardous environments, the K7214 features an integrated backup system utilizing buffer batteries. This architecture guarantees that essential safety functions remain operational during total power loss or transient outages, preventing uncontrolled system states. The module’s engineering prioritizes high availability, which is essential for industries like oil and gas or chemical processing. Additionally, the unit facilitates seamless data exchange through industrial-grade communication protocols, including PROFINET and Ethernet-based routing, ensuring it integrates effortlessly into modern Distributed Control System (DCS) topologies.

Industrial Durability and Compliance

The K7214 demonstrates exceptional resilience against the electrical and thermal stresses common in heavy industrial settings. Its compact dimensions (2.0 x 8.8 x 17 cm) allow for high-density installation in space-constrained control cabinets without sacrificing thermal performance. Moreover, the module carries SIL 3 certification in accordance with IEC 61508, verifying its suitability for the most demanding safety-instrumented functions. Because HIMA manufactures this module in Germany to exacting standards, it provides plant operators with a dependable, long-term solution for maintaining regulatory compliance and operational safety.

Key Technical Characteristics

• High-Resolution Acquisition: Features 8-fold analog inputs with 12-bit precision for accurate data mapping.
• SIL 3 Integrity: Certified for use in safety-critical applications requiring the highest level of risk reduction.
• Integrated Power Buffering: Includes battery support to maintain safety logic during external power failures.
• Compact Form Factor: Optimized hardware design facilitates easy installation in dense rack configurations.
• Wide Protocol Support: Compatible with PROFINET and standard Ethernet interfaces for versatile connectivity.
• Comprehensive Diagnostics: Continuously monitors internal health and power supply status to prevent silent failures.
