Product Overview

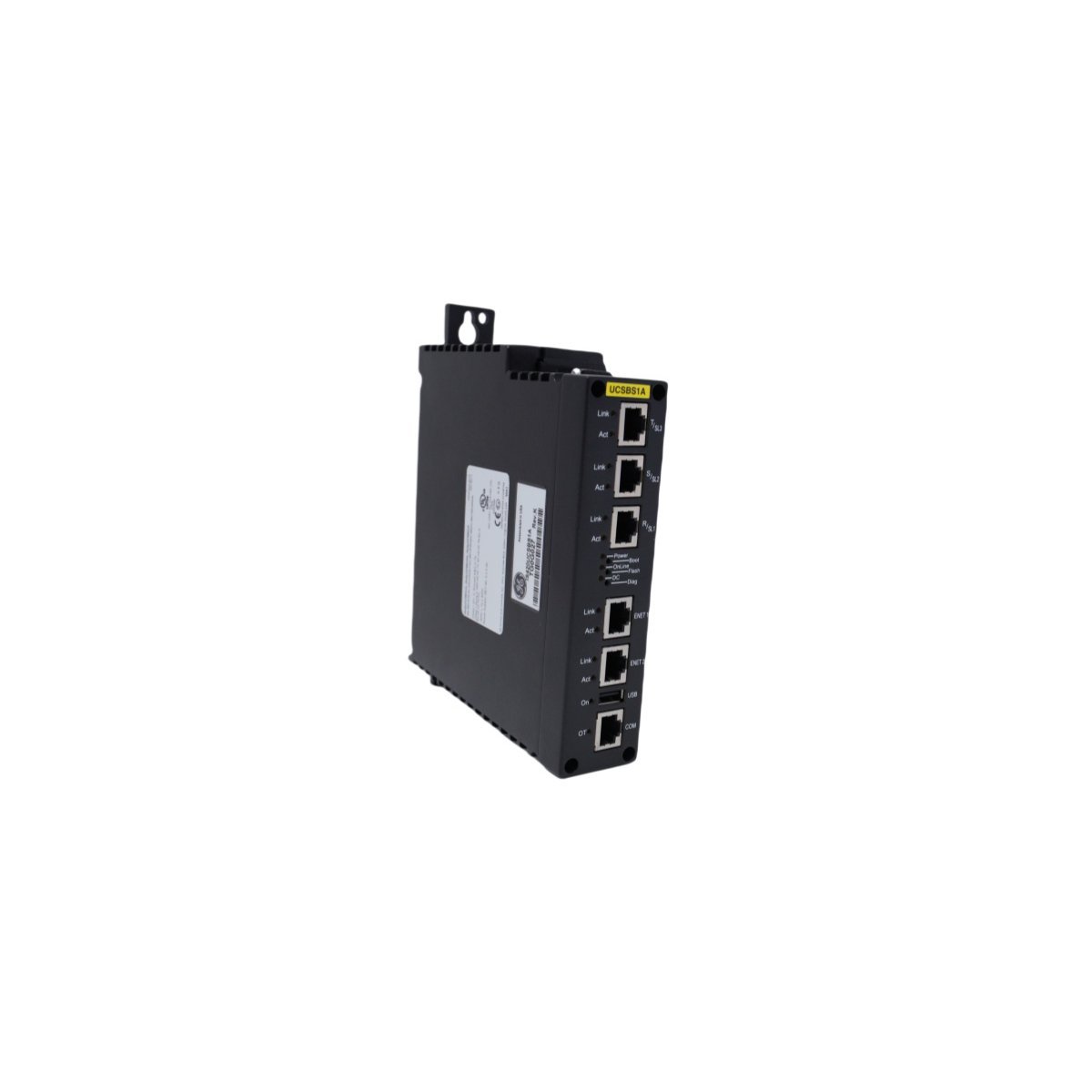

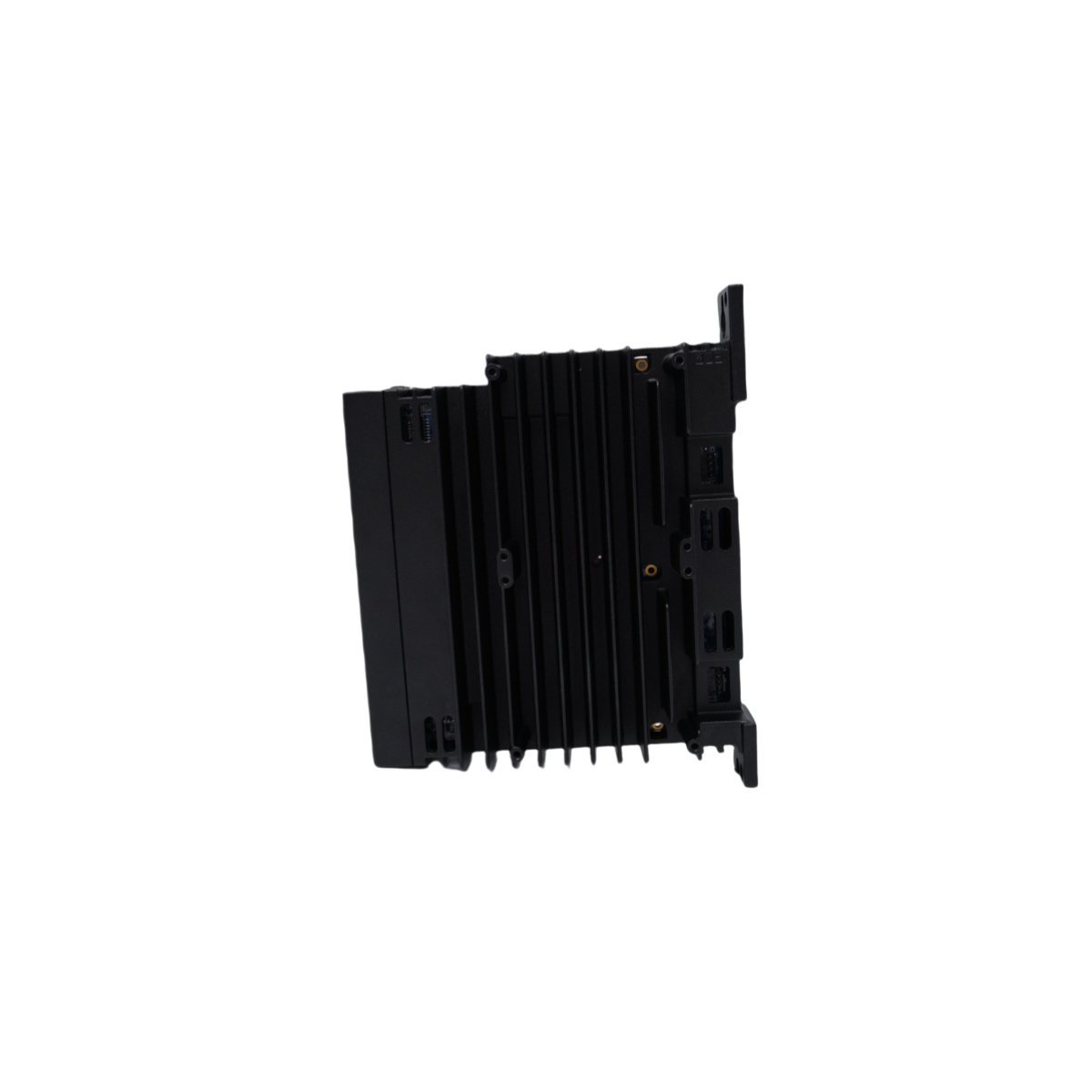

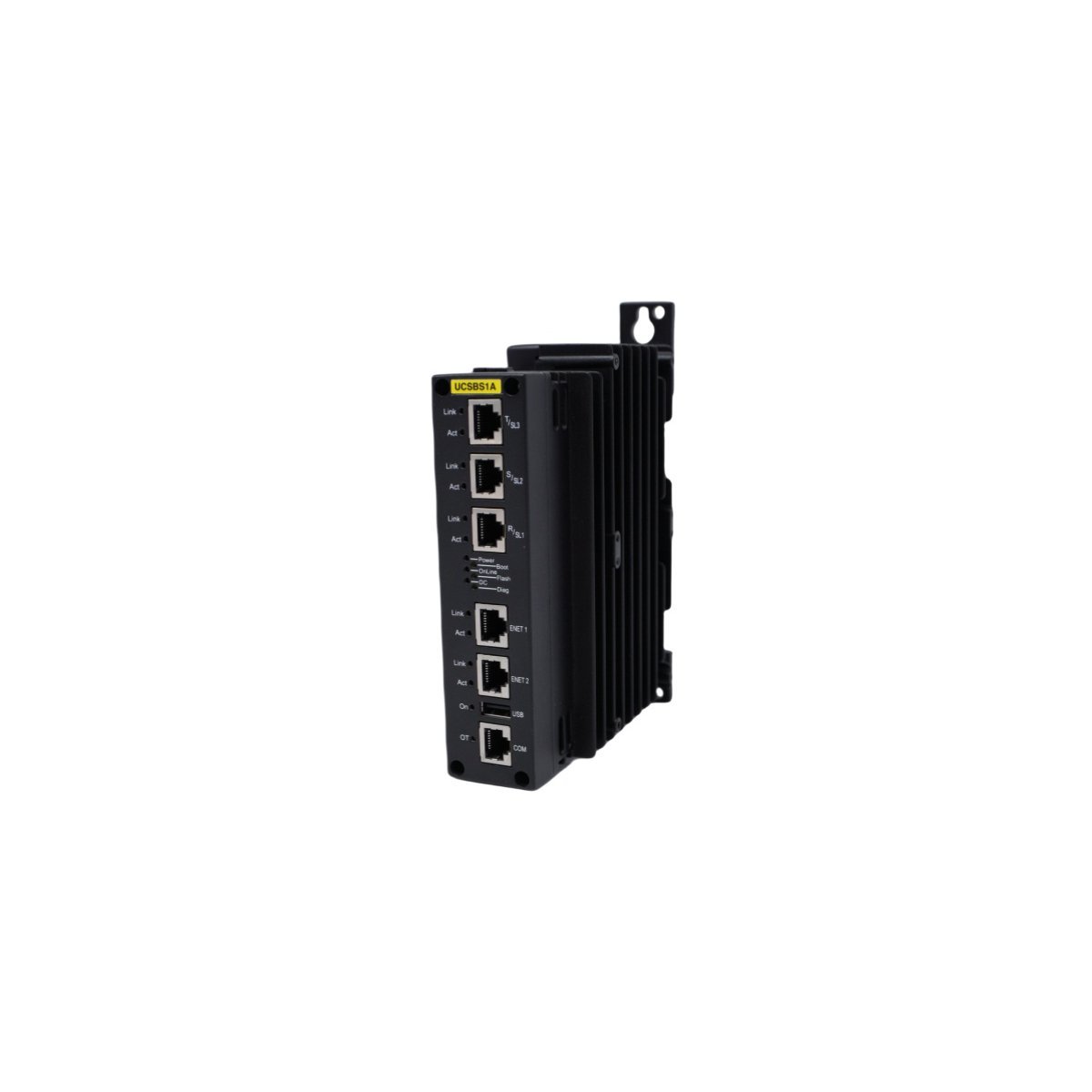

The General Electric IS421UCSBH4A is a high-speed, 1066MHz Intel-based safety controller designed for the Mark VIe control platform. This module executes mission-critical turbine protection logic with deterministic performance and high-level fault tolerance.

Advanced Computational Architecture

The IS421UCSBH4A serves as the primary processing core for safety-instrumented functions within the Mark VIe ecosystem. By utilizing a powerful 1066MHz Intel processor, the module handles complex algorithms and high-speed data acquisition required for modern turbine protection. This controller operates as a standalone computing engine, which isolates critical logic from general control traffic. Consequently, the hardware provides the low-latency response times necessary for SIL3-rated safety applications in wind, gas, and steam power generation sectors.

Enhanced Reliability and Maintenance-Free Design

General Electric engineered the UCSB series to minimize common points of failure in harsh industrial environments. The IS421UCSBH4A features a battery-free architecture and eliminates mechanical jumper settings, which significantly simplifies the configuration process and long-term upkeep. Furthermore, the module includes an integrated internal power supply and uses flash memory for easy software updates. These design choices ensure that the controller remains highly available even during extended maintenance intervals, while the conformal-coated PCB protects sensitive electronics from moisture and industrial contaminants.

System Integration and Communication

The module maintains dedicated IONet communication channels to ensure deterministic data exchange with various I/O packs. This modular architecture allows the IS421UCSBH4A to occupy a compact footprint within control panels, maximizing cabinet space. While the module functions as a robust standalone unit, it integrates seamlessly into broader Distributed Control Systems (DCS). Because the hardware supports optional cooling fan configurations, it can adapt to high-temperature environments without sacrificing processing throughput or safety integrity.
