Description

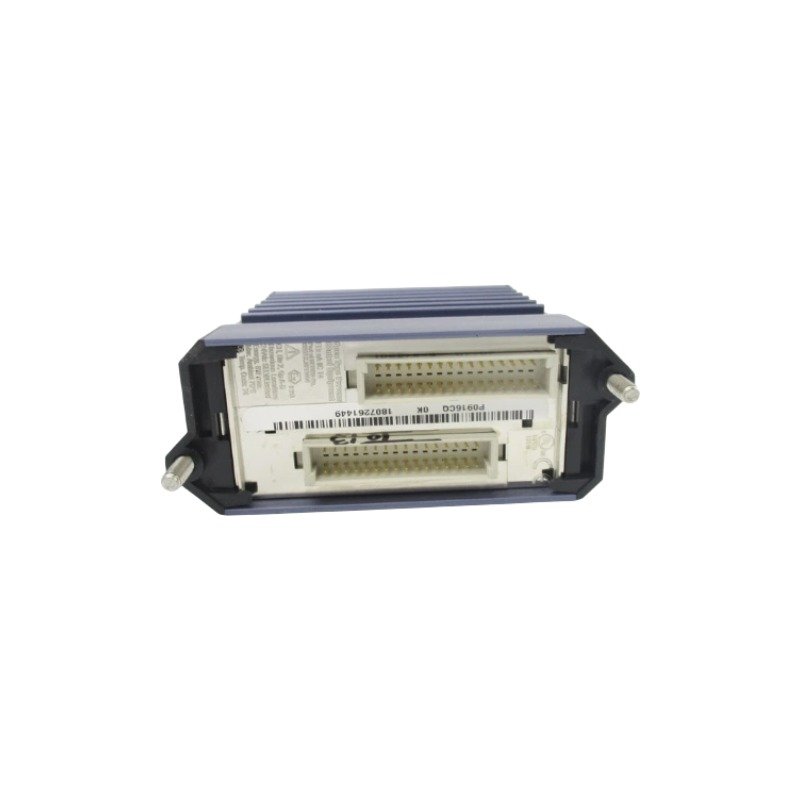

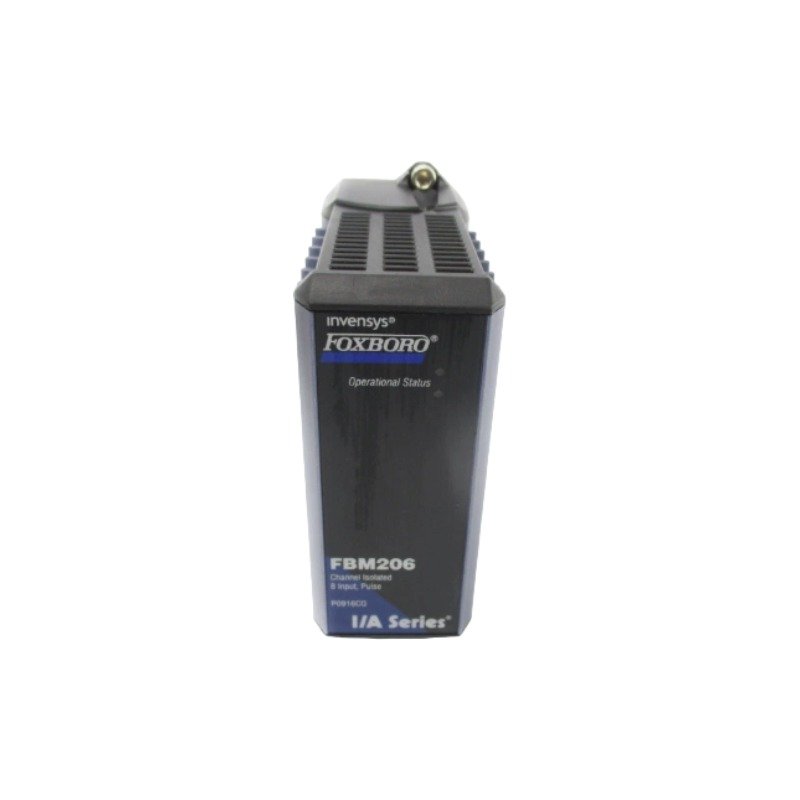

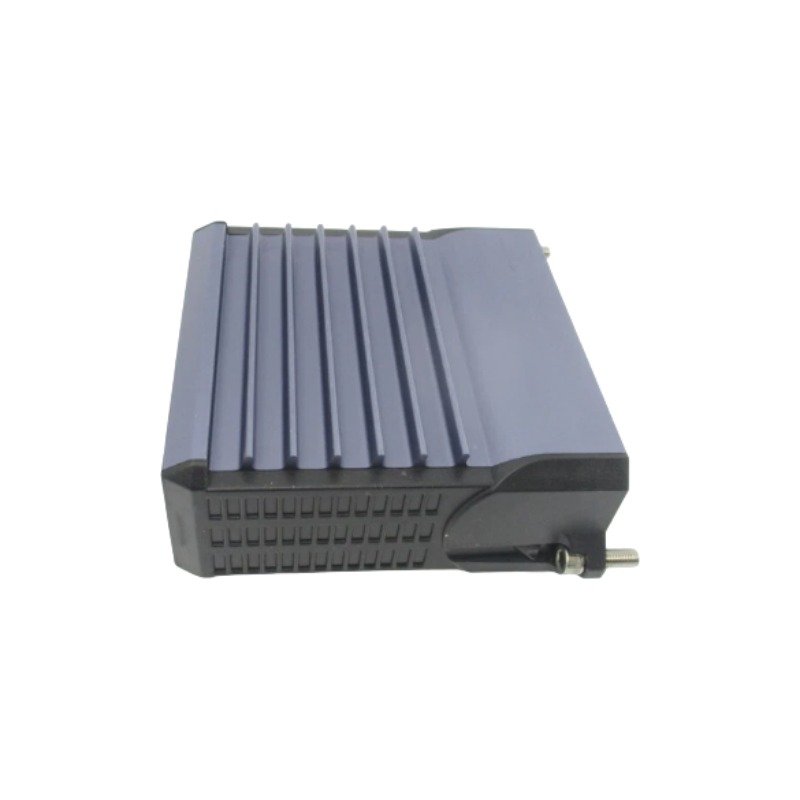

Configured for pulse frequency acquisition and precision analog loop output in Foxboro I/A Series DCS networks, the Invensys Foxboro FBM206 P0916CQ (FBM206 Pulse Input and Analog Output Module) provides direct physical/electrical execution. It features 8 channel-isolated independent pulse input channels processing signals from 10 Hz to 25 kHz alongside 4 isolated 0 to 20.4 mA DC analog output channels.

Hardware Specifications

Process Control Instrumentation & Channel-to-Channel Isolation

The hardware incorporates galvanic channel-to-channel isolation across all 8 pulse inputs and 4 analog outputs to eliminate signal contamination and earth ground loops in distributed control loops. For analog current loops, the module maintains monotonic drive with a linearity error within ±0.025% of span while driving loads up to 735 Ohms at a nominal 18.6 V terminal potential. Pulse channels capture high-frequency field transducer counts across the 10 Hz to 25 kHz range, decoupling electrical transients from central backplane logic paths.

Frequently Asked Questions

Q: How does the channel isolation architecture protect field loop signals?

A: Each pulse input and analog output channel features independent galvanic isolation. This barrier blocks high-voltage surges and circulating ground currents between individual field loops and the internal DCS system bus.

Q: What are the primary impedance limits and output driver capabilities for the analog current channels?

A: The module drives 0 to 20.4 mA DC loops into total external loads up to 735 Ohms, delivering a nominal output potential of 18.6 V DC at 20 mA DC measured directly across the I/O field terminals.

Field Installation Guidelines

Mount the module into its designated baseplate slot and verify that the retaining mechanism fully engages the backplane connector. Ensure signal wiring for high-frequency pulse inputs uses individually shielded twisted-pair cables, keeping total drain wires grounded at the cabinet base plate to minimize noise pickup. Maintain physical separation between pulse sensing lines, current loop outputs, and high-voltage AC distribution power conduits. Verify cabinet ambient operating conditions remain within -40 deg C to +70 deg C before restoring power to the 24 VDC bus.
