Description

Brief Product Description

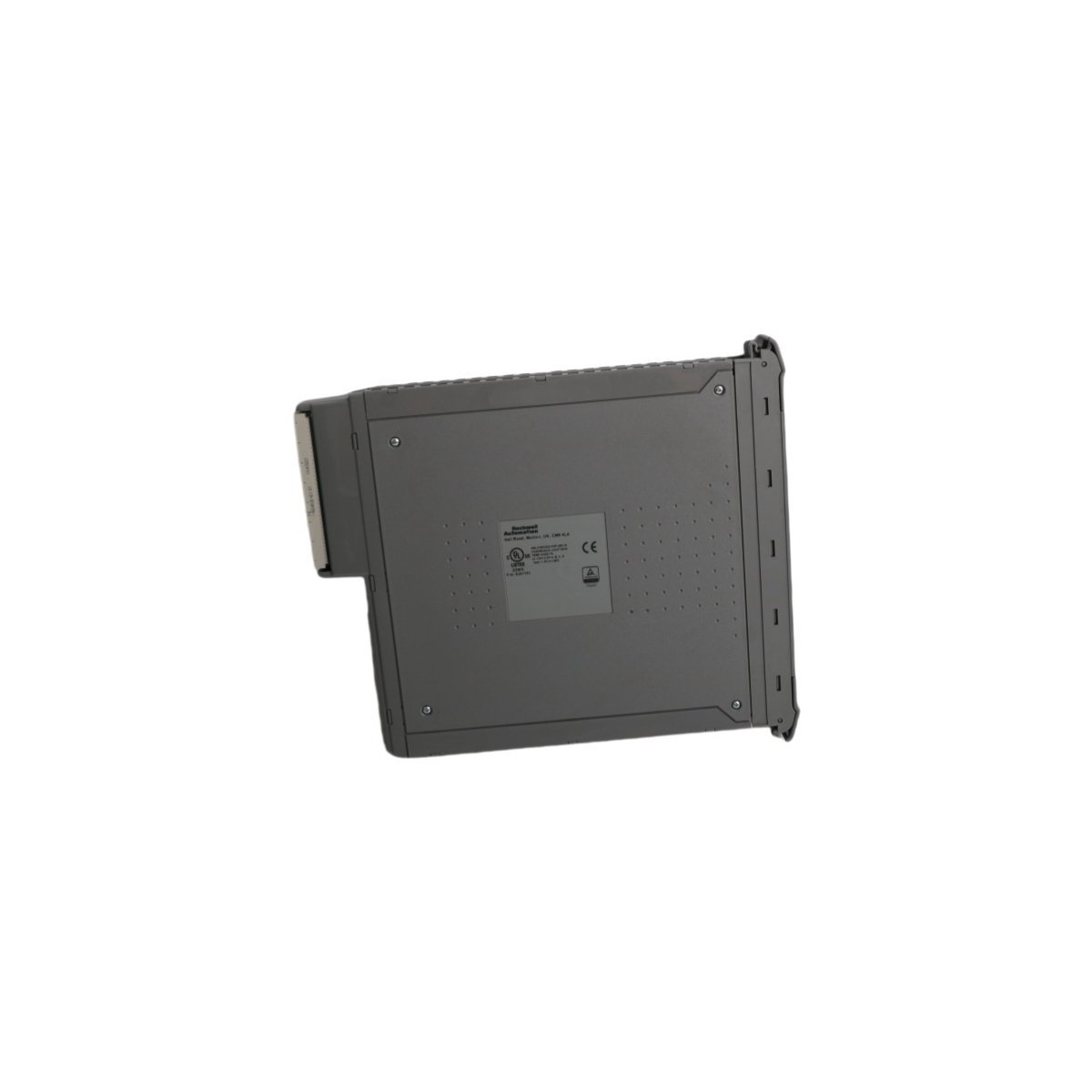

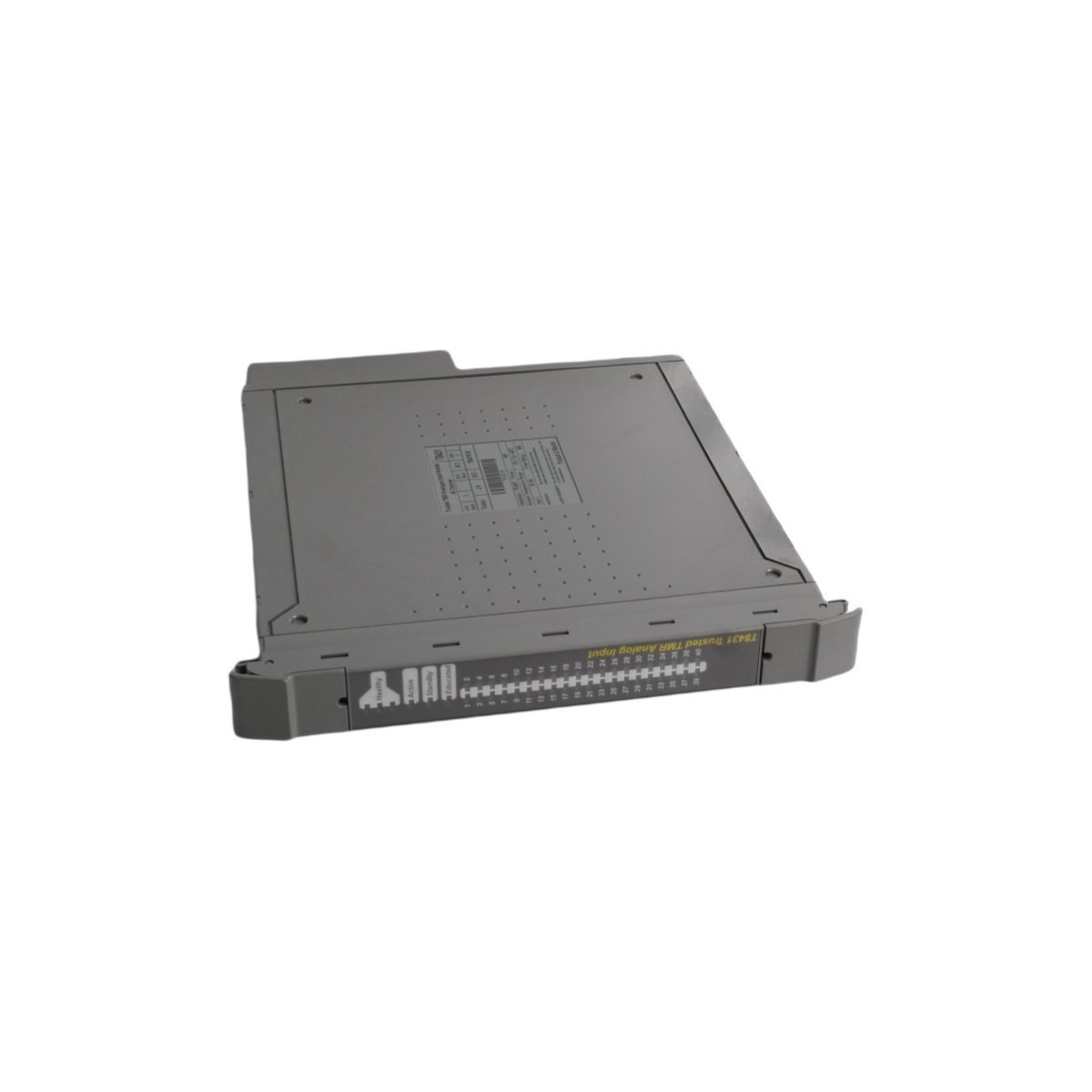

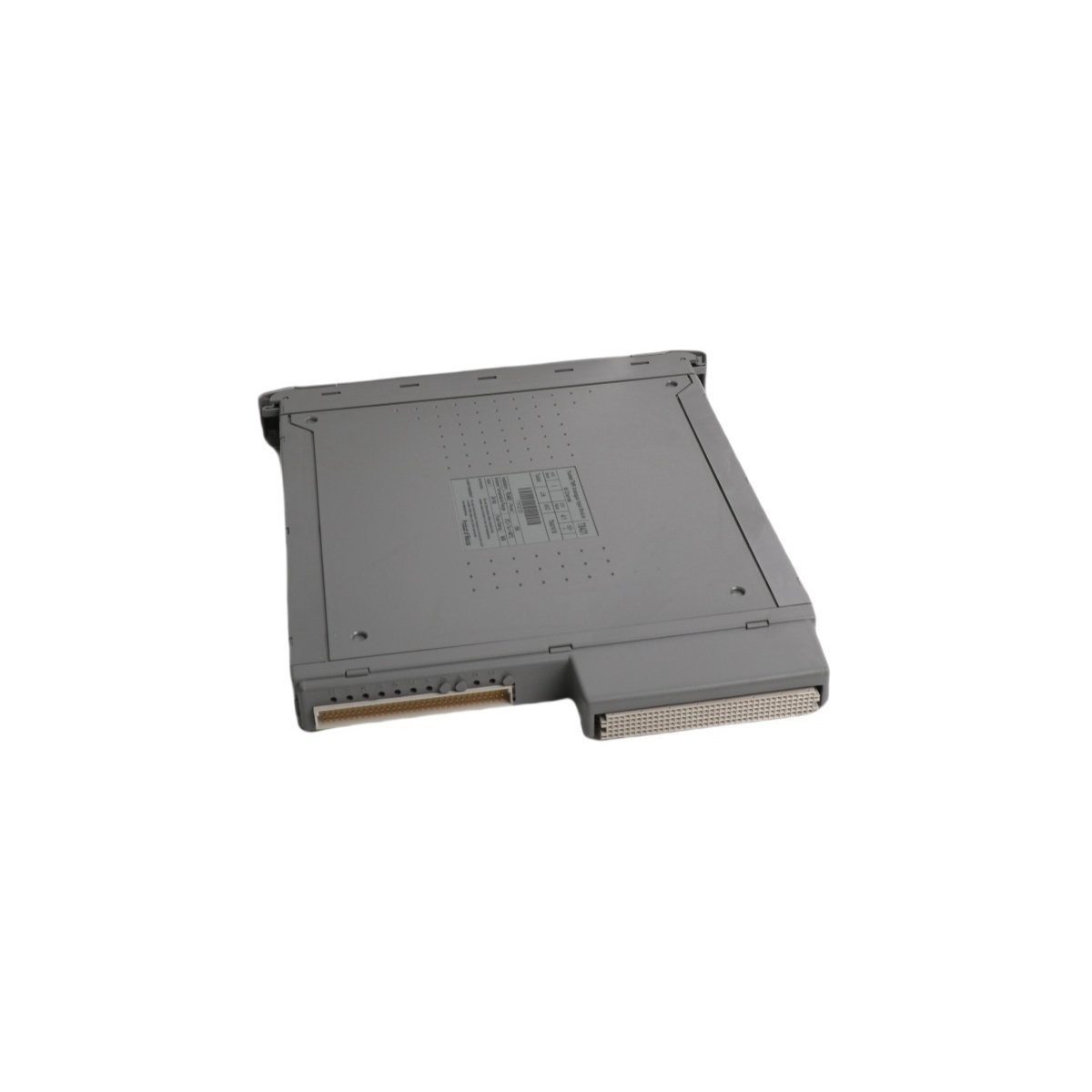

The ICS Triplex T8431 is a high-density, 40-channel analog input module designed for the Trusted Triple Modular Redundancy (TMR) system. It provides fault-tolerant signal processing for critical industrial safety and control applications, ensuring maximum operational uptime.

Product Description

Triple Modular Redundancy for Critical Safety

The ICS Triplex T8431 serves as a core component of the Trusted TMR architecture, delivering high-integrity data acquisition for safety-critical environments. By utilizing a triple-redundant internal structure, the module identifies and outvotes potential hardware faults, which prevents industrial processes from experiencing nuisance trips or unsafe failures. This TMR capability makes the T8431 an essential choice for Emergency Shutdown (ESD) systems and Fire and Gas (F&G) monitoring, where the cost of failure is exceptionally high. Consequently, the module provides a level of fault tolerance that exceeds standard PLC hardware.

High-Density Signal Processing

With 40 independent input channels housed in a single compact unit, the T8431 significantly optimizes cabinet space while managing complex field instrumentation. The module processes a wide variety of analog signals from sensors and transmitters, maintaining high resolution and accuracy across all points simultaneously. Because the hardware focuses on rapid signal conversion, it supports real-time decision-making in fast-acting control loops. Furthermore, the 1.18kg lightweight design incorporates advanced thermal management to ensure that the high-density electronics remain stable even during continuous, full-load operation in demanding industrial climates.

Comprehensive Diagnostics and Field Integration

The T8431 Analog Input Module simplifies system maintenance through its sophisticated on-board diagnostic suite. The module constantly monitors field wiring and internal circuitry for open circuits, short circuits, and calibration drifts, reporting these anomalies instantly to the main processor. This proactive monitoring allows maintenance teams to address field issues before they escalate into system-wide problems. Additionally, the module integrates seamlessly with the Trusted system’s software environment, facilitating rapid configuration and hot-swappable replacement. By selecting the T8431, operators invest in a future-proof solution that bridges the gap between complex field data and high-level process safety.

Technical Specifications
