Description

Product Technical Overview

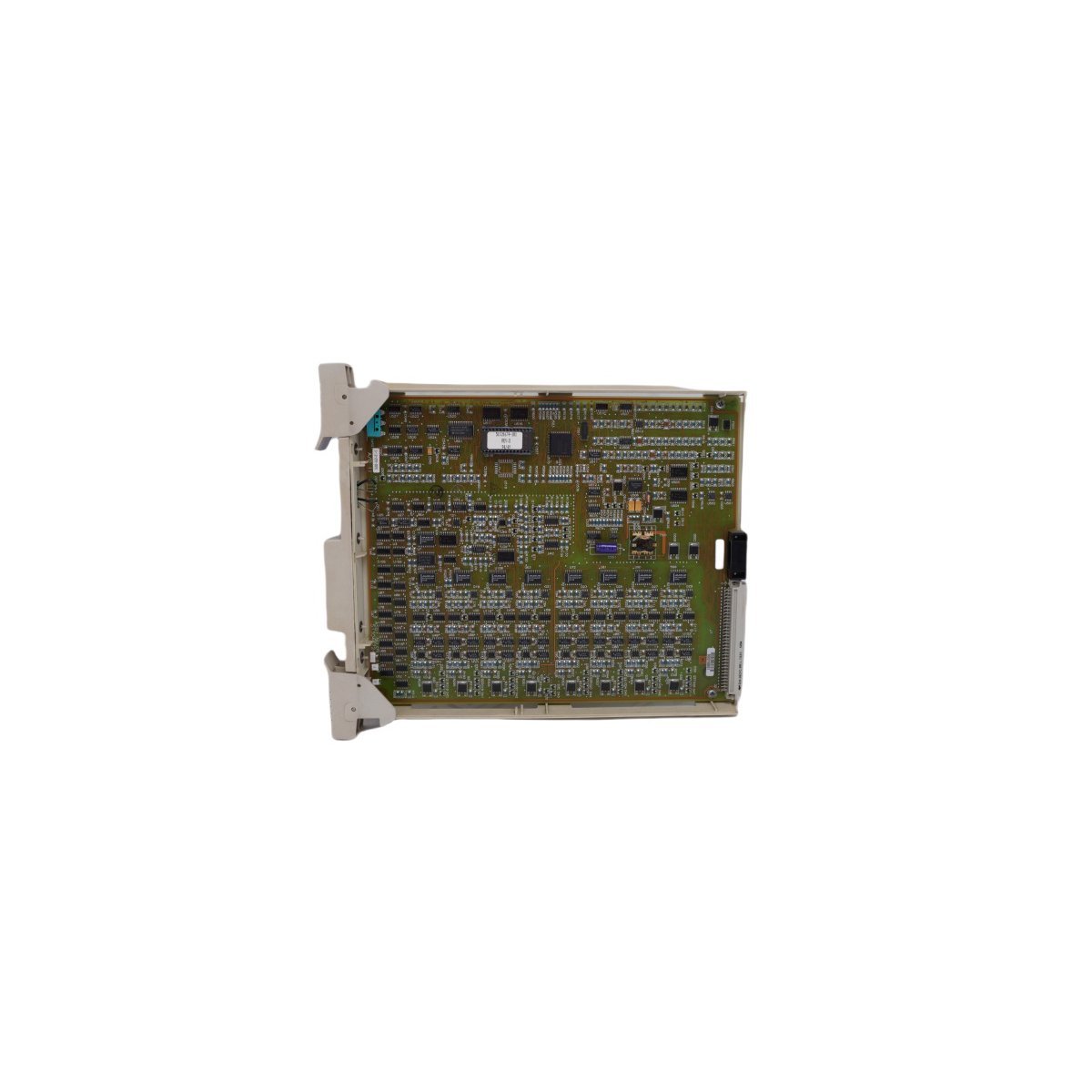

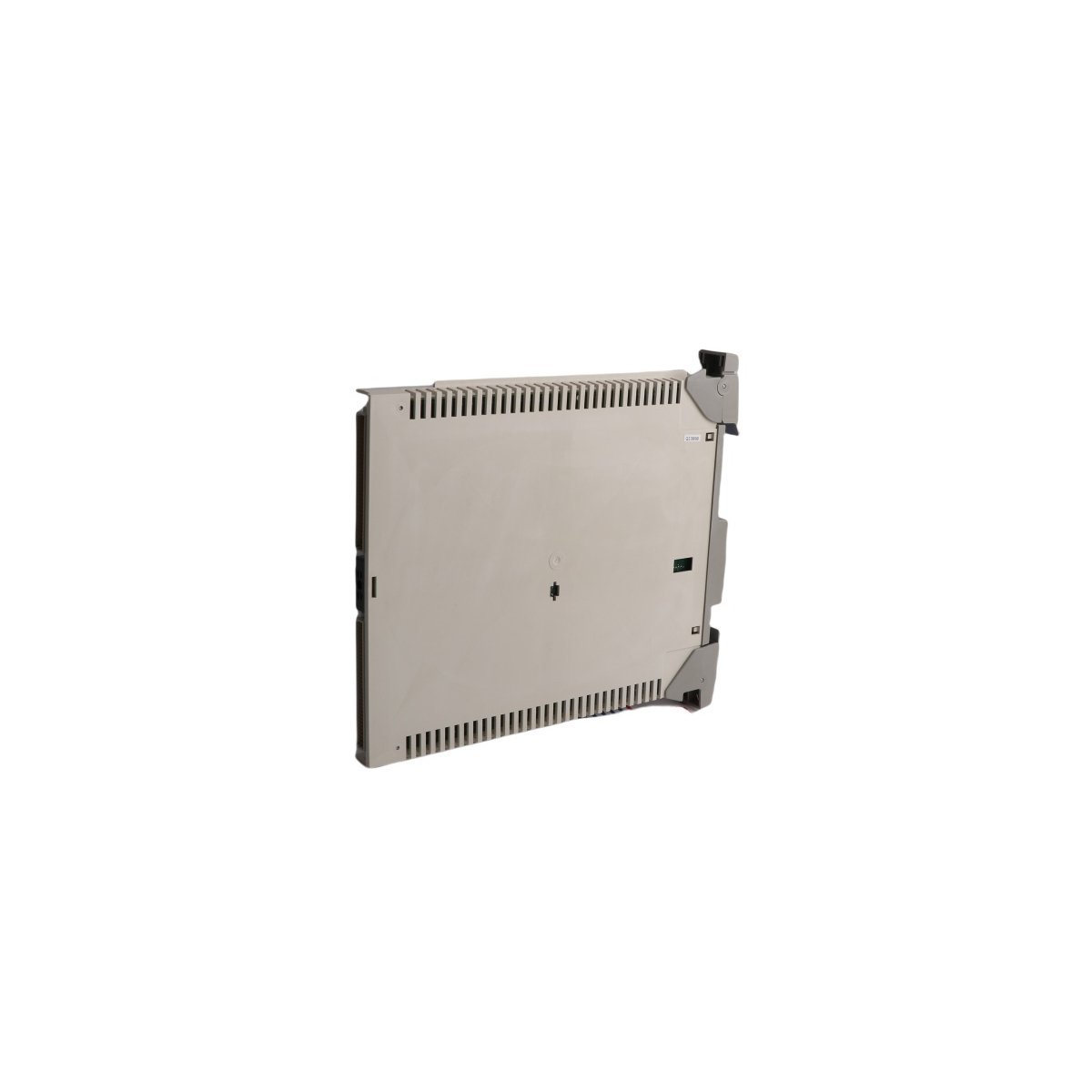

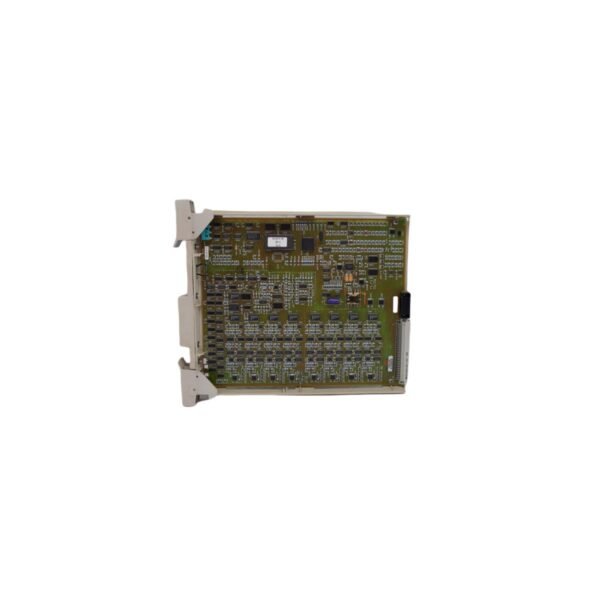

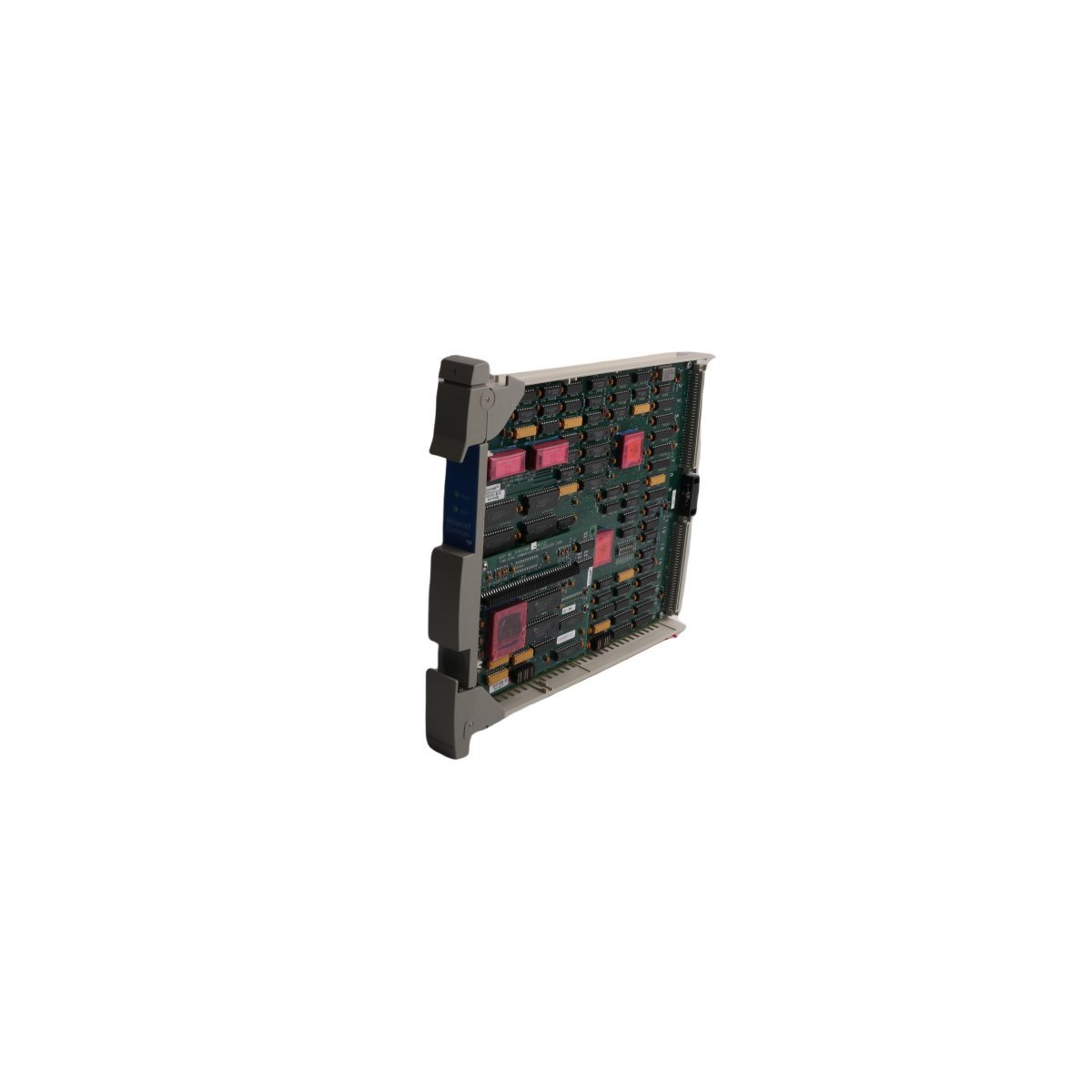

The Honeywell 51304672-150, also identified by assembly number 51304584-100, functions as an Enhanced Process Data Graph Processor (EPDGP) circuit board within the legacy TDC 3000 Distributed Control System (DCS) architecture. Industrial automation facilities rely heavily on this hardware component to manage complex control algorithms, execute sequence logic, and process regulatory variables continuously. By maintaining strict control over environmental variables such as temperature, fluid dynamics, and system pressure, this processing board directly assists in stabilizing plant operations and minimizing operational deviations.

Key Technical Specifications

• Brand: Honeywell
• Model Number: 51304672-150
• Alternate Part Number: 51304584-100
• System Compatibility: TDC 3000 Distributed Control System (DCS)
• Module Classification: EPDGP (Enhanced Process Data Graph Processor) Board
• Communication Interface: Integrated Ethernet routing capabilities and Universal Control Network (UCN) compatibility
• Country of Origin: United States of America (USA)
• Physical Dimensions: 2.9 cm x 31.9 cm x 27.8 cm
• Net Hardware Weight: 0.6 kg
• Harmonized System (HS) Tariff Code: 8537101190
• Standard Minimum Order Quantity: 1 Unit
• Lifecycle Status: Active / Available as spare part

Architectural Integration and Functional Architecture

This processing board interfaces seamlessly with standard Honeywell TDC 3000 chassis designs, establishing rapid data pathways through the proprietary Universal Control Network (UCN). Consequently, the EPDGP board facilitates instantaneous bidirectional communication, allowing the central operator interface to receive raw process telemetry and distribute updated setpoints without communication lag. Additionally, the internal processor architecture utilizes redundant data handling techniques, which safeguard the control loop against single-point processor failures. Because the secondary computing pipeline stands ready to assume the processing load immediately, the system effectively mitigates the risks of unscheduled downtime and hazardous process upsets.

Industrial Applications and Environmental Durability

Honeywell constructs this circuit assembly using industrial-grade components capable of resisting severe electromagnetic interference (EMI) and sustaining operation through wide thermal fluctuations. Because of this ruggedized construction, engineers regularly deploy this module in high-stakes B2B processing sectors.

• Oil and gas refining facilities
• Petrochemical and chemical processing plants
• Thermal and hydroelectric power generation stations
• Large-scale water and wastewater treatment infrastructure
