Description

Product Overview

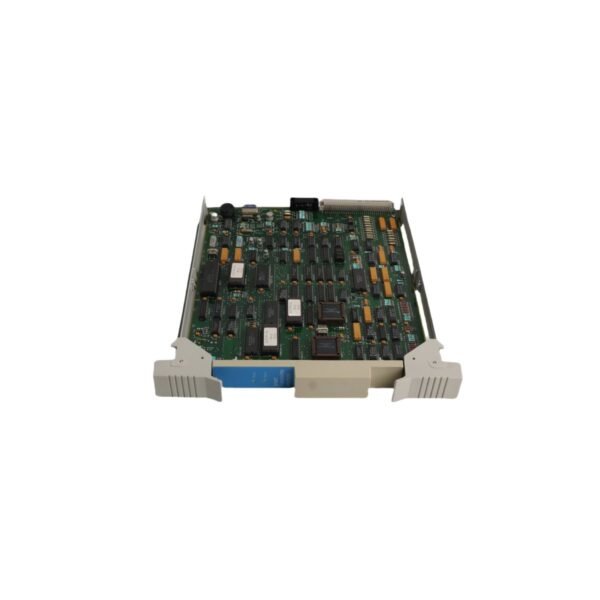

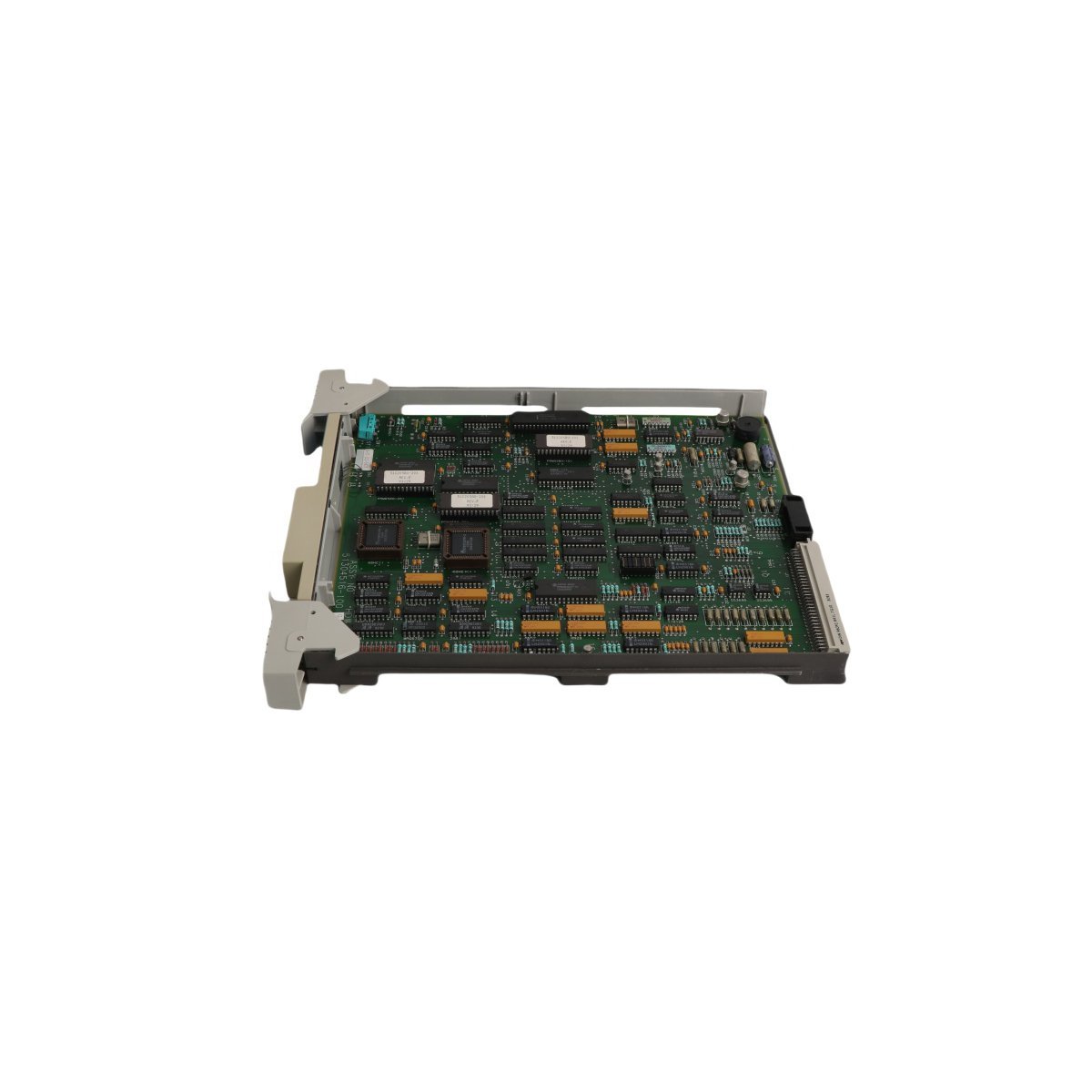

The Honeywell MC-PPIX02, referenced by order number 51304386-150, functions as a high-precision Pulse Input Processor within the Process Knowledge System (PKS) framework. This module captures and conditions high-frequency pulse trains derived from field-level instrumentation, such as turbine flow meters and rotational speed sensors. By converting these raw inputs into actionable digital data, the device enables the control system to perform real-time monitoring of critical process variables. Furthermore, the unit supports seamless integration into existing DCS architectures, thereby ensuring data consistency across the entire plant floor.

Technical Specifications

• Manufacturer: Honeywell
• Model Number: MC-PPIX02
• Order Number: 51304386-150
• Product Series: Process Knowledge System (PKS)
• Module Type: Pulse Input Processor
• Physical Weight: 0.8 kg
• Dimensions: 12.7 cm x 12.7 cm x 12.7 cm
• HS Code: 8537101190
• Communication Compatibility: Ethernet-based routing
• Mounting Environment: Industrial Control Cabinet

Functional Characteristics and Application

Engineers frequently rely on the MC-PPIX02 to manage high-resolution data acquisition in complex industrial loops. Because the module possesses multiple input channels, it processes simultaneous pulse streams from various field devices without requiring multiple localized controllers. Consequently, this consolidation simplifies cabinet wiring and reduces the overall physical footprint of the control rack. Moreover, the hardware utilizes advanced signal filtering circuitry to mitigate the impact of electromagnetic interference, which often plagues pulse-based measurements in high-voltage industrial zones.

Reliability remains a cornerstone of the MC-PPIX02 design. Honeywell engineers constructed the chassis from robust materials to withstand thermal expansion, vibration, and persistent mechanical stress. By maintaining high signal integrity even in harsh operating conditions, the module significantly reduces the frequency of recalibration intervals. Furthermore, its modular configuration allows maintenance personnel to execute rapid field replacements, which effectively minimizes unplanned downtime during critical process operations. By deploying the 51304386-150, facilities achieve superior control over flow-rate calculations and rotational frequency tracking.
