Description

Central Processing Performance

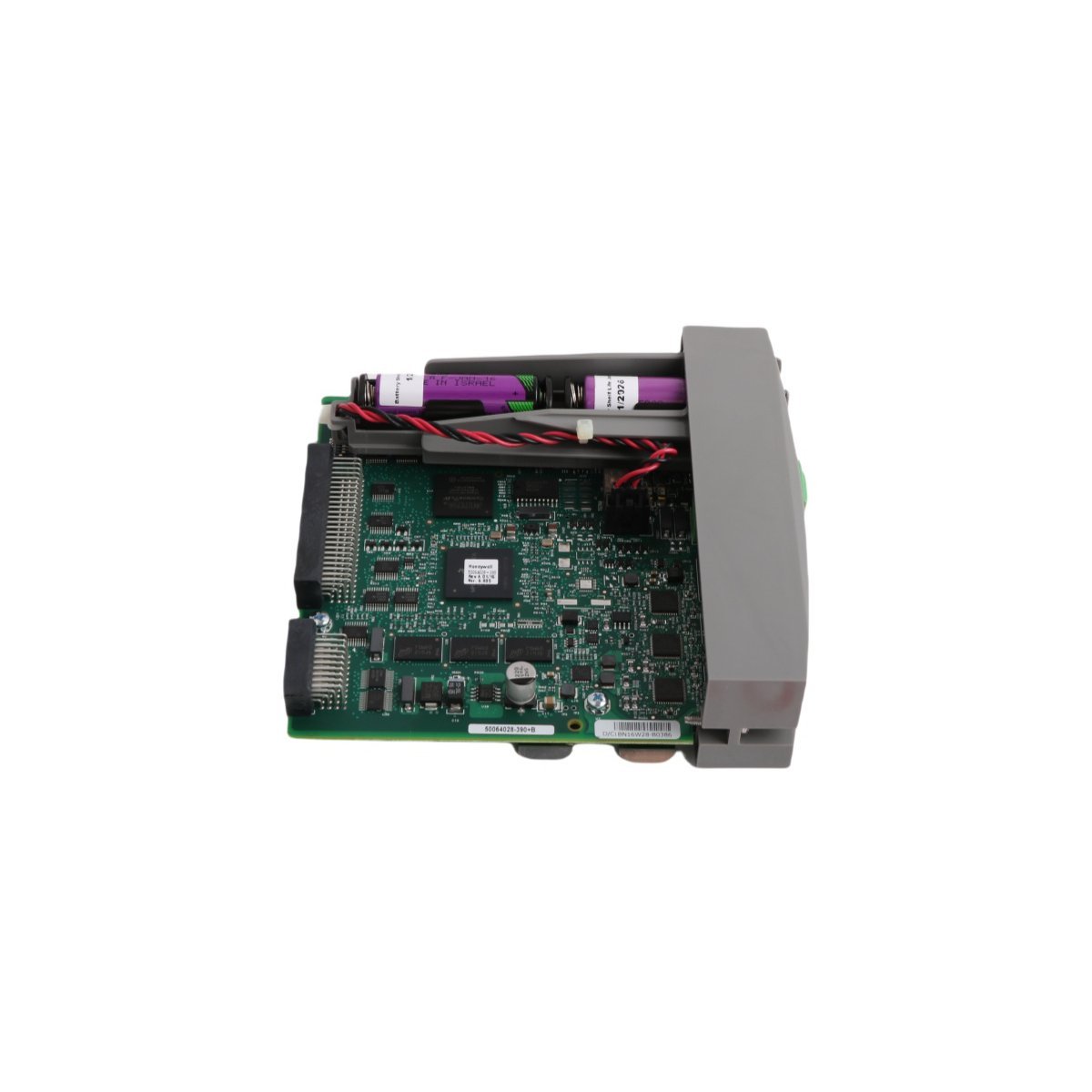

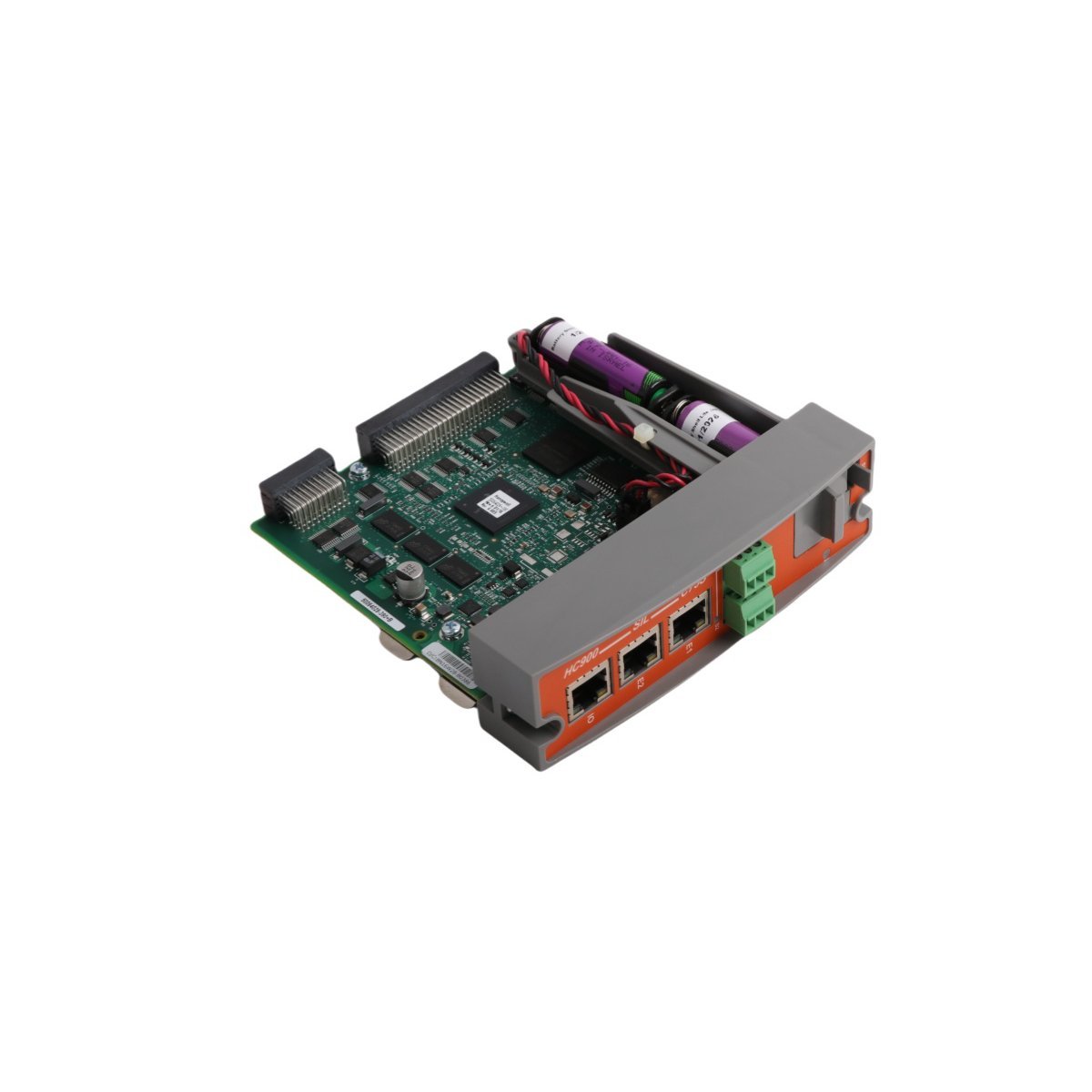

The Honeywell 900C75-0560 stands as a high-performance Central Processing Unit specifically engineered for the ControlEdge HC900 controller family. This CPU module executes complex logic and manages intensive process control tasks with remarkable speed. By supporting redundancy, the 900C75-0560 ensures continuous system availability, which prevents costly interruptions in mission-critical applications. The processor handles both discrete and analog control functions, making it a versatile core for modern industrial automation architectures.

Primary Technical Specifications

• Manufacturer: Honeywell
• Model Number: 900C75-0560
• Series: ControlEdge HC900 / Experion PKS
• Product Type: Redundant CPU Module
• Resolution: 16-bit processing capability
• Power Consumption: Approximately 5W
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Net Weight: 0.4 kg
• Dimensions: 3.7 x 14.2 x 16.6 cm

Reliability and System Integration

Modern process environments demand high integrity, and the 900C75-0560 delivers this through advanced isolation technology and integrated diagnostics. Because the CPU seamlessly integrates with the Experion PKS platform, engineers can synchronize data across the enterprise with minimal configuration effort. The module manages communication via dedicated Ethernet ports, allowing for robust connection to HMI stations and peer-to-peer controller networks. Furthermore, the hardware utilizes non-volatile memory to safeguard critical application data during power loss scenarios, ensuring a secure and rapid recovery.

Advanced Diagnostic Capabilities

Maintenance teams benefit significantly from the onboard status indicators and sophisticated self-testing routines. The CPU actively monitors its own health and the status of associated I/O racks, providing real-time feedback to the operator console. Consequently, this proactive monitoring reduces troubleshooting time and enhances overall plant safety. Whether managing temperature loops in a chemical plant or controlling pressure in a refinery, the 900C75-0560 maintains the precise coordination required for sophisticated process automation. Its ruggedized build further ensures that electromagnetic interference does not compromise signal accuracy or processing stability.
