Description

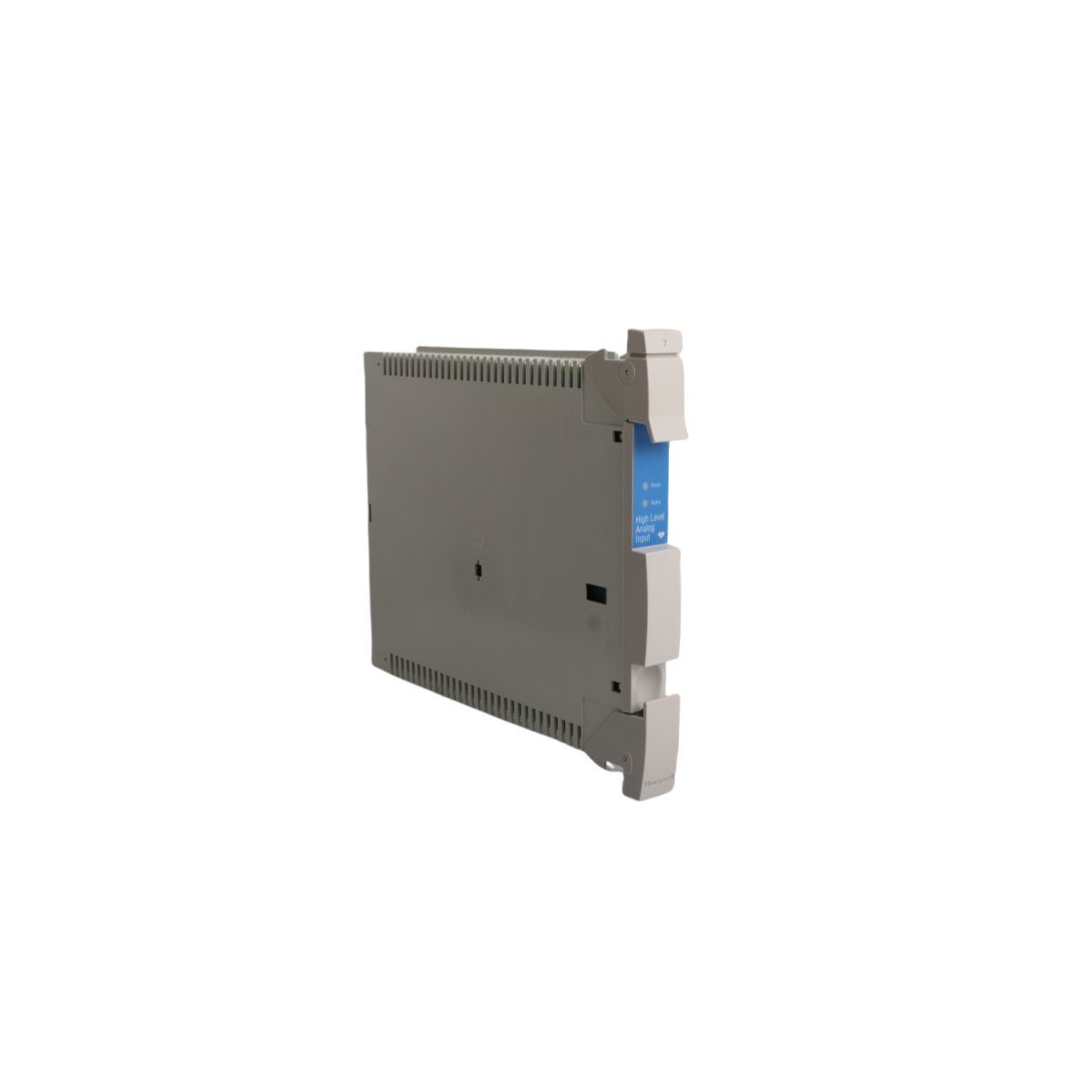

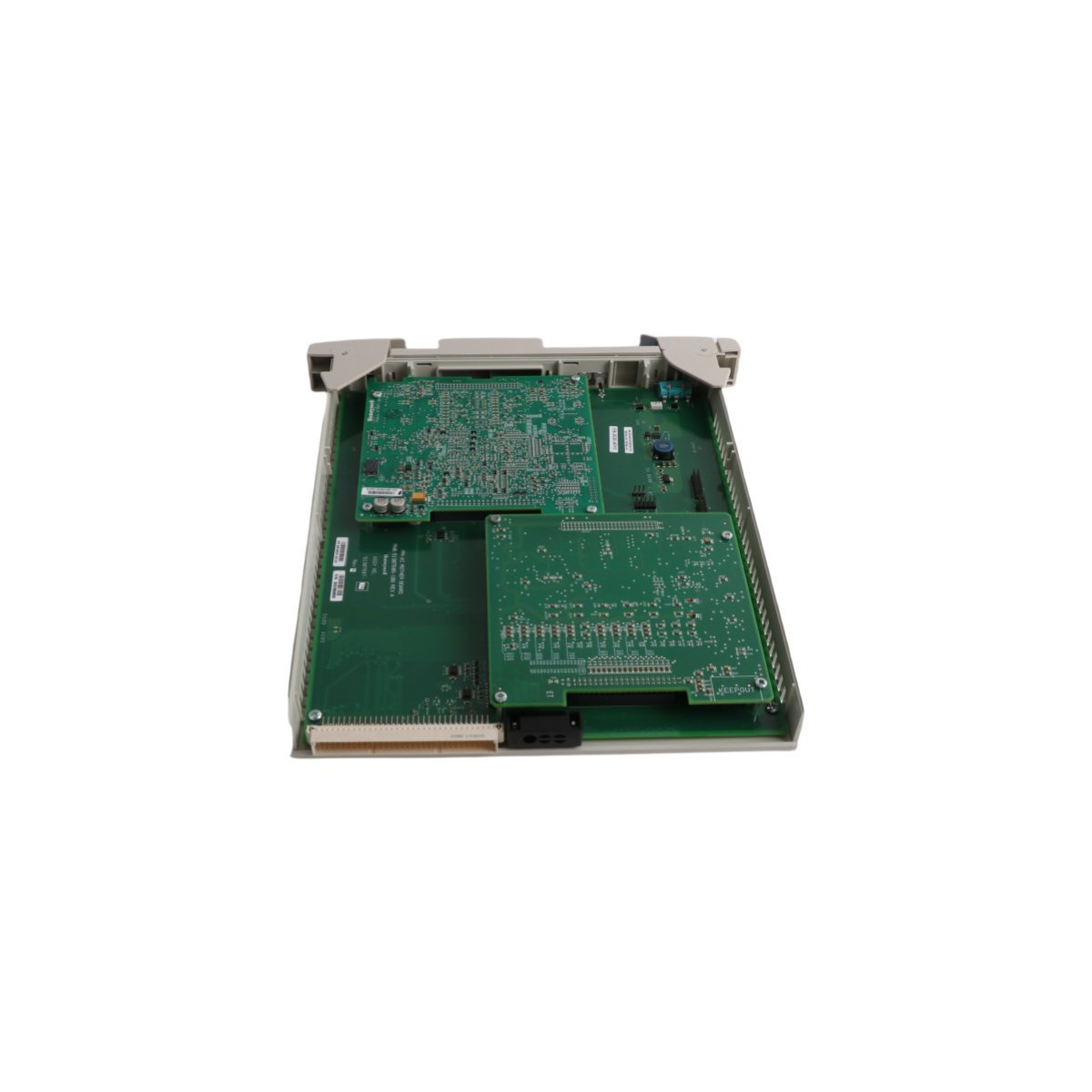

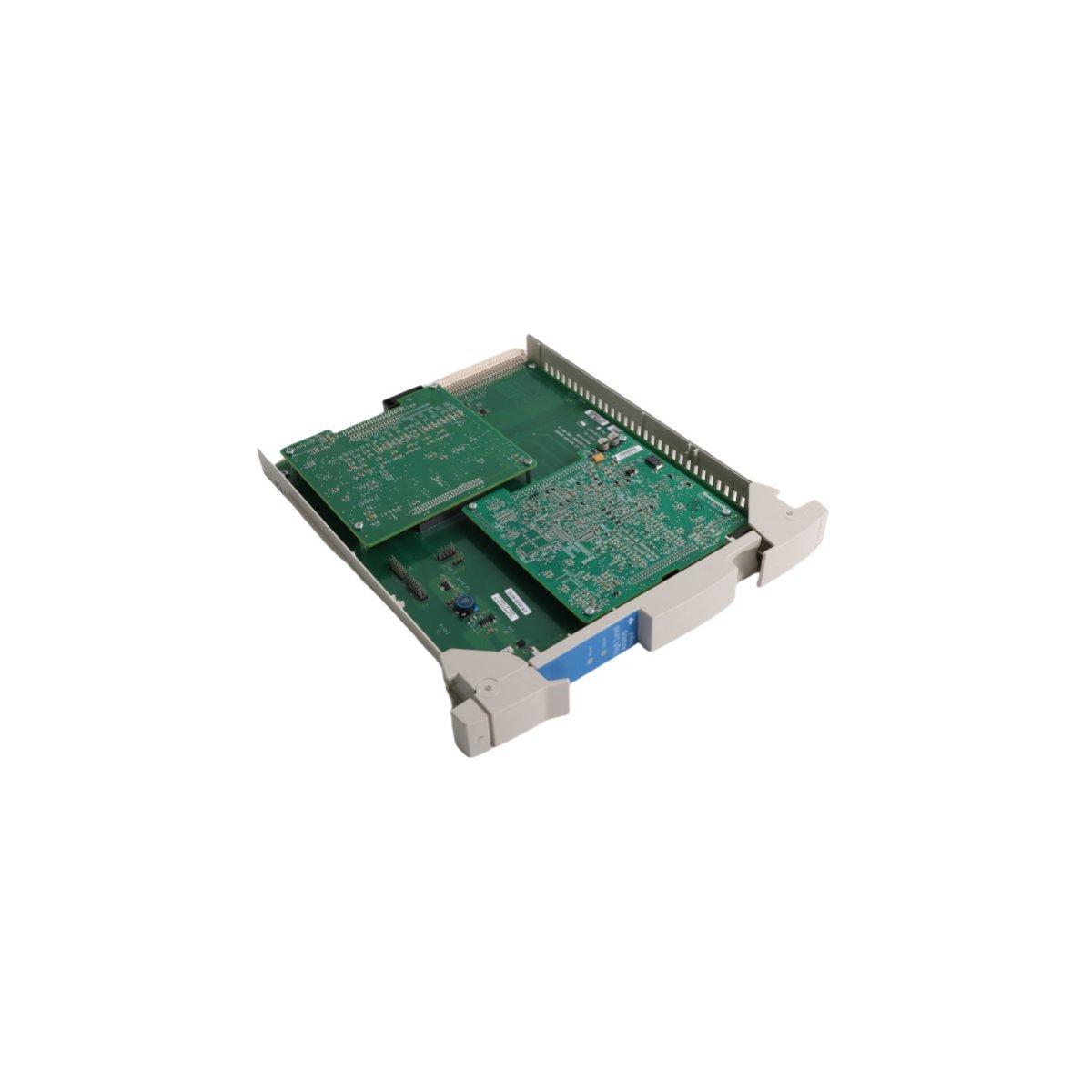

Configured for high-level analog signal acquisition and digitized parameter conversion in Experion PKS DCS platforms, the Honeywell 51307687-176 REV A (51307687-176 High Level Analog Input Module) provides direct physical/electrical execution.

Hardware Specifications

Process Control and DCS Interface Characteristics

• Integrates multi-channel 4-20 mA HART loop protocol carrier path logic to interface field instrumentation directly with process control processors.
• Provides robust channel-to-channel isolation parameters to prevent ground loops and field noise propagation across controller backplanes.
• Features internal cold junction compensation (CJC) path calibration circuits to maintain precision signal conversion limits across operating ambient variations.
• Connects to high-level analog input termination assemblies via structured edge connectors for high-density field signal routing.

Frequently Asked Questions

Q: What signal types does the 51307687-176 REV A module accept from field transmitters?

A: The module is designed for high-level analog current signals, typically standard 4-20 mA loops or 1-5 VDC voltage inputs used across process automation loops.

Q: How does the REV A designation impact replacement compatibility within an existing Experion PKS rack?

A: REV A indicates the specific hardware revision level. It installs directly into the corresponding Experion PKS chassis slot configured for high-level analog input assemblies.

Field Installation Guidelines

• Verify backplane power is isolated or adhere to hot-swap safety protocols before inserting the module into the I/O chassis rack.
• Ensure all field signal cable shields are grounded at a single terminal point on the system earth bar to prevent common-mode noise interference.
• Maintain proper vertical airflow clearance of at least 50 mm above and below the module rack assembly to ensure passive thermal dissipation within industrial enclosures.
