Description

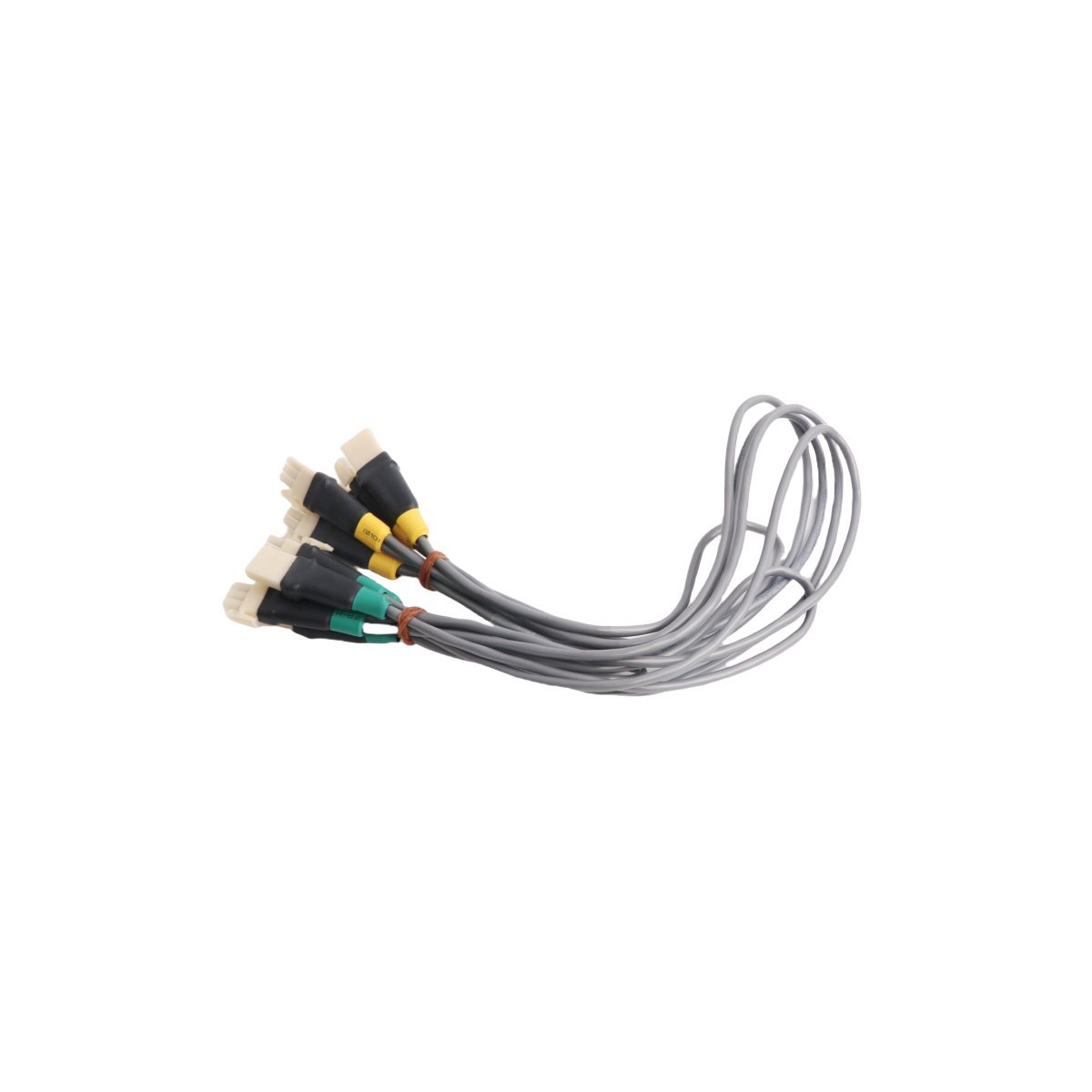

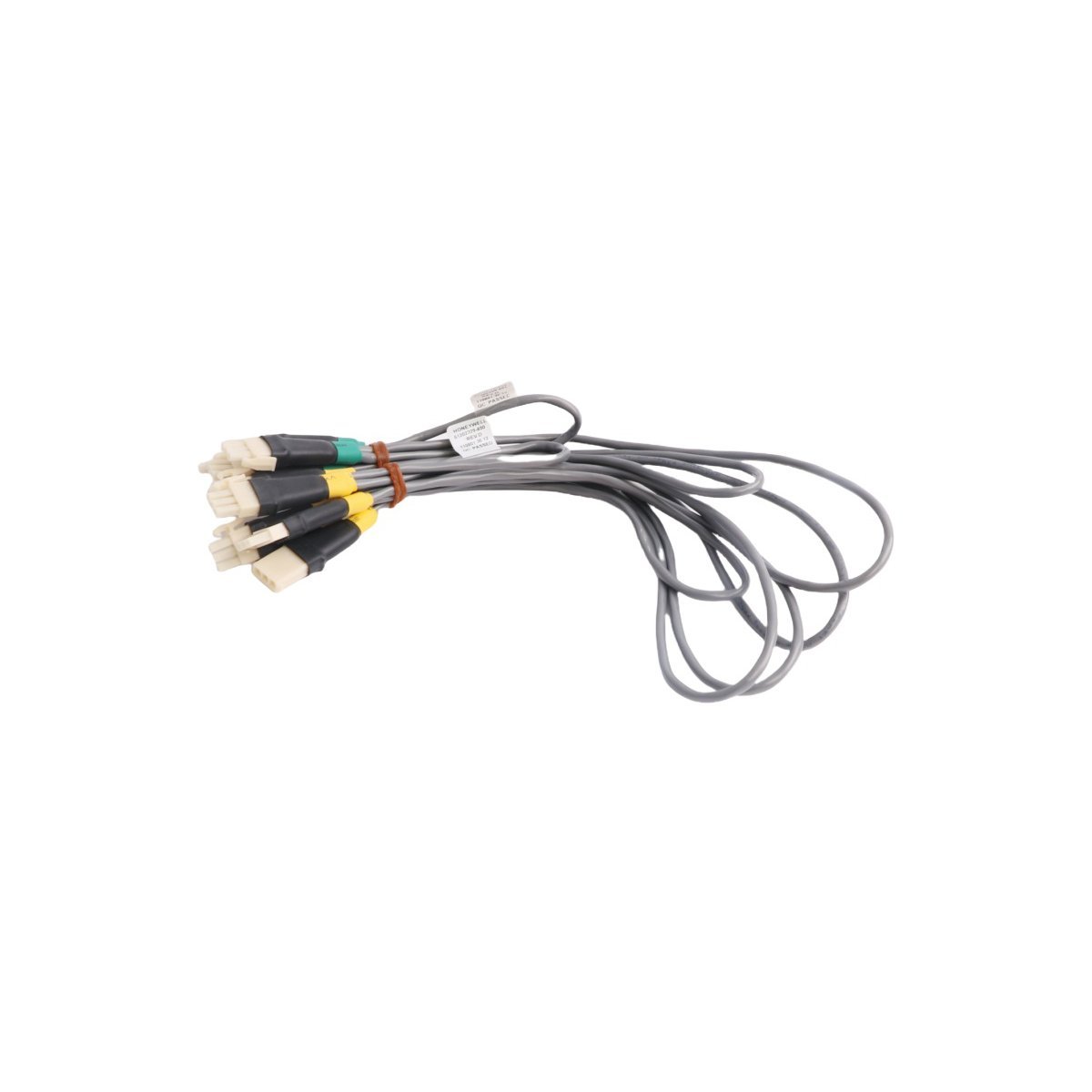

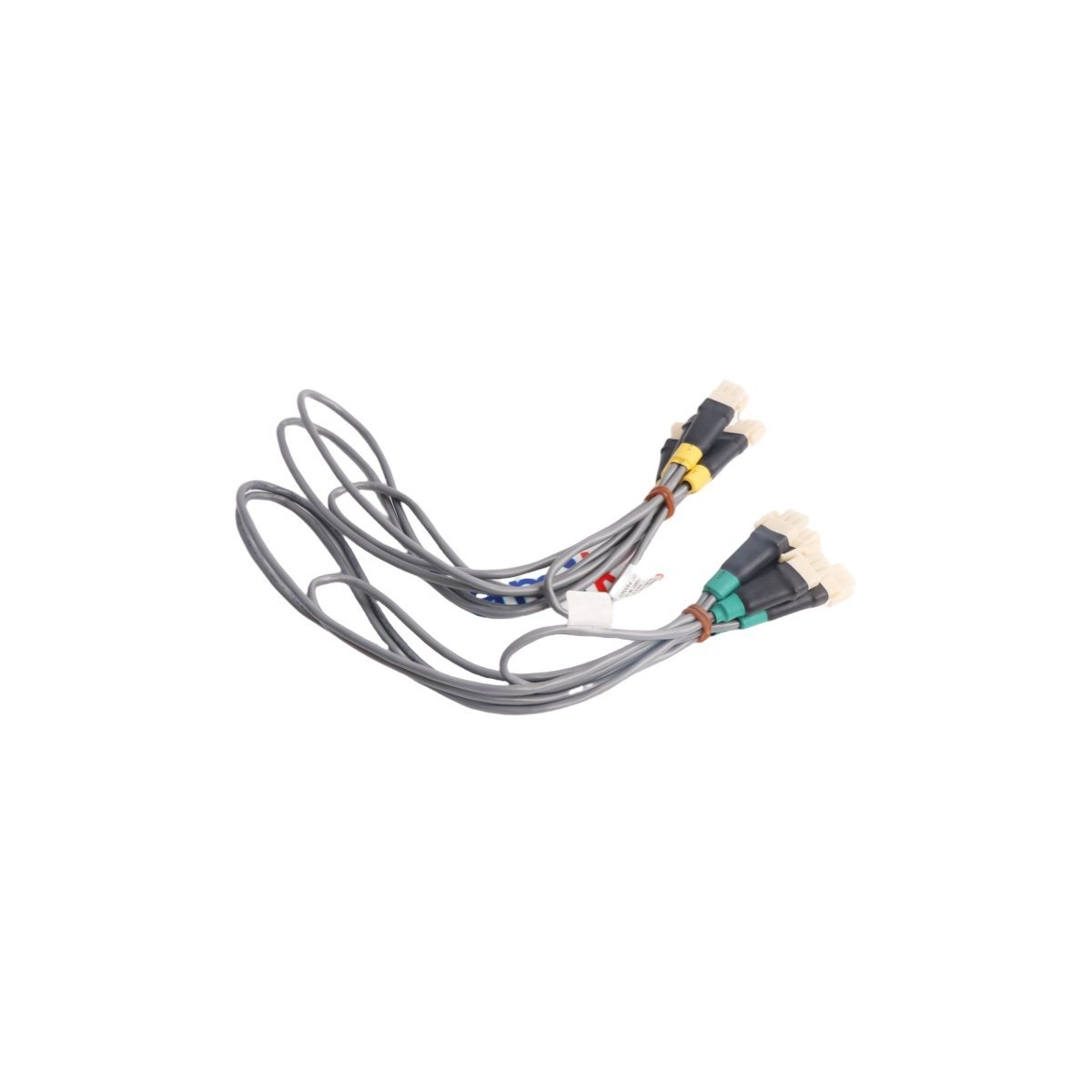

The Honeywell 51202329-402, also cataloged as the 51202329-402 I/O Link Cable, operates as a dedicated hardware component for deterministic I/O bus inter-module connectivity within Experion PKS DCS platforms.

Hardware Specifications

Process Control and DCS Interface Characteristics

• Transmits high-speed I/O bus data packages between controller baseboards and remote I/O termination assemblies.
• Incorporates physical shielding layer architecture to isolate field instrumentation signals from electromagnetic interference.
• Operates in 4-20 mA HART loop protocol carrier topology, maintaining signal integrity across distributed control racks.
• Features integrated connector locking mechanisms to ensure continuous connection under high-vibration control room environments.

Frequently Asked Questions

Q: What is the primary operational function of the 51202329-402 cable assembly?

A: It provides the physical point-to-point I/O link interface connecting Honeywell Experion PKS I/O modules to system backplanes or adjacent termination blocks.

Q: Does the cable require external power for signal conditioning?

A: No, the 51202329-402 is a passive connection assembly designed to carry low-voltage digital I/O bus communications directly.

Field Installation Guidelines

• Verify connector pin alignment before seating the cable end into the I/O interface receptacle to prevent bent pins.
• Do not exceed the minimum bending radius of 50 mm along the cable length to prevent conductor degradation.
• Ensure cable strain relief clamps are tightened inside the cabinet to protect interface ports from physical tension.
