Description

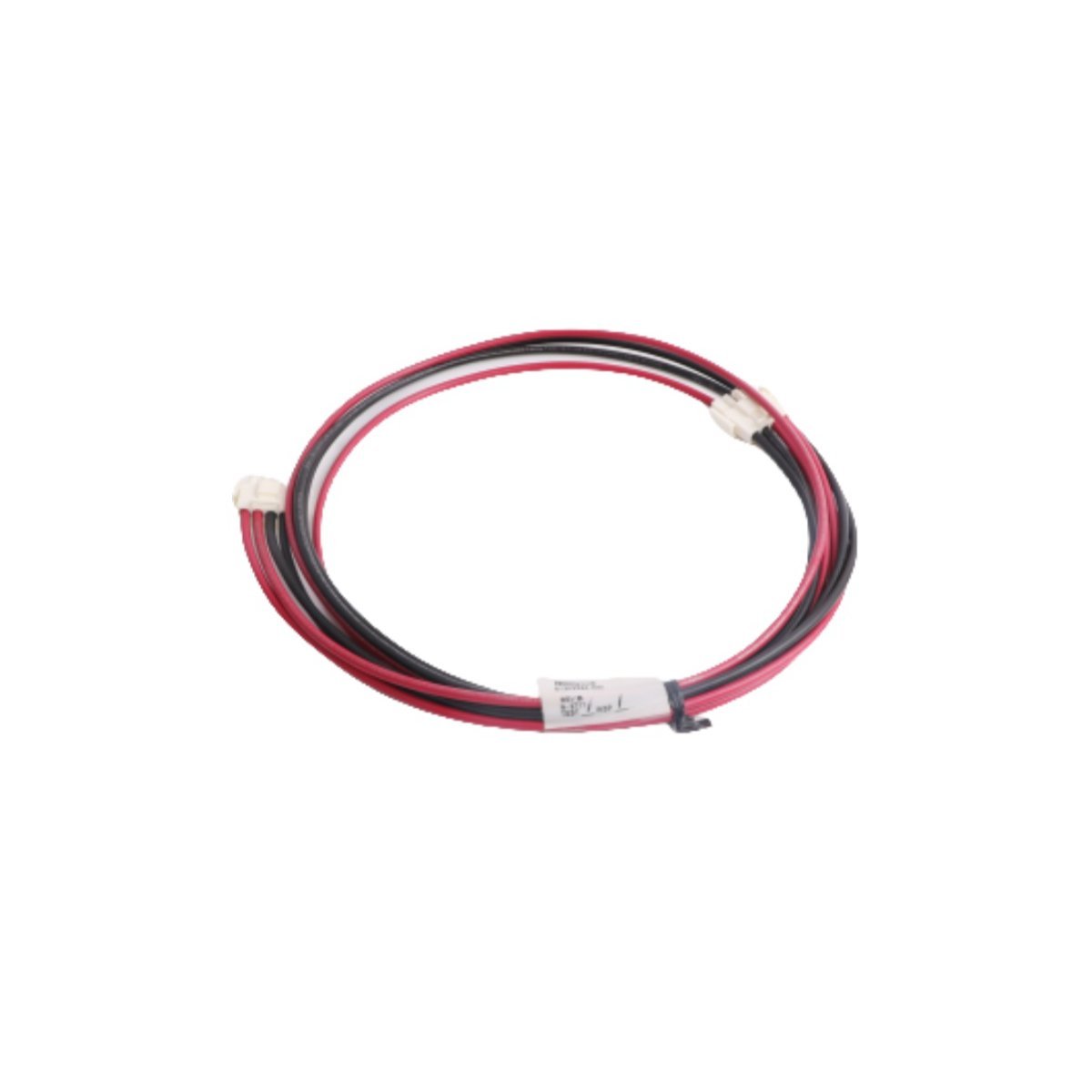

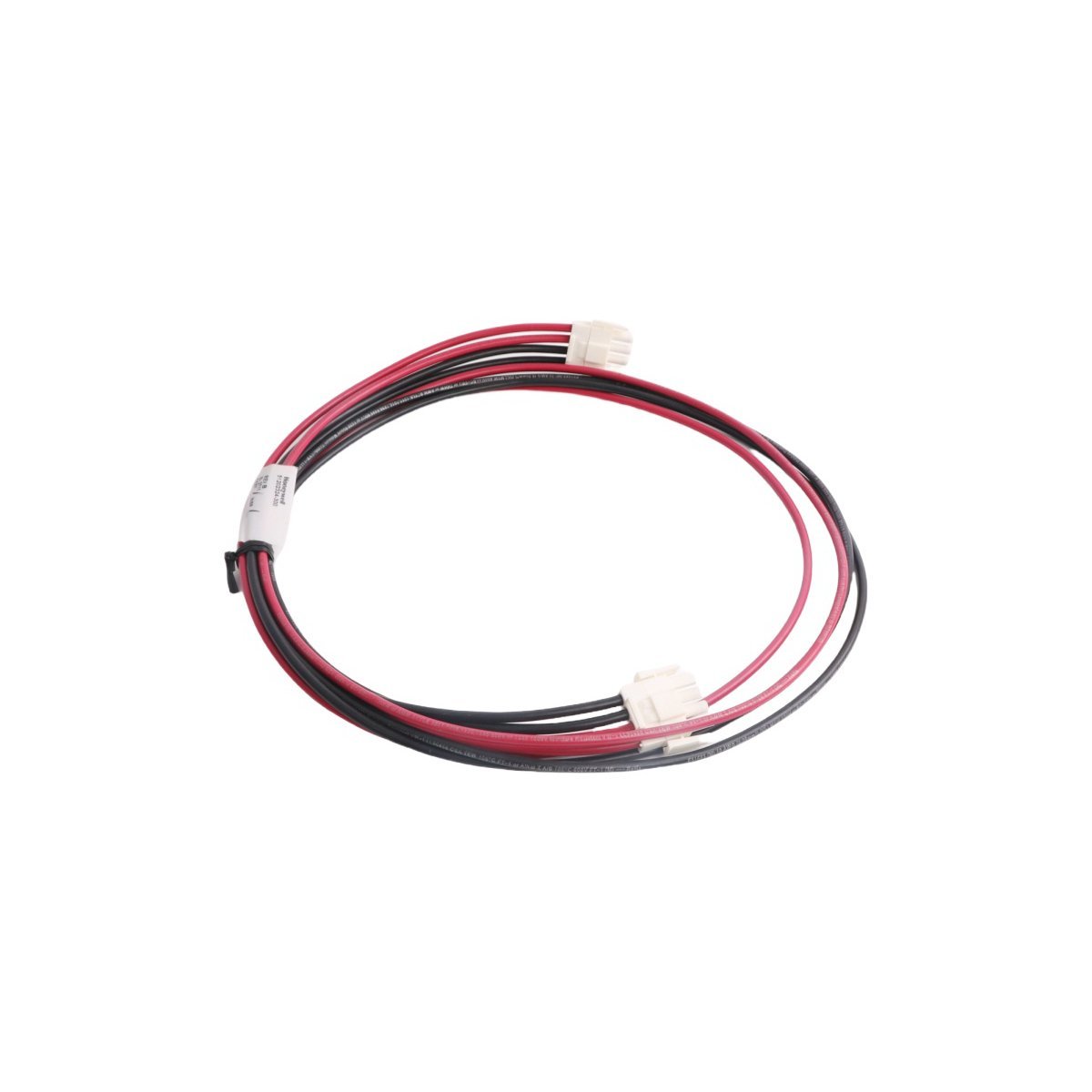

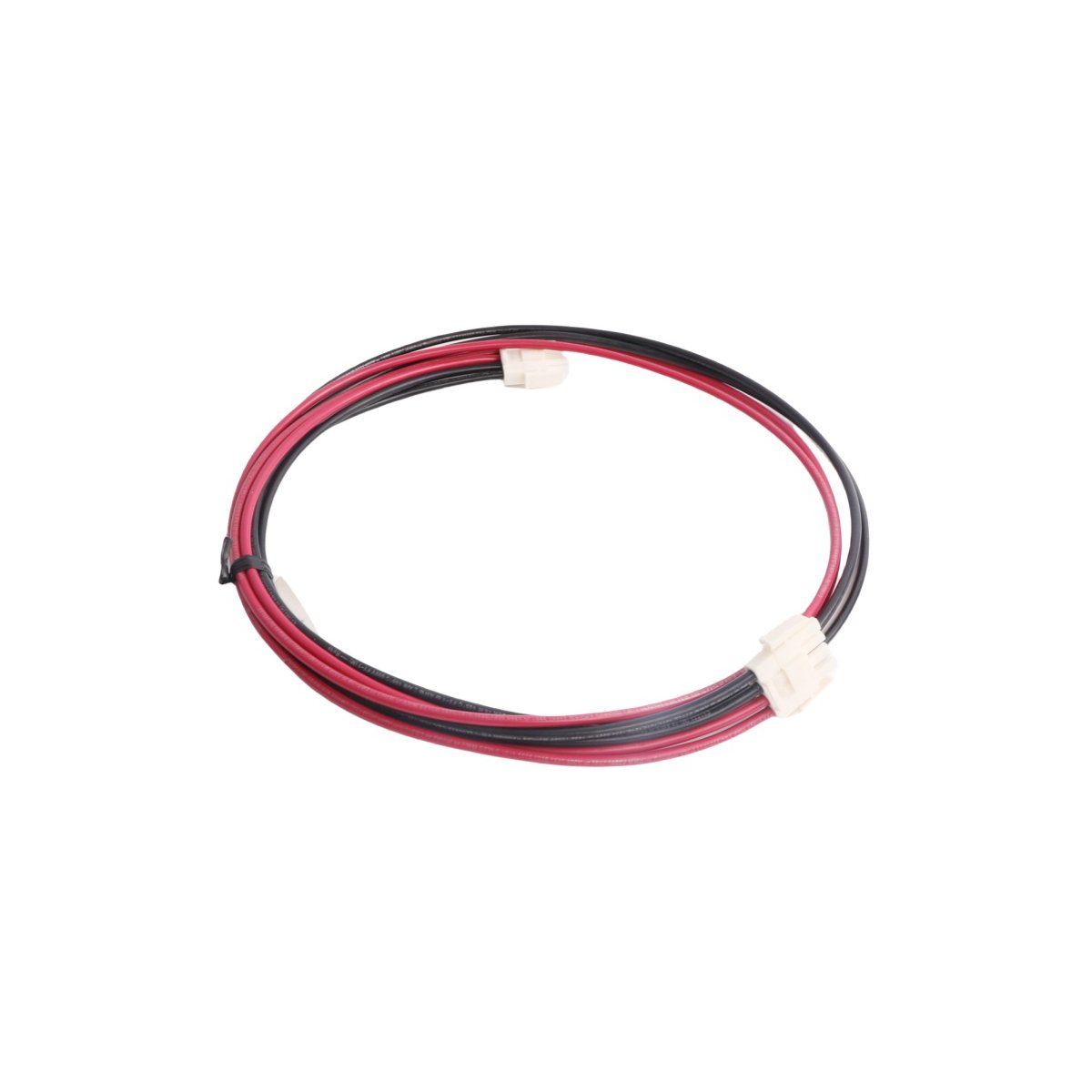

The Honeywell 51202324-300, also cataloged as the 51202324-300 Cable Power 24VDC, operates as a dedicated hardware component for power distribution and voltage transmission within distributed control system network topologies.

Suffix Breakdown & Model Matrix

• 51202324: Base manufacturing identifier designating the power cable assembly series within the Honeywell hardware architecture.
• -300: Engineering revision suffix indicating specific length parameters and connector configurations.

Hardware Specifications

Channel Isolation and Loop Protocol Management

The hardware integrates multi-channel galvanic isolation networks to protect internal processing nodes from common-mode voltage spikes originating in field instrumentation loops. Analog input and output paths maintain adherence to 4-20 mA HART loop protocol specifications, ensuring transparent transmission of superimposed digital diagnostic variables. Additionally, cold junction compensation (CJC) circuitry is embedded within the terminal assembly to stabilize thermocouple voltage measurements against ambient thermal drift inside industrial cabinet enclosures.

Frequently Asked Questions

• Q: Does the cable assembly support hot-plugging under active system power?

  A: No. Power distribution must be isolated prior to connecting or disconnecting the cable assembly to prevent electrical arcing and bus damage.

• Q: What is the primary voltage rating supported by this harness?

  A: The cable is engineered for 24 VDC nominal power distribution across rack assemblies.

• Q: Are shielding provisions included to mitigate electromagnetic interference?

  A: Yes. The cable incorporates continuous metallic braiding designed for proper cabinet earth grounding.

Field Installation Guidelines

• Route the power cable strictly through designated wireways away from high-voltage AC lines to prevent induced transient noise.
• Secure all connector fasteners to recommended torque limits to maintain low-resistance ground continuity.
• Verify polarity across 24 VDC power supply terminals prior to system energization.
