Description

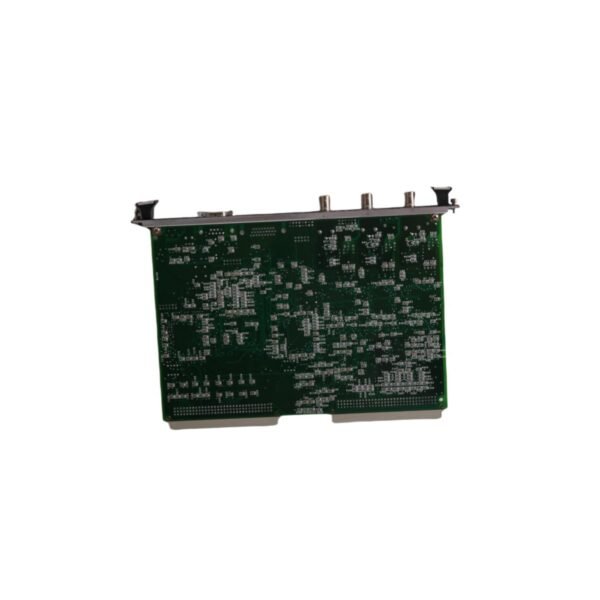

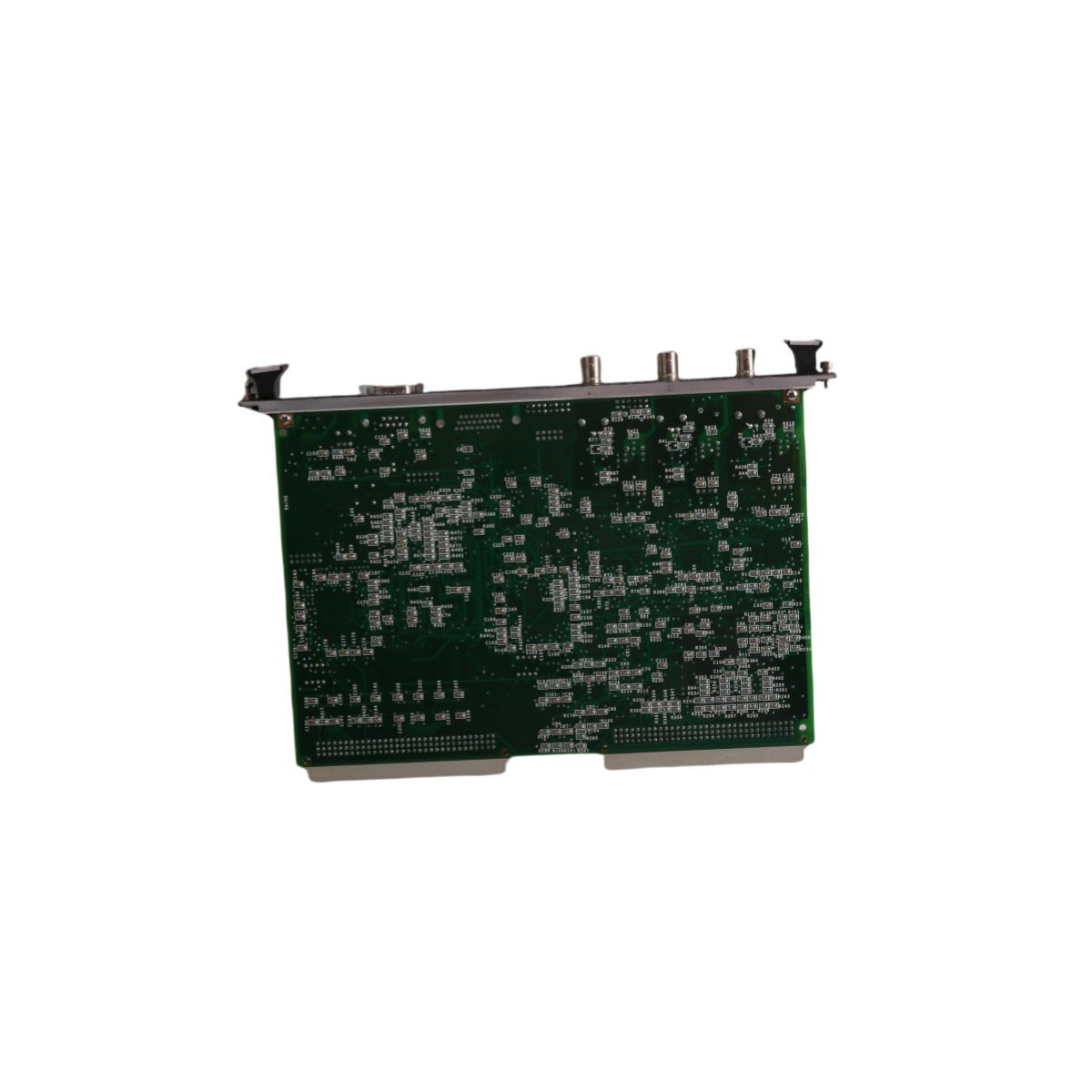

The GE IS215VCMIH2B acts as the primary VME Bus Master Controller within the Mark VIe control architecture. This high-performance card coordinates all data traffic between turbine processors and distributed I/O modules. It functions as the central intelligence hub for the IONet control network. By managing complex data routing, it ensures synchronized operation across gas and steam turbine systems. This board maintains system integrity through continuous power monitoring and board identification protocols.

Key Technical Specifications

This communication interface utilizes a 6U VME form factor to provide high-speed data handling. The hardware supports robust processing requirements for modern power generation facilities.

• Processor: 32-bit Texas Instruments DSP
• Memory: 256k x 32 Static RAM (SRAM)
• Network Interface: Triple IONet ports for redundant communication
• Hardware Form Factor: Standard 6U VME card
• Diagnostic Interface: One serial port and multi-status LED indicators
• Physical Protection: Industrial-grade conformal coating
• Power Monitoring: Integrated analog and digital signal tracking
• Dimensions: 2.1 x 18.8 x 26.2 cm
• Weight: 0.36 kg

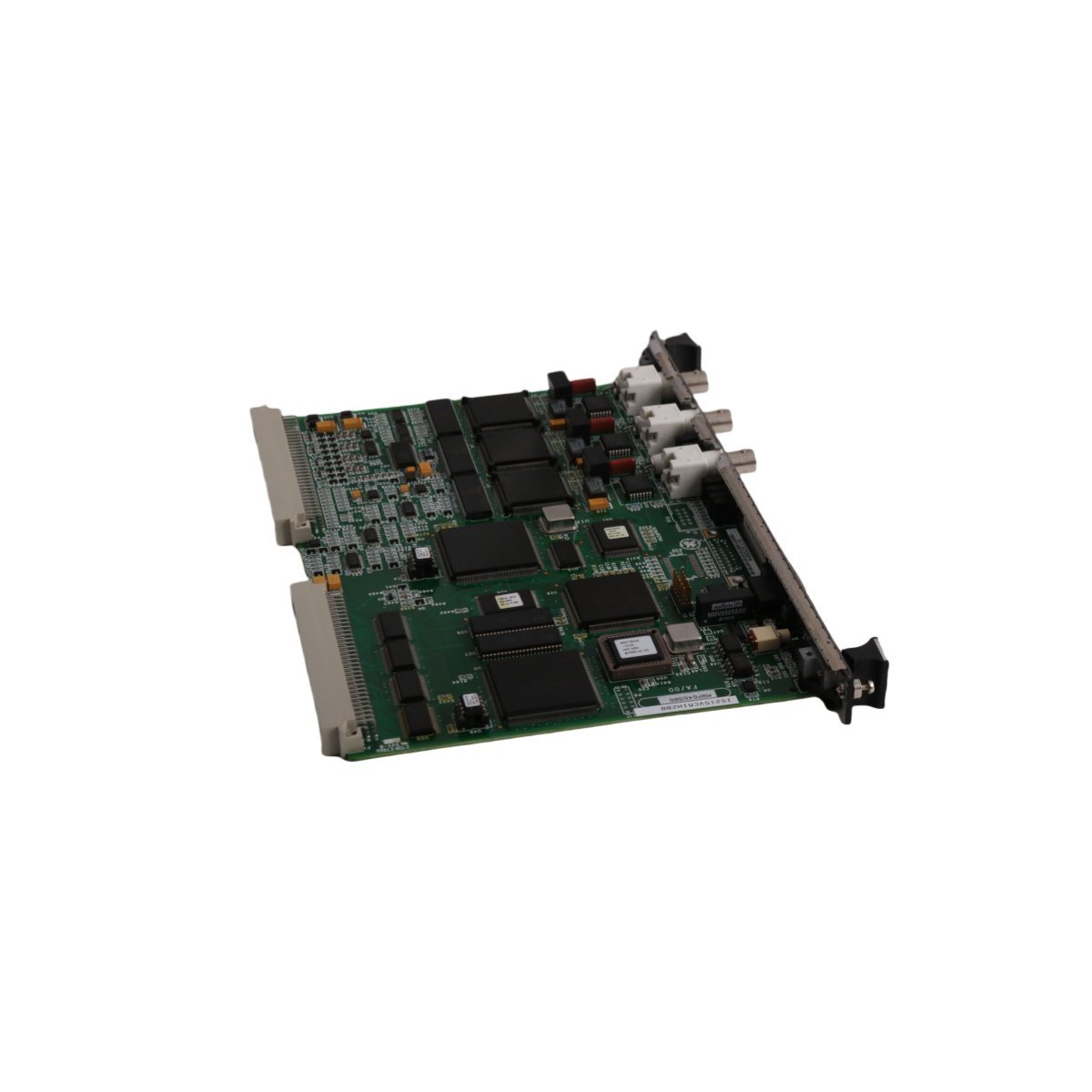

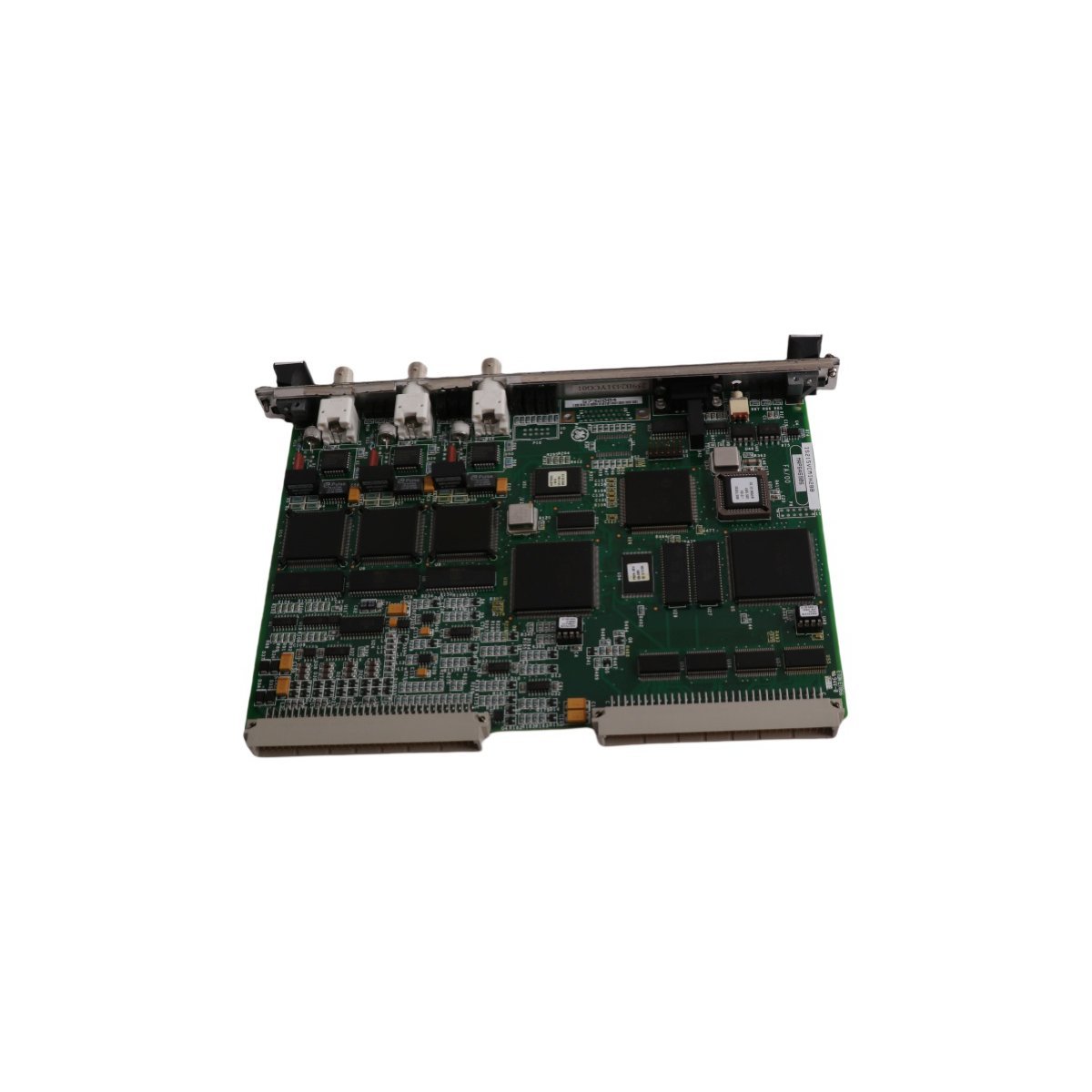

Functional Design and Architecture

The IS215VCMIH2B employs a sophisticated layout to ensure durability in extreme industrial settings. Its design includes over 40 inductor beads and three isolation transformers to mitigate electromagnetic interference. The card communicates through the J301 backplane to assign unique identities to all rack-mounted components. Furthermore, the B-revision hardware enhances reliability over previous iterations. This board manages the critical timing of data transfers across fiber-optic or copper IONet channels. Consequently, it supports the high-speed logic necessary for turbine protection and control.

Operational Indicators and Diagnostics

The front panel provides technicians with comprehensive real-time status updates. Three sets of dedicated LEDs track transmission, reception, and carrier detection for IONet traffic. A separate group of diagnostic LEDs displays numerical codes to identify specific system faults. These indicators allow for rapid troubleshooting during commissioning or maintenance cycles. Additionally, the integrated serial port enables direct connection for advanced firmware configuration. This transparency helps operators maintain peak turbine efficiency and reduce unplanned downtime.
