Description

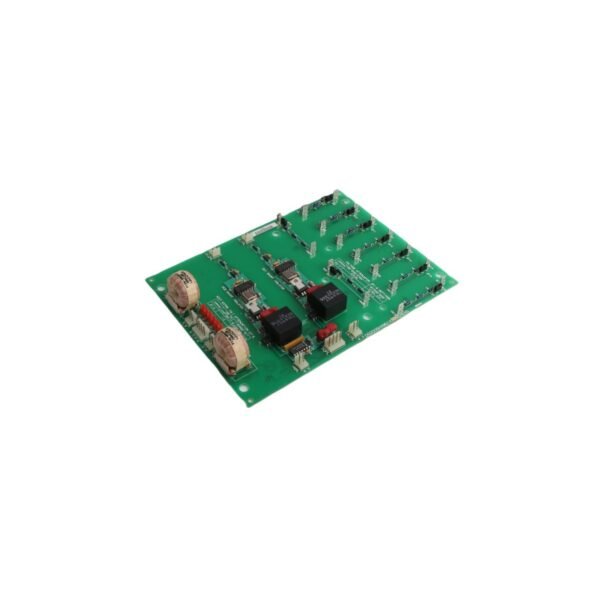

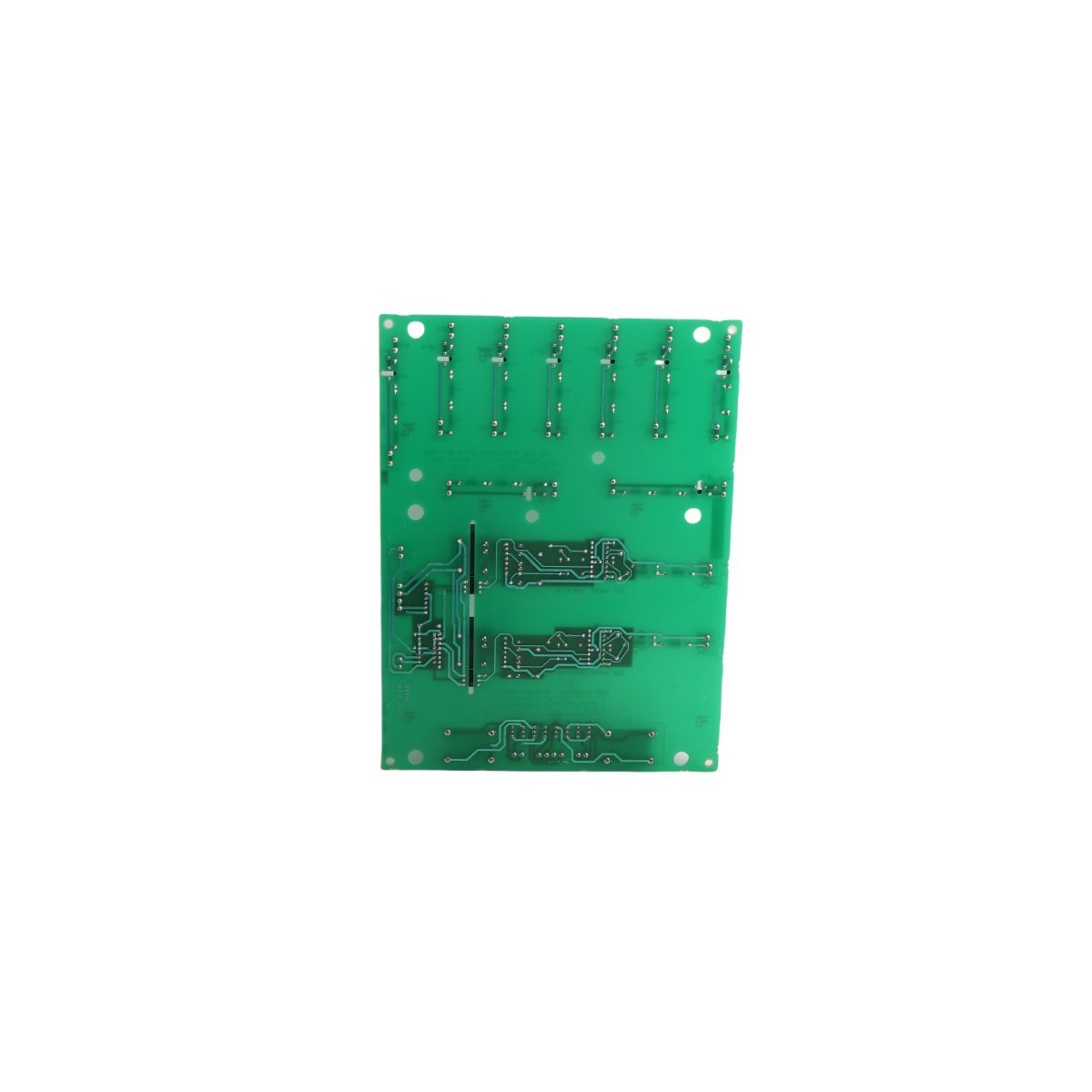

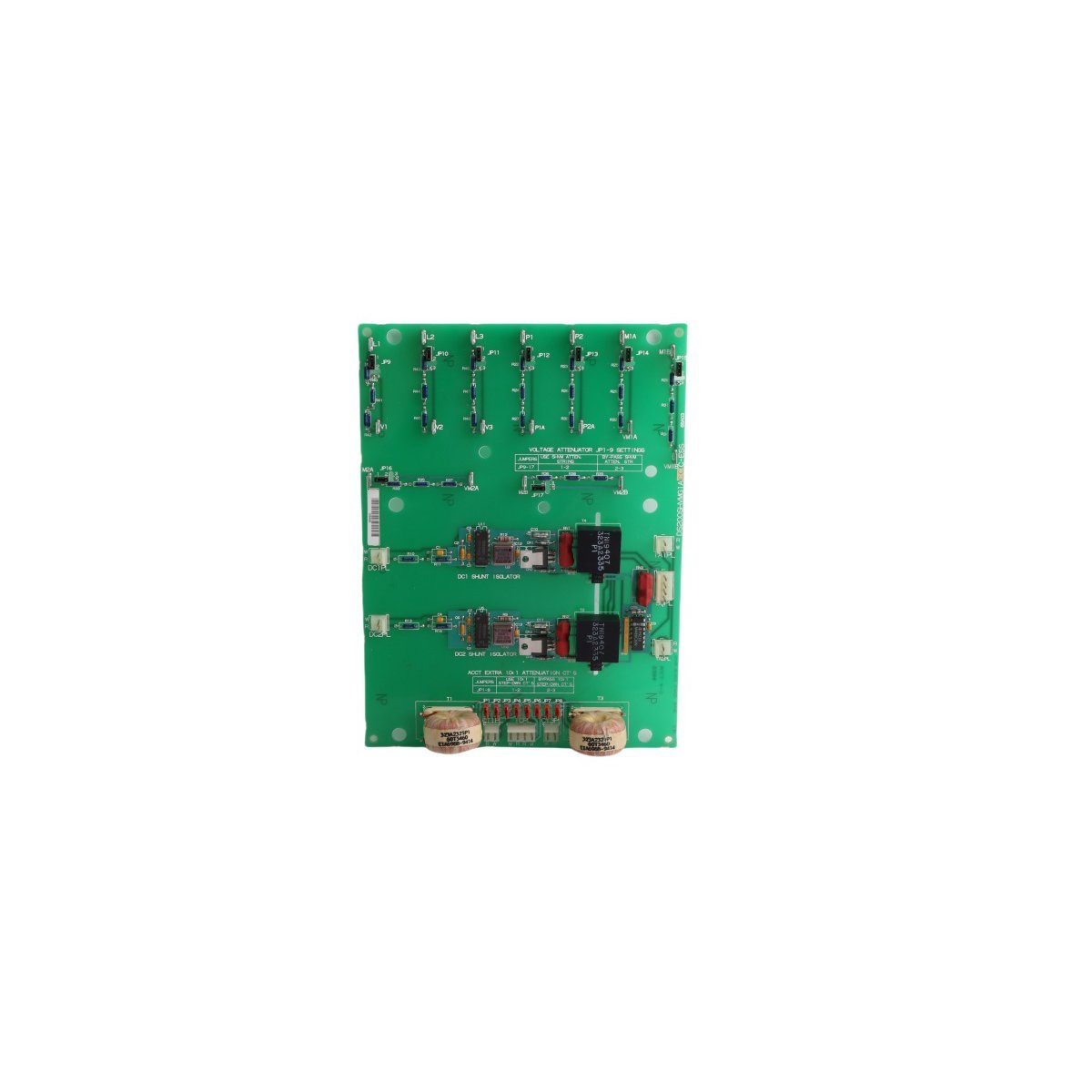

The GE DS200SHVMG1ACC serves as a specialized M-frame high voltage interface within the Speedtronic Mark V control system. This board manages the critical data link between the SCR bridge and primary power distribution components. It primarily facilitates communication with PCCA, DCFB, and SDCI power supply modules. By processing sensitive voltage signals, the board ensures stable turbine drive performance. This hardware remains essential for maintaining legacy gas and steam turbine automated infrastructures.

Signal Processing and Conversion

This interface board excels at precise signal translation for motor armature monitoring. It receives shunt signals within a span of -500 to +500 mV. Subsequently, internal voltage-controlled oscillator (VCO) circuits convert these levels into differential frequency outputs. These resulting outputs range from 0 to 500 kHz for high-speed digital processing. Furthermore, the board monitors AC line currents using 10:1 attenuation via integrated current transformers. This ensures accurate feedback for the drive control logic.

Hardware Configuration and Connectivity

Users can customize the board’s operational parameters through seventeen onboard jumpers. These jumpers allow for precise calibration based on specific drive requirements. The DS200SHVMG1ACC utilizes standardized stab and I/O connectors for secure electrical paths. Specifically, the IA2PL-1 and IA2PL-2 ports manage the differential VCO positive and negative outputs. This robust physical design supports long-term reliability in demanding industrial environments.

Product Specifications

Industrial Applications

Power generation facilities rely on this board for consistent turbine governor control. It manages heavy-duty M-frame drives in gas and wind energy sectors. The module provides the necessary isolation and conversion for high-voltage monitoring. Despite the series’ mature status, it remains a vital component for existing DCS frameworks. Its proven architecture prevents signal degradation in electrically noisy environments.
