Description

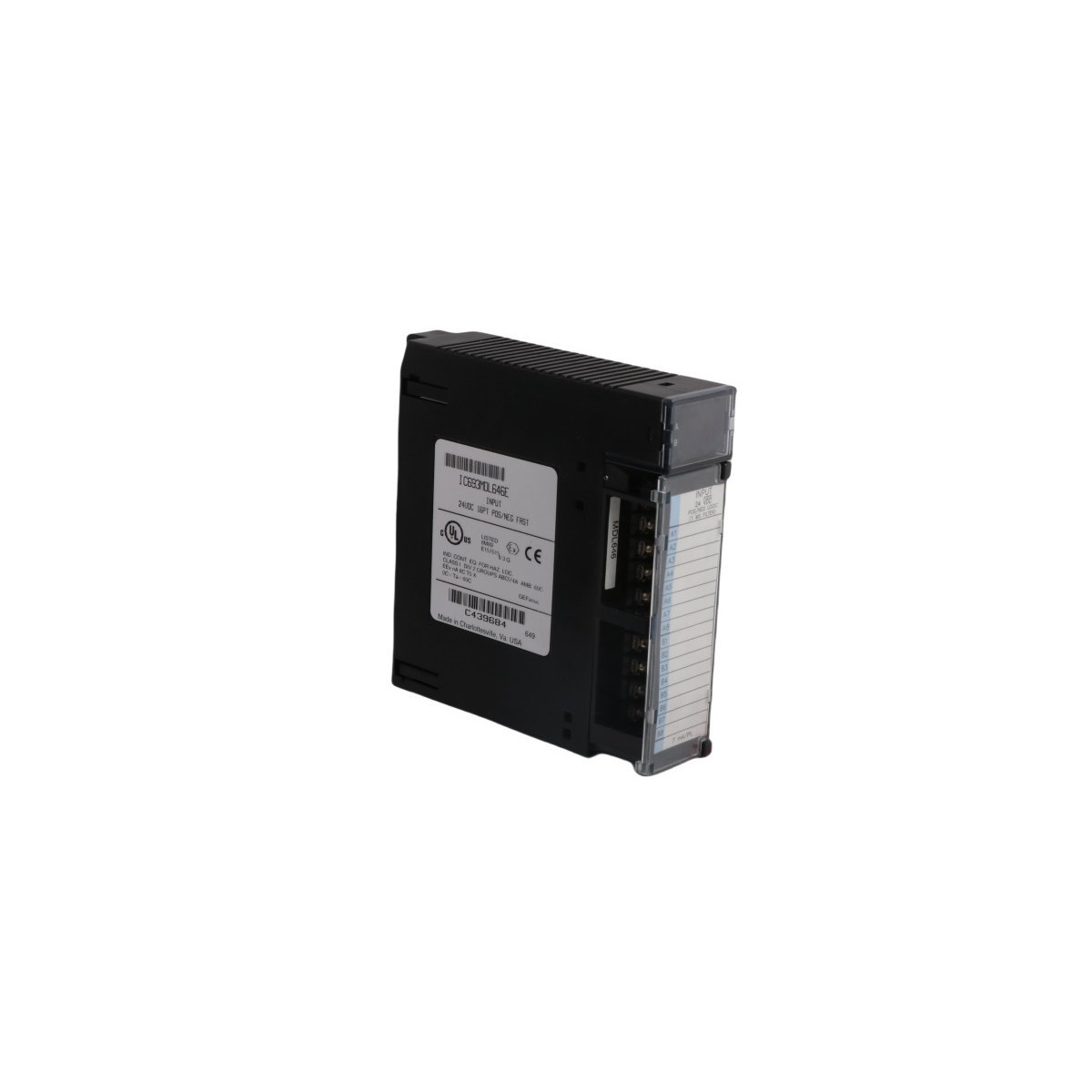

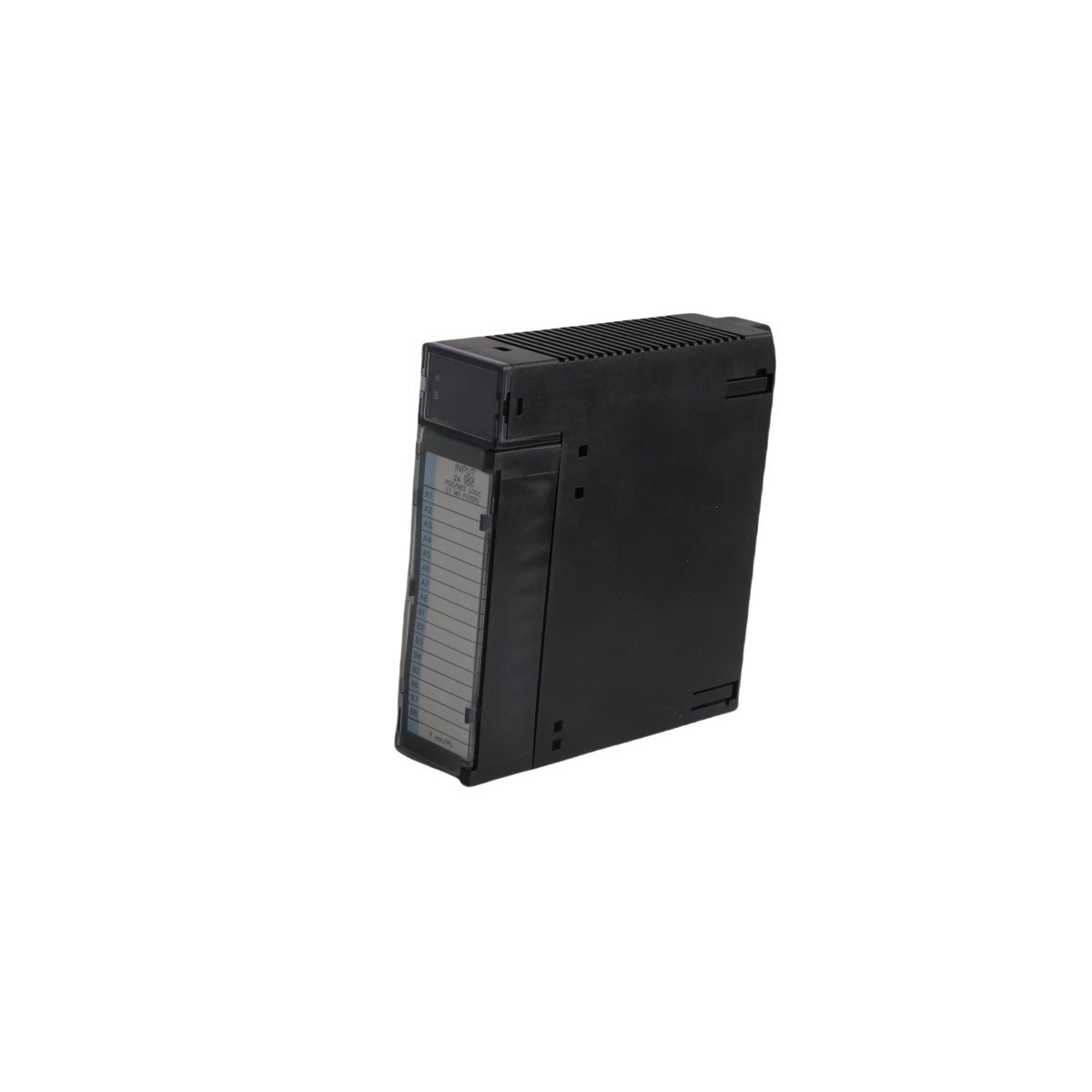

The GE Fanuc IC693MDL645 provides high-density discrete input capabilities for the Series 90-30 PLC system. This 24 VDC module features 16 input points arranged in a single isolated group. It supports both sink and source wiring configurations due to its versatile design. Consequently, it interfaces easily with a wide variety of binary field devices. The unit offers a fast typical response time of 7 milliseconds. This speed ensures reliable performance for standard automation and monitoring tasks.

Input Performance and Logic

This module utilizes positive or negative logic to accommodate different sensor types. It works seamlessly with push buttons, limit switches, and electronic proximity sensors. The hardware includes an internal filter to reduce electrical noise and bounce. Specifically, the On-state current requirement remains at 3.2 mA minimum for stable detection. Meanwhile, the Off-state threshold stays below 1.1 mA to prevent false triggers. These precise electrical characteristics ensure consistent operation in complex industrial environments.

Installation and Wiring

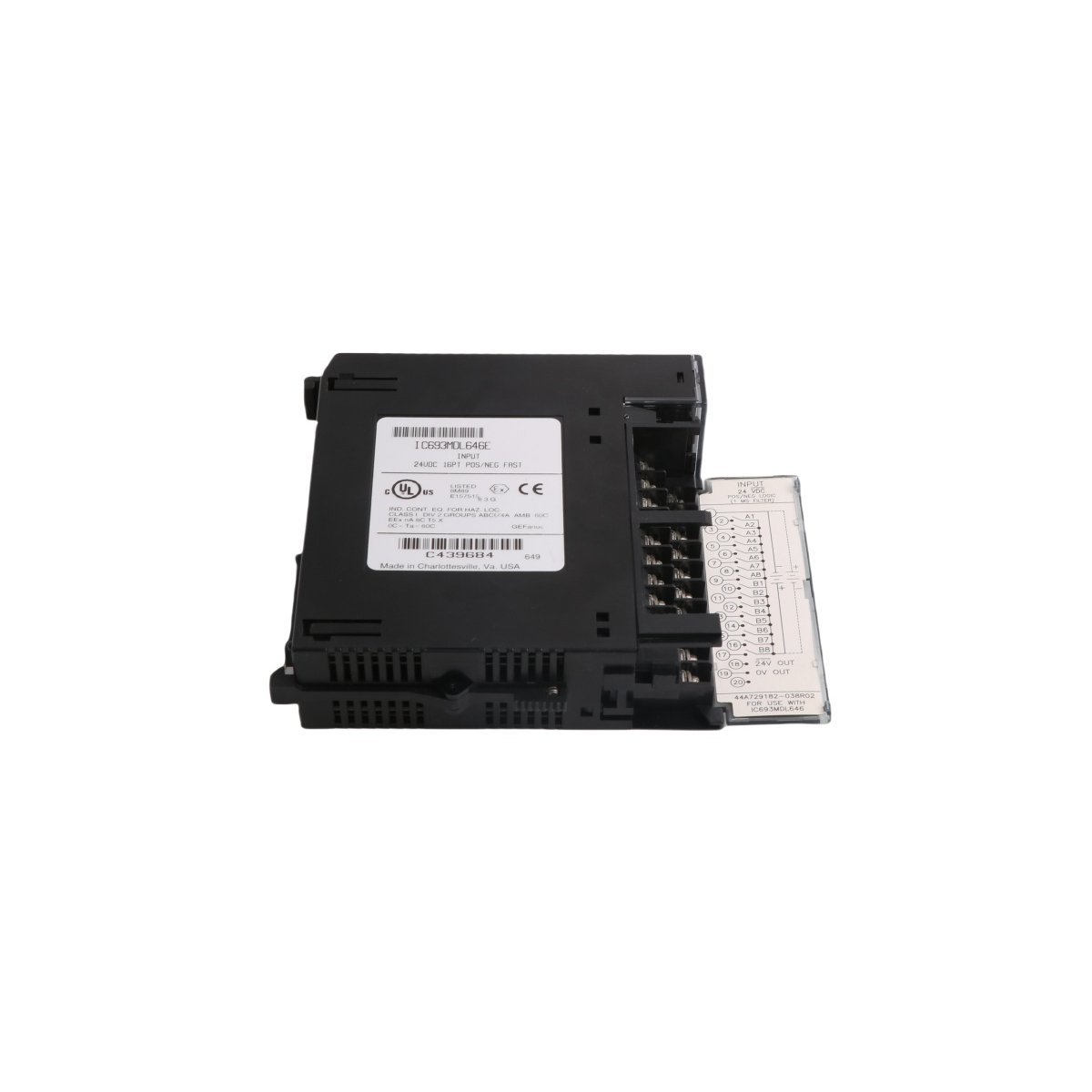

The IC693MDL645 includes a removable 20-terminal connector for simplified field wiring. A hinged swing door protects the terminal connections from accidental contact. Furthermore, the internal face of this door contains a convenient wiring diagram. The module also features color-coding to identify it as a low-voltage DC component. For rapid diagnostics, individual LED indicators display the logic state of every channel. A separate “Module OK” LED confirms the internal health of the hardware.

Application and System Integration

This component integrates directly into any Series 90-30 baseplate slot. It remains compatible with both older GE Fanuc and newer Emerson PACSystems hardware. Its compact 35mm width helps maximize space in crowded control cabinets. Furthermore, the robust construction withstands typical vibration and thermal stress found in factories. This makes the IC693MDL645 an ideal choice for material handling and packaging systems. It provides a cost-effective solution for digital data acquisition in small to mid-sized PLCs.

Module Specifications

• Manufacturer: GE Fanuc / Emerson
• Model Number: IC693MDL645
• Input Voltage Range: 0 to 30 VDC
• Nominal Voltage: 24 VDC
• Number of Inputs: 16 (Single Group)
• Input Current: 7 mA per point at 24 VDC
• On-State Voltage: 15 to 30 VDC
• Off-State Voltage: 0 to 5 VDC
• Internal Power Consumption: 80 mA from 5V bus
