The GE DS3800NTCF1C1C is a specialized thermocouple conditioning module designed for the Speedtronic Mark IV control system to monitor and regulate turbine exhaust temperatures.¹ It processes high-accuracy thermal data to ensure the safe and efficient combustion performance of gas and steam turbines.²

Product Description

Critical Temperature Regulation and Monitoring

The GE DS3800NTCF1C1C serves as a vital signal conditioning interface within the legacy Speedtronic Mark IV turbine control architecture. This card specifically manages the thermocouple inputs that monitor exhaust gas temperatures (EGT).³ By capturing real-time thermal data and comparing it against programmed reference setpoints, the board allows the control system to modulate fuel flow and maintain combustion stability.⁴ In a typical Mark IV configuration, a bank of thirteen such cards works in unison to provide redundant and precise temperature profiling. Consequently, the reliability of this board directly impacts the engine’s health, as faulty data from a single card can lead to improper combustion balances or localized overheating.

Technical Architecture and Hardware Components

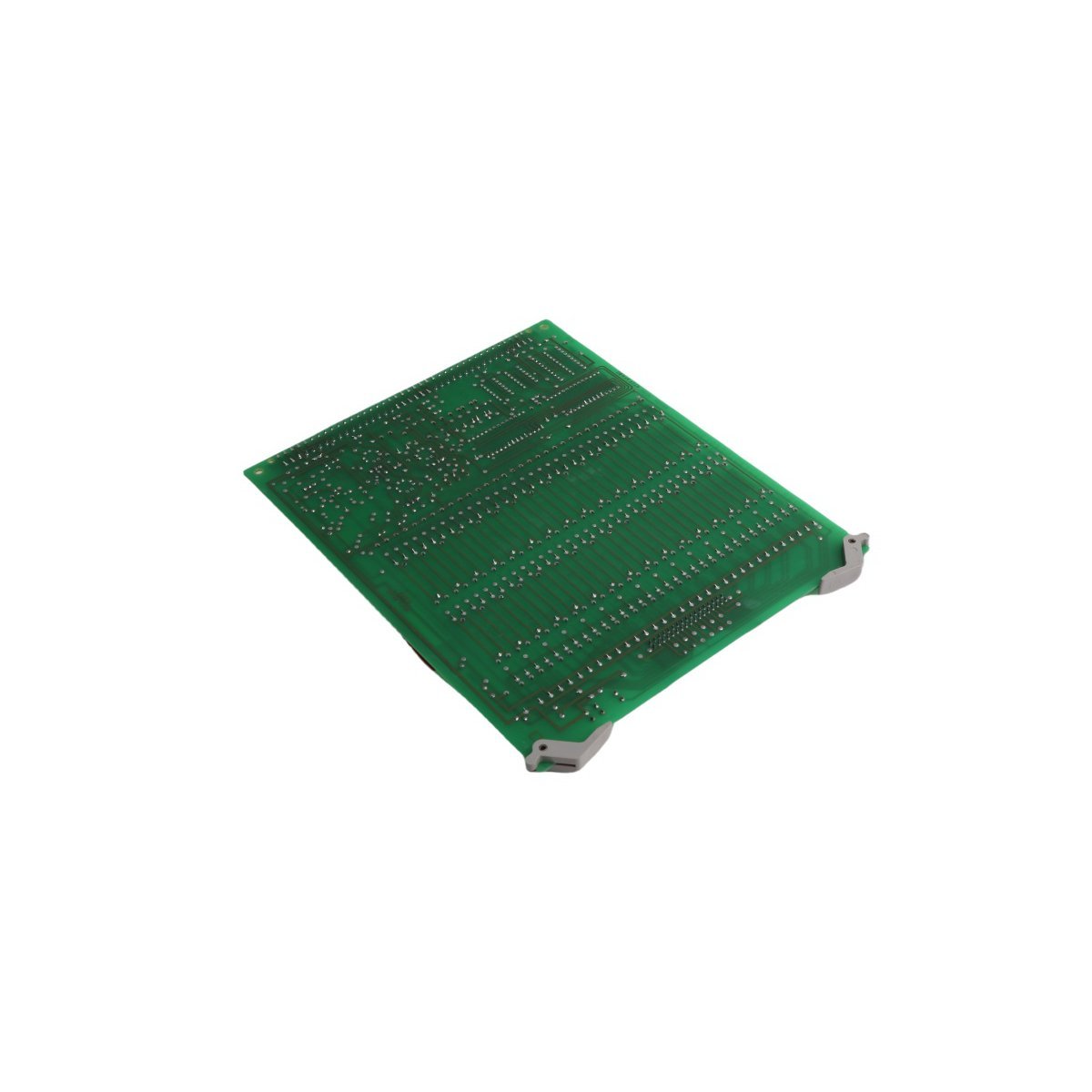

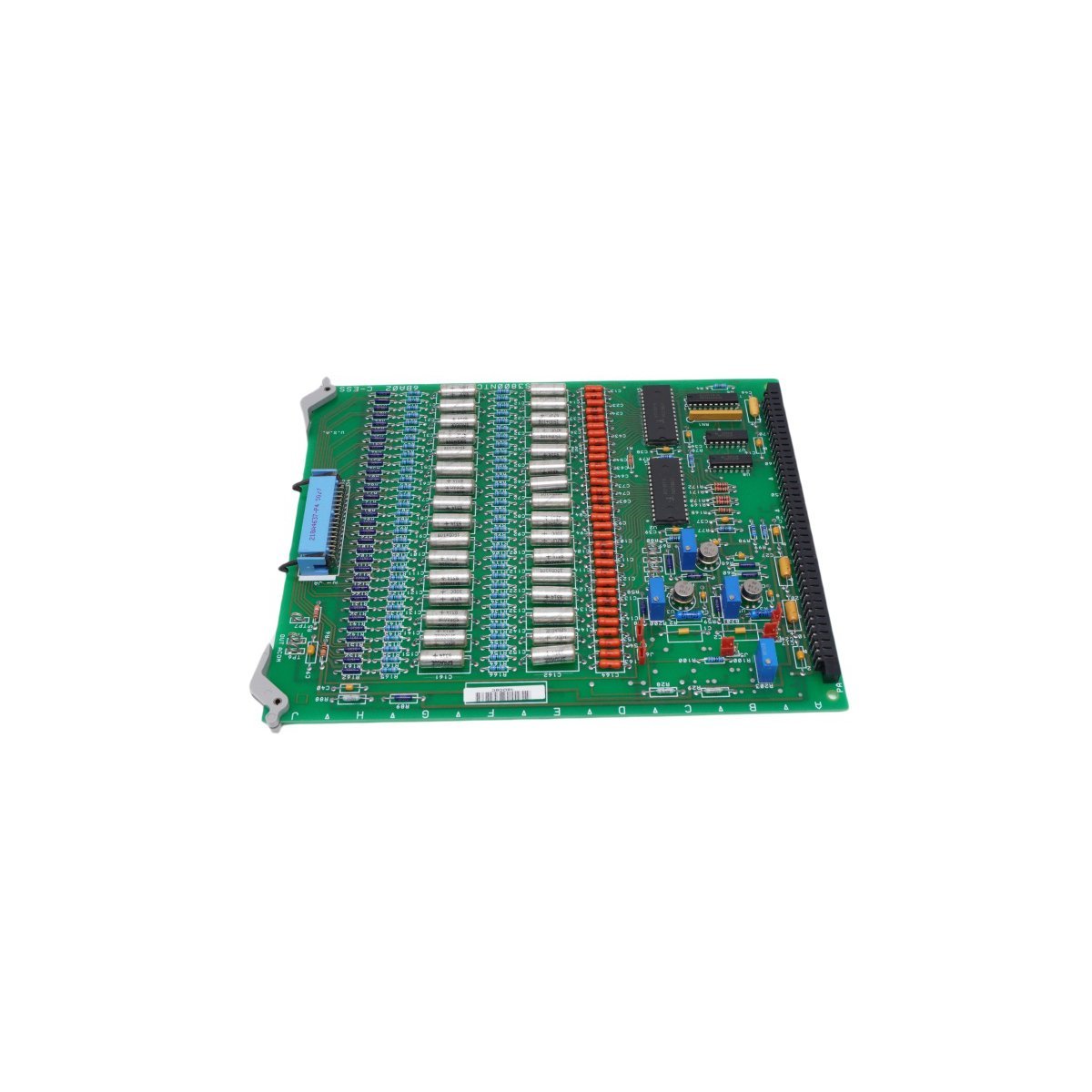

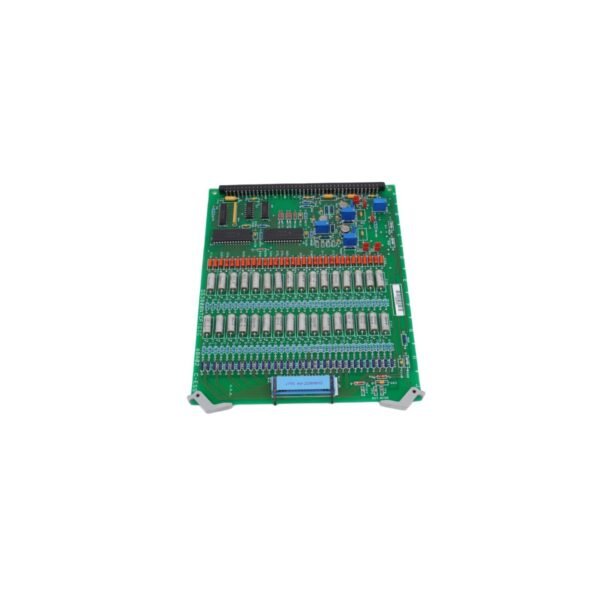

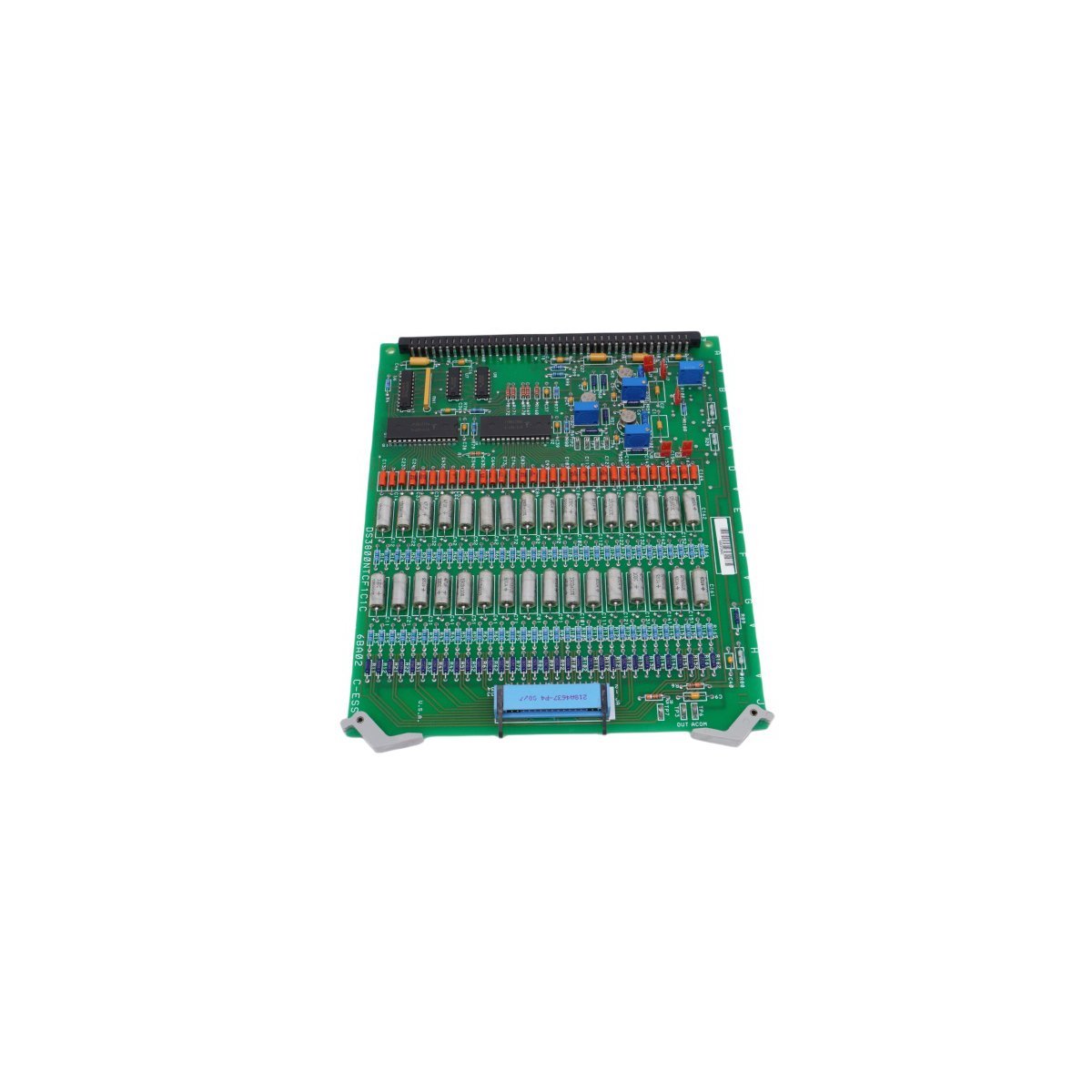

This refined iteration of the thermocouple condition board integrates several adjustable parameters to ensure precise voltage distribution and signal calibration. The hardware layout includes four high-precision potentiometers and a series of five jumper switches, which technicians use to tune the board to specific sensor profiles. Furthermore, the assembly features a robust combination of metal film and carbon composite resistors, paired with ceramic and polyester film capacitors to maintain signal integrity in high-EMI environments. The board also utilizes specialized connectors, specifically the 218A4637-P4 and 218A4553-1 types, ensuring secure mechanical and electrical seating within the control rack.⁵

Installation and Legacy Maintenance

Engineered for ease of service, the DS3800NTCF1C1C incorporates factory-drilled alignment points and nylon extractor clips.⁶ These clips facilitate swift removal and insertion, minimizing potential damage to the PCB during maintenance cycles. Although the Mark IV series is a legacy product line replaced by newer Speedtronic generations, this “C1C” revision remains an essential spare part for maintaining the operational life of existing gas and steam turbines. Because GE has discontinued the active production of these units, sourcing authentic, high-quality boards is necessary to prevent unplanned outages and ensure the continued accuracy of the turbine’s thermal protection logic.
